Advance Tabco  |  SKU: DTC-3-2020-120R  |  UPC: 747545118639

Advance Tabco DTC-3-2020-120R Compartment Sinks

$4,478.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

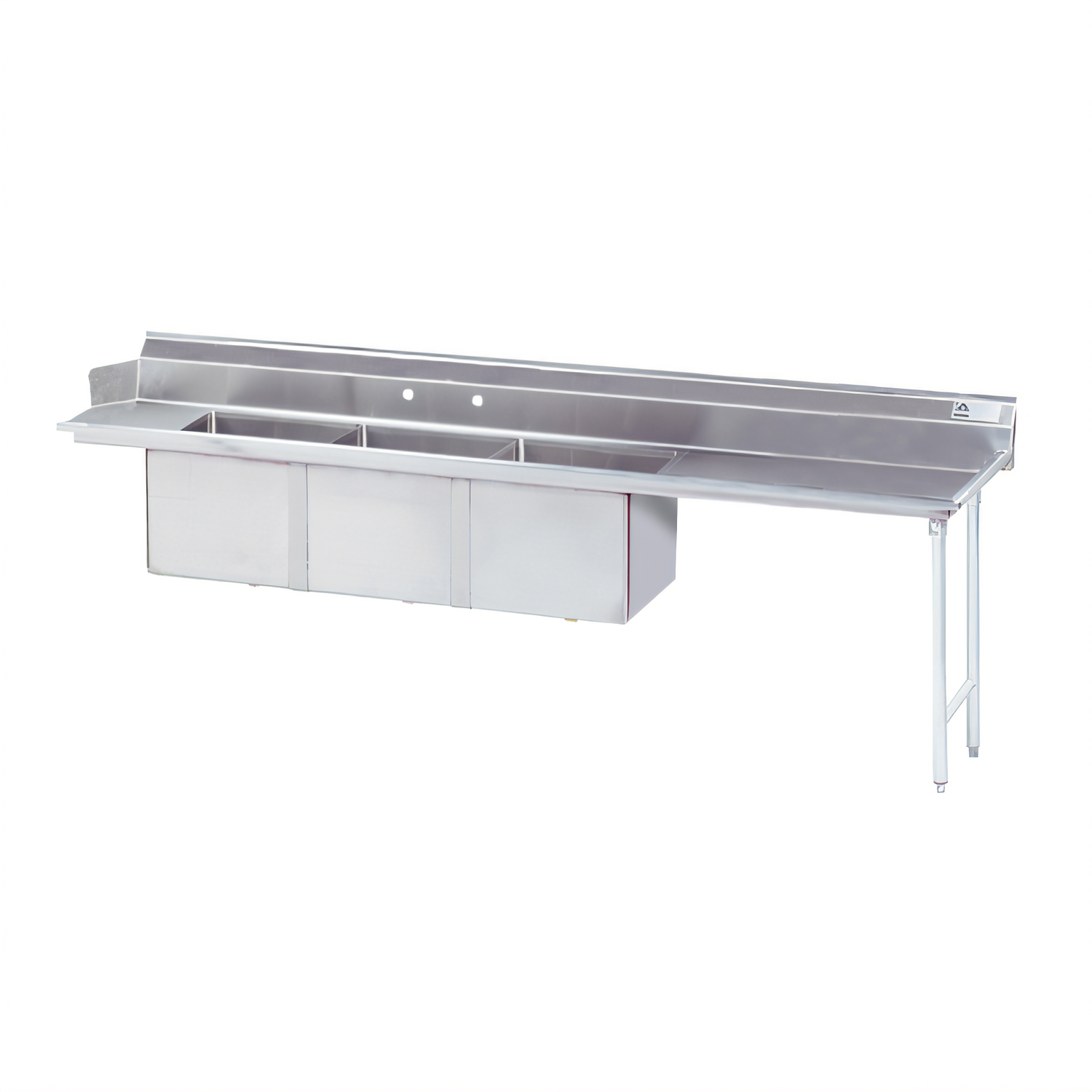

Advance Tabco DTC-3-2020-120R 119" Stainless Steel Dishtable with 3-Compartment Sink & Right Drainboard

Built for right-hand door dish machines • 16 ga. 304 SS • NSF

Streamline every ware-washing step with a single, heavy-duty unit. The Advance Tabco DTC-3-2020-120R combines a spacious 3-compartment fabricated sink, an extra-long right drainboard, and a rugged dishtable top—delivering the workflow efficiency and durability that high-volume kitchens demand.

Key features

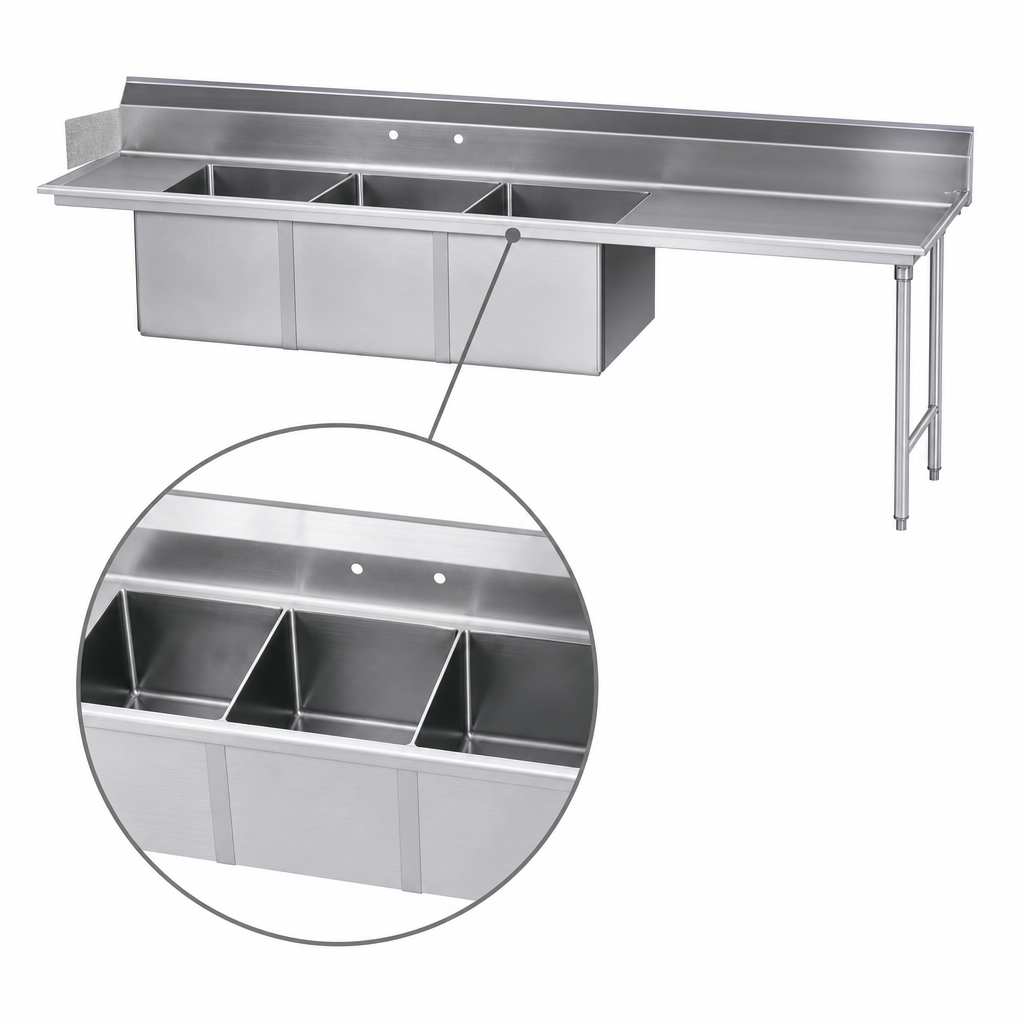

  • (3) 20" × 20" × 14" deep bowls for dedicated wash, rinse, and sanitize operations.
  • 47" integral right-side drainboard keeps racks or clean ware organized and off your work surface.
  • Bowls are factory-set 12" from the dish machine opening to satisfy most clearance requirements.
  • 16 ga. type 304 stainless steel top with sanitary tile edge and bold 10-1/2" backsplash (2" return).
  • All TIG-welded construction; welds are blended to a smooth, easy-to-clean satin finish.
  • 1-5/8" Ø stainless legs with front-to-back cross-rails and adjustable stainless bullet feet for rock-solid stability.
  • 8"-centers faucet holes pre-punched in backsplash (faucet not included).
  • 1-1/2" IPS waste drains supplied—no extra hardware to buy.
  • NSF listed for safe, sanitary operation.
Specifications
Model DTC-3-2020-120R
Overall length 119" (3023 mm)
Front-to-back depth 30" (762 mm)
Working height 34"–35" adjustable
Backsplash height 10-1/2" with 2" return
Sink compartments (3) 20" × 20" × 14" deep
Drainboard 47" – right side
Material & finish 16 ga. 304 stainless steel, satin finish
Legs & bracing Stainless steel legs, front-to-back cross-rails
Drains 1-1/2" IPS (included)
Approx. shipping weight 310 lb / 141 kg
Popular accessories (sold separately)
  • Pre-rinse baskets & slide bars (models DTA-60, DTA-64, etc.)
  • Twist-handle drains & overflow assemblies
  • 14 ga. top upgrade (order code DTA-49)
Important: Verify your dish-machine make & model before ordering. Maintain a minimum 12" clearance between the right-hand bowl and the dish machine to avoid interference with control boxes or drive units. If more clearance is required, specify spacer kit DTA-76.

Need a left-hand drainboard? See model DTC-3-2020-120L.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Shipping Weight

310.0lbs

Dish Machine Location

left side

Dishtable Splash

10-1/2"

Width (side - side) OA

109" - 120"

Dishtable Legs

stainless steel

Compartment (side - side)

20"

Type Stainless Steel Top

300 series

Gauge

16 ga

Dishtable Shape

straight

Compartment (front - back)

20"

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 20" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 47" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
