Advance Tabco 9-OP-24FM-FGRL Mop Sinks
$2,911.00
Unit price
/
Unavailable
Description

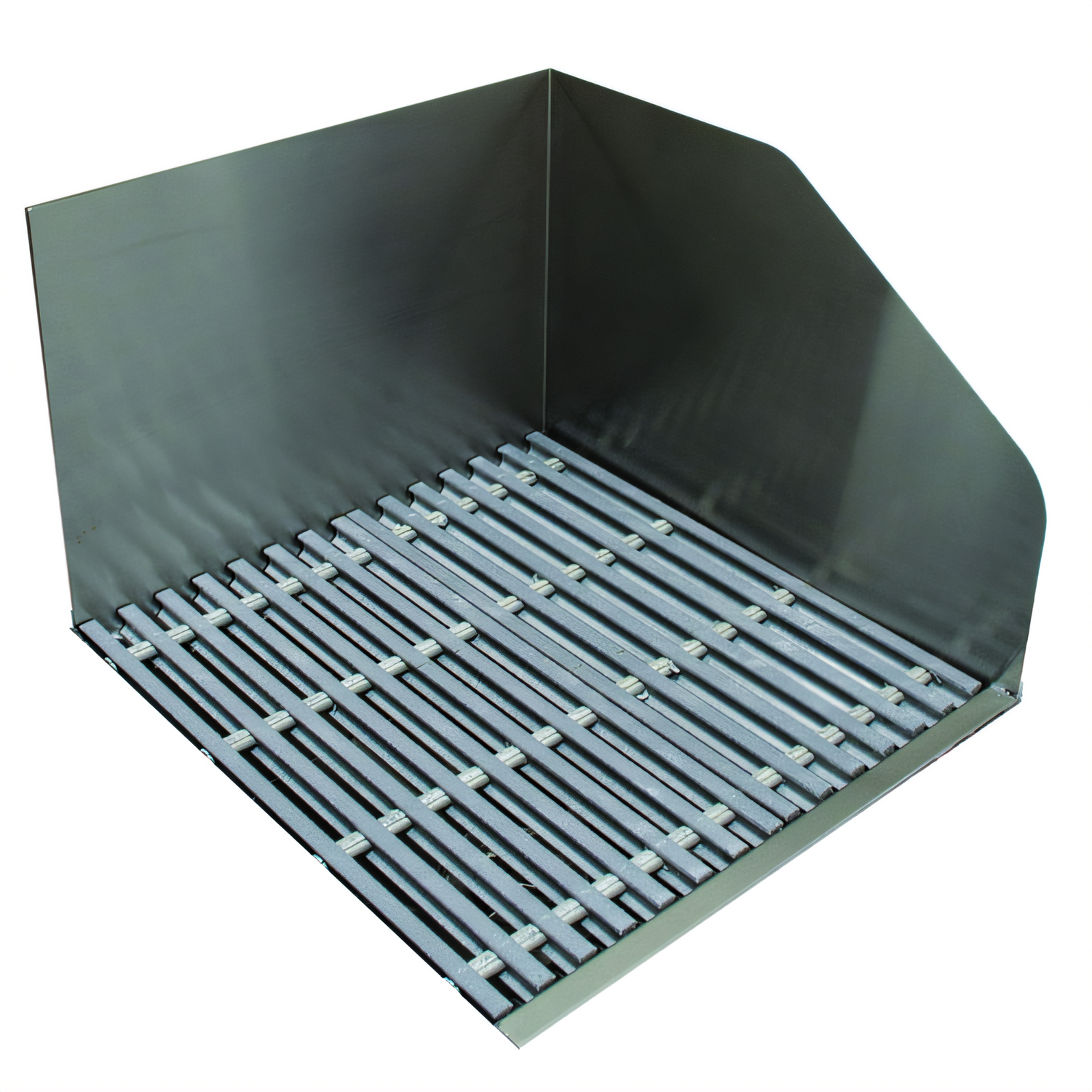

Advance Tabco 9-OP-24FM-FGRL Flush-Mount Mop Sink

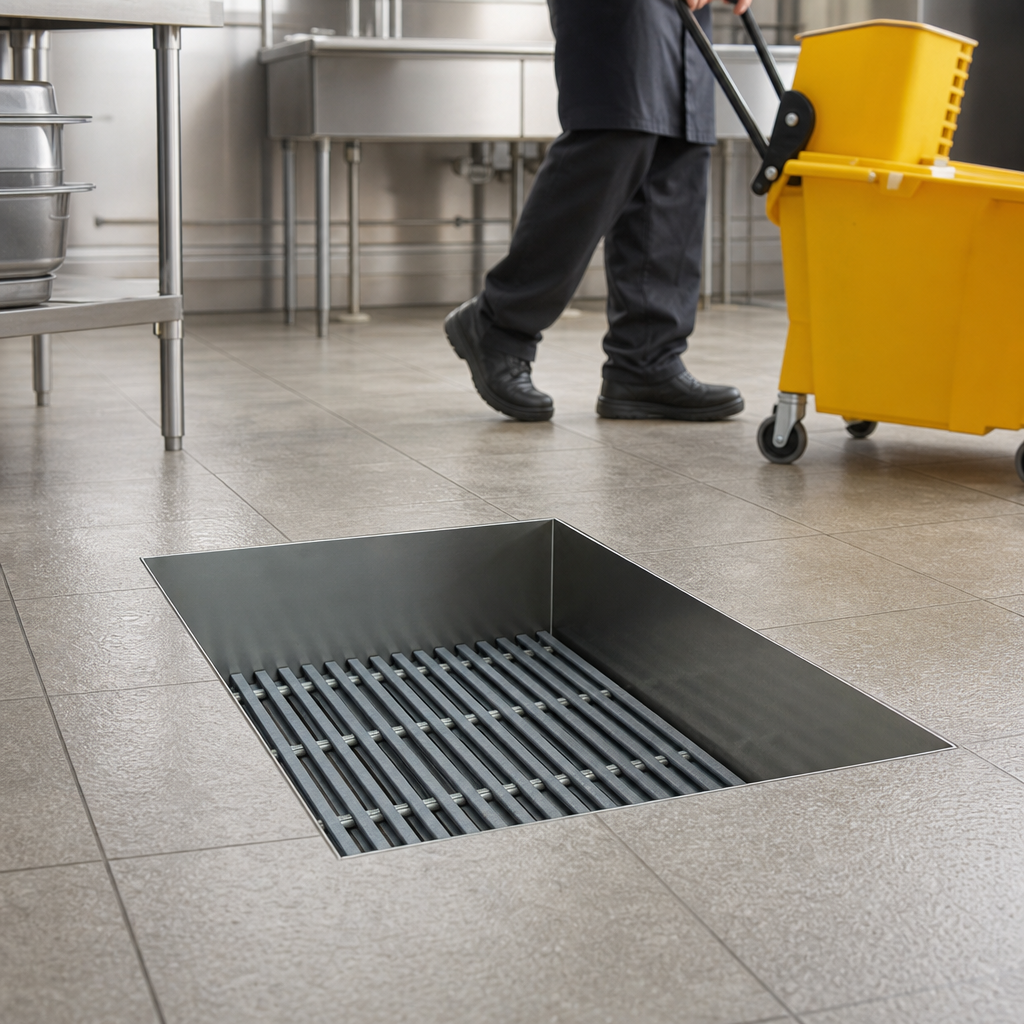

Fiberglass “Subway-Style” Grate • 21 3⁄8″ W × 24″ D • Three-Side SplashStop lifting heavy mop buckets and start rolling them. This floor-recessed mop sink installs flush with the finished floor so casters glide in effortlessly, helping you keep janitorial spaces safer, cleaner and more ergonomic.
Key Features
- Flush-to-floor design eliminates trip hazards and heavy bucket lifting.
- Two-piece fiberglass grate (21 3⁄16″ × 21 3⁄4″) removes easily for cleaning and is spaced to prevent wheel drop-through.
- 16 ½″ high integral stainless steel splashes on back, left and right walls contain overspray.
- 10″ deep bowl is pitched toward the drain for rapid emptying.
- Perforated stainless steel strainer basket with handle captures debris and lifts out for quick disposal.
- 4″ O.D. × 3″ drain sleeve accepts a standard 4″ waste line (Fernco® coupling supplied by others).
- All TIG-welded, 16-gauge type 304 stainless steel with a sanitary satin finish.
- Anti-splash guards at the front and rear protect operators and surrounding floors.
- Ships fully assembled—just set, connect and grate-in.
Dimensions & Specifications
| Model | 9-OP-24FM-FGRL |
|---|---|
| Overall size (W × D) | 21 3⁄8″ × 24″ |
| Usable bowl size | 21 3⁄8″ W × 22″ D × 10″ H |
| Splash height | 16 ½″ above finished floor (back, left & right) |
| Grate material / size | Fiberglass, two sections, 21 3⁄16″ × 21 3⁄4″ |
| Drain connection | 4″ O.D. sleeve, 3″ projection |
| Construction | 16-gauge type 304 stainless steel, TIG welded |
| Approx. shipping weight | 128 lb |
Ideal For
- Commercial kitchens & commissaries
- Supermarkets & convenience stores
- Hospitals, nursing homes & laboratories
- Schools, stadiums & entertainment venues
Installation Note: This unit is intended for new construction or remodels where the
floor can be recessed to accommodate the sink depth. Always verify local plumbing codes before
installation.
Optional Accessories (sold separately)
- K-240 Service Faucet (8″ O.C.)
- K-03 Vacuum Breaker Repair Kit
- K-16 Mop Sink Replacement Drain
- FT-2 Replacement Strainer Basket
- K-242 23″ Mop Hanger
- K-244 Hose & Hanger
Specifications and availability are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
28.0in
Width
21.38in
Depth
24.0in
Shipping Weight
128.0lbs
Bowl Width (left to right)
21"
Bowl Depth
24" front-to-back
Style
floor mounted
Bowl Height
10" deep
Specifications

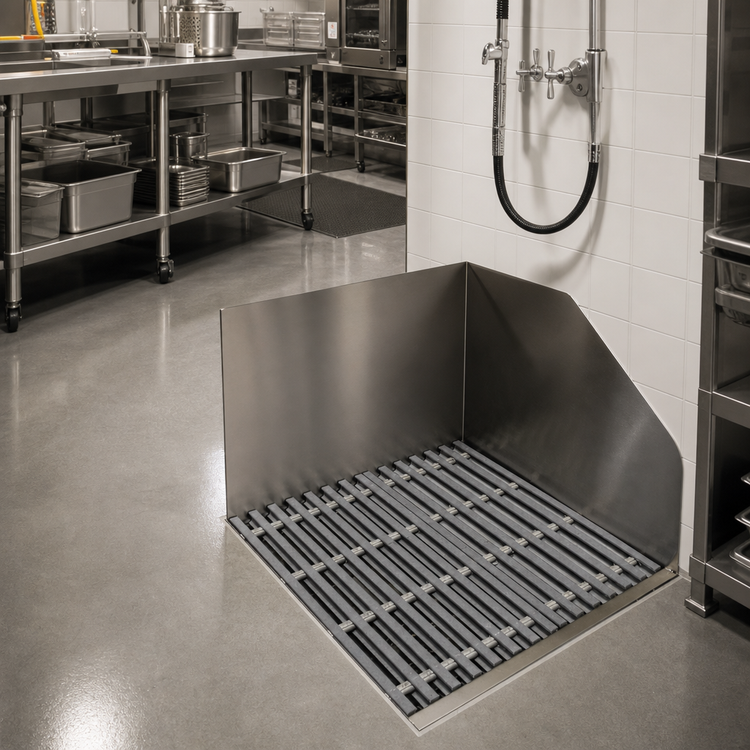

Mop sink, flush-with-floor (recessed into floor), 21-3/8"W x 24"D x 10" deep bowl, with 16-1/2" tall side & rear splashes (above floor), with removable fiberglass subway grating, allows mop buckets to roll over sink at floor level, removable stainless steel strainer basket, 4" O.D. waste pipe 3" tall
