Admiral Craft Equipment Corp.

Admiral Craft Lunar Ice 30-Inch Stainless Steel Ice Storage Bin with Black Trim, 470 lb Capacity

SKU: LUIB-470
GTIN: 646563999568
$1,999.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Admiral Craft Equipment Corp. Best Sellers Commercial Ice Makers Ice Bins Ice Machine Bins Ice Machines & Ice Equipment Ice Makers & Bins New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

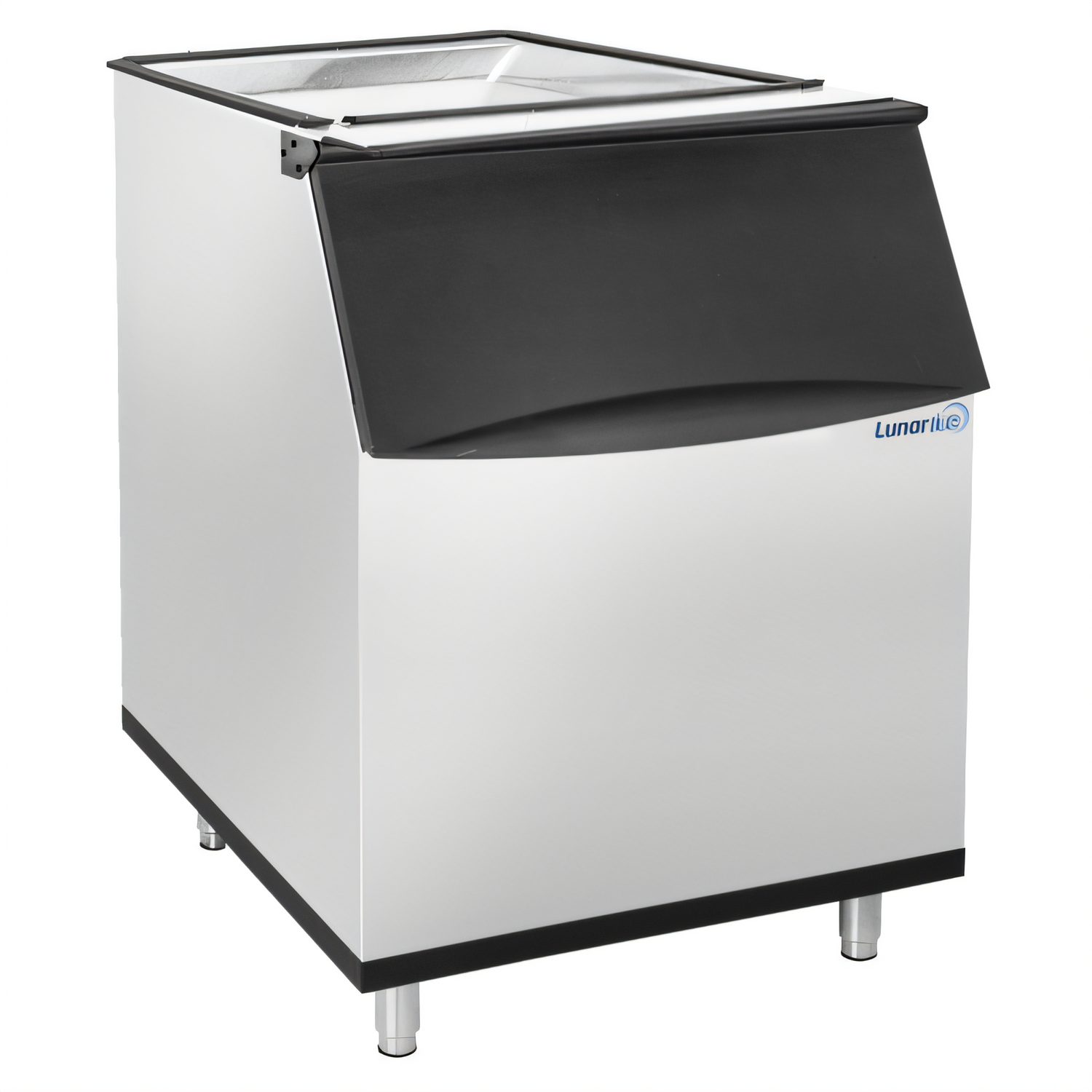

Admiral Craft Lunar Ice 30-Inch Stainless Steel Ice Storage Bin with Black Trim, 470 lb Capacity

Fits modular 22-inch and 30-inch ice machines; 6-inch adjustable legs

A high-capacity 30-inch ice bin built for modular ice machines, with a sanitary liner, LED-lit access, and drain-ready installation.

  • 470 lb storage capacity for high-volume ice service
  • Stainless steel exterior with black trim for durability and a clean presentation
  • Polyethylene liner helps support sanitation and easier cleaning
  • LED-lit interior activates when the access lid is open
  • Ice scoop and holder sit above the ice line for cleaner access
  • 6-inch adjustable legs and a 3/4-inch drain hookup support installation flexibility
  • Designed for LUNAR ICE modular 22-inch and 30-inch ice machines and similar commercial units

Overall Dimensions:

30.0"W x 34.0"D x 41.4"H

Product Weight:

126.0 lb

Stainless Steel and Black Trim Exterior

Durable commercial exterior with a clean stainless look and black trim accents.

Polyethylene Storage Bin Liner

Helps improve sanitation and supports easier cleanup.

LED Illuminated Interior

Interior light turns on when the access lid is open and is powered through the ice machine head connection, sold separately.

Ice Scoop and Holder

Scoop and holder are positioned above the ice line for easier access and improved sanitation.

6-Inch Adjustable Legs

Provides leveling support and installation flexibility.

3/4-Inch Drain Hookup

Designed for a gravity drain connection during installation.

Modular Ice Machine Compatibility

Designed to fit LUNAR ICE Intelligent Series Modular 22-inch and 30-inch ice machines, as well as similar sized commercial modular machines.

Type Ice Storage Bin
Style Top Hinged Front Door(s)
Installation Type Floor Model (With Legs)
Capacity 470 lbs
Material Stainless Steel
Finish Stainless Steel with Black Trim
Drain Connection Required
Drain Connection Size 3/4 Inch
Shipping Width 30 Inches
Shipping Depth 34 Inches
Shipping Height 42 Inches
Shipping Weight 126 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed to fit LUNAR ICE Intelligent Series Modular 22-inch and 30-inch ice machines, as well as similar sized commercial modular ice machines.
Yes. A gravity drain line is required, and the bin has a 3/4-inch drain hookup.
The maximum storage capacity is 470 lb (213 kg).
It includes a polyethylene storage bin liner, and the ice scoop and holder are positioned above the ice line for cleaner access.
Yes. The LED illuminated interior turns on when the access lid is open and is powered through the connection to the ice machine head, sold separately.
It uses 6-inch adjustable legs and is intended for floor installation.
