Admiral Craft Lunar Ice 22-Inch Ice Storage Bin, 310 lb Capacity, Stainless Steel with Black Trim

SKU: LUIB-310
GTIN: 646563999537
$1,399.99
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Bins Ice Machine Bins Ice Makers & Bins New Arrivals Restaurant Equipment

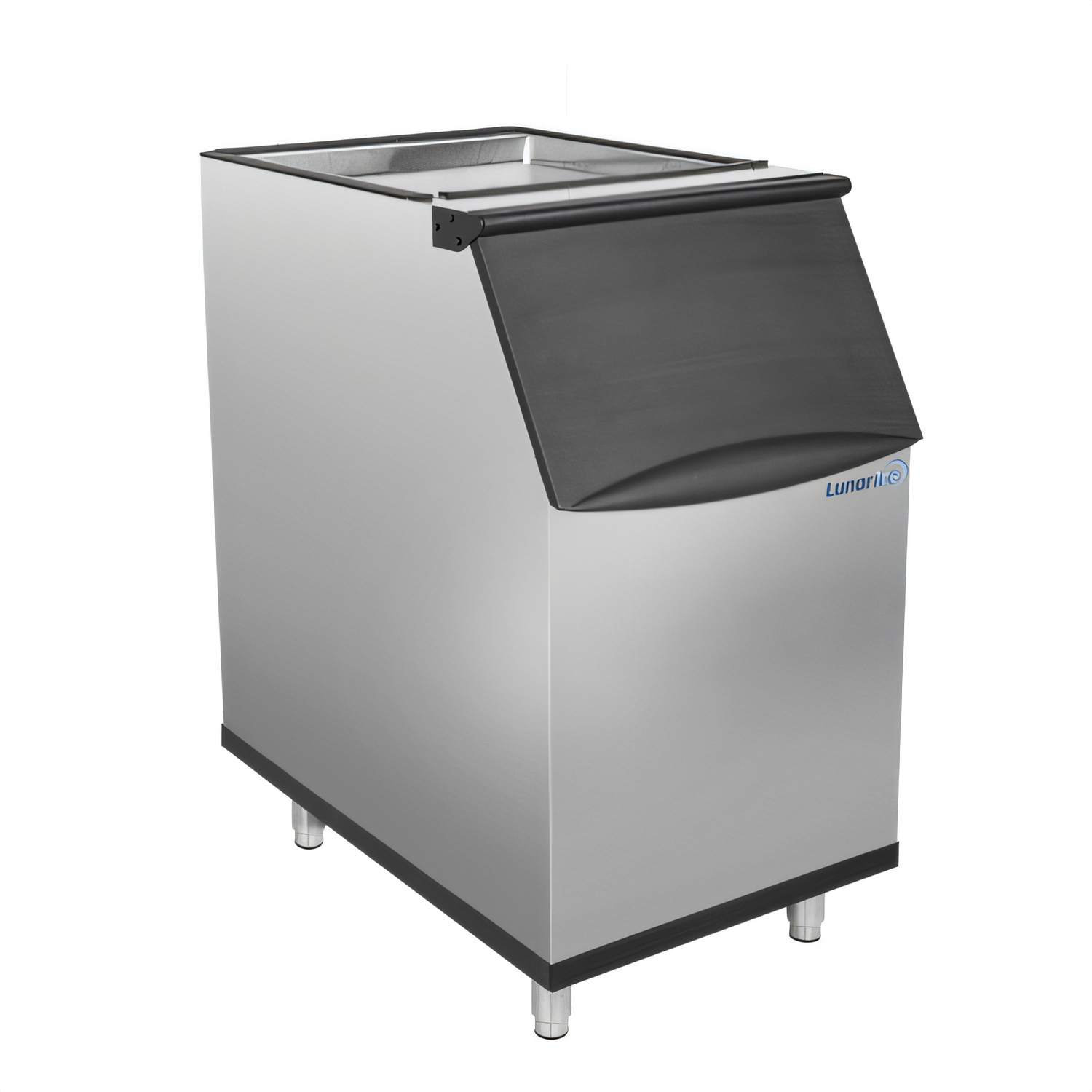

Admiral Craft Lunar Ice 22-Inch Ice Storage Bin, 310 lb Capacity, Stainless Steel with Black Trim

Top-Hinged Front Access, 22-Inch Width

A compact commercial ice bin that stores up to 310 lb of ice in a durable stainless steel cabinet with a sanitary liner, LED-lit access, and easy-drain installation.

  • 310 lb maximum ice storage capacity in a 22-inch-wide footprint
  • Stainless steel exterior with black trim for a durable commercial look
  • Polyethylene bin liner helps support sanitation and easier cleaning
  • LED illuminated interior turns on when the access lid is open
  • Ice scoop and holder sit above the ice line for cleaner access
  • 6-inch adjustable legs and 3/4-inch drain hookup simplify installation
  • Designed for LUNAR ICE modular ice machines and similarly sized commercial units

Overall Dimensions:

22.0"W x 34.0"D x 41.4"H

Product Weight:

109.0 lb

Stainless Steel and Black Trim Exterior

Commercial-grade exterior construction designed for durability and a clean presentation.

Polyethylene Storage Bin Liner

Interior liner helps improve sanitation and makes cleaning easier.

LED Illuminated Interior

Interior lighting activates when the access lid is open and is powered through the ice machine head connection sold separately.

Ice Scoop and Holder Above Ice Line

Keeps the scoop easy to reach while helping maintain cleaner storage conditions.

6-Inch Adjustable Legs

Adjustable legs help with leveling during installation.

3/4-Inch Drain Hookup

Designed for a gravity drain line connection.

310 lb Storage Capacity

Maximum storage capacity is 310 lb of ice.

Compatible with Similar-Sized Commercial Ice Machines

Designed to fit LUNAR ICE Intelligent Series Modular 22-inch machines and other similarly sized commercial modular units.

AHRI Capacity Rating

Documented AHRI capacity is 246 lb for standardized performance comparison.

Type Ice Storage Bin
Style Top Hinged Front Door(s)
Installation Type Floor Model
Capacity 310 lbs
Material Stainless Steel
Color Black
Finish Stainless Steel
Drain Connection Required
Drain Connection Size 3/4 Inch
Shipping Width 22 Inches
Shipping Depth 34 Inches
Shipping Height 42 Inches
Shipping Weight 109 lbs
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The bin holds up to 310 lb of ice.
It is designed for LUNAR ICE Intelligent Series Modular 22-inch ice machines and similarly sized commercial modular machines.
Yes. A gravity drain line is required, and the bin includes a 3/4-inch drain hookup.
The LED interior light is powered through the connection to the ice machine head, which is sold separately.
It includes a polyethylene storage bin liner, plus an ice scoop and holder positioned above the ice line.
Yes. It includes 6-inch adjustable legs for leveling during installation.
