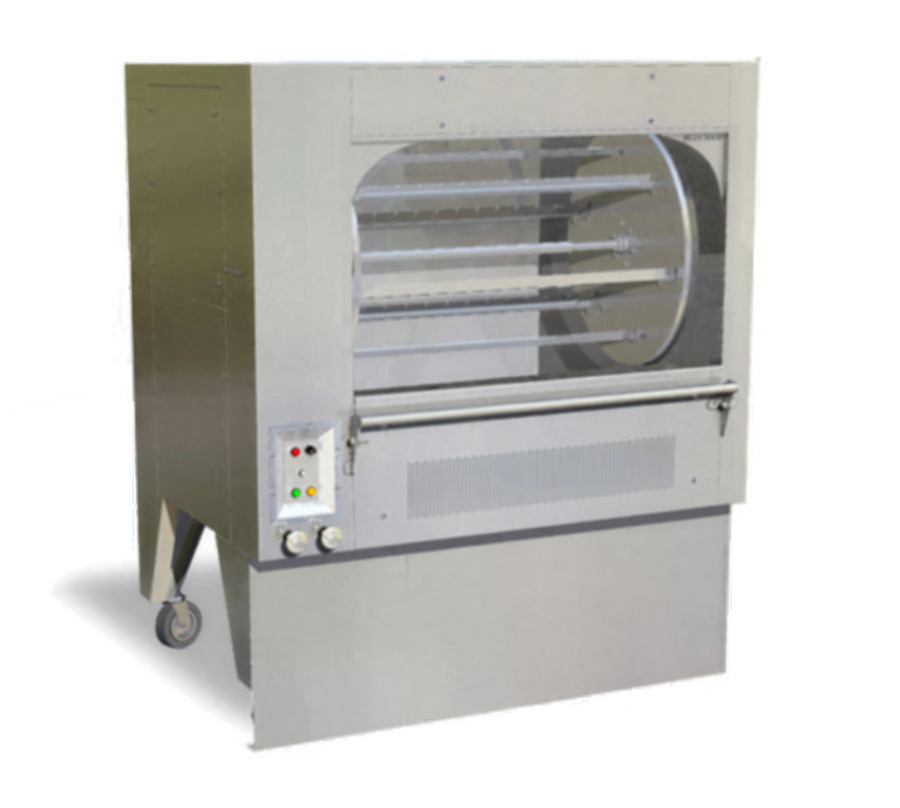

Wood Stone Cascade WS-GFR-6 Gas Rotisserie Oven, 36–42 Chicken Capacity, 6 Stainless Steel Spits, Infrared Heat

SKU: WS-GFR-6
$69,006.00

Want to speak to an expert?

The Wood Stone Cascade WS-GFR-6 is a gas-fired rotisserie with a 36–42 chicken capacity and six 44-inch stainless steel angle spits.

  • Dual heat system: Adjustable radiant flame at the front and an overhead infrared burner.
  • Variable-speed drive: 1/4 HP DC motor with soft start and stop.
  • Water bath: Cascade drip water bath with a removable drain plug.
  • Service and loading: Front and rear loading with front and rear controls.
  • Construction: Stainless steel body with a bump-bar shutoff and locking casters.

Overall Dimensions:

62.0"W x 44.0"D x 74.0"H

Six stainless steel spits

Includes six 44-inch stainless steel angle spits.

36–42 chicken capacity

The six-spit configuration has a stated capacity of 36–42 chickens.

Dual heat system

Uses an adjustable radiant flame wall at the front of the cabinet and an overhead infrared burner.

Variable-speed drive

The 1/4 HP DC motor provides variable speed with soft start and stop.

Cascade water bath

The constant drip water bath removes grease from cooking products and includes a removable drain plug.

Front and rear loading

Rear doors and front and rear controls facilitate loading and unloading from either location.

Bump-bar shutoff

A bump-bar style shutoff is provided on the front of the unit.

Stainless steel construction

The body is constructed of stainless steel; the cutsheet specifies 16-gauge polished stainless steel.

Product type Gas-fired rotisserie
Chicken capacity 36–42 chickens
Spits 6 x 44 in stainless steel angle spits
Heat system Adjustable front radiant flame and overhead infrared burner
Control type Manual controls
Drive motor 1/4 HP variable-speed DC motor with soft start and stop
Drive gearbox Two-stage gearbox
Construction 16-gauge polished stainless steel
Gas input 175,000 BTU/hr
Electrical requirements 120 VAC, 5 A, 50/60 Hz; NEMA 5-15 plug
Gas connection 1 in FNPT gas inlet
Water connection 1/4 in NPT cold water supply
Drain connection 1 1/2 in slip-fit NPT fitting to a floor sink or grease trap
Venting requirement Listed Type 1 exhaust hood or hood constructed in accordance with NFPA 96 and applicable codes
Mobility Locking casters

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited warranty against defects in material or manufacture from the original date of purchase.

Frequently Asked Questions

The WS-GFR-6 has a capacity of 36–42 chickens.
The unit includes six 44-inch stainless steel angle spits.
It uses an adjustable radiant flame at the front of the cabinet and an overhead infrared burner.
The dimensions are 62 inches wide, 44 inches deep and 74 inches high.
Yes. It must be vented with a Listed Type 1 exhaust hood or one constructed in accordance with NFPA 96 and applicable local and national codes.
Wood Stone provides a limited warranty against defects in material or manufacture for one year from the original date of purchase, subject to stated exclusions and limitations.
