Key specifications

BTU
135,000 BTU
Dimensions
60.0"W × 31.5"D × 15.25"H
Type
Commercial Griddle
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Wolf SKU: ASA60

Wolf ASA60 60-Inch 5-Burner Countertop Gas Griddle

$10,935.00
/each
Estimated to ship in 4–7 business days Free Shipping
Width
Gas typeRequired
Griddle plate depth
Gas Connector
Included: Wolf warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,011/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Commercial Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel Front and Sides
Plate Finish Smooth Steel
Plate Thickness 1 in
Cooking Surface Width 60 in
Cooking Surface Depth 24 in
Burner Count 5
BTU 135,000 BTU
Controls Mechanical Snap-Action Thermostats
Temperature Range 200°F to 550°F
Gas Connection 0.75 in Rear
Chassis Material Stainless Steel and Aluminized Steel
Grease Drawer Count 2
Grease Drawer Capacity 6 qt Each
Cooking Height 11-1/8 in
Leg Height 4 in Adjustable
Pilot Safety Yes
Manual Ignition Yes

Description

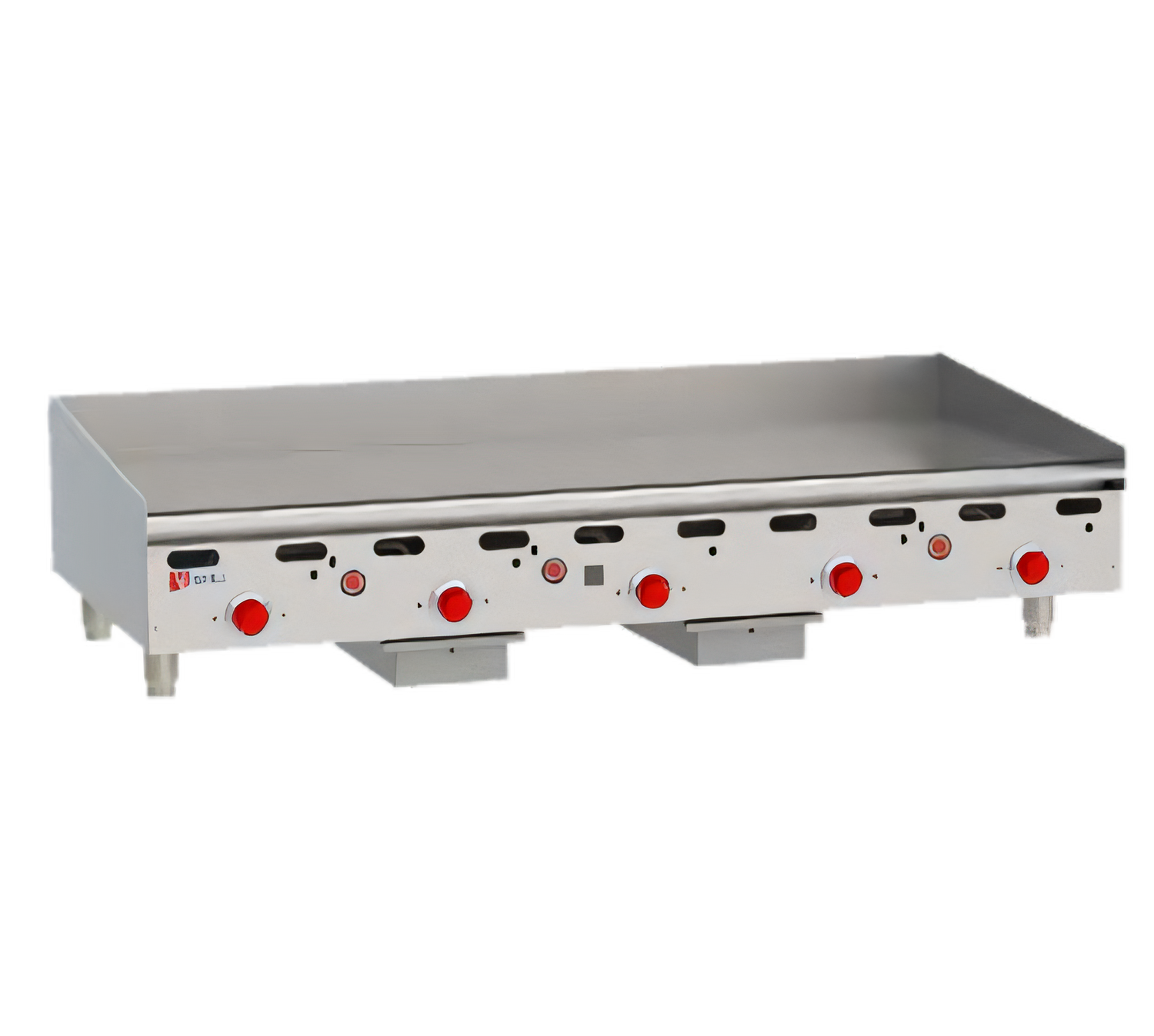

The Wolf ASA60 is a heavy-duty countertop gas griddle with a 60 in W x 24 in D cooking surface and a 1 in thick polished steel griddle plate.

Five gas burners deliver 135,000 BTU total. Each burner has a mechanical snap-action thermostat with temperature adjustment from 200°F to 550°F, plus pilot safety and manual ignition.

  • Two 6-quart grease drawers
  • 4 in back and tapered side splashes
  • Stainless steel front and sides with a stainless and aluminized steel chassis frame
  • 11-1/8 in low-profile cooking height on 4 in adjustable legs

Overall Dimensions:

60.0"W x 31.5"D x 15.25"H

Product Weight:

650.0 lb

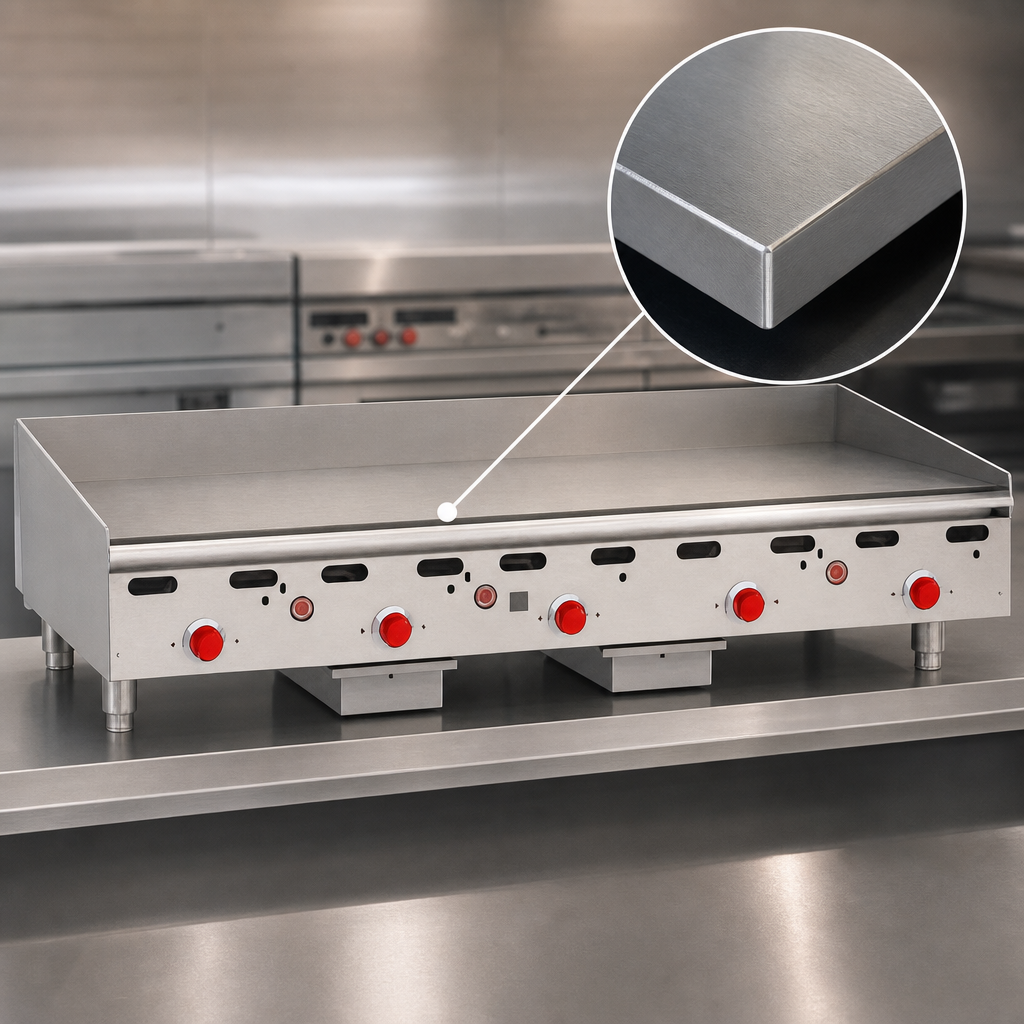

Polished Steel Griddle Plate

The cooking surface uses a 1 in thick polished steel griddle plate.

Five Gas Burners

Five burners provide 135,000 BTU total output.

Per-Burner Thermostatic Control

Each burner has one mechanical snap-action thermostat with adjustment from 200°F to 550°F.

Pilot Safety

Pilot safety shuts off gas to the pilot and burners if the pilot extinguishes.

Manual Ignition

The griddle uses manual ignition.

Grease Drawers

The ASA60 has two 6-quart grease drawers.

Back and Side Splashes

The griddle includes a 4 in back splash and tapered side splashes.

Adjustable Legs

The unit has 4 in adjustable legs and an 11-1/8 in low-profile cooking height.

Frequently Asked Questions

The cooking surface is 60 in wide by 24 in deep.
It has five gas burners with 135,000 BTU total output.
Each mechanical snap-action thermostat adjusts from 200°F to 550°F.
The ASA60 has two 6-quart grease drawers.
The overall dimensions are 60 in wide, 31.5 in deep and 15.25 in high.
It uses manual ignition and includes pilot safety.
