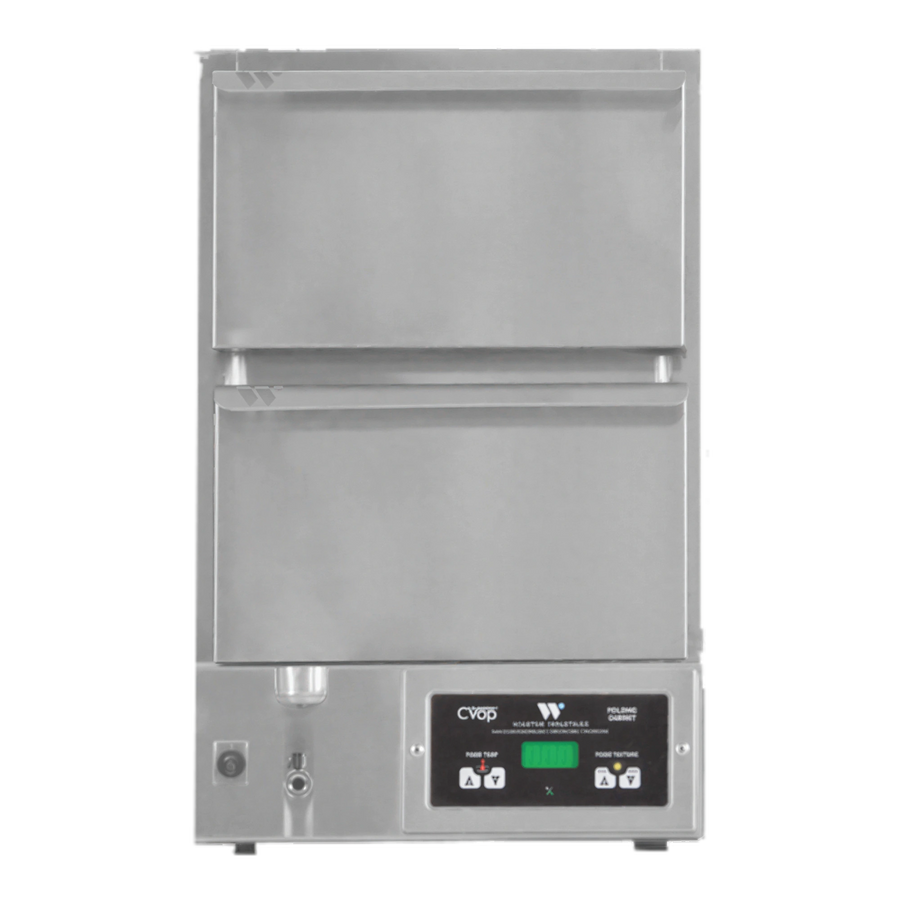

Winston Foodservice CVap HBB5N2 Electric Hold & Serve Drawer, 2 Drawers, Electronic Controls, Narrow

SKU: HBB5N2
$4,200.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Warming Drawer Warmers Equipment Food Drawer Warmers Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment Winston Foodservice

The CVap HBB5N2 is a narrow, two-drawer hold-and-serve unit with a fan and electronic differential controls.

Controlled Vapor Technology uses air and water heating to establish moisture conditions for holding hot foods. Manual water fill supports approximately 0.8 gallons (3 L) of water, while each drawer accommodates up to 20 lb.

  • Food temperature and texture settings from 90 to 180°F (32 to 82°C)
  • 250°F (121°C) maximum drawer temperature
  • Stainless steel construction with full-perimeter insulation
  • Accepts steam table pans and 1/1 gastronorm pans

Overall Dimensions:

16.5"W x 27.5"D x 25.5"H

Product Weight:

125.0 lb

Electronic differential controls

Controls provide food temperature and texture settings from 90 to 180°F (32 to 82°C).

Controlled Vapor Technology

Uses air and water heating to establish water vapor content in relation to food moisture characteristics.

Two-drawer capacity

Each drawer has a 20 lb (9.07 kg) weight tolerance.

Manual water fill

Manual fill operation holds approximately 0.8 gallons (3 L) of water.

Pan compatibility

Accepts two steam table pans, four half steam table pans, six third steam table pans, or two 1/1 gastronorm pans.

Stainless steel construction

Stainless steel construction with full-perimeter insulation.

Fan

The unit is specified with a fan.

Product type CVap Hold & Serve Drawer
Drawer count 2 drawers
Control type Electronic differential controls
Food temperature and texture range 90 to 180°F (32 to 82°C)
Maximum drawer temperature 250°F (121°C)
Water fill Manual
Water capacity Approximately 0.8 gal (3 L)
Load limit 20 lb (9.07 kg) per drawer
Construction Stainless steel
Insulation Full-perimeter insulated
Pan capacity 2 steam table pans (12 × 20 in, up to 6 in deep); 4 half pans (12 × 10 in, up to 6 in deep); 6 third pans (12 × 7 in, up to 6 in deep); or 2 1/1 gastronorm pans
Voltage 120 V
Frequency 60 Hz
Phase 1 phase
Current draw 13.1 A
Power 1572 W
Power plug US NEMA 5-15P; Canada NEMA 5-20P
Power cord 84 in (2,134 mm) minimum
Side clearance 2 in (51 mm)

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Limited one-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The HBB5N2 has two drawers.
It uses electronic differential controls for food temperature and texture.
Water is added manually through the fill system, and the unit holds approximately 0.8 gallons (3 L) of water.
The load limit is 20 lb (9.07 kg) per drawer.
It accepts two steam table pans up to 6 inches deep, four half steam table pans, six third steam table pans, or two 1/1 gastronorm pans.
The unit is specified for 120 V, 60 Hz, single-phase power at 13.1 A and 1572 W. The listed plugs are US NEMA 5-15P and Canada NEMA 5-20P.
The product has a limited one-year warranty. The warranty includes a disclaimer for failure to clean.
