Winco  |  Spectrum™  |  SKU: NGGD-48M  |  UPC: 842169138688

Winco NGGD-48M Spectrum™ Gas Griddles

$1,657.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

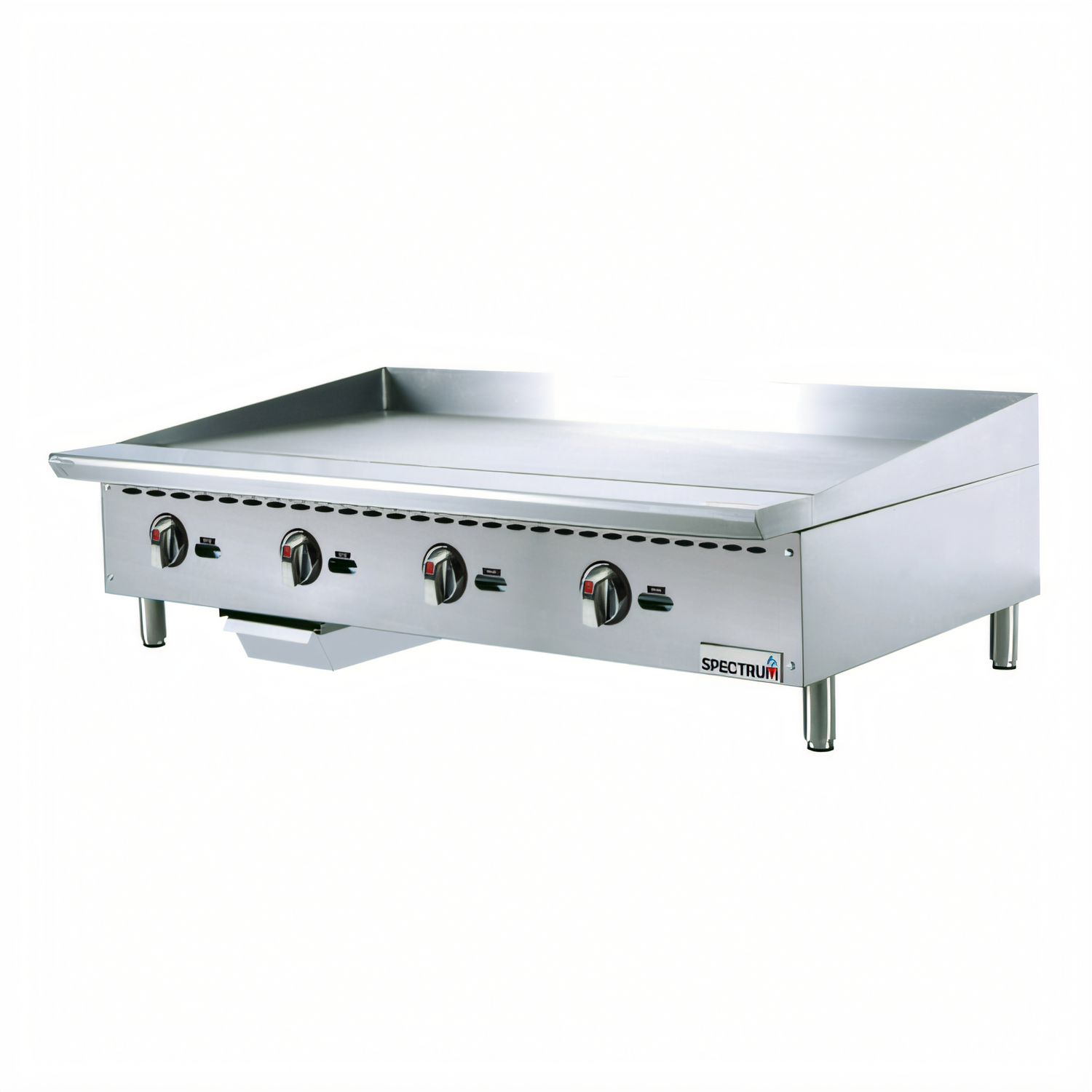

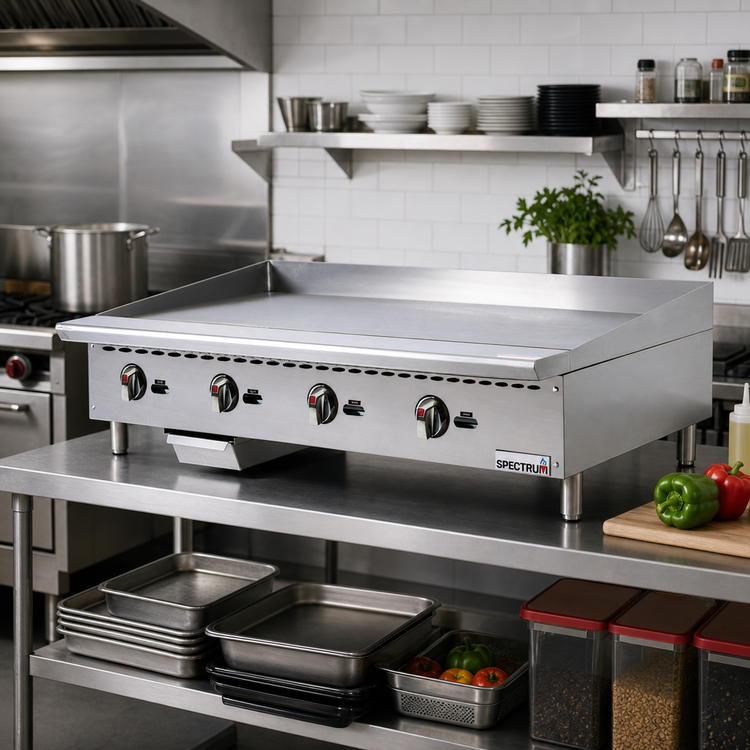

Spectrum™ 48" Countertop Gas Griddle

Model NGGD-48M • Natural Gas / LP Convertible • 120,000 BTU

Push breakfast, lunch, and dinner tickets out faster with the Winco Spectrum™ NGGD-48M. Four high-performance burners, a massive 48" x 20-3/4" polished steel plate, and a cool-touch front rail give you the power, capacity, and safety today’s kitchens demand—all in a space-saving countertop footprint.

Performance & Construction

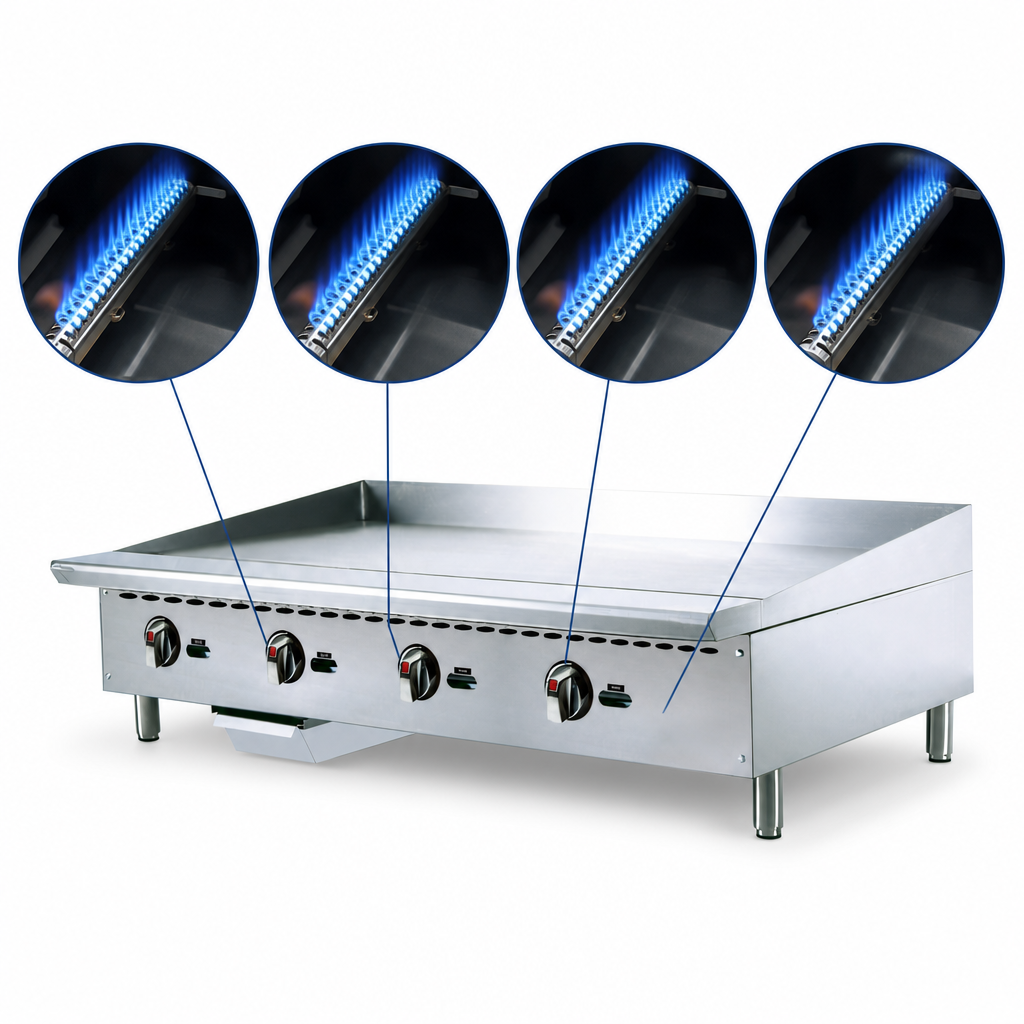

  • 4 × 30,000 BTU stainless steel burners (total 120,000 BTU)
  • Individual infinite heat controls with standing pilots—one per burner
  • 3/4" thick polished steel griddle plate for even heat retention
  • 5" wide cool-touch stainless steel front rail protects hands and knobs
  • Stainless steel, double-wall insulated body built for heavy commercial use
  • Side & rear splash guards contain spills and splatter

Grease Management

  • 3-1/2" full-width grease trough simplifies plate scraping
  • Removable grease drawer with weep hole & internal baffle

Gas & Installation

  • Ships preset for Natural Gas; LP conversion kit & reversible regulator included
  • 3/4" NPT rear gas connection
  • Adjustable 4"–6" legs with non-skid feet; designed for non-combustible countertops

Key Specifications

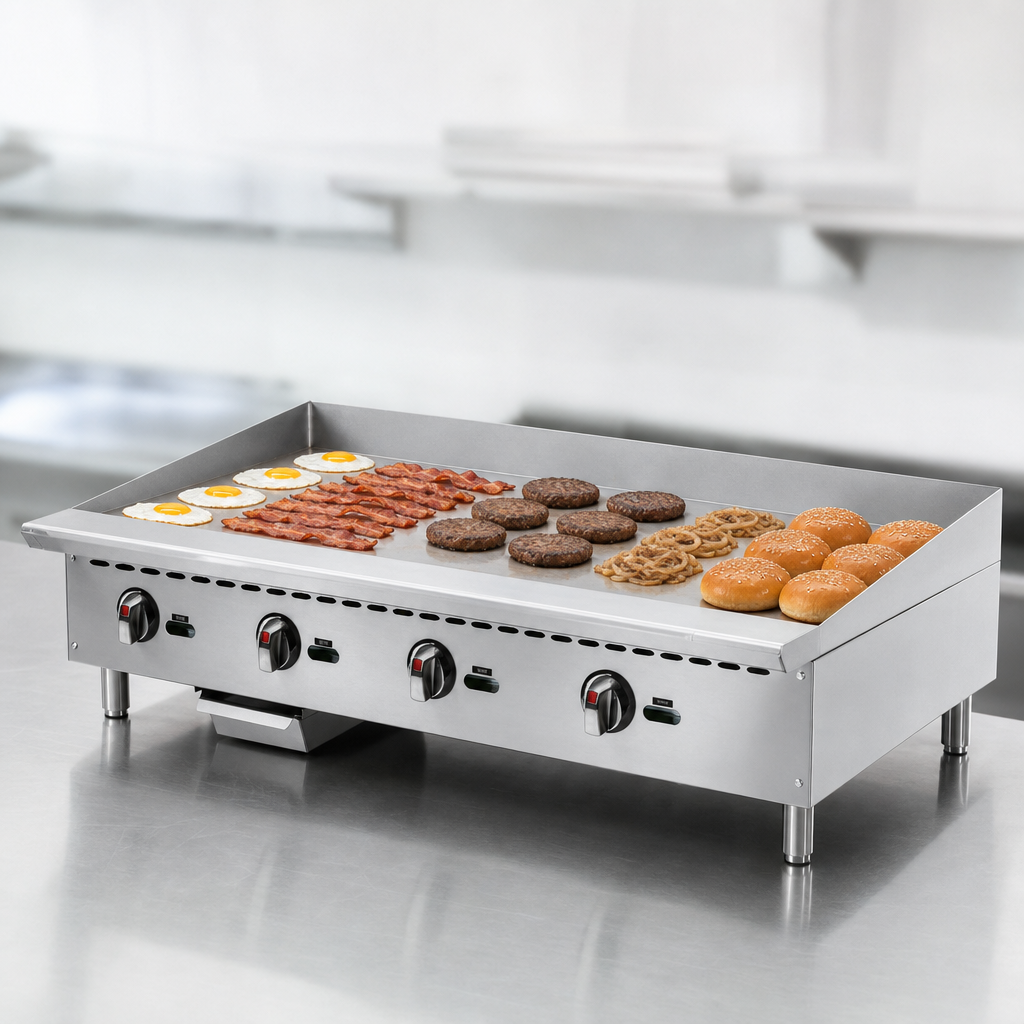

Cooking surface 48" W × 20-3/4" D (1219 × 527 mm)
Plate thickness 3/4" (19 mm) polished steel
Heat zones 4 independent
Total output 120,000 BTU/hr
Gas pressure Natural 4" W.C. / LP 10" W.C.
Overall dimensions* 48" W × 34-7/16" D × 15-1/2" H
Ship weight 355 lb (161 kg)
Certifications CSA Flame, CSA Star, CSA-Sanitation
Warranty 1-year parts & labor

*Depth includes rear gas inlet pipe.

Popular Accessories

  • SCRP-14 / 16" Heavy-duty aluminum grill scraper
  • GSH-1 Griddle screen holder & GSN-4 screens
  • GBH-2 Griddle brick holder & GBK-348 grill bricks
  • NG-Knob Replacement metal control knob
California Proposition 65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Install on a non-combustible surface only. Minimum clearances: 6" (152 mm) sides & rear, 4" (102 mm) floor. Not designed for use on casters.

Features & Specs

Manufacturer

Winco

Brand_name

Spectrum™

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

15.5in

Width

48.0in

Depth

34.37in

Shipping Weight

358.25lbs

Cooking Surface Width (side - side)

43" - 48"

Exterior Finish

all stainless steel exterior

Cooking Surface Depth (front - back)

20" - 23"

Griddle Plate Finish

smooth steel

Plate Thickness

3/4"

Controls

manual controls

Specifications

Spectrum™ Griddle, gas, countertop, cooking surface: 48" x 20-3/4" cooking surface, (4) 30,000 BTU burners, infinite heat controls, standing pilot light, 3/4" polished steel plate, side and back splash guard, stainless steel insulated double-wall body and cool-touch front plate rail, 3-1/2" full width grease trough, grease drawer with weep hole and baffle, 3/4" rear gas connection with regulator, LP conversion kit, adjustable legs, non-skid feet, 120,000 BTU, CSA-Sanitation, CSA Flame, CSA Star (Qty Break = 1 each)
