Winco  |  Spectrum™  |  SKU: NGGD-36M  |  UPC: 842169138671

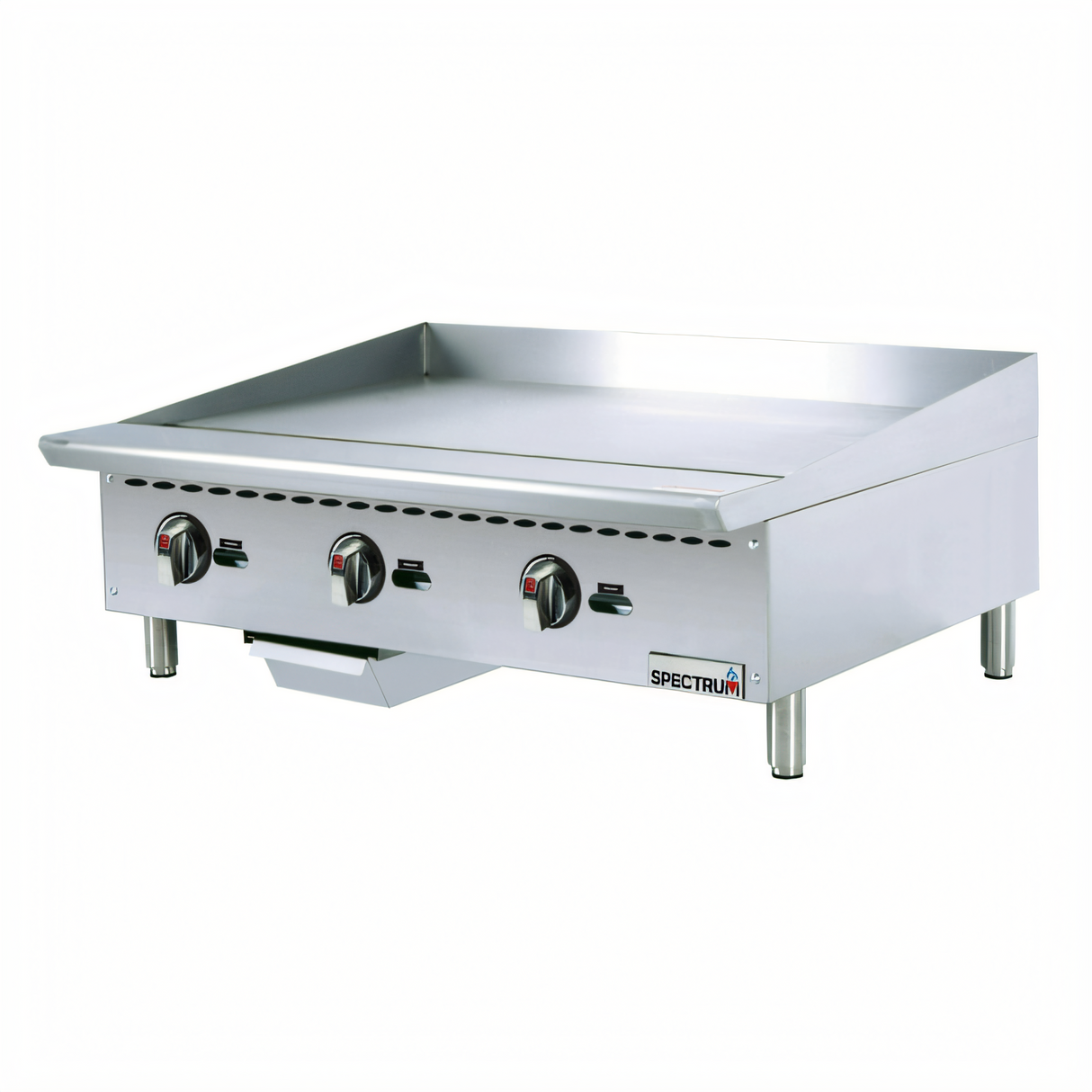

Winco NGGD-36M Spectrum™ Gas Griddles

$1,255.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Winco Spectrum™ 36" Gas Countertop Griddle — 90,000 BTU

Model NGGD-36M  |  Natural Gas unit with LP conversion kit

Engineered for busy diners, food trucks and hotel brunch lines, the Spectrum™ NGGD-36M gives you 612 sq in of responsive, evenly heated cooking space in a compact countertop footprint. Three independent 30,000 BTU burners beneath a massive ¾" polished steel plate deliver the searing power and precise low-end control chefs demand shift after shift.

Why you’ll love it

  • 90,000 BTU total output — three high-performance burners create three true heat zones.
  • Infinite heat controls with individual standing pilots for instant start-ups and rapid recovery.
  • Heavy ¾" (19 mm) polished steel plate stores and distributes heat for consistent browning.
  • 5" cool-touch stainless front rail shields hands and protects control knobs from spatters.
  • Stainless steel, double-wall insulated body built for rugged commercial duty.
  • 3½" full-width grease trough plus removable drawer with baffle and weep hole for cleaner operation.
  • Ships ready for Natural Gas; reversible regulator and full LP conversion kit included.
  • Adjustable 4"–6" legs with non-skid feet keep the unit level on any prep surface.
  • CSA-Sanitation, CSA-Flame & CSA-Star certified for indoor commercial use.
  • Backed by Winco’s hassle-free 1-year parts & labor warranty.

Technical specifications

Manufacturer / Series Winco Spectrum™ Countertop Gas Griddle
Model No. NGGD-36M
Cooking surface 36" W × 20-3/4" D (914 × 527 mm)  •  612 sq in
Plate thickness ¾" polished steel
Burners / Heat zones 3 independent burners  •  30,000 BTU each
Total BTU 90,000 BTU/hr
Gas connection ¾" NPT rear, regulator included
Required pressure Natural Gas 4" W.C.  •  LP Gas 10" W.C.
Overall dimensions* 36" W × 34-7/16" D × 15-1/2" H (915 × 950 × 394 mm)
Ship weight 284 lb (129 kg)
Certifications CSA-Sanitation, CSA-Flame, CSA-Star
Warranty 1-year parts & labor (U.S./Canada)

*Depth dimension includes rear gas inlet pipe.

Optional cleaning accessories

  • SCRP-14 / SCRP-16 / SCRP-12 heavy-duty aluminum grill scrapers
  • GSH-1 griddle screen holder + GSN-4 grill screens
  • GBH-2 griddle brick holder + GBK-348 grill bricks
California Proposition 65: This product can expose you to chemicals, including combustion by-products, known to the State of California to cause cancer and reproductive harm. For more information visit P65Warnings.ca.gov.

Install on a non-combustible surface only (clearances: 6" side/rear, 4" floor). Not for use on casters.

Features & Specs

Manufacturer

Winco

Brand_name

Spectrum™

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

15.5in

Width

36.0in

Depth

34.37in

Shipping Weight

178.57lbs

Cooking Surface Depth (front - back)

20" - 23"

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

31" - 36"

Exterior Finish

all stainless steel exterior

Controls

manual controls

Plate Thickness

3/4"

Specifications

Spectrum™ Griddle, gas, countertop, cooking surface: 36" x 20-3/4" cooking surface, (3) 30,000 BTU burners, infinite heat controls, standing pilot light, 3/4" polished steel plate, side and back splash guard, stainless steel insulated double-wall body and cool-touch front plate rail, 3-1/2" full width grease trough, grease drawer with weep hole and baffle, 3/4" rear gas connection with regulator, LP conversion kit, adjustable legs, non-skid feet, 90,000 BTU, CSA-Sanitation, CSA Flame, CSA Star (Qty Break = 1 each)
