Winco Spectrum 12-Inch Countertop Natural Gas Thermostatic Griddle with 1-Inch Polished Steel Plate

SKU: NGGD-12T
$835.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Cooking Equipment Equipment Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Winco

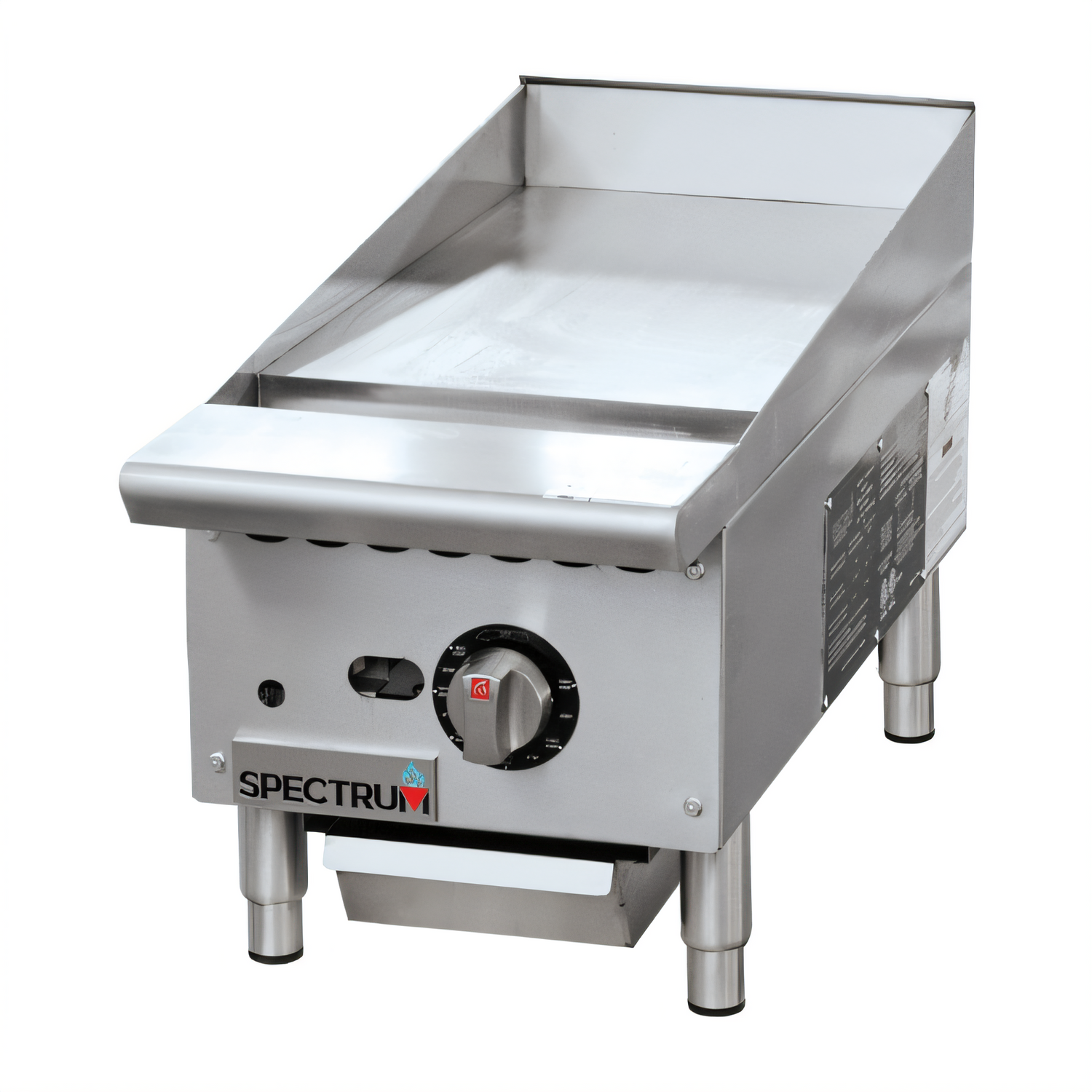

Winco Spectrum 12-Inch Countertop Natural Gas Thermostatic Griddle with 1-Inch Polished Steel Plate

28,000 BTU burner, 200°F to 450°F thermostat, LP conversion kit included

Built for compact commercial cooking, this countertop griddle combines responsive thermostatic heat, a heavy-duty steel plate, and easy-clean grease management in a natural-gas-ready design.

  • Compact 12-inch countertop footprint is ideal for smaller cooking stations.
  • 28,000 BTU burner and thermostatic control deliver responsive, even heat.
  • Heavy-duty 1-inch polished steel plate is built for daily commercial use.
  • Stainless steel body, cool-touch rail, and splash guards support safer operation.
  • Grease trough, chute, and drawer help streamline cleanup during busy shifts.
  • Ships natural-gas ready and includes an LP conversion kit and reversible regulator.

Overall Dimensions:

12.0"W x 28.7"D x 15.4"H

Product Weight:

143.0 lb

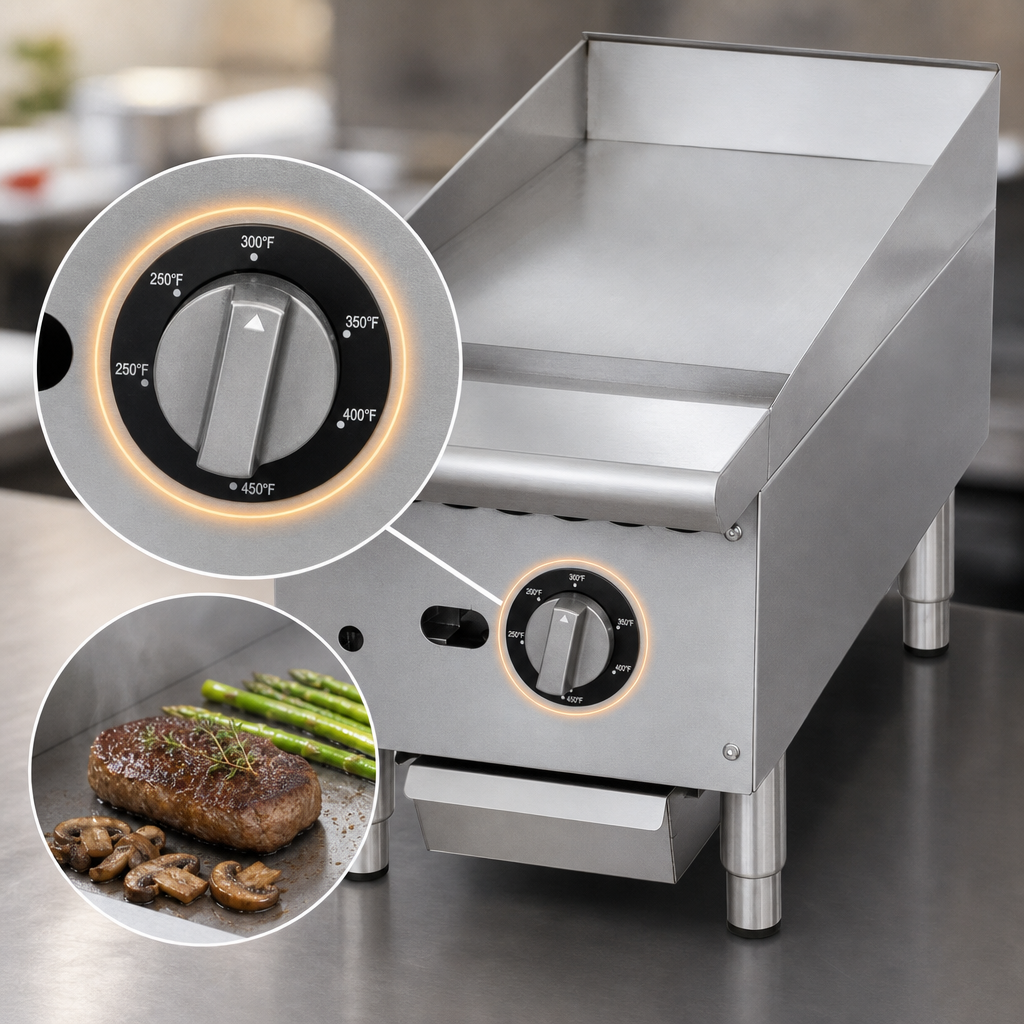

Thermostatic Heat Control

Embedded modulating thermostat adjusts from 200°F to 450°F for responsive surface temperature control.

Thermostatic Heat Control

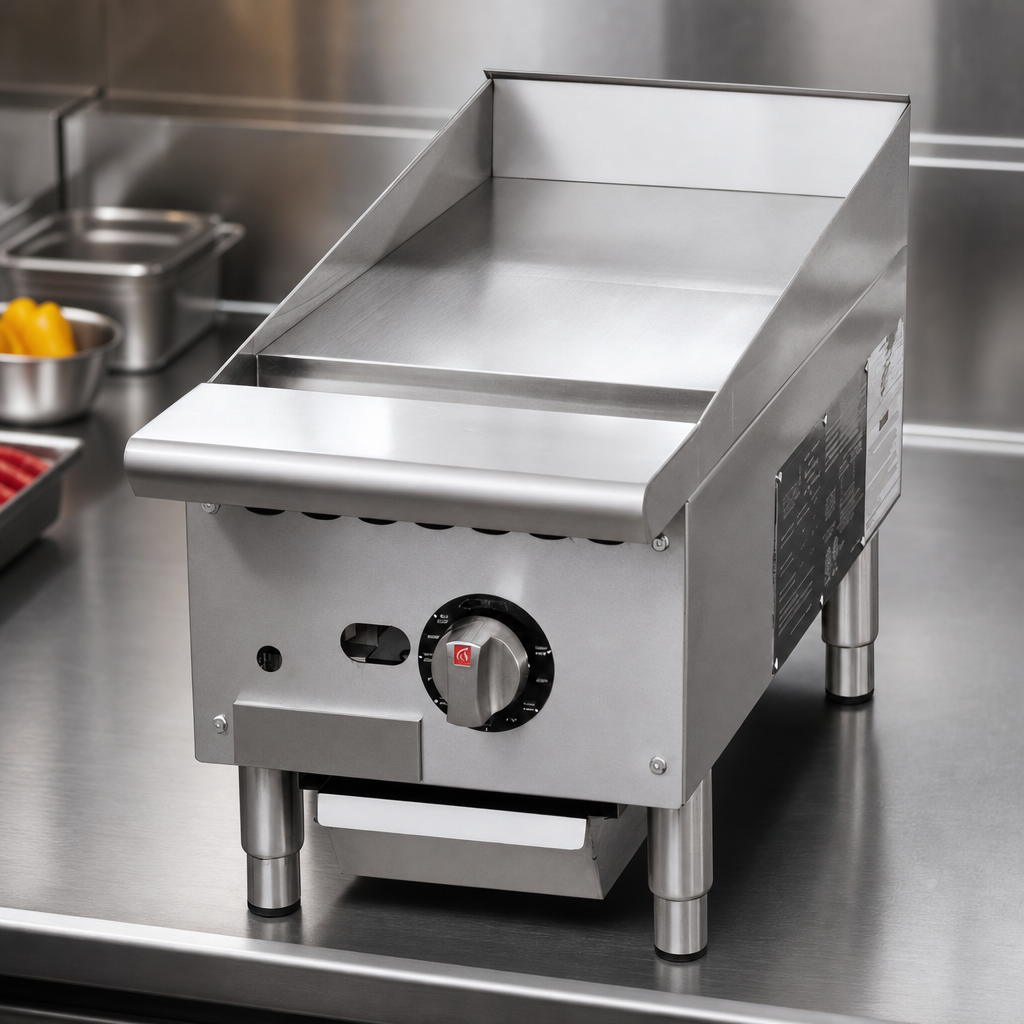

Heavy-Duty Griddle Plate

1-inch thick, 20-1/2-inch-deep polished steel cooking surface provides durability and steady heat retention.

Heavy-Duty Griddle Plate

High-Output Burner

One 28,000 BTU U-shaped burner helps distribute heat evenly across the 12-inch griddle section.

Stainless Steel Body Construction

All-welded stainless steel construction with a stainless steel front, bull nose, and tapered splash guard adds durability.

Cool-Touch Front Rail

The stainless steel front rail helps protect knobs and creates a safer, more comfortable work area.

Easy-Clean Grease Management

Includes a full-width grease trough, grease chute, and large stainless steel grease drawer for simpler cleanup.

Natural Gas Ready

Ships natural gas ready with an LP conversion kit, reversible regulator, and 3/4-inch rear gas connection.

Adjustable Support Legs

Heavy-duty adjustable stainless steel legs help stabilize the unit during countertop installation.

Type Gas Griddle
Installation Type Countertop
Controls Thermostatic
Gas Type Natural Gas
BTU 28,000 BTU
Material Stainless Steel
Finish Polished Steel
Cooking Surface Width 12 Inches
Cooking Surface Depth 20.5 Inches
Temperature Range 200°F to 450°F
Gas Connection Size 3/4 Inch NPT
Shipping Width 15.75 Inches
Shipping Depth 33.5 Inches
Shipping Height 19.25 Inches
Shipping Weight 143 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor in the United States and Canada; 1-year parts only internationally.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic control adjusts from 200°F to 450°F.
It ships natural gas ready and includes an LP conversion kit and reversible regulator.
It features a heavy-duty 1-inch thick polished steel griddle plate.
The unit uses a 3/4-inch rear gas connection.
No. The documentation states that it is suitable for installation on non-combustible surfaces only and should not be used on casters.
The warranty is one year parts and labor in the United States and Canada, and one year parts only internationally.
