Key specifications
- BTU
- 140,000 BTU
- Gas Type
- Natural Gas
- Dimensions
- 48.0"W × 34.44"D × 15.5"H
- Type
- Charbroiler
- Installation Type
- Countertop
- Material
- Stainless Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

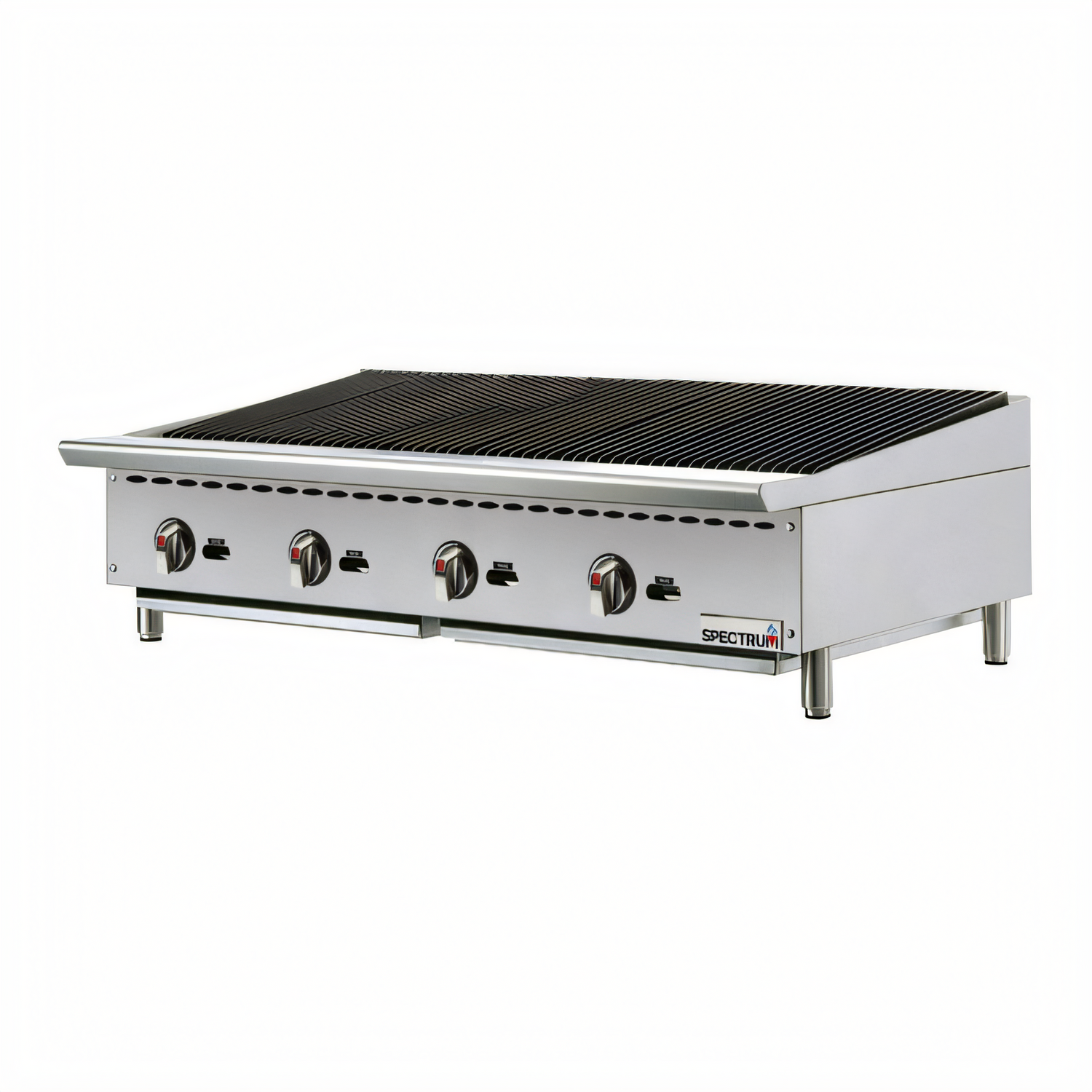

The Winco Spectrum NGCB-48R is a 48-inch countertop natural gas charbroiler with four 35,000 BTU burners and 140,000 BTU total output.
- Controls: Independent infinite heat controls with a standing pilot burner for each 12-inch section.
- Grates: Reversible cast iron grates adjust to three height positions.
- Construction: Stainless steel insulated double-wall body with 10-gauge stainless steel radiant burner covers.
- Grease management: A 3-1/2-inch full-width grease trough and removable grease trays.
- Gas connection: Rear 3/4-inch NPT gas connection with regulator.
- Conversion: Ships ready for natural gas service with an LP conversion kit and reversible regulator.
- Installation: Adjustable stainless steel legs and non-skid feet; suitable for non-combustible surfaces only.
Overall Dimensions:
48.0"W x 34.44"D x 15.5"HProduct Weight:

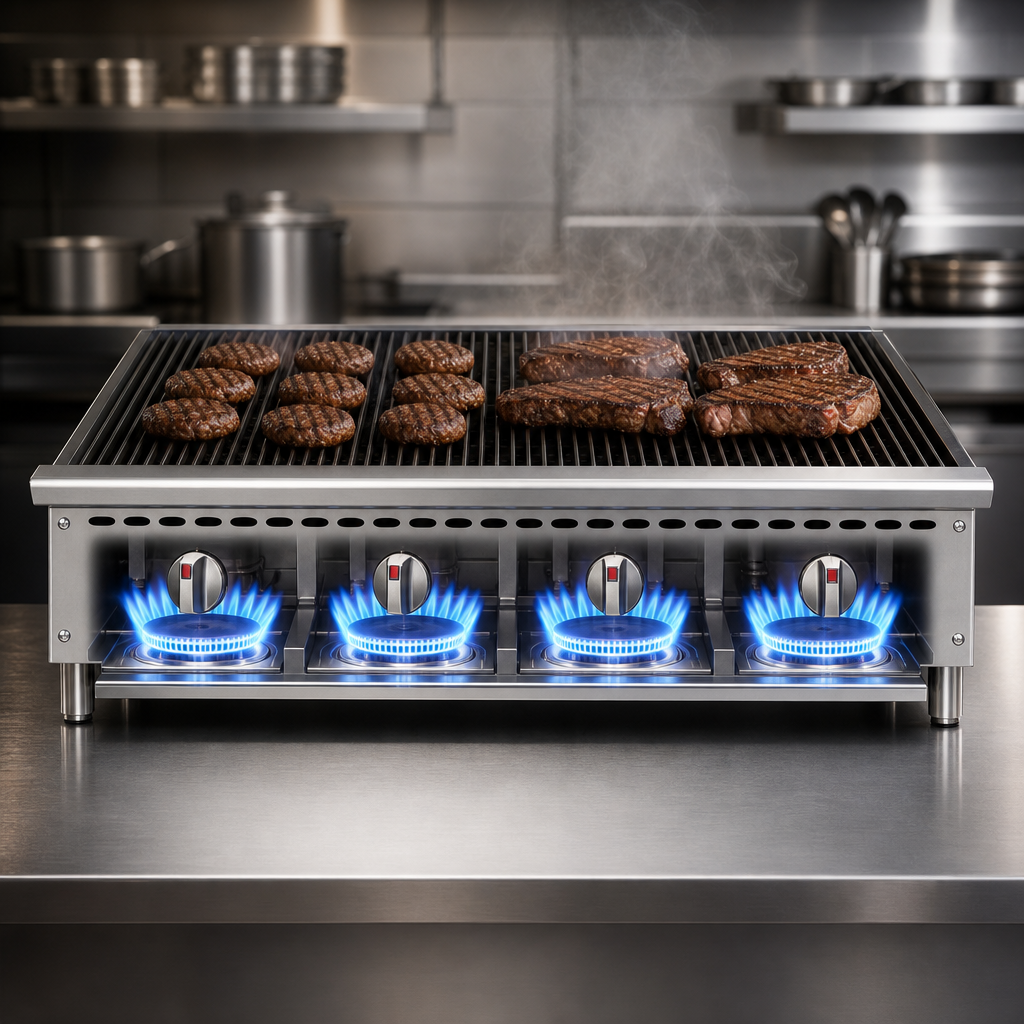

268.0 lbFour 35,000 BTU Burners
The charbroiler has four burners rated at 35,000 BTU each for 140,000 BTU total output.

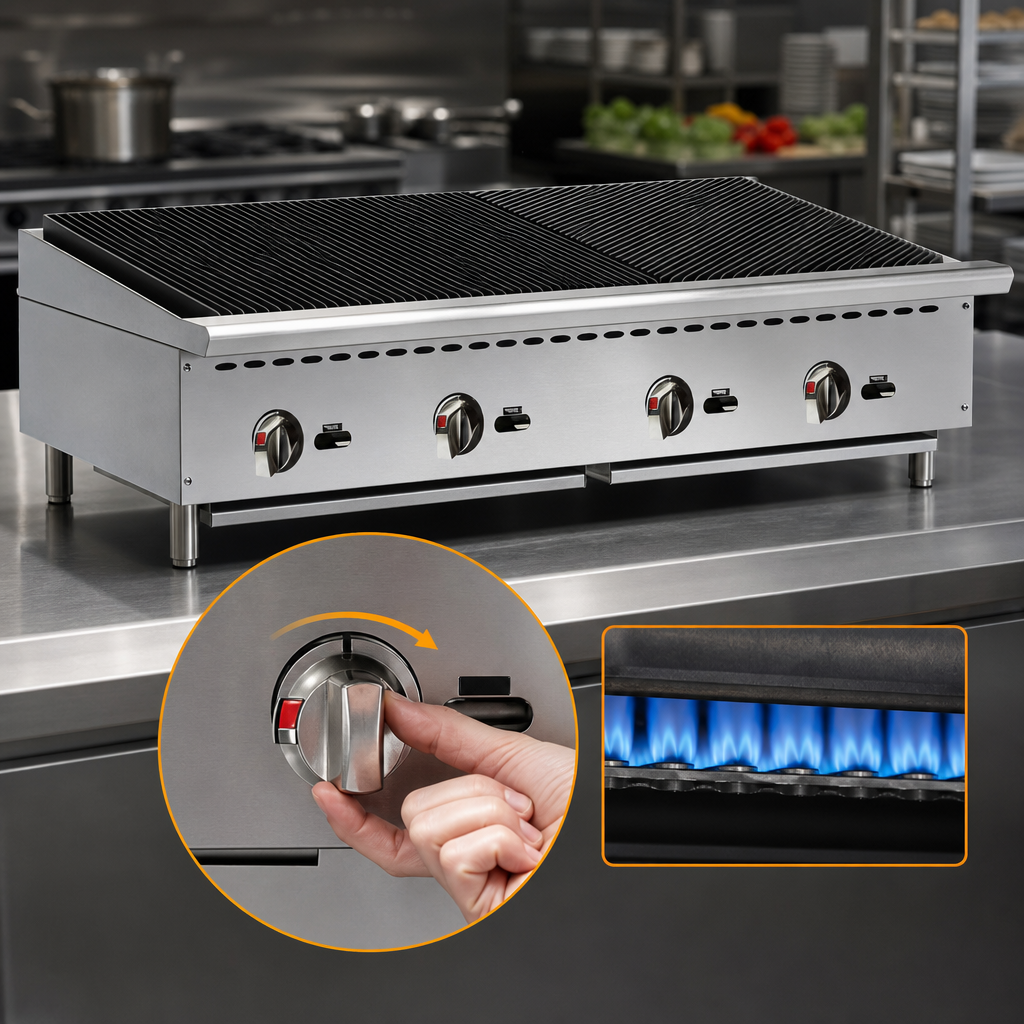

Infinite Heat Controls
Independent infinite heat control valves serve each 12-inch section.
Standing Pilot Ignition
A standing pilot burner is provided for each 12-inch section.
Reversible Cast Iron Grates
The heavy-duty grates are reversible and adjust to three height positions.
Radiant Burner Covers
10-gauge stainless steel radiant burner covers are contoured for heat distribution.
Stainless Steel Body
The unit has a stainless steel insulated double-wall body.
Grease Management
A 3-1/2-inch full-width grease trough and removable grease trays collect grease.
Natural Gas and LP Conversion
The charbroiler ships ready for natural gas service with an LP conversion kit and reversible regulator.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
