Key specifications
- BTU
- 105,000 BTU
- Gas Type
- Natural Gas
- Dimensions
- 36.0"W × 34.44"D × 15.5"H
- Type
- Charbroiler
- Installation Type
- Countertop
- Material
- Stainless Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

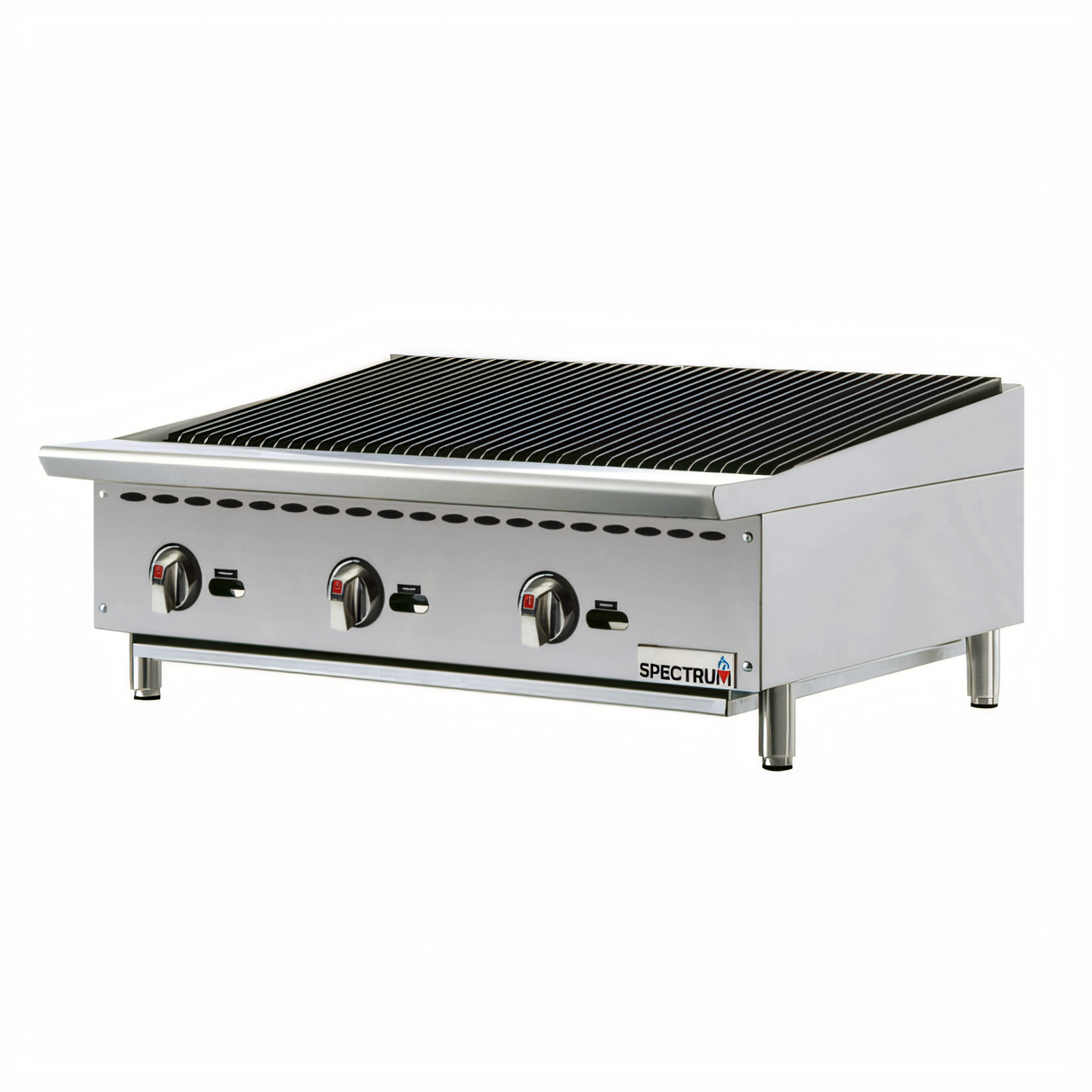

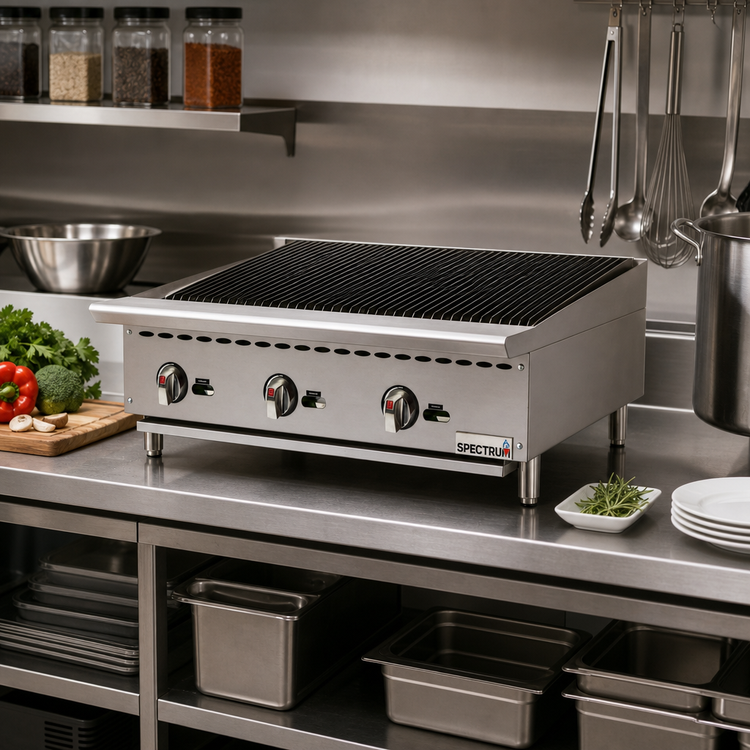

The Winco Spectrum NGCB-36R is a countertop natural gas charbroiler with three 35,000 BTU U-shaped burners and 105,000 BTU total output.
It features infinite heat controls, standing pilot ignition, reversible cast iron grates with three height positions, 10-gauge stainless steel radiant burner covers, and an insulated double-wall stainless steel body.
- 3-1/2-inch full-width grease trough with removable grease trays
- Cool-touch stainless steel front plate rail
- Ships ready for natural gas service with an LP conversion kit and reversible regulator
- Suitable for installation on non-combustible surfaces only
Overall Dimensions:
36.0"W x 34.44"D x 15.5"HProduct Weight:

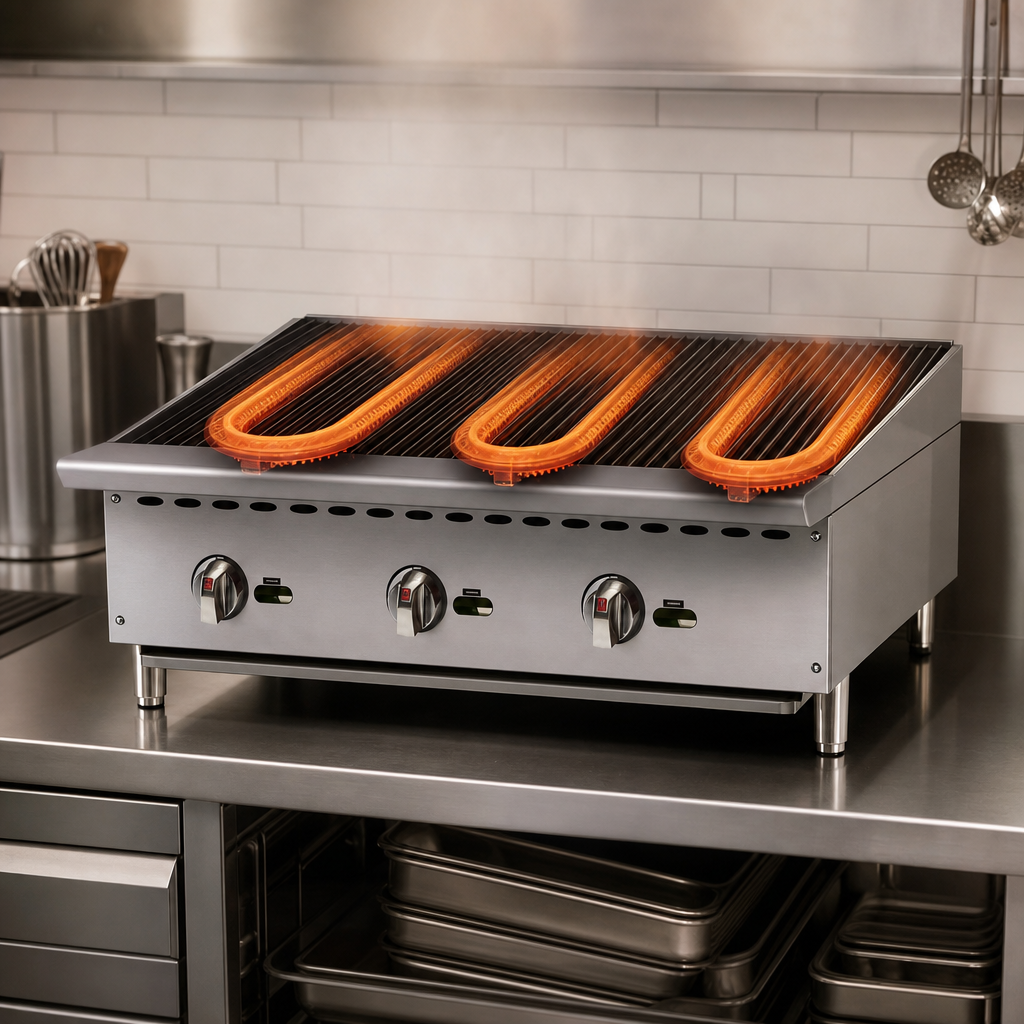

212.0 lbThree U-Shaped Burners
Each burner is rated at 35,000 BTU for 105,000 BTU total output.

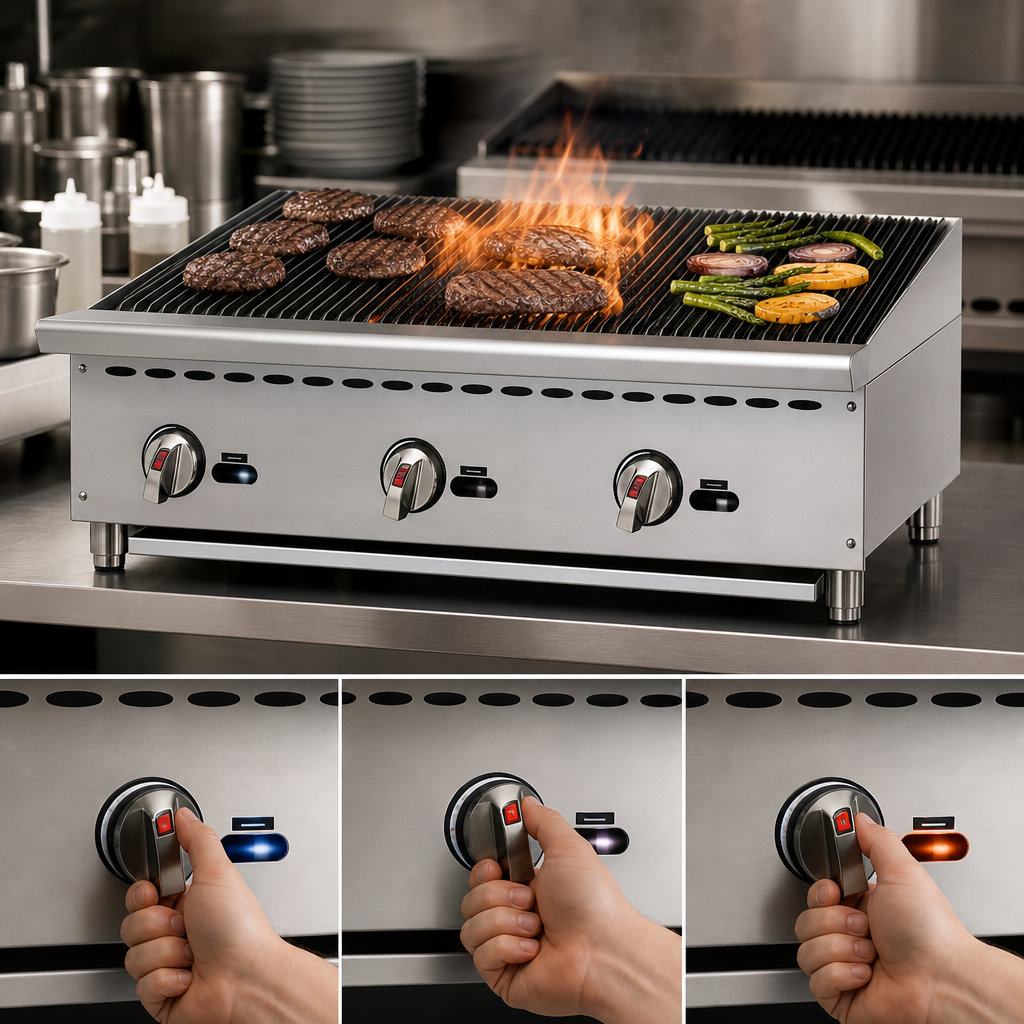

Infinite Heat Controls
Independent infinite heat control valves provide burner-by-burner adjustment.
Reversible Cast Iron Grates
The grates are reversible and adjust to three height positions.
Radiant Burner Covers
The burner covers are made from 10-gauge stainless steel and are contoured for even heat distribution.
Standing Pilot Ignition
A standing pilot burner is provided for each 12-inch section.
Grease Management
A 3-1/2-inch full-width grease trough and removable grease trays collect grease.
Natural Gas and LP Conversion
The unit ships ready for natural gas service and includes an LP conversion kit with a reversible regulator.
Insulated Stainless Steel Body
The body uses insulated double-wall stainless steel construction and includes a cool-touch front plate rail.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
