Key specifications

BTU
70,000 BTU
Gas Type
Natural Gas
Dimensions
24.0"W × 34.44"D × 15.5"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Winco SKU: NGCB-24R UPC: 842169138695

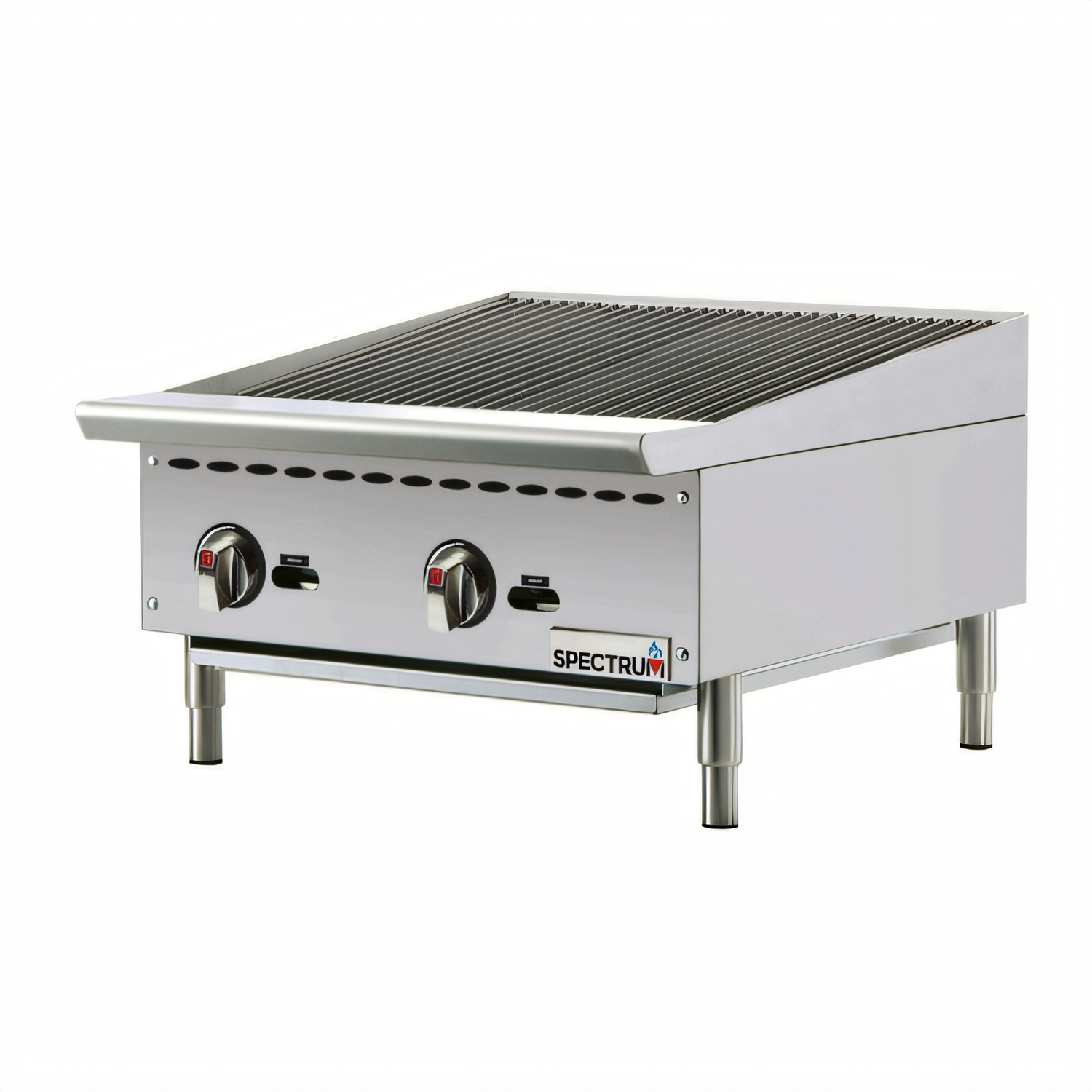

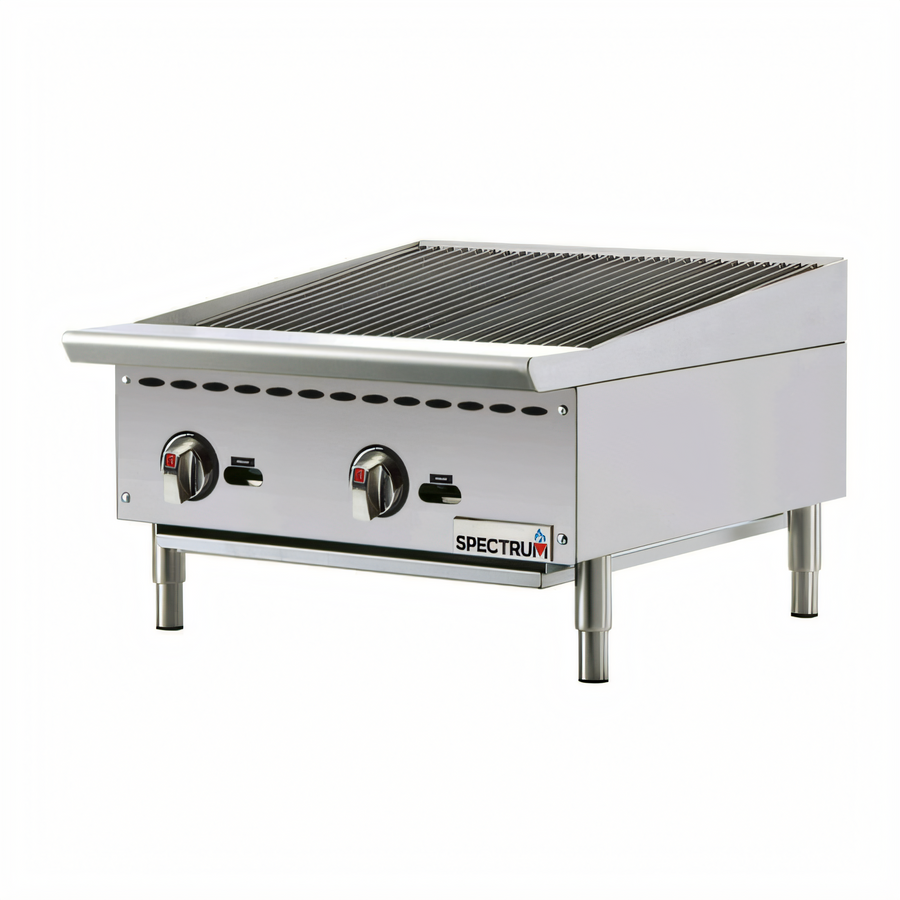

Winco Spectrum™ NGCB-24R 24-Inch Gas Countertop Charbroiler

$1,043.00
/each
Estimated to ship in 5–8 business days
Width
Briquette kits
Cleaning brushes
Gas Connector

Need something else? Contact us.

Included: Winco warranty One year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $96/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Radiant
Gas Type Natural Gas
Burner Count 2
Burner Output 35,000 BTU Each
BTU 70,000 BTU
Controls Infinite Heat Controls
Ignition Type Standing Pilot
Burner Type U-Shaped
Grate Material Cast Iron
Grate Type Reversible
Grate Adjustment 3 Positions
Width 24 Inches
Depth 34.44 Inches
Height 15.5 Inches
Gas Connection 3/4 in NPT
Selling Unit Set
Units Per Case 1

Description

The Spectrum™ NGCB-24R is a countertop natural gas charbroiler with two 35,000 BTU burners and 70,000 BTU total output.

  • Independent infinite heat control valves and standing pilot ignition provide control for each burner.
  • Reversible cast iron grates adjust to three height positions.
  • The stainless steel body includes 10-gauge radiant burner covers, an insulated double-wall construction, and a tapered splash guard.
  • A full-width 3-1/2-inch grease trough and removable grease trays support grease collection.
  • The unit includes a rear 3/4-inch NPT gas connection with regulator, an LP conversion kit, adjustable legs, non-skid feet, and a cool-touch front rail.

Overall Dimensions:

24.0"W x 34.44"D x 15.5"H

Product Weight:

157.0 lb

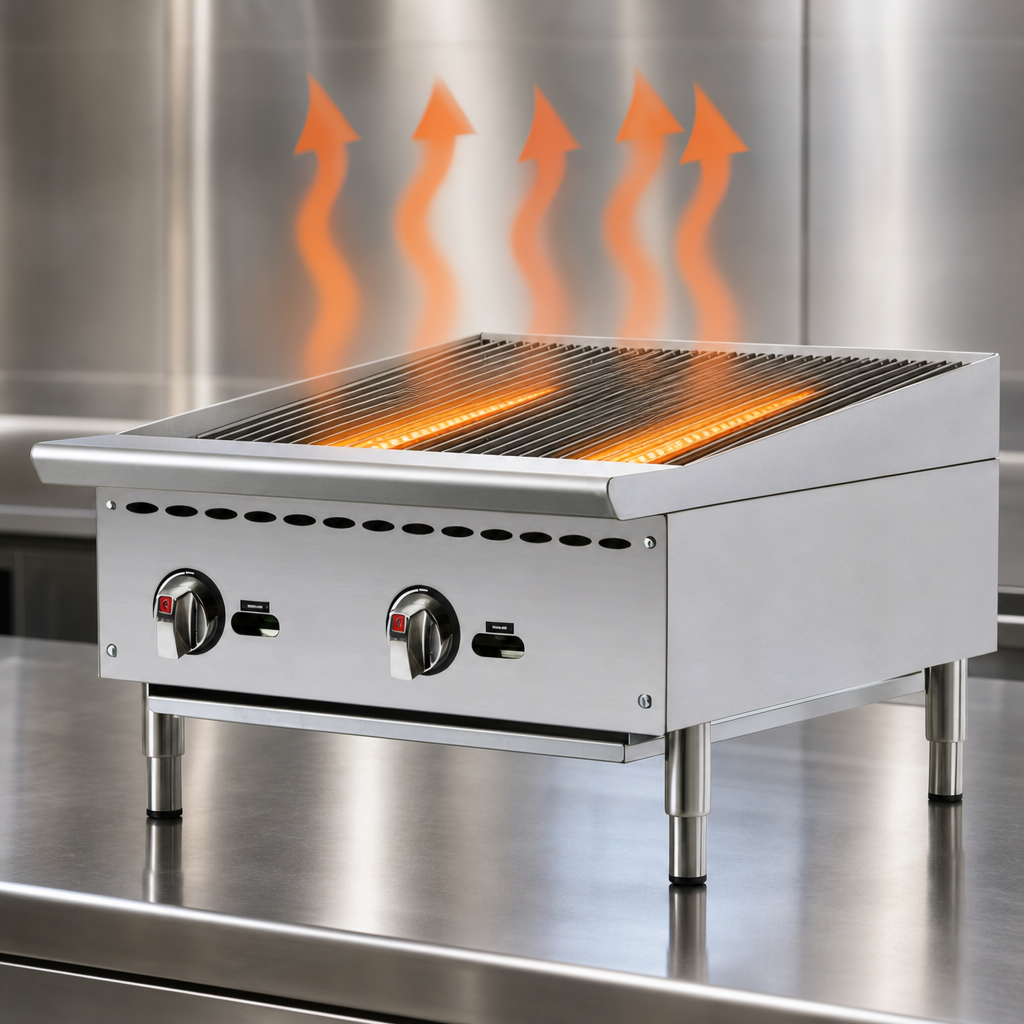

High-Output Burners

Two U-shaped burners provide 35,000 BTU each for 70,000 BTU total output.

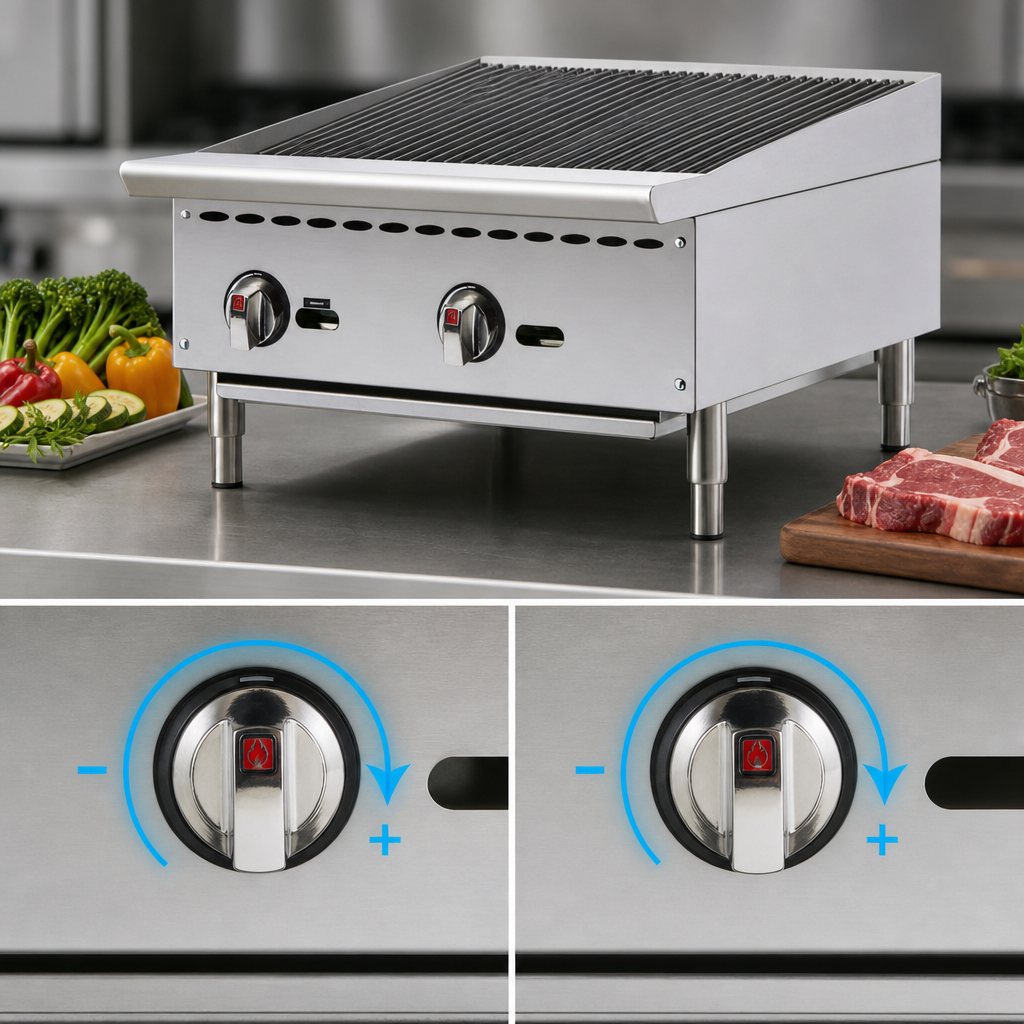

Infinite Heat Controls

Independent infinite heat control valves provide separate burner control.

Reversible Cast Iron Grates

Heavy-duty grates reverse and adjust to three height positions.

Standing Pilot Ignition

A standing pilot burner is provided for each burner section.

Stainless Steel Construction

The body features stainless steel insulated double-wall construction, a tapered splash guard, and 10-gauge radiant burner covers.

Grease Management

A 3-1/2-inch full-width grease trough and removable grease trays collect grease.

LP Conversion

The unit ships natural gas ready and includes an LP conversion kit with a reversible regulator.

Cool-Touch Front Rail

The stainless steel front rail provides knob protection and a cool-touch work zone.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It has two U-shaped burners rated at 35,000 BTU each, for 70,000 BTU total output.
The unit ships ready for natural gas service and includes an LP conversion kit with a reversible regulator.
Yes. The reversible cast iron grates adjust to three height positions.
The product measures 24 inches wide by 34.44 inches deep by 15.5 inches high.
The product has a one-year parts and labor warranty.
