Wells (Middleby) WVU-72 Ventless Hood Systems
Description

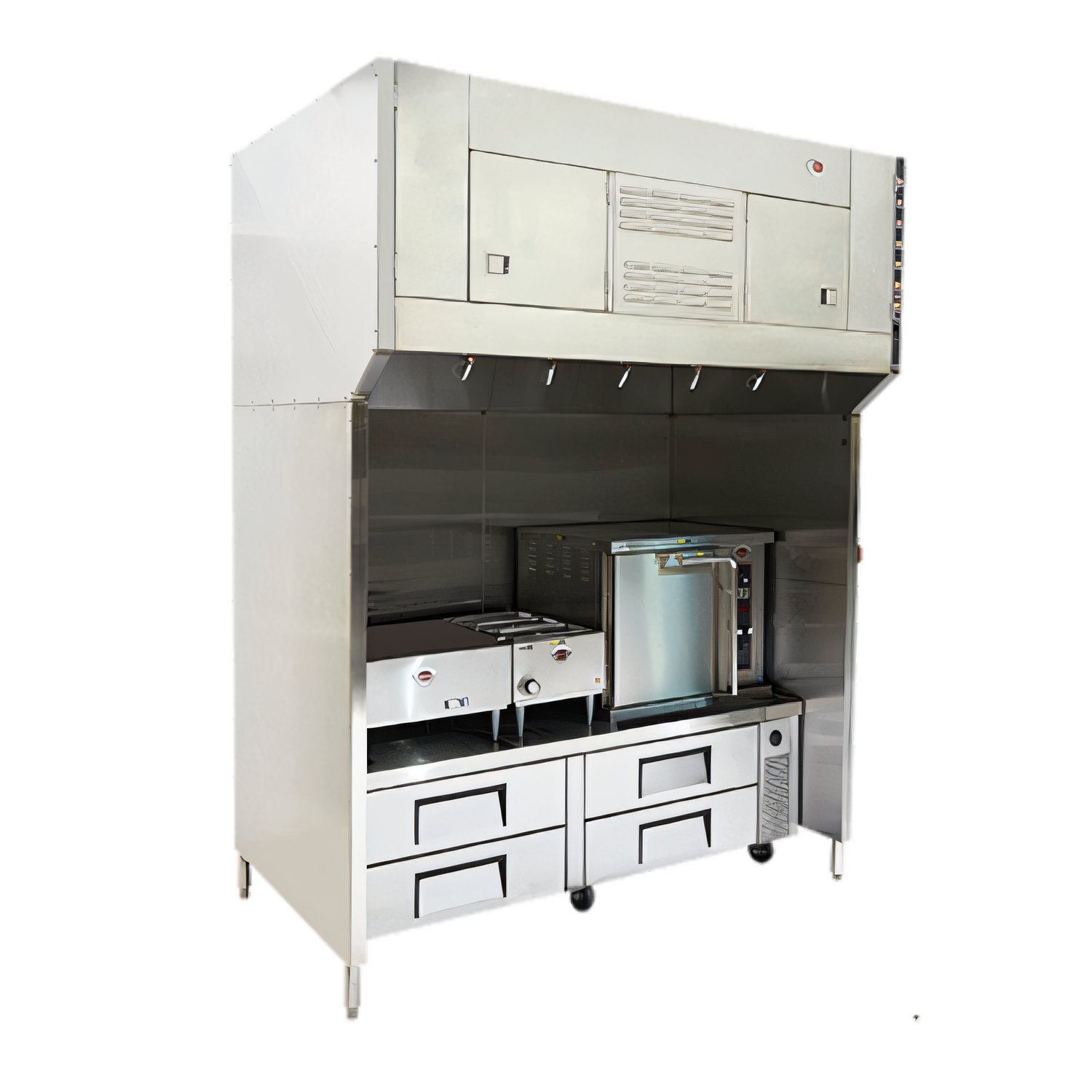

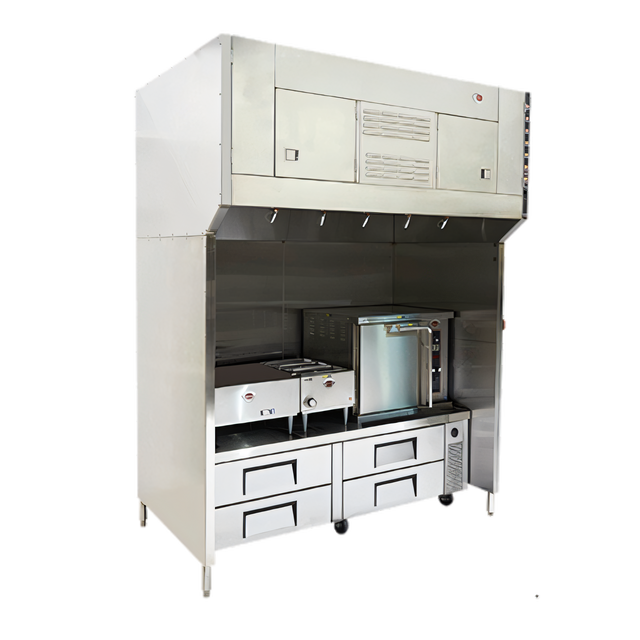

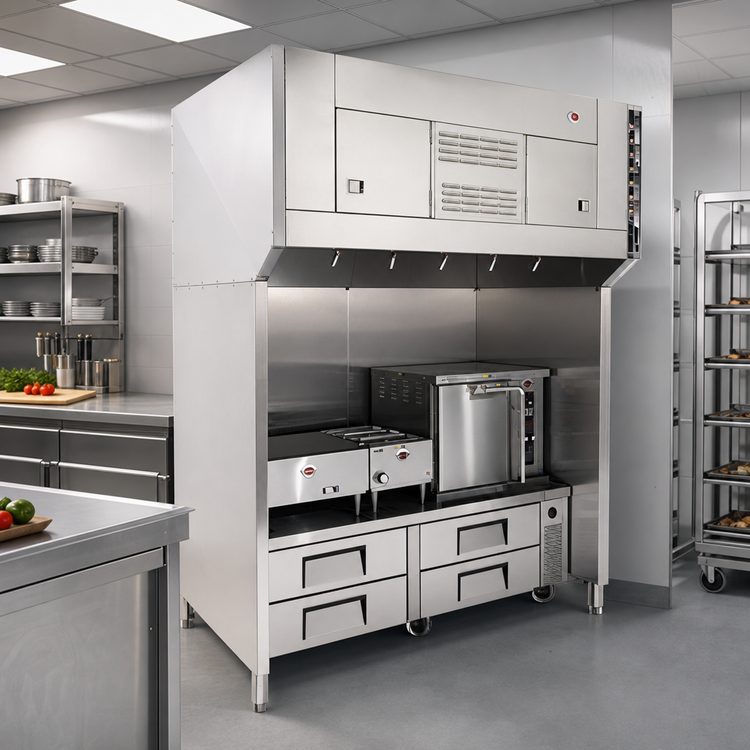

Wells WVU-72 Universal Ventless Hood – 72" Cooking Zone
Self-Contained | Type-1 Certified | 4-Stage Filtration | Built-in ANSUL® R-102Create a compliant cook-line almost anywhere—no roof penetrations, no ductwork, just plug-and-play performance. The Wells WVU-72 moves 1,500 CFM through a proprietary 4-stage filter pack and returns purified air back into the space, letting you serve high-volume menus where traditional hoods are impractical or cost-prohibitive.
Why Choose the WVU-72
- UL710B Classified recirculating hood – Certified Type-1 for grease-laden vapor applications.

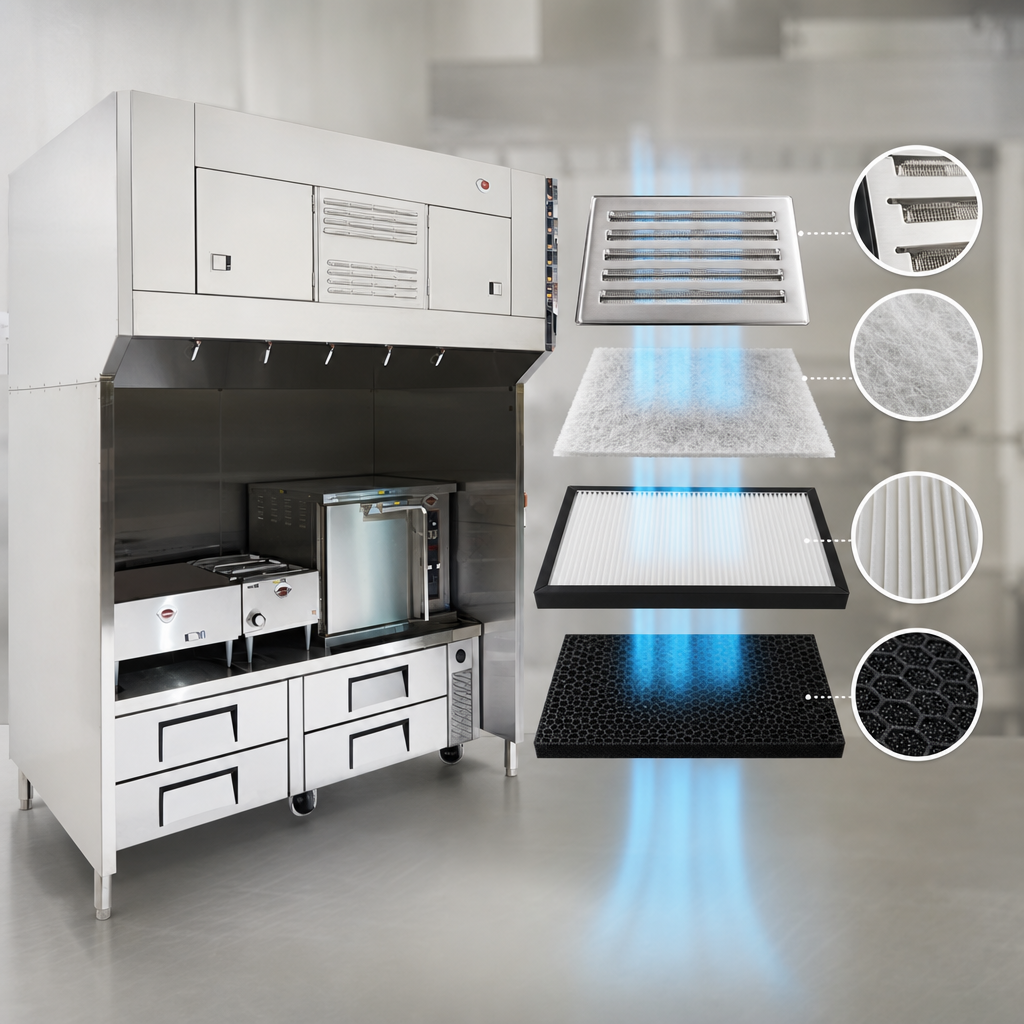

- Complete 4-stage filtration (grease baffle, fiberglass pre-filter, HEPA, activated charcoal) removes smoke, grease & odors.

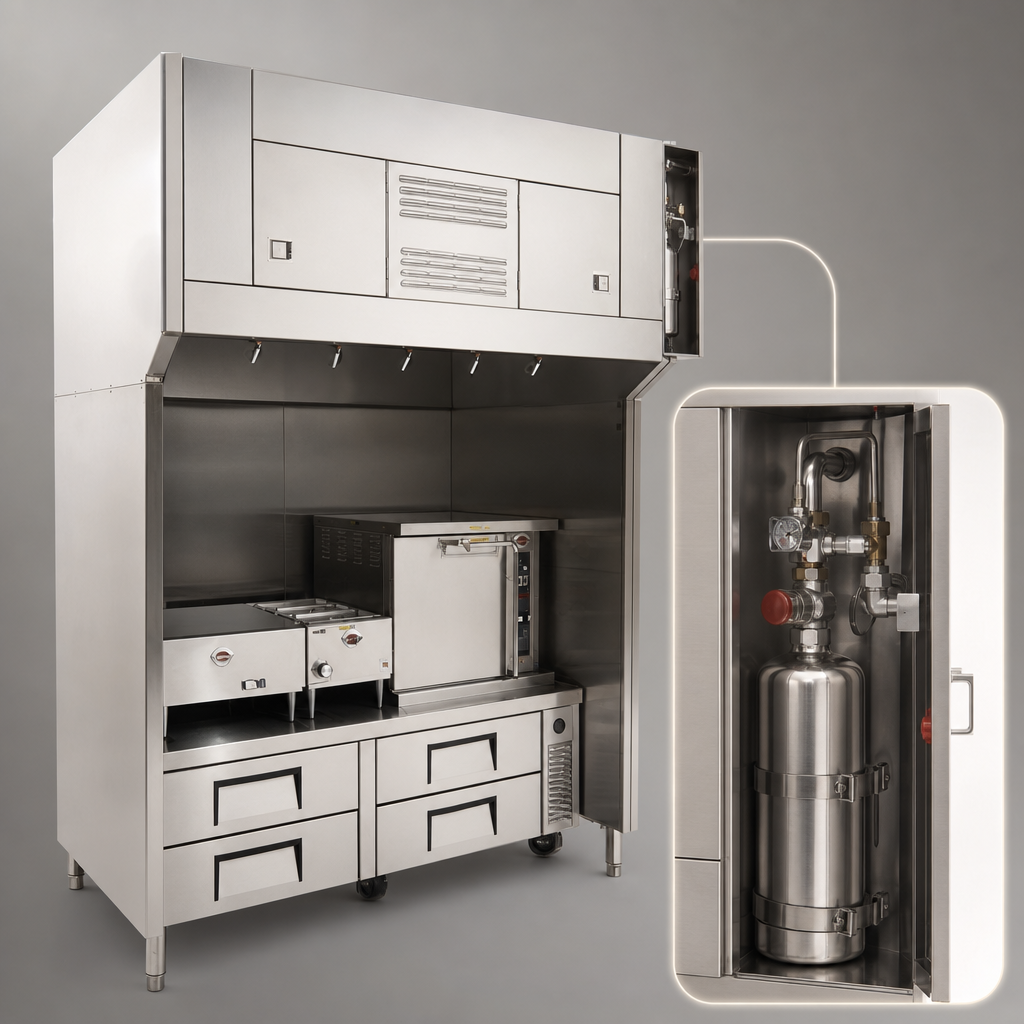

- Factory-installed ANSUL® R-102 wet-chemical fire suppression with manual pull station and front access for service.
- Airflow sensor & interlock shut down cooking equipment if filters are missing, clogged or a fire is detected.
- 1 HP blower delivers approx. 1,500 CFM while drawing only 3.5 A @ 208/240 V 1-Ø.
- Field-convertible discharge – ships vertical; convert to horizontal on site when ceiling space is limited.
- Four cool-white (6000 K) LED work lights — 2,000 lm total for brilliant cooking-surface visibility.
- Stainless steel stand fits through a 36" doorway; 6-8" adjustable legs simplify leveling on uneven floors.
- Accepts multiple electrically-heated appliances (fryers, griddles, ovens, etc.) up to a combined 72" width.
- NSF/ANSI 2 listed, cULus Classified for the U.S. & Canada, and backed by a 1-year parts & labor warranty (extendable to 2 years).
Technical Specifications
| Model | WVU-72 |
|---|---|
| Cooking-zone width | 72 in (183 cm) |
| Overall dimensions (W × D × H) | 76.8 in × 48.0 in × 102.5 in (195 cm × 122 cm × 260 cm) Height requirement: 120 in vertical / 108 in horizontal discharge |
| Typical airflow | 1,500 CFM (recirculating) |
| Grease emissions | 0.0029 lb/hr/ft² (EPA 202 test) |
| Electrical | 208/240 V, 1-phase, 3.5 A, 1 HP blower |
| Lighting | 4 × LED, 500 lm each (6000 K) |
| Filter set (included) | 1 × stainless baffle, 2 × fiberglass pre-filters, 2 × HEPA/charcoal packs |
| Replacement filters | (2) Pre-filters #22618 | (2) HEPA/Charcoal Packs #WL0711 |
| Weight | Shipping 1632 lb (740 kg) | Installed 850 lb (386 kg) |
| Certifications | UL710B, NSF/ANSI 2, cULus, ANSUL® R-102 |
Perfect For
- Malls, stadiums & arenas where duct runs are impossible.
- Historic or high-rise locations that prohibit roof penetrations.
- Leased spaces & ghost kitchens needing movable ventilation.
- Catering and demo kitchens requiring rapid deployment.
• The ANSUL® system must be charged & certified by a licensed distributor after installation and before first use.
• WVU-72 is built to order and is a non-returnable item.
• Only electrically-heated appliances are approved for use under this hood.
Need extra peace of mind? Combine the WVU-72 with approved Star, Lang, Toastmaster, Wells, APW, Bakers Pride or Southbend electric equipment on the same purchase order and receive a complimentary 2-year extended warranty.
