Wells (Middleby) WVU-26 Ventless Hood Systems
Description

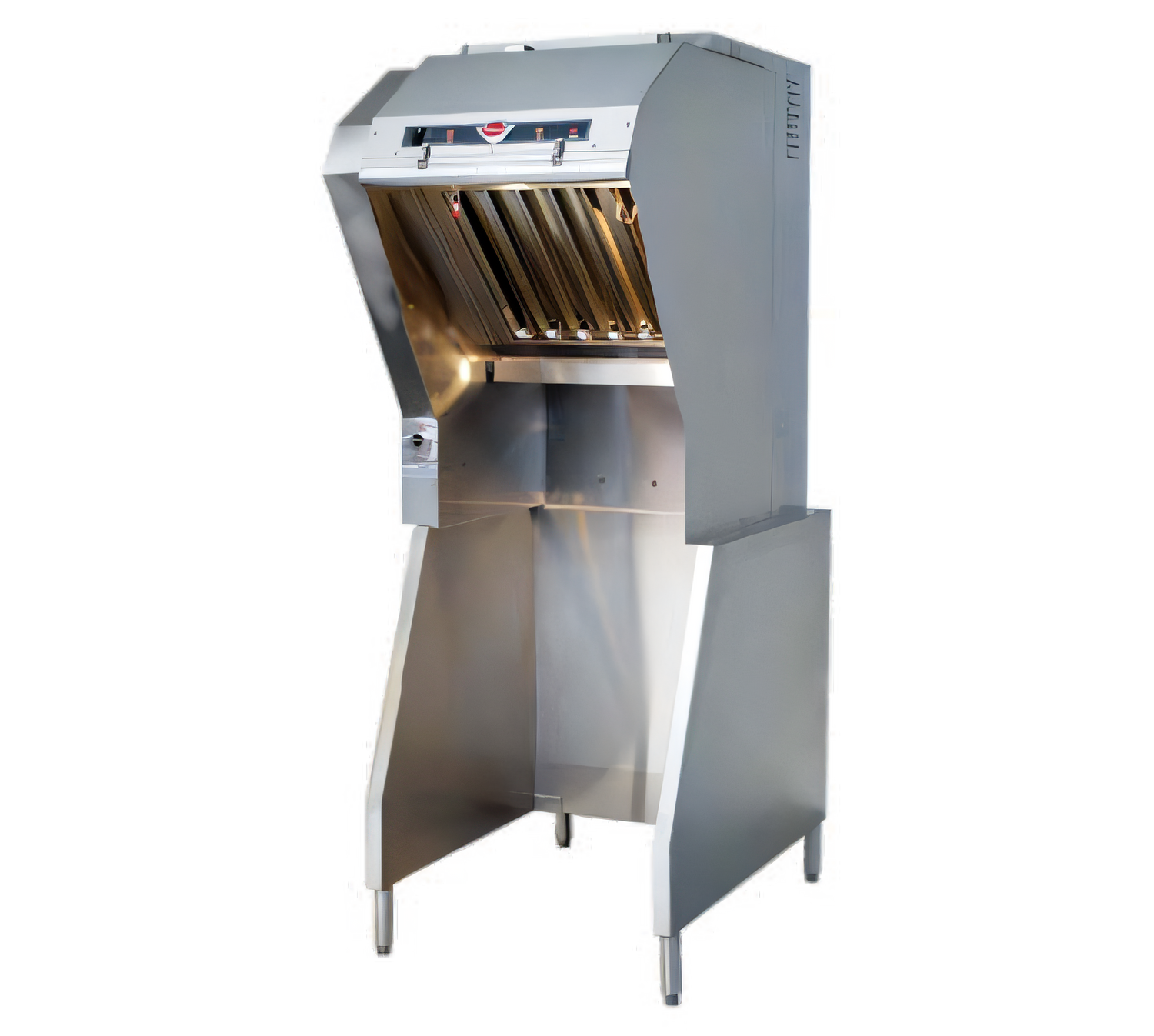

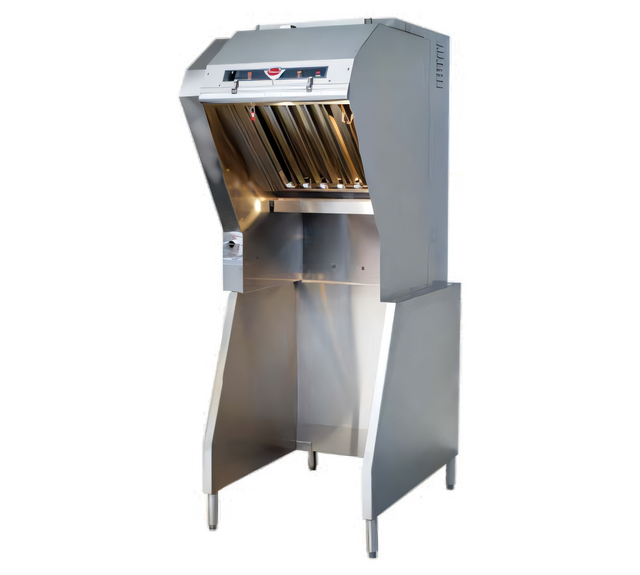

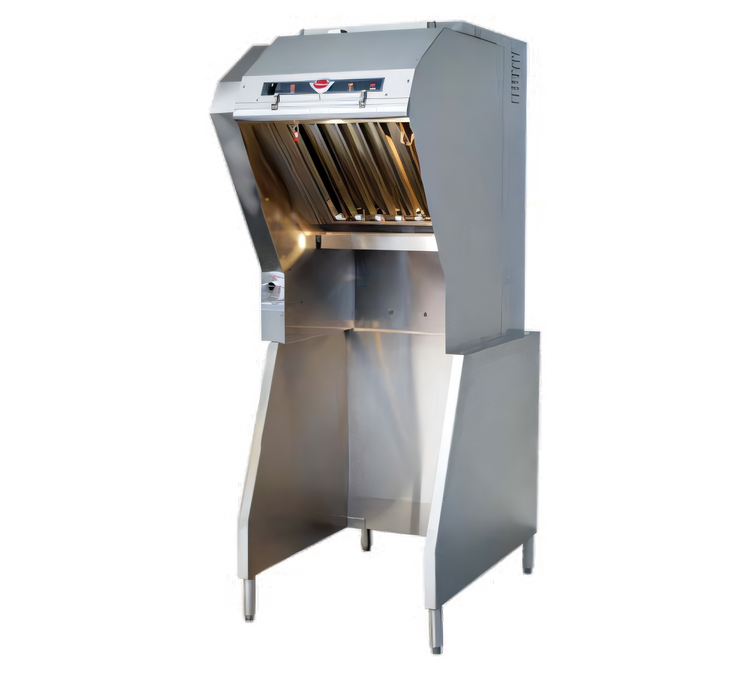

Wells WVU-26 Universal Ventless Hood – 26" Cooking Zone

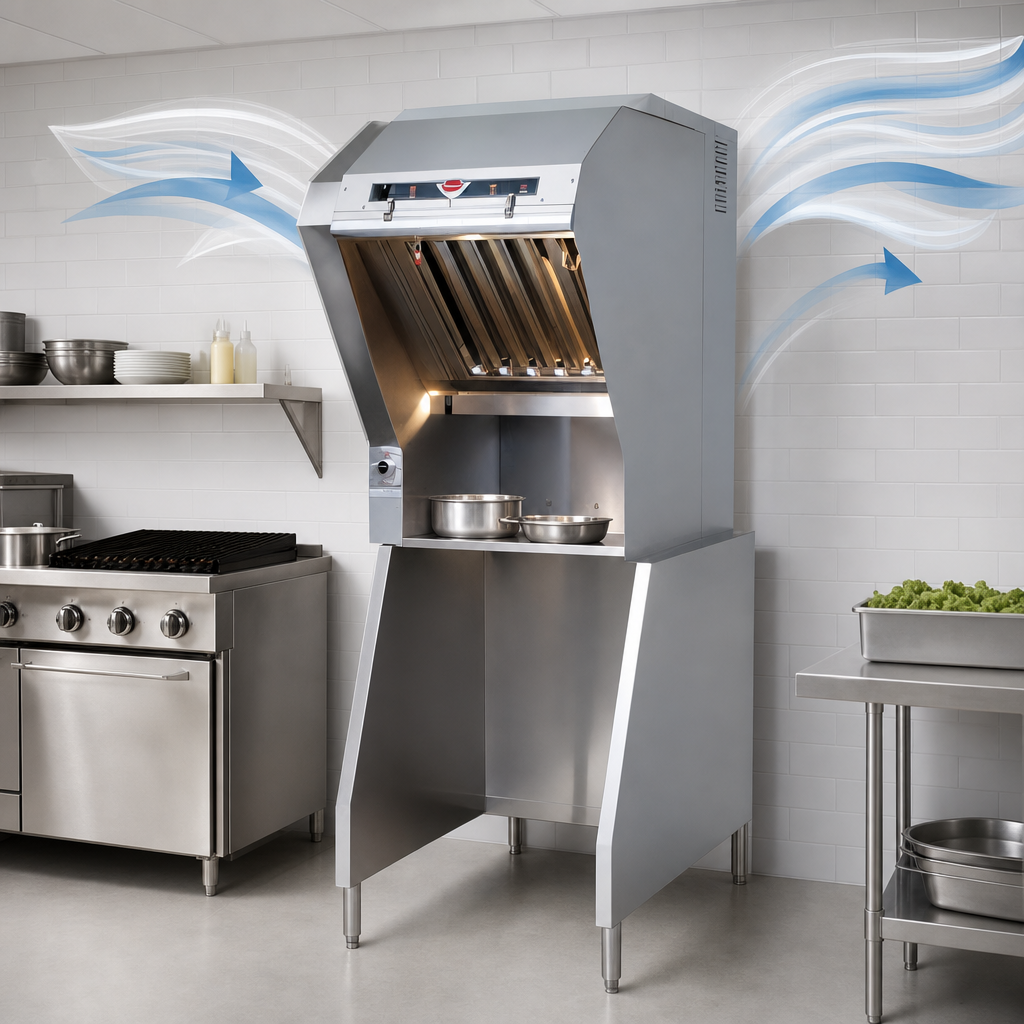

Model WVU-26 | Type-1 Recirculating Hood SystemBring full-service cooking to virtually any location—no roof penetrations, no costly ductwork, and no gas lines. The Wells WVU-26 combines a completely self-contained 3-stage filtration system, built-in Ansul® R-102 fire suppression, and smart safety interlocks to deliver code-compliant ventilation for electric griddles, fryers, ranges, and more (up to 26" wide).
Why You’ll Love It
- Certified Type-1 hood—meets NFPA 96, ANSI UL710B & EPA 202 test method for grease & smoke removal.
- Completely self-contained 3-stage filtration (stainless baffle ▸ pre-filter ▸ HEPA/activated-carbon).
- Front-access filters remove without tools; airflow & filter status lights alert staff when service is needed.
- Built-in Ansul® R-102 wet-chemical fire suppression with remote pull station—no external duct required.
- Interlock system automatically shuts down cooking equipment if filters are missing, clogged, or in the event of fire.
- Two cool-white LED work lights (990 lm) brighten the entire cook zone while using < 15 W.
- Rugged stainless-steel construction, plus included stand with 6"–8" adjustable legs for perfect leveling.
- Narrow footprint fits through a 36" doorway; ideal for kiosks, convenience stores, concessions & leased spaces.
- Ships ready for a single-phase NEMA 6-15R, 208/240 V, 6 A connection.
At-a-Glance Specs

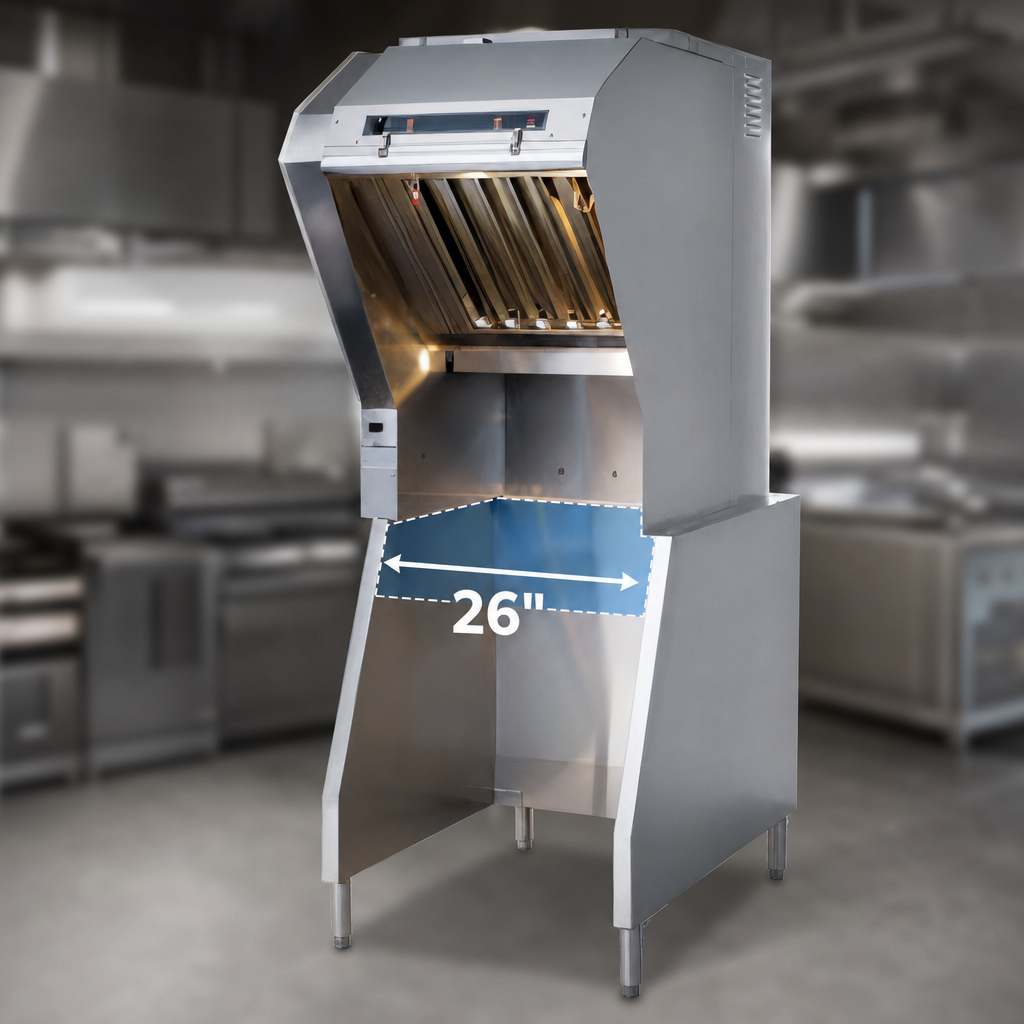

| Cooking Zone Width | 26" (660 mm) – electric appliances only, max 22 kW combined load |
|---|---|
| Overall Dimensions | W 31.1" × D 34.4" × H 79.7" (790 × 823 × 2024 mm) |
| Airflow | 800 CFM (recirculating, vertical discharge) |
| Electrical | 208/240 V, 1-Phase, 6 A • Factory cord & plug, NEMA 6-15P |
| Fire Protection | Ansul® R-102 wet-chemical system, fully charged & factory-installed |
| Clearances | Base: 6" (152 mm) from floor • Ceiling: 19" (483 mm) minimum |
| Lighting | (2) LED lamps, 990 lumens total, cool white |
| Construction | 18-ga stainless steel, integral stand w/ 6"–8" adjustable legs |
| Certifications | ETL, ETL-Sanitation, NSF, NFPA 96, UL710B |
| Standard Warranty | 1-year parts & labor (extend to 2-years with option UVWARR) |
Replacement Filters
This model requires (1) HEPA/Carbon Filter Pack #WL0107 for each filter change. Keep a spare set on hand to avoid downtime.
Optional 2-Year Extended Warranty
Add part #UVWARR to your PO—or purchase the hood with qualifying Middleby electric cooking equipment—to double your coverage to 2-years parts & labor.
Installation Note: The WVU-26 is approved only for electrically heated equipment. Ensure all appliances are properly interlocked and that 400 CFM of make-up air is supplied to the space.
