Wells (Middleby) WVO-4HF Electric Ranges
Description

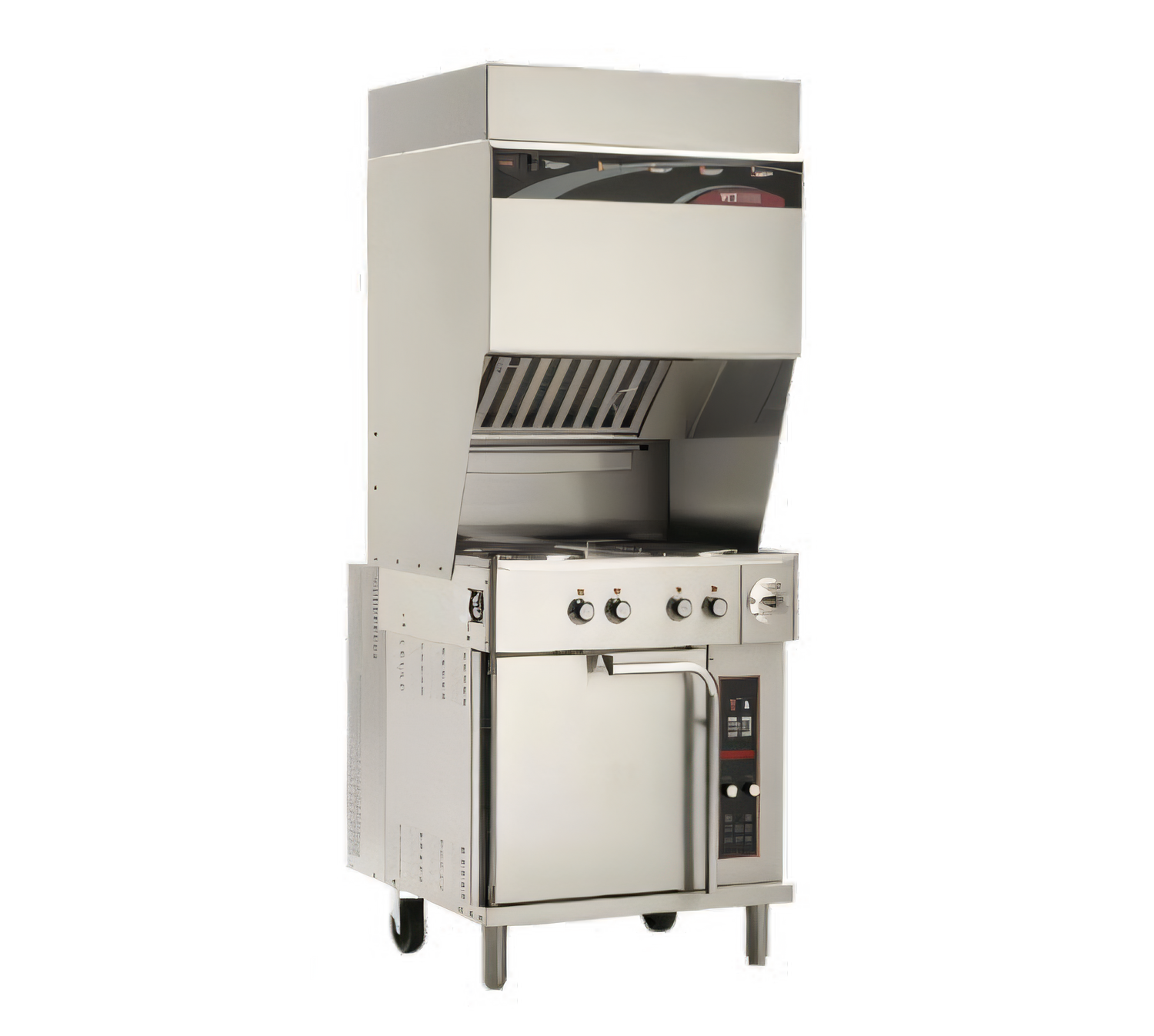

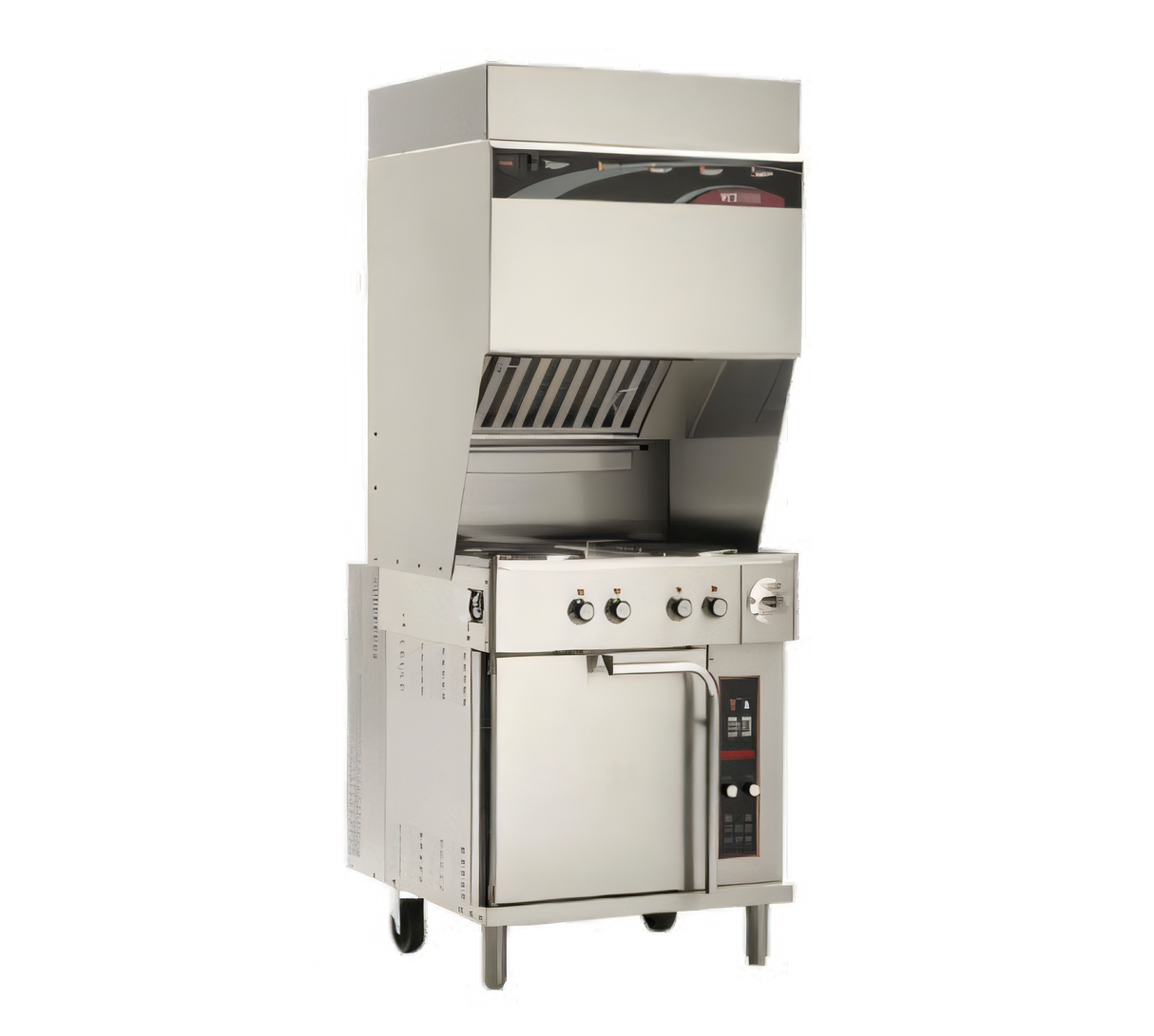

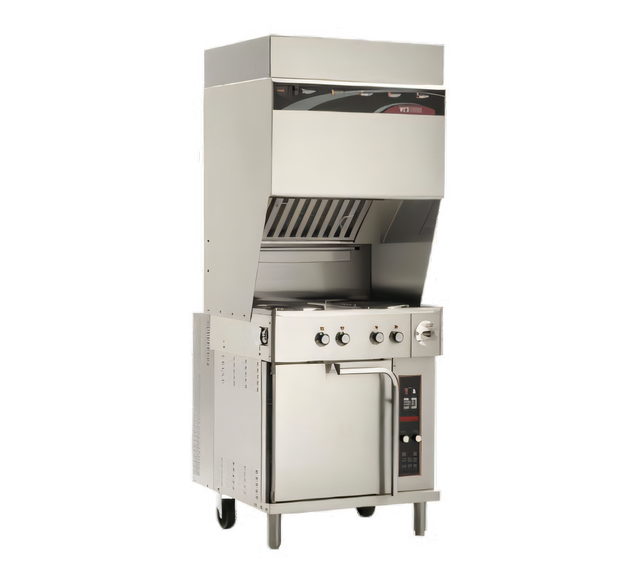

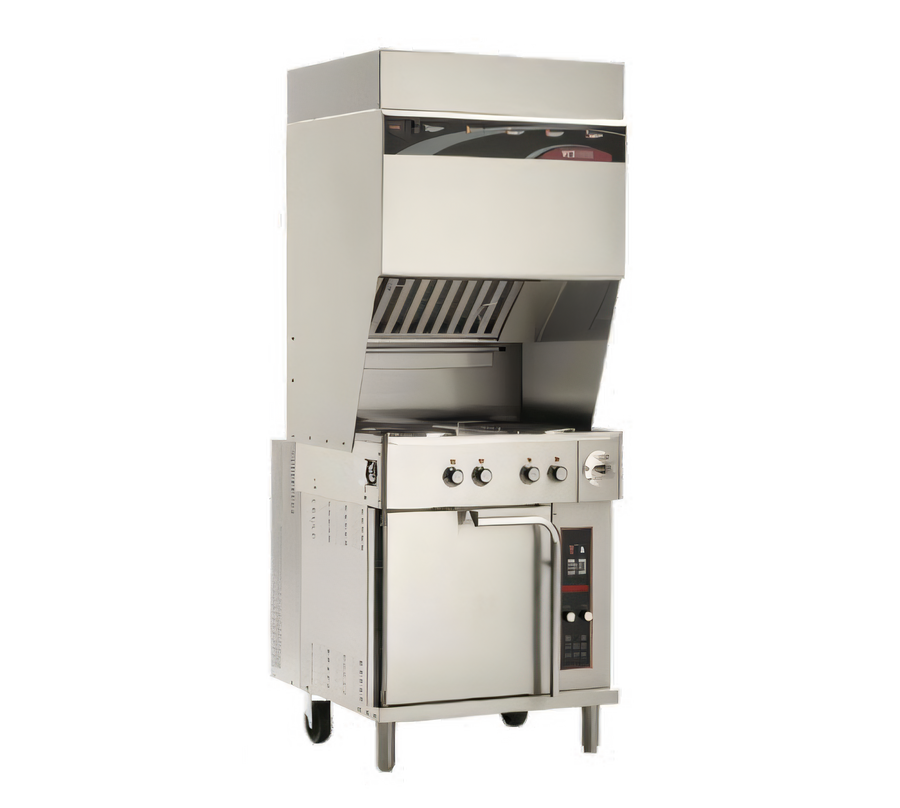

Wells VCS2000 Ventless Cooktop – Model WVO4HF
4 × 9" French Plates • Self-Contained Ventless Hood • Convection Oven BaseBring professional, code-compliant cooking to virtually any space—no ductwork required. The Wells VCS2000 (WVO4HF) combines a powerful four-plate electric cooktop, a high-performance recirculating hood with built-in ANSUL R-102 fire suppression, and a full-size convection oven, all inside a single stainless-steel footprint that rolls through a 36" doorway.
Key Features
- Certified Type-1 ventless hood (UL 710B) with 4-stage filtration: stainless steel baffle, fire-rated fiberglass pre-filter, HEPA filter, and carbon-charcoal pack.
- Factory-installed ANSUL R-102 fire suppression—interlock disables heat if filters are missing, clogged, or a fire is detected.
- Four 9" French cast-iron plates, each regulated by infinite controls with positive-off positions.
- 5-shelf convection oven base with two-speed fan, programmable menu keys, and solid-state temperature & timer controls.
- Quiet operation: only 68 dBA while running.
- Vertical exhaust airflow: 800 CFM with onboard sensors that constantly monitor performance.
- Durable all-stainless construction, interior work light, and easy tool-less filter access.
- Mobility built-in: adjustable 6"–8" front legs & 6" rigid rear casters.
Specifications
| Overall dimensions (W×D×H) | 42 3⁄8" × 34 5⁄8" × 80 9⁄16" (1076 × 879 × 2046 mm) |
|---|---|
| Cooking surface | (4) 9" French cast-iron hot plates |
| Oven capacity | 5 HD oven racks included |
| Electrical |
208 V 1Ø/3Ø, 11.5 kW, 55 A (1Ø) – 36/28/37 A (3Ø) 240 V 1Ø/3Ø, 14.1 kW, 59 A (1Ø) – 38/30/39 A (3Ø) NEMA 15-60P, 6 ft cord |
| Exhaust airflow | 800 CFM vertical discharge |
| Shipping weight | 680 lb (308 kg) |
| Certifications | cULus, NSF, ANSI/UL 710B, ANSI/UL E146882 |
Included & Optional Accessories
- Factory filters installed.
- Replacement Pre-Filter #22618 (qty 1 required).
- Replacement HEPA/Charcoal Filter Pack #22619 (qty 1 required).
- Rear leg kit #22649 (pair) – for stationary installs.
- Rear caster kit #22650 (pair) – swap out legs for mobility.
- Additional oven racks #21376.
Typical filter life varies with menu and volume — integrated indicator lamps alert you when service is needed.
Why Go Ventless?
- Eliminates costly ductwork and on-site construction.
- Ideal for leased spaces, kiosks, shopping malls, stadiums, and historic buildings.
- Move the entire station as your business grows—just plug in and cook.
Ask your dealer about Middleby equipment financing and 2-year extended warranty options when pairing this hood with approved Middleby electric equipment.
