Wells (Middleby) WVO-2HFG Electric Ranges
Description

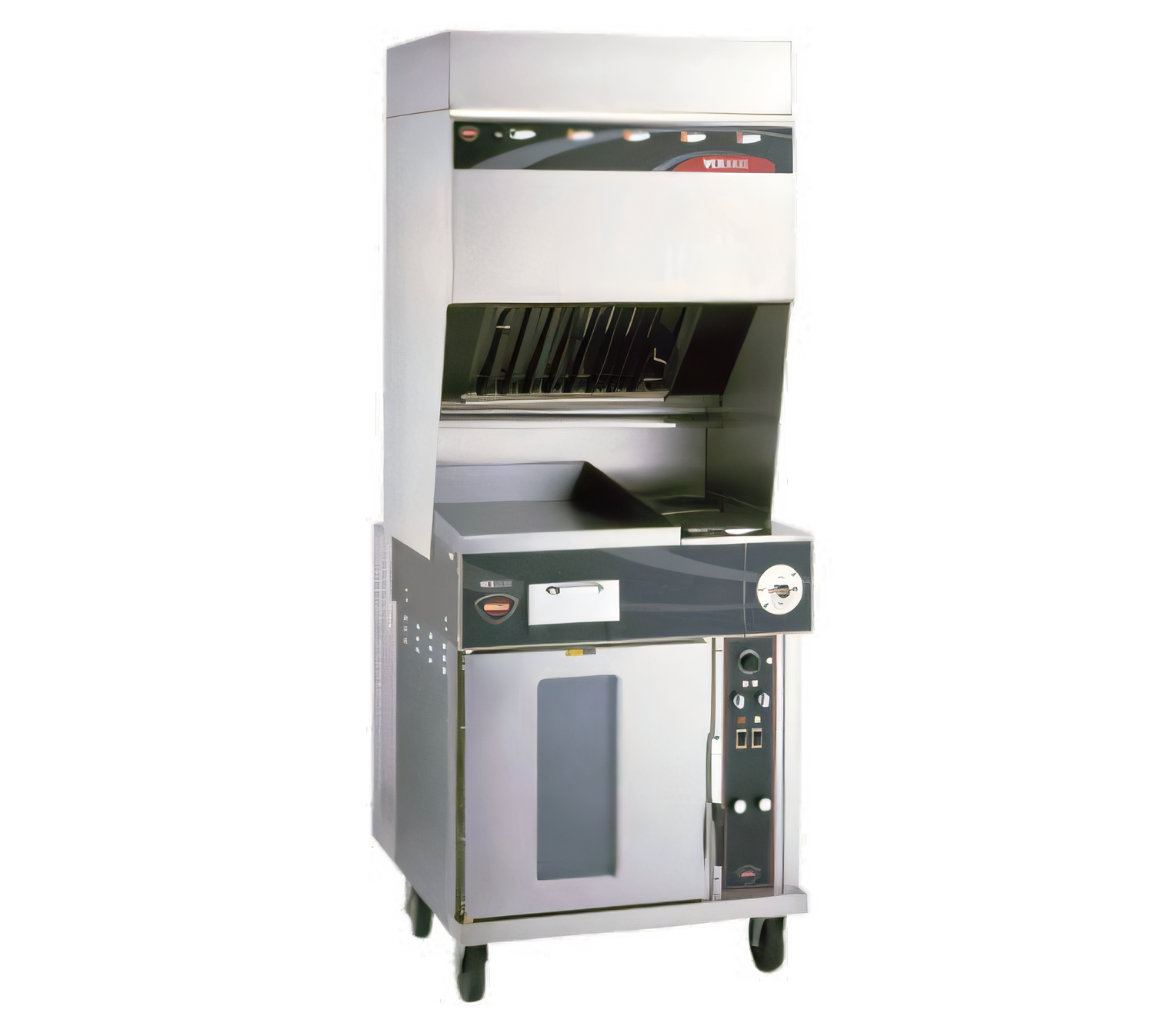

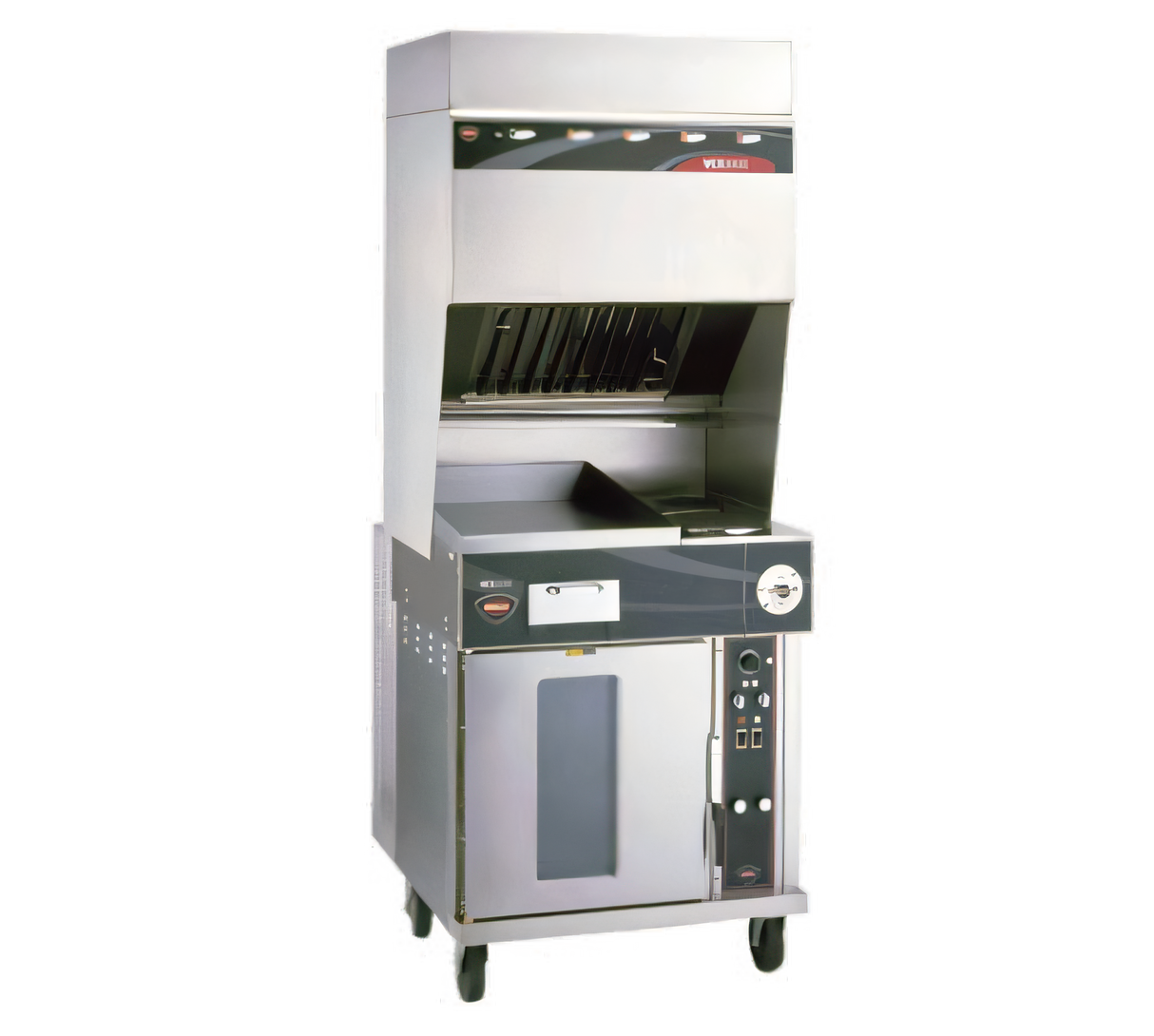

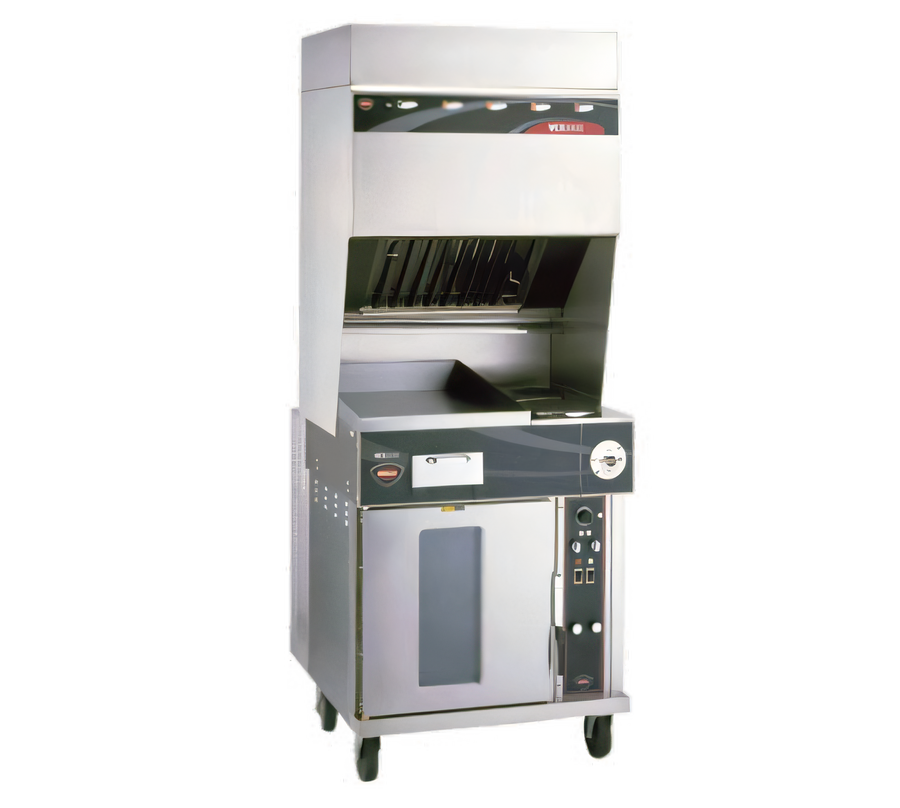

Wells VCS2000 Ventless Cooking Station – Model WVO2HFG
18.5" thermostatic griddle • (2) 9" French hot plates • Programmable convection oven • Self-contained Type-1 hoodBring full-service cooking to locations where ducted ventilation is impossible, impractical, or simply too expensive. The Wells VCS2000 (model WVO2HFG) pairs a UL710B-listed recirculating hood with powerful electric cooking equipment and an integrated ANSUL R-102 fire-suppression system—all in one, movable, stainless-steel cabinet.
Why You’ll Love It
- Completely self-contained, 4-stage filtration keeps emissions below NFPA 96 limits—no roof penetration needed.
- 18.5" heavy-duty griddle with even heat distribution and precise thermostatic controls (200–450 °F).
- (2) 9" French-plate elements with infinite controls & positive-off positions for sauté, boil or hold.
- 5-rack convection oven base with programmable menu keys and two-speed fan for perfect roasting & baking.
- Quiet operation—only 68 dBA average.
- Built-in airflow sensors & interlock: cooking shuts down automatically if filters are missing, clogged, or during a fire event.
- Ships on adjustable 6–8" front legs & 6" rear casters—fits through a 36" doorway and rolls into place.
4-Stage Filter System
- Stainless-steel grease baffle with removable grease cup
- Fire-rated fiberglass pre-filter
- HEPA filter (high-efficiency particulate air)
- Activated carbon/charcoal pack for odor reduction
Illuminated status indicators alert staff when replacement is required. This model uses one Pre-Filter #22618 and one HEPA/Charcoal Pack #22619.
Built-In ANSUL R-102 Fire Protection
- Factory-installed piping, nozzles & fusible links
- Movable manual pull station (may be relocated at egress)
- Must be charged & certified by an authorized ANSUL agent after installation
Specifications
| Cooking Surfaces | (1) 18.5" wide steel griddle & (2) 9" French plates |
|---|---|
| Oven Capacity | 5 HD racks, stainless interior, programmable controls |
| Filtration Airflow | Approx. 800 CFM vertical discharge |
| Noise Level | 68 dBA (average) |
| Exterior Dimensions | 42-3/8" W × 34-5/8" D × 80-9/16" H (1076 × 879 × 2046 mm) |
| Electrical (208 V) | 1Ø or 3Ø, 12.8 kW, 62 A (NEMA 15-60P on 3Ø models) |
| Electrical (240 V) | 1Ø or 3Ø, 15.5 kW, 65 A (NEMA 15-60P on 3Ø models) |
| Shipping Weight | Approx. 754 lb / 342 kg |
| Certifications | cULus, NSF, UL710B Type-1 Recirculating Hood |
Included With Purchase
- Factory-installed recirculating hood & filtration
- ANSUL R-102 fire-suppression system (uncharged)
- (5) oven racks
- 6 ft power cord & NEMA 15-60P plug (3-phase units)
Need a longer warranty? Purchase this hood together with approved Star, Lang, Toastmaster, Wells, APW, Bakers Pride or Southbend electric equipment and receive a complimentary 2-year parts & labor warranty (limitations apply).
