Wells (Middleby)  |  SKU: WVC-46

Wells (Middleby) WVC-46 Ventless Hood Systems

$26,552.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Getting started check list Warranty Owner's manual Middleby financial flyer Extended warranty Approval application Warranty sheet
Related Searches
Hoods & Ventilation Ventless Hood Systems

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

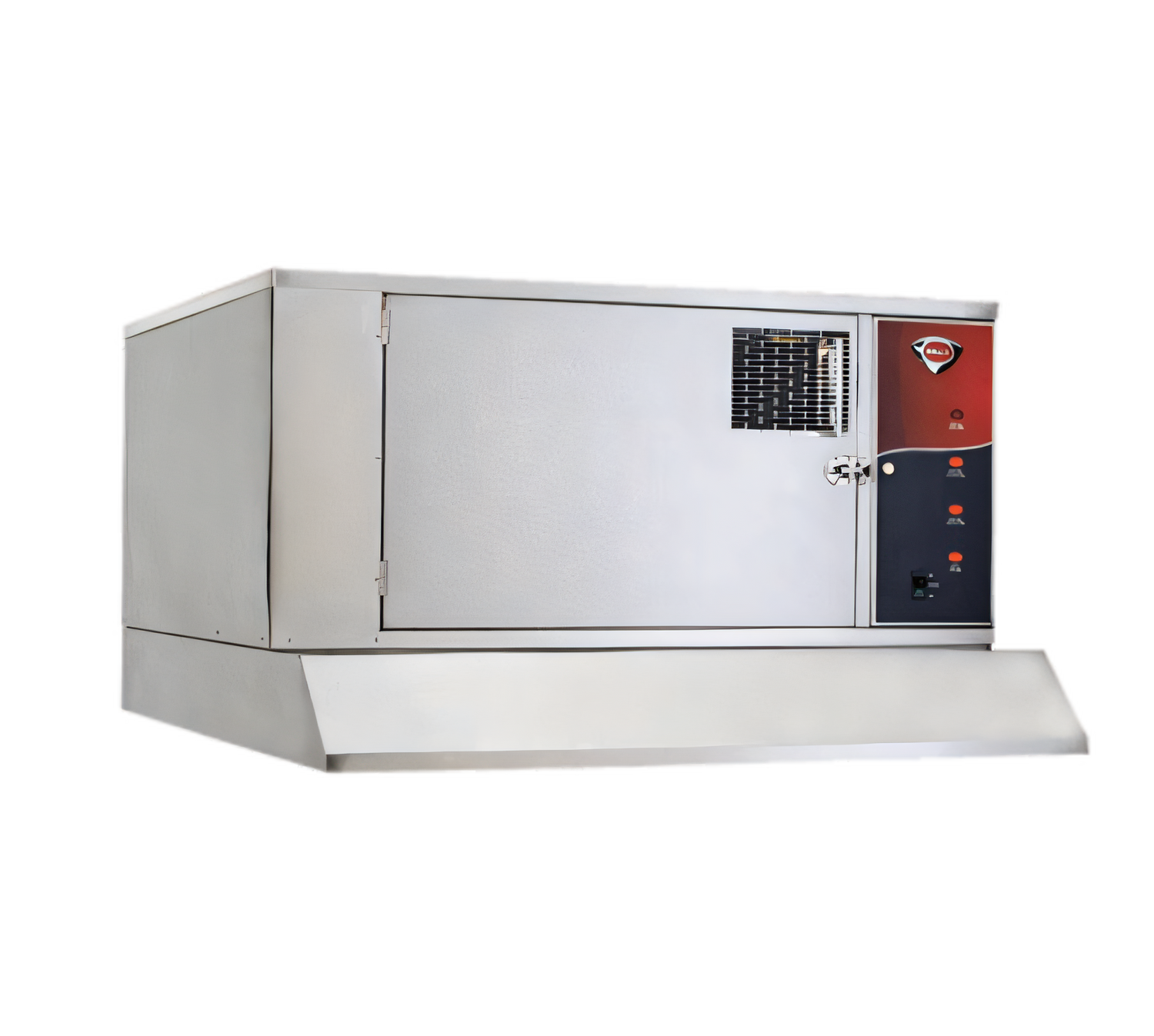

Wells WVC-46 Ventless Canopy Hood

36" Cooking Zone • 4-Stage Filtration • Self-Contained Ansul Fire Protection

Install professional-grade ventilation anywhere—no roof penetration, no ductwork, no landlord headaches. The Wells WVC-46 recirculating hood captures grease, smoke, and odors right at the source, allowing you to operate electric, enclosed cooking appliances in spaces where traditional Type-1 hoods are impossible or cost-prohibitive.

Top Features

  • Certified Type-1, UL 710B recirculating system—meets EPA 202 with .0003 lb/hr/ft grease emissions

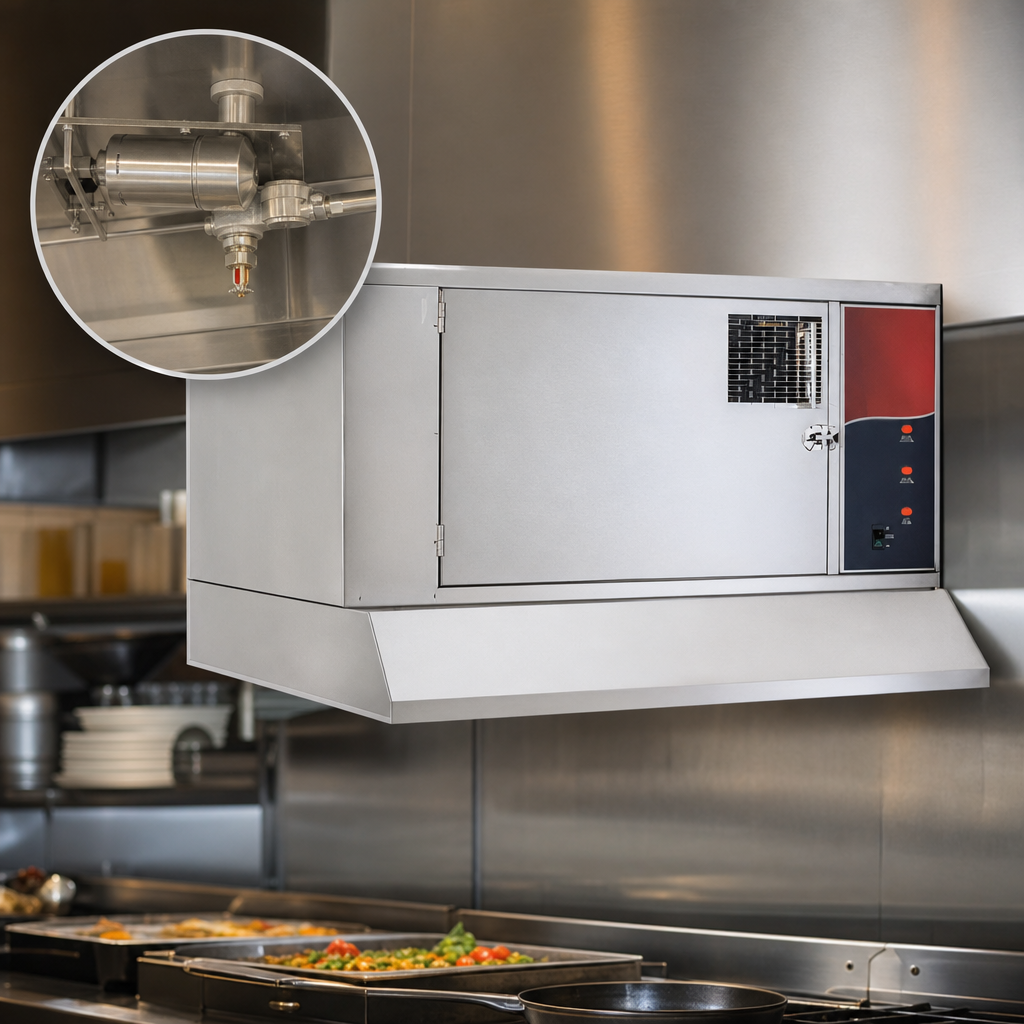

  • Completely self-contained Ansul R-102 fire suppression (tank, nozzle & heat sensors installed)
  • 4-stage filtration: grease baffle → fiberglass pre-filter → HEPA filter → activated charcoal pack
  • Interlock disables cooking equipment if filters are missing, clogged, or in a fire event
  • Airflow sensor plus illuminated service alert for preventive maintenance
  • Adjustable wall or ceiling mount—match hood height to your equipment
  • Rugged stainless steel construction for easy sanitation and long service life
  • Ideal for kiosks, malls, historic sites & leased spaces—move it when you move

4-Stage Filtration Path

  1. Stainless steel grease baffle with removable cup traps heavy grease
  2. Fiberglass pre-filter captures fine grease mist
  3. HEPA filter removes smoke & sub-micron particles
  4. Activated charcoal pack neutralizes remaining odors before air returns to the room

Specifications

Model WVC-46
Cooking zone width 36 in (914 mm)
Overall dimensions 46.0" W × 52.33" D × 27.72" H (1,168 × 1,329 × 704 mm)
Typical airflow 850 CFM (625 CFM minimum)
Motor 1/2 HP blower
Electrical 208/240 V, 60 Hz, 1-phase, 4.3 A
Mounting Wall or ceiling; adjustable suspension height
Approved equipment Electric, enclosed, forward-facing units (convection ovens, combi ovens, steamers, etc.)
Certifications NSF • ETL • cETLus • UL 710B
Warranty 1-year parts & labor (extendable to 2 years with qualifying equipment)

Replacement Filters

  • Pre-filter – part #23324 (1 required)
  • HEPA / Charcoal filter pack – part #23325 (1 required)

Replace filters on schedule to maintain airflow, grease capture, and code compliance.

What’s Included

  • WVC-46 ventless hood assembly with blower & control panel
  • Factory-installed Ansul tank, nozzle & heat sensors (requires licensed agent to charge & tag)
  • Stainless steel baffle, fiberglass pre-filter & service tools
  • Owner’s/installation manual
Important: This is a made-to-order, NON-RETURNABLE item. Confirm electrical service, clearances, and appliance compatibility before purchase. The Ansul system must be commissioned by a licensed Ansul distributor prior to first use.

Questions about installation, extended warranties, or additional filters? Reach out to our team—we’re here to help you go ventless with confidence.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cETLus, ETL

Height

27.72in

Width

46.0in

Depth

52.33in

Specifications

Ventless Hood, canopy style, 36" cooking zone, with self contained Ansul fire protection, 4- stage filtration, wall or ceiling mount, interlock system, adjustable height, stainless steel construction, 1/2 HP, 208/240v/60/1-ph, 4.3 amps, NSF, ETL, cETLus, (NON-RETURNABLE Item) (For replacement filters, this model requires (1) Pre-filter (23324) & (1) HEPA Charcoal Filter Pack (23325))
