Wells (Middleby) WVAE-55FC Ventless Fryers
Description

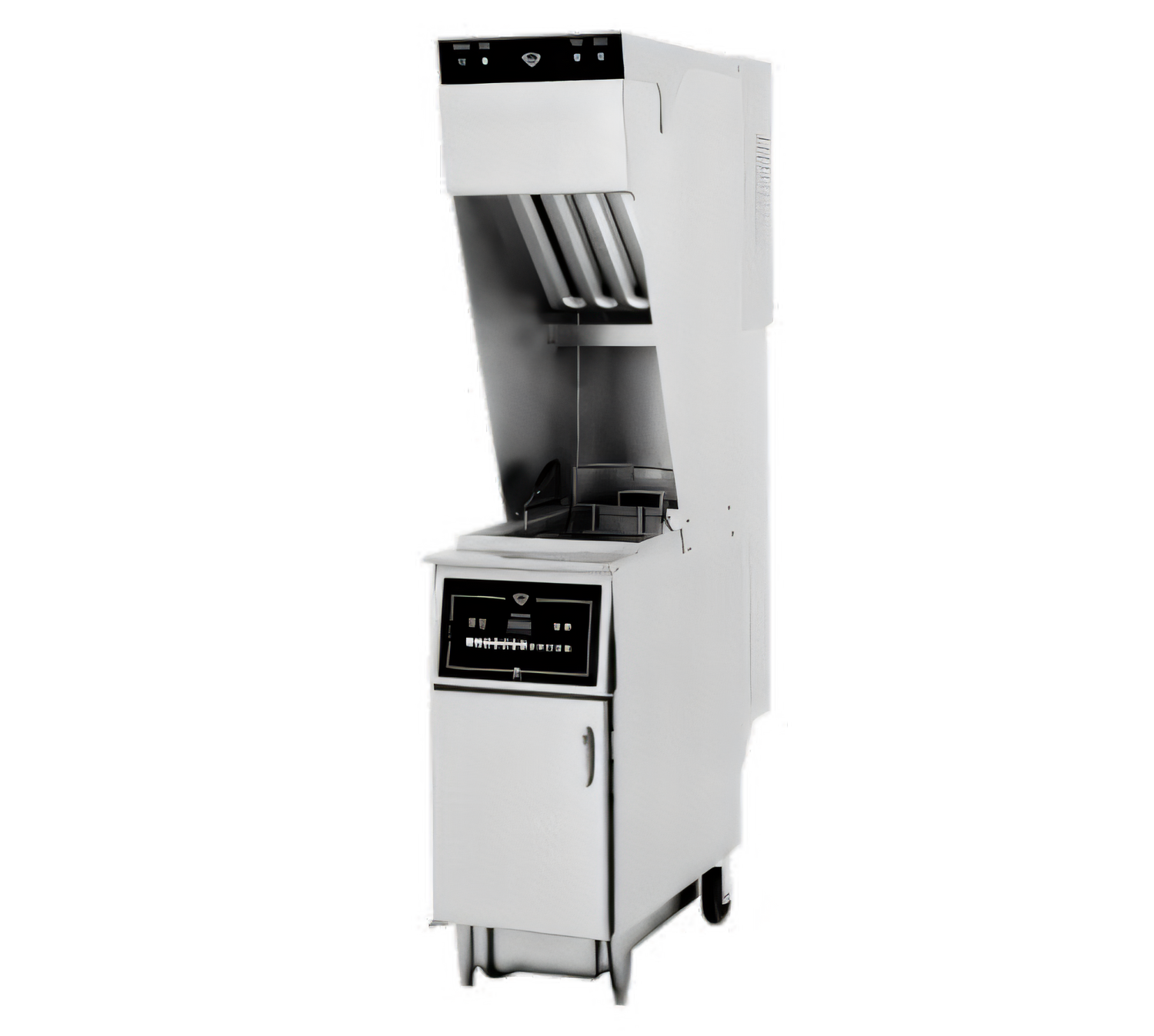

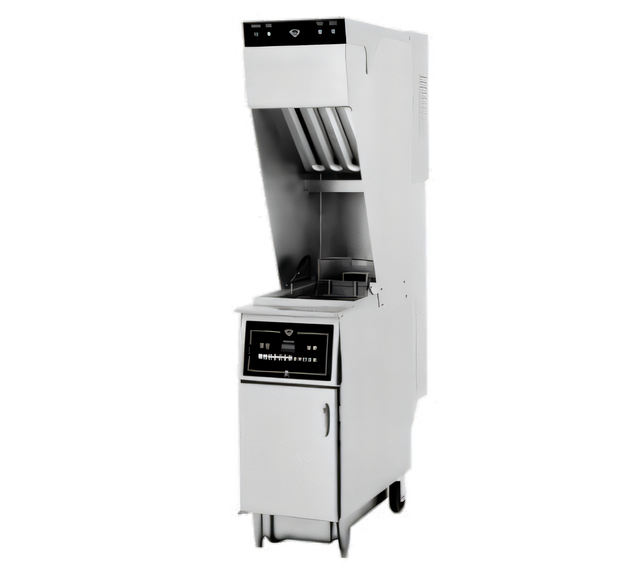

Wells VCS 2000 Ventless Open Fryer with Auto-Lift
Model WVAES55FC · 55 lb oil capacity · Self-contained hood & filtrationBring full-scale frying to places a traditional Type-1 hood and duct simply can’t go. The Wells VCS 2000 combines a 55 lb open fryer, 3-stage ventless hood, paperless oil filtration and built-in ANSUL R-102 fire suppression into one stainless-steel footprint that rolls through a 36" doorway and plugs into a single electric circuit. Fry anywhere—no roof penetrations, no expensive build-outs.
Key advantages
- Certified Type-1, UL710B recirculating hood – no outside venting required
- Completely self-contained ANSUL R-102 fire system with interlock safety
- Automatic basket lift cradles and raises basket at end of cycle for labor-free cooking
- Paperless, push-button oil filtration extends oil life and saves on replacement costs
- 3-stage air filtration (prefilter, HEPA & activated carbon) eliminates smoke & odors
- Air-flow sensors and early-warning lights prevent operation with missing or clogged filters
- Solid-state controls with repeat-cycle timer deliver precise, energy-efficient temperature control
- Low-watt-density flat-bar elements and heavy-gauge frypot for even heat & long life
- Compact 15 13⁄16" width fits tight layouts; front legs & rear casters simplify placement
- NSF, cULus, CE (export) listed for peace of mind and easy permitting
Specifications
| Oil (Fat) Capacity | 55 lb (27.5 qt) |
|---|---|
| Overall Dimensions (W × D × H) | 15 13⁄16" × 43 11⁄16" × 76 1⁄2" 401 mm × 1 110 mm × 1 940 mm |
| Electrical |
208 V 1Φ, 11.3 kW, 56 A – or – 208 V 3Φ, 17 kW, 48/48/47 A – or – 240 V 1Φ, 11.3 kW, 48 A – or – 240 V 3Φ, 17 kW, 42/42/41 A (Hard-wired, no NEMA plug) |
| Exhaust / Make-up Air | Vertical discharge, 800 CFM; recommend ≥400 CFM room make-up air |
| Shipping Weight | 556 lb (252 kg) |
| Minimum Clearances | Side: per supplied spacers · Bottom: 6" (152 mm) · Top: 8" (203 mm) |
| Certifications | UL710B, ANSUL R-102, NSF, cULus, CE (export only) |
Replacement air filters (sold separately): (1) HEPA Filter #22402 and (1) Carbon-Charcoal Filter #22403.
Included with your fryer
- Full-size fry basket
- Pre-installed ANSUL R-102 fire system piping & fusible link (charge/tag by local licensed agent)
- Prefilter, HEPA and carbon filters installed
- Owner’s manual, start-up & training checklist
Popular accessories
- High-Efficiency HEPA Filter #22402 (spare)
- Carbon-Charcoal Filter #22403 (spare)
- Rear leg kit #22692
- Additional full-size basket #22913
- Element & frypot cleaning brush set
- Flavor Saver™ oil powder / chicken stirring paddle
Optional extended warranty
Purchase the VCS 2000 together with qualified Star, Lang, Toastmaster, Wells, APW, Bakers Pride or Southbend electric equipment to receive 2-year parts & labor coverage on both the hood and the equipment – at no extra charge. Or add plan #UVWARR to double your ventless fryer warranty to two years.
Need financing?
Spread your investment into predictable monthly payments through Middleby Equipment Financing. Fast credit decisions, Section 179 tax benefits and preserved credit lines help you start cooking sooner. Ask your sales representative for details.
• This ventless fryer is built to order and NON-RETURNABLE.
• Fire system must be charged, tagged and commissioned by a licensed ANSUL agent onsite.
• Verify electrical service, clearances and local permits before ordering.
