Wells (Middleby)  |  SKU: WV-FGRW

Wells (Middleby) WV-FGRW Electric Ranges

$53,148.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Getting started check list Owner's manual Extended warranty Middleby financial flyer Approval application Warranty sheet
Related Searches
Bone & Fine China Electric Ranges Ranges Restaurant Dinnerware Shop Dinnerware by Grade Tabletop

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

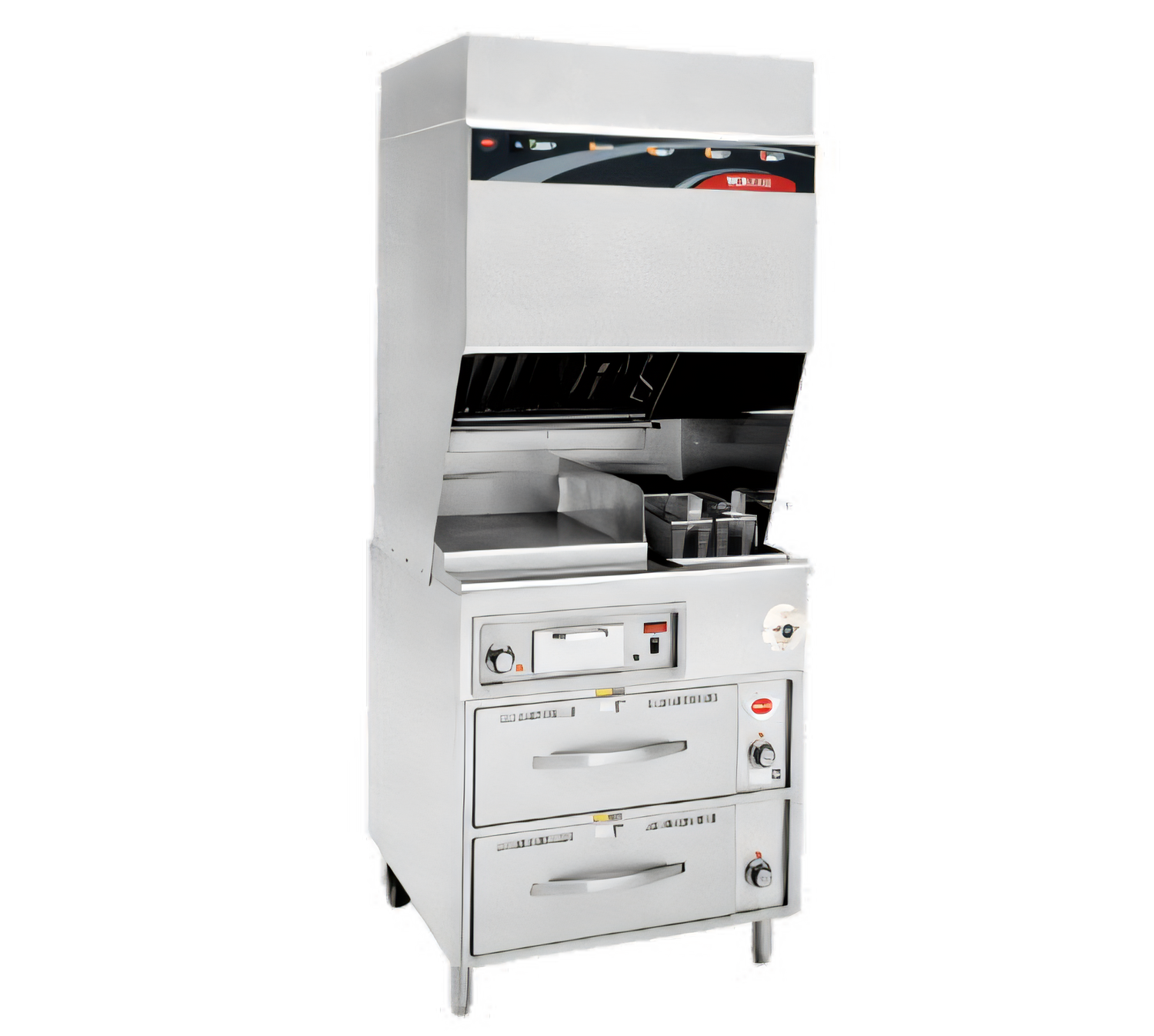

Wells VCS2000 Ventless Cooking System – Fryer, Griddle & 2-Drawer Warmer

Model WVFGRW | Electric 208/240 V | cULus & NSF Listed

Bring a full commercial kitchen to virtually any location—no roof penetrations, duct work or costly remodels required. The Wells VCS2000 packages a self-contained Type-1 recirculating hood, ANSUL® fire suppression, an 18 ½ inch thermostatic griddle, a 15 lb electric fryer and a two-drawer RW-26 warmer into one mobile, code-compliant stainless-steel cabinet.

Key Advantages

  • Certified ventless hood with four-stage filtration meets NFPA 96 & UL 710B—cook where traditional hoods aren’t possible.
  • Integrated ANSUL® R-102 system with manual pull station and automatic appliance shut-off for peace of mind.
  • 18 ½ " thermostatic griddle handles breakfast, lunch and dinner menus with even, consistent heat.
  • 15 lb electric fryer uses flat elements for fast recovery; half-size baskets included.
  • RW-26 base provides two independent warming drawers to hold product at serving temperature.
  • Interlock & airflow sensors disable cooking if filters are missing or clogged; illuminated status lights prompt timely filter changes.
  • Stainless-steel construction, tool-free filter access and front grease drawer streamline daily cleaning.
  • Fits through a 36 inch doorway; 6–8 inch adjustable front legs and rear casters simplify positioning.

Self-Contained Ventless Hood

  • Vertical exhaust: approx. 800 CFM
  • Four-stage filtration:
    • Stainless-steel baffle with grease cup
    • Fire-rated fiberglass pre-filter (#22618)
    • HEPA filter + carbon charcoal pack (#22619)
    • Final exhaust plenum
  • Illuminated work light in a protected globe
  • Tool-free filter removal for rapid change-outs

Specifications

Overall dimensions (W × D × H) 42-3/8 " × 35-3/8 " × 79-1/8 "  (1076 × 899 × 2010 mm)
Cooking equipment 18 ½ " thermostatic griddle & 15 lb fryer (half-size baskets)
Warmer base RW-26, two heated drawers
Electrical 208 V or 240 V, 1 Ø or 3 Ø, 10.8 kW (208 V) / 11.7 kW (240 V)
Amps – single phase 52 A @ 208 V  |  49 A @ 240 V
Amps per line – 3 Ø 208 V: 30 / 43 / 24 A  |  240 V: 26 / 40 / 24 A
Plug (3 Ø) NEMA 15-60P, 6 ft cord
Exhaust airflow Approx. 800 CFM vertical discharge
Shipping weight Approx. 656 lb (298 kg)
Certifications cULus, NSF, UL 710B (Type-1 recirculating)

Required Consumables

  • (1) Pre-filter – part 22618
  • (1) HEPA/Charcoal filter pack – part 22619

Optional Accessories

  • Rear leg kit #22649
  • Additional rear caster set #22650
  • Full-size fryer baskets #20162
  • Fry pot #20169
  • Crumb cradle #20690
Important: This ventless system is built to order and is NON-RETURNABLE. Local authorities may require the ANSUL® system to be charged and tagged by a licensed representative and a remote pull station at the path of egress. Verify electrical service, clearances and code requirements before ordering.

Need financing? Ask about flexible monthly payment plans.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

79.13in

Width

42.38in

Depth

35.38in

Shipping Weight

738.0lbs

Interior Finish

stainless steel

Top

(1) fryer, (1) griddle

Exterior Finish

all stainless steel exterior

Base

(2) warmer drawers

Vent

hood

Specifications

VCS2000 Ventless Cooktop, electric, (1) Fryer, (1) griddle with thermostatic controls, self-contained hood system, stainless steel construction, RW-26 (2) drawer warmer base, front legs, rear casters, cULus, NSF (NON-RETURNABLE Item) (For replacement filters, this model requires (1) Pre-filter (22618) & (1) HEPA Charcoal Filter Pack (22619))
