Wells (Middleby) WV-FG Electric Ranges
Description

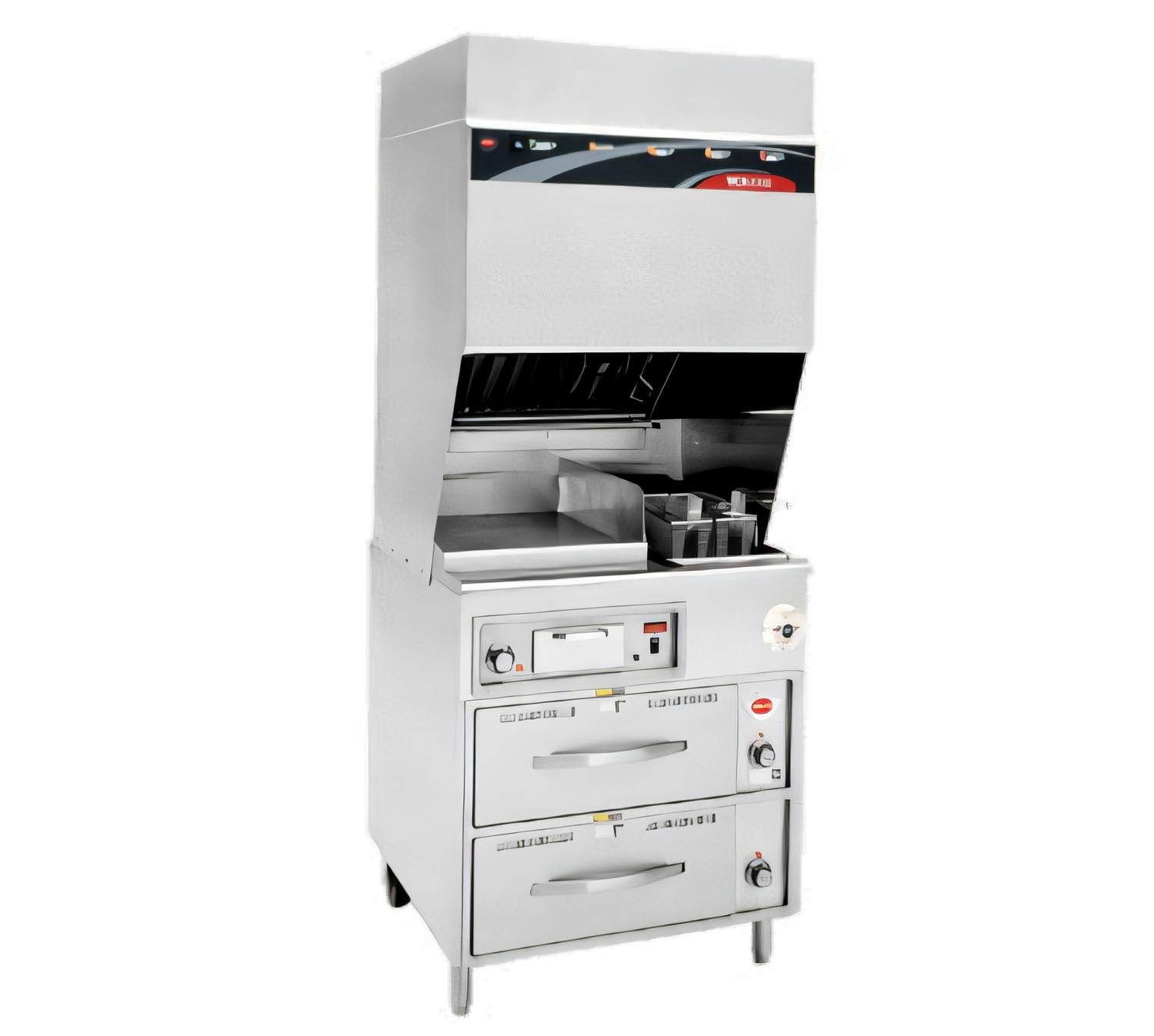

Wells VCS2000 Ventless Cooking System – Model WVFG
42" self-contained fry & griddle station with recirculating hoodPut a full kitchen anywhere you have power—no roof penetration, no costly ductwork. The Wells VCS2000 packages a Type-1 compliant hood, ANSUL® fire protection, and heavy-duty electric cooking equipment into one mobile stainless-steel cabinet that rolls through a standard 36" doorway.
Key Advantages
- Ventless design meets NFPA 96 & UL 710B—perfect for kiosks, malls, stadiums, and leased spaces.
- 4-stage filtration (baffle, fire-rated pre-filter, HEPA, carbon) keeps emissions below EPA 202 limits; filters remove tool-free.
- Factory-installed ANSUL® R-102 fire suppression with manual pull station.
- Safety interlocks disable heat if filters are missing, clogged, or a fire is detected.
- Air-flow sensors and illuminated filter monitor maintain peak performance.
- Stainless cabinet with storage, dual doors, 6"–8" adjustable front legs & 6" rear casters.
- Ships with 6 ft cord & NEMA 15-60P plug (3 Ø models).
Integrated Cooking Equipment
- Griddle: 18-1/2" wide polished plate, thermostatic 200–450 °F (93–232 °C).
- Fryer: 15 lb stainless pot, flat elements, positive-off thermostat, hi-limit safety; half-size baskets included.
- Cooking appliances are interlocked with the hood for code compliance.
Specifications
| Model | WVFG (VCS2000 Series) |
|---|---|
| Overall Dimensions | 42-3/8" W × 35-3/8" D × 79-1/8" H (1076 × 899 × 2010 mm) |
| Air Discharge | Vertical, 800 CFM |
| Electrical | 208 V or 240 V, 1 Ø or 3 Ø, 10.8 kW / 11.7 kW, NEMA 15-60P |
| Amp Draw | 208 V 1 Ø 52 A | 240 V 1 Ø 49 A 208 V 3 Ø 30/43/24 A | 240 V 3 Ø 26/40/24 A |
| Fire Suppression | ANSUL® R-102 (charge & certify locally) |
| Filtration Stages | Grease baffle → Pre-filter → HEPA → Carbon charcoal |
| Construction | All stainless steel; insulated hood plenum; storage cabinet |
| Certifications | cULus, NSF, UL 710B, EPA 202 compliant |
| Shipping Weight | ≈ 656 lb (298 kg) |
Included & Optional Accessories
- Half-size fryer baskets (included)
- Grease cup & crumb cradle (included)
- Pre-Filter #22618 (required replacement item)
- HEPA / Carbon Charcoal Filter Pack #22619 (required replacement item)
- Full-size fryer baskets #20162
- Replacement fry pot #20169
- Rear leg kit #22649 (replaces casters where mobility is not allowed)
A minimum of 400 CFM fresh air (in & out) is recommended to help dilute cooking aromas.
Need flexible payment options? Ask us about Middleby Equipment Financing for fast credit decisions and fixed monthly payments.
Download the full specification sheet and installation manual from the Wells Resource Center.
