Wells (Middleby) WV-4HFRW Electric Ranges
Description

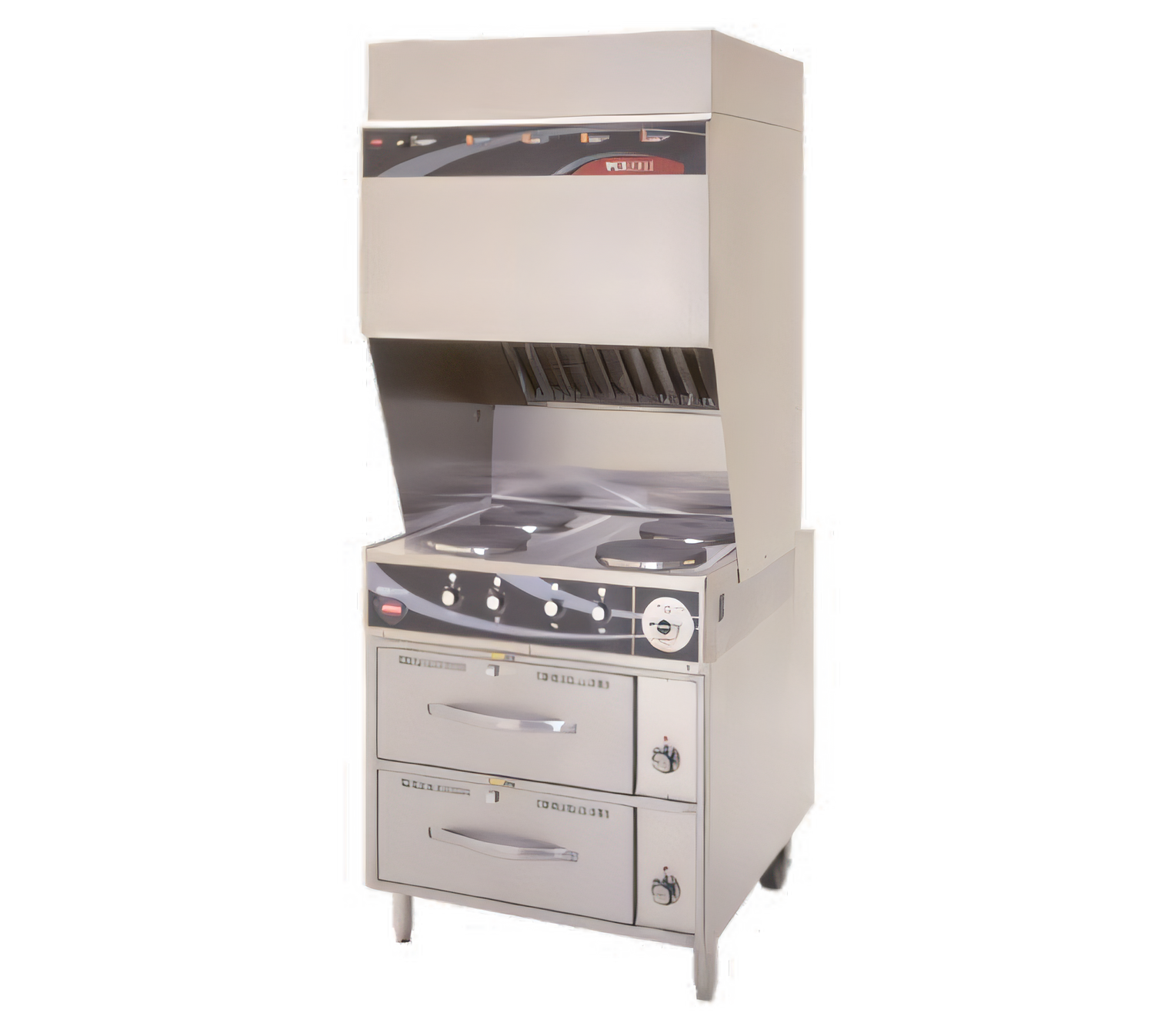

Wells VCS2000 Ventless Cooktop – Model WV4HFRW
4 × French-Plate Hot Top • Integrated Self-Contained Hood • Double Drawer WarmerBring professional-grade production to locations where traditional ducted hoods are impractical or impossible. The WV4HFRW combines a powerful four-plate cooktop, two individually controlled warmers and a fully self-contained Type-1 recirculating hood—delivered as one ready-to-use package. Simply roll it in, plug it in and start cooking.
Key Advantages
- Certified ventless operation – meets NFPA 96 & ANSI/UL 710B without external ductwork.
- 4-stage filtration (grease baffle, fire-rated pre-filter, HEPA, carbon-charcoal) with tool-free access.
- Built-in ANSUL R-102 fire-suppression with manual pull station.
- Four 9" French-style cast-iron plates, each with infinite controls and positive-off position.
- Double drawer warmer base (RW-26) – independent thermostats (90–210 °F), humidity control & stainless pans included.
- Airflow sensors & interlock disable cooking if filters are missing, clogged or a fire is detected.
- Quiet 68 dBA average operation with 800 CFM vertical exhaust discharge.
- All-stainless exterior, interior incandescent work-light, plus front legs & rear casters for easy mobility.
- Ships through a standard 36" doorway—ideal for leased or historic spaces.
Technical Specifications
| Overall Dimensions (W × D × H) | 42-3/8" × 34-5/8" × 80-9/16" (1076 × 879 × 2046 mm) |
|---|---|
| Cooking Surface | 4 × 9" French-style cast-iron plates |
| Drawer Warmer Capacity | 2 × 12" × 20" × 6" stainless pans (included) |
| Temperature Range | Warmers 90–210 °F | Hot plates infinite |
| Filtration Stages | Grease baffle, fire-rated pre-filter, HEPA, carbon-charcoal |
| Exhaust Airflow / Noise | 800 CFM vertical discharge | 68 dBA (avg) |
| Electrical | 208/240 V, 1 Ø or 3 Ø, 7.0–9.1 kW 6 ft cord & NEMA 15-60P plug (3 Ø models) |
| Shipping Weight | 655 lb (297 kg) |
| Certifications | cULus, NSF, ANSI/UL 710B, NFPA 96 Type-1 |
| Replacement Filters | Pre-filter #22618 (qty 1) & HEPA/Charcoal Pack #22619 (qty 1) |
Recommended Accessories
- Rear Leg Kit – #22649 (pair)
- Additional Rigid Caster Set – #22650 (pair)
- Extended 2-Year Parts & Labor Warranty – part #UVWARR
