Wells (Middleby)  |  SKU: SS-8TDUI

Wells (Middleby) SS-8TDUI Steam Tables & Food Wells

$1,112.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

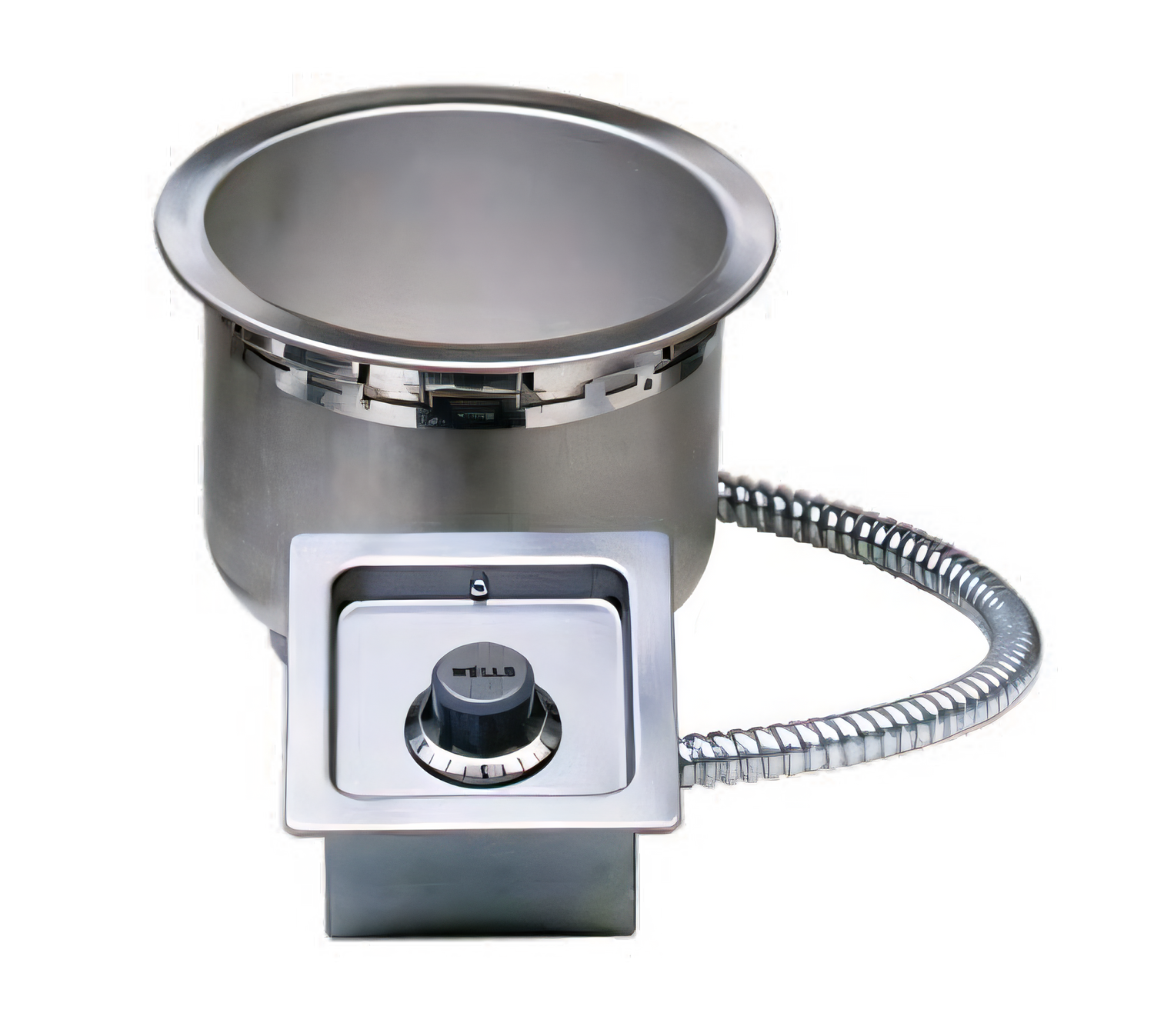

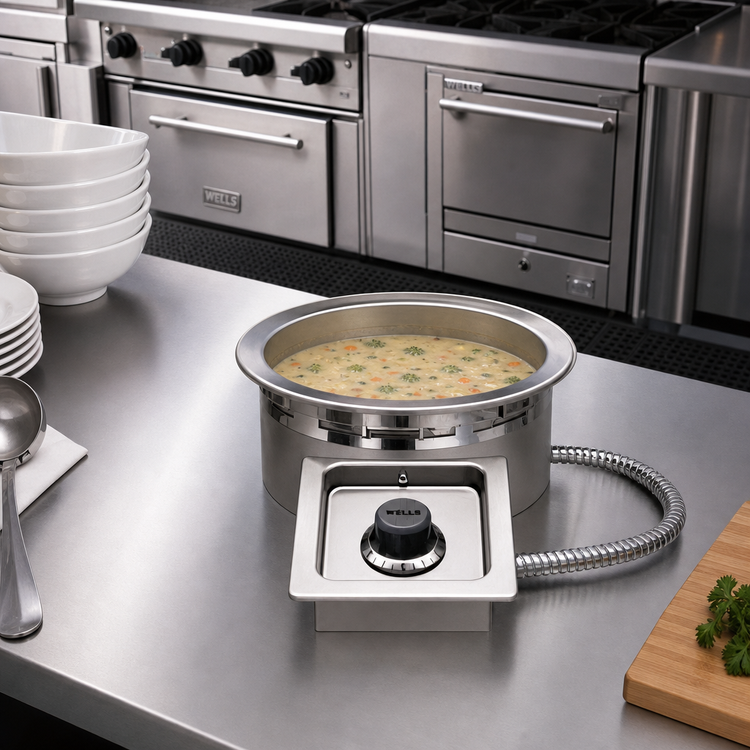

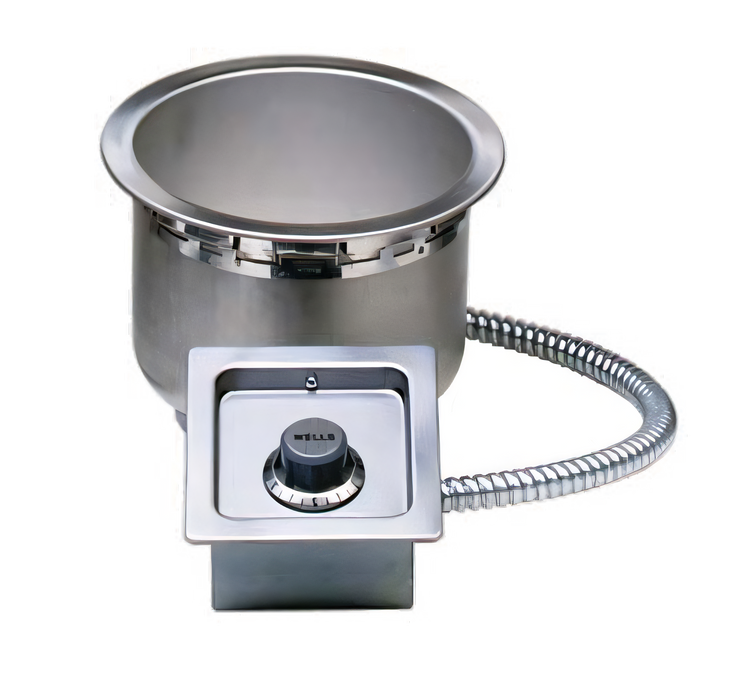

Wells SS8 Series – 7 Quart Fully-Insulated Drop-In Food Warmer with Drain

Model SSBTDUI | Top-mount • Electric • Wet/Dry • Thermostatic Control

Give every bowl the “just-made” taste. The Wells SSBTDUI keeps soups, sauces, gravies and sides at safe, appetizing temperatures without scorching, thanks to a fully-insulated well and a recessed, true thermostatic control. Designed for heavy-duty service, this 7-qt round warmer drops flush into metal or non-metal counters and locks in place with the patented WellsLok system for a fast, worry-free installation.

Why you’ll love it

  • Versatile wet or dry operation – no water required between rushes
  • Energy-saving, fully insulated side & bottom walls cut standby losses
  • Precise thermostatic dial (recessed to prevent tampering) with temperature-ready indicator light
  • Heavy-gauge, deep-drawn stainless steel well & one-piece top flange for durability and easy clean-up
  • ½" NPT drain speeds pan changes and end-of-day cleaning

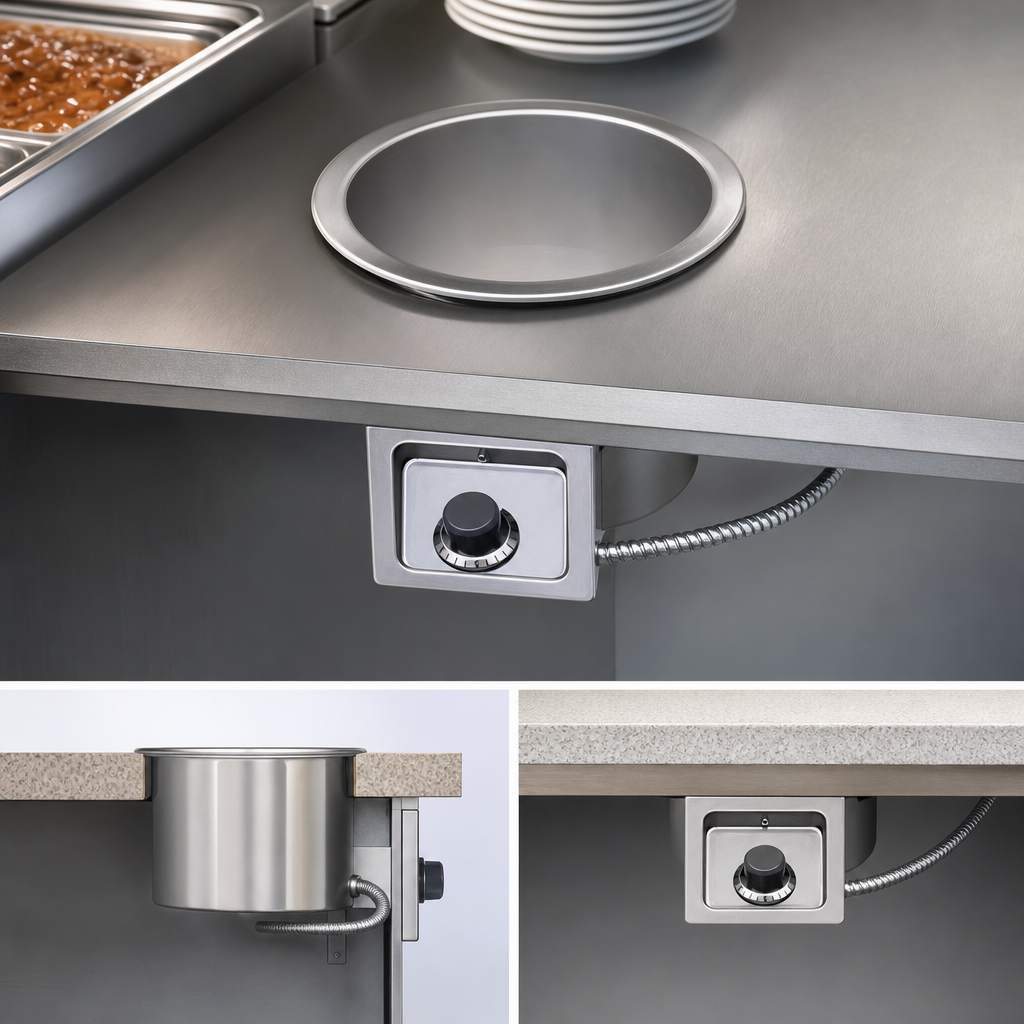

  • Patented WellsLok™ mounting bracket tightens from above the counter—no underside tools needed
  • High-limit safety shuts off the element before overheating can occur
  • Meets NSF 4 sanitation and is UL & cULus listed for electrical safety

Perfect for

  • Soup & salad bars
  • Made-to-order stations
  • C-stores & kiosks
  • Catering drop-ins
  • Back-of-house holding on the line

Technical specs

Capacity 7 qt (6.6 L) round inset – accepts standard pans
Operation Wet or dry
Control type Recessed thermostatic dial, temperature-ready light
Element wattage 825 W @ 120 V | 620/825 W @ 208/240 V
Electrical Single phase, hard-wired (no cord/plug supplied)
Drain ½" NPT (male) with extension kit available
Well inside diameter 10 1/16" / 256 mm
Overall depth below counter 9 ½" / 241 mm (fully insulated model)
Minimum clearances 1" sides & back • 8" bottom • 4" front
Construction Stainless steel, fully insulated (sides & bottom)
Certifications NSF 4 • UL • cULus
Warranty 1-year limited parts & labor (USA/Canada)

Included

  • Patented WellsLok™ hardware
  • Recessed thermostatic control assembly
  • ½" drain fitting
  • Installation & operation manual

Popular accessories

  • 7-qt inset with hinged lid
  • 8 oz stainless ladle
  • Drain extension kit
  • Adapter ring for 4-qt inset
  • Non-metal counter adapter kit

Need peace of mind? All service must be performed by a Wells-authorized technician to maintain warranty coverage.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus, UL

Width

10.06in

Shipping Weight

10.3lbs

Pan Capacity

(1) 7 qt round

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Drain

with drain

Construction

stainless steel construction

Specifications

Food Warmer, top-mount, built-in, electric, for 7 quart round insert, drain, wet/dry operation, thermostatic control, fully insulated, stainless steel construction, Wellslok, UL, cULus, NSF
