Wells (Middleby) SS-10TUCI Steam Tables & Food Wells
Description

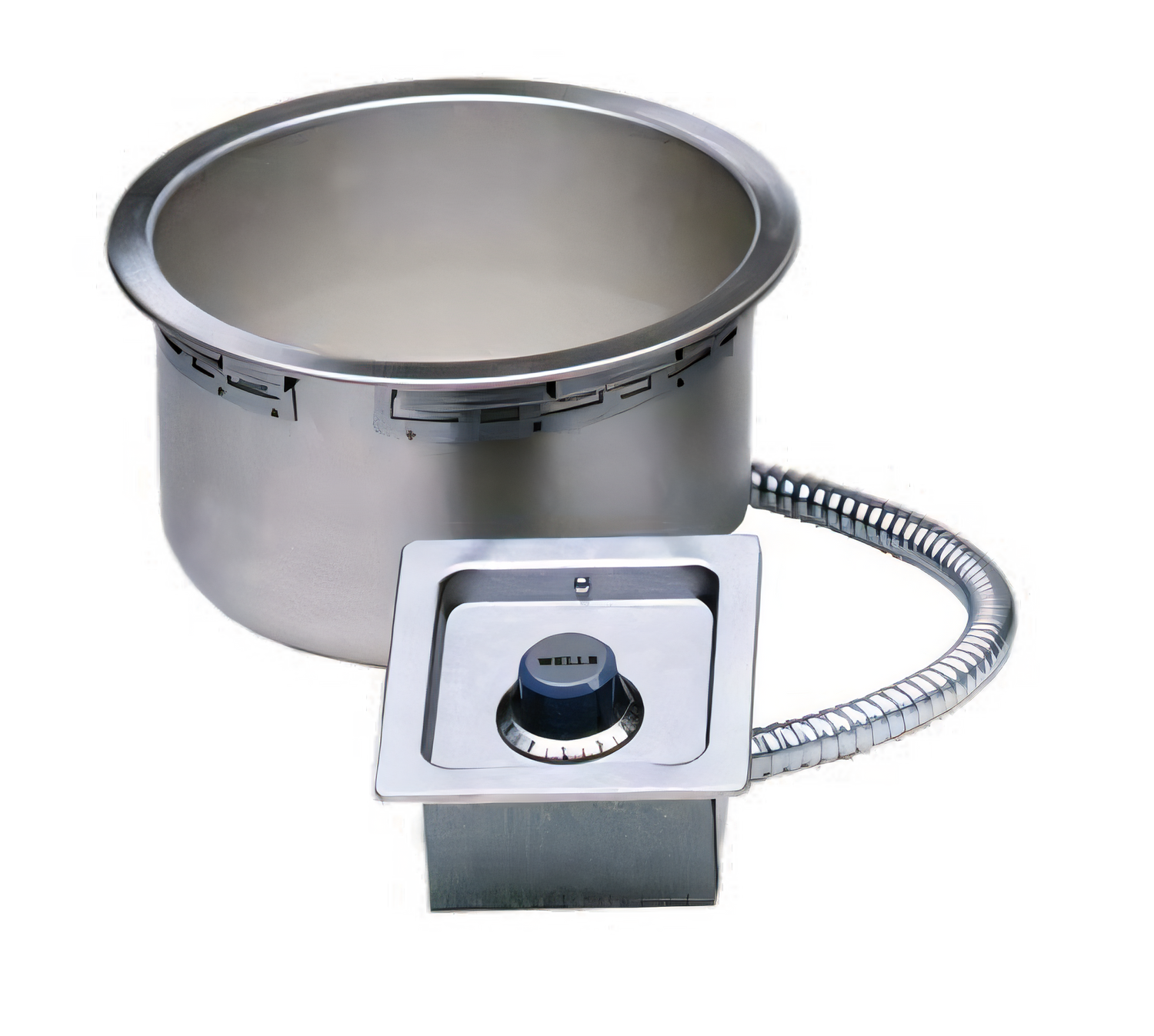

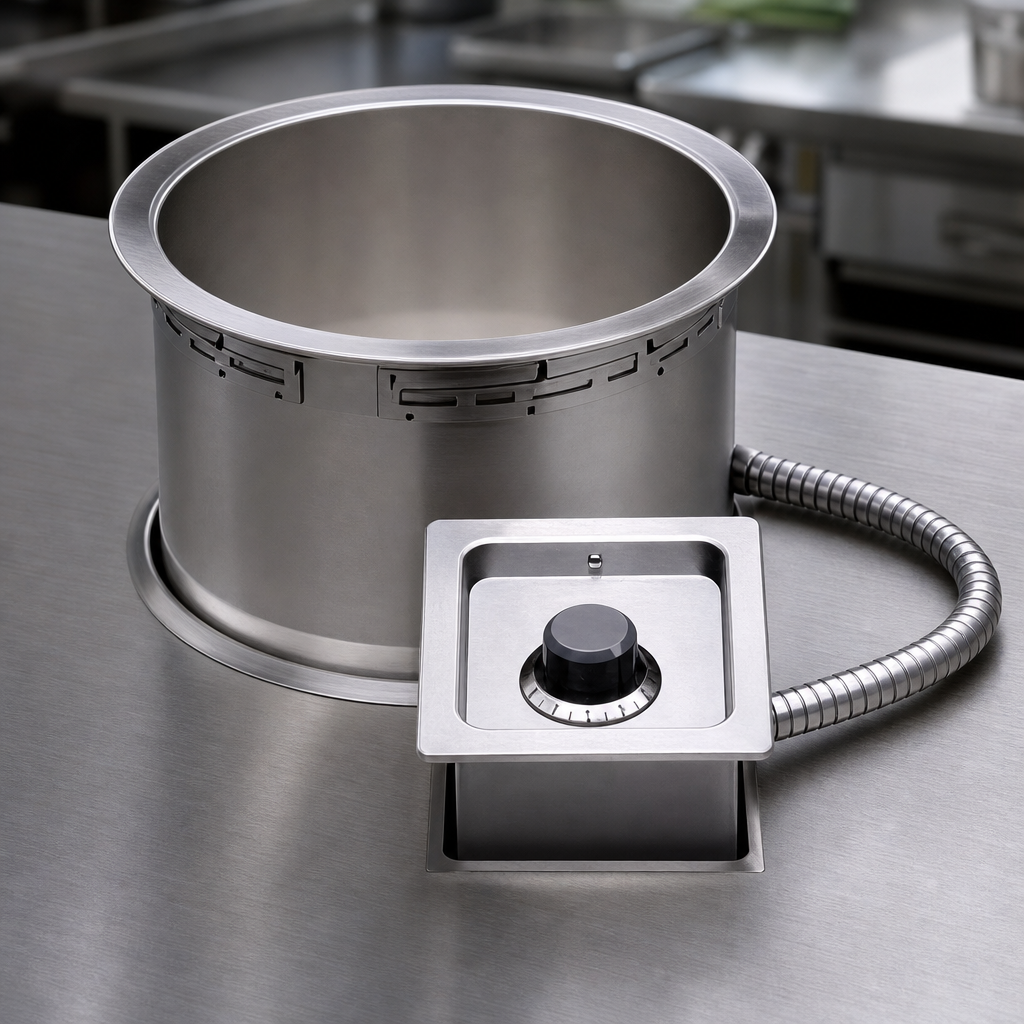

Wells SS10TUI 11-Quart Drop-In Food Warmer
Fully-insulated • Thermostatic • Wet or Dry • Top-MountGive your soups, sauces and sides the perfect finishing touch with the Wells SS10TUI. This heavy-duty, built-in round warmer drops cleanly into any counter, locks in place with the WellsLok™ mounting system, and keeps up to 11 quarts of product at safe-serving temperatures—without hot spots or scorching.
Why You’ll Love It
- Fully insulated sides & bottom reduce heat loss and are safe for non-metal counters.
- Accepts any standard 11 qt (10.4 L) round inset—no adapter ring required.
- Wet or dry operation for maximum menu flexibility.
- Recessed thermostatic control delivers precise holding temps with a high-limit safety.
- Powerful tubular element beneath the pan ensures fast recovery and even heat.
- One-piece stainless steel flange & deep-drawn well are easy to wipe clean and NSF-listed.
- Factory-installed WellsLok™ clamps speed installation—no hardware to lose.
- Status light tells staff when the set temperature is reached and ready for product.
- cULus & NSF certified; backed by a full 1-year parts & labor warranty.
Technical Specs
| Model | SS10TUI (no drain) SS10TDUI (with ½ in. NPT drain) |
|---|---|
| Capacity | 11 qt / 10.4 L round inset |
| Control Type | Thermostatic; high-limit protection & “ready” indicator |
| Operation | Wet or dry |
| Construction | Heavy-gauge stainless steel well & flange, fully insulated |
| Mounting | Top-mount, drop-in with WellsLok™ clamp ring |
| Electrical | 120 V / 825 W or 208–240 V / 620–825 W, 1-phase, hard-wired |
| Overall Flange Ø | 12 in. (305 mm) |
| Well Depth | 10 1⁄4 in. (260 mm) |
| Required Cut-out | ≈10 7⁄8 in. (276 mm) diameter |
| Shipping Weight | ≈12.4 lb (5.6 kg) |
| Certifications | NSF, cULus |
| Warranty | 1-year parts & labor |
Looking for a different configuration? ¼-turn drains, cord & plug kits and remote-mount control harnesses are available to match your exact installation.
Popular Accessories
- 11-qt inset & hinged cover
- 8 oz stainless soup ladle
- Drain-valve extension kit (TDUI models)
- Adapter tops for 4 qt & 7 qt insets
- Non-metal counter adapter kit
- 72 in. remote control wiring harness
