Wells (Middleby) SS-10TDUCIAF Steam Tables & Food Wells
Description

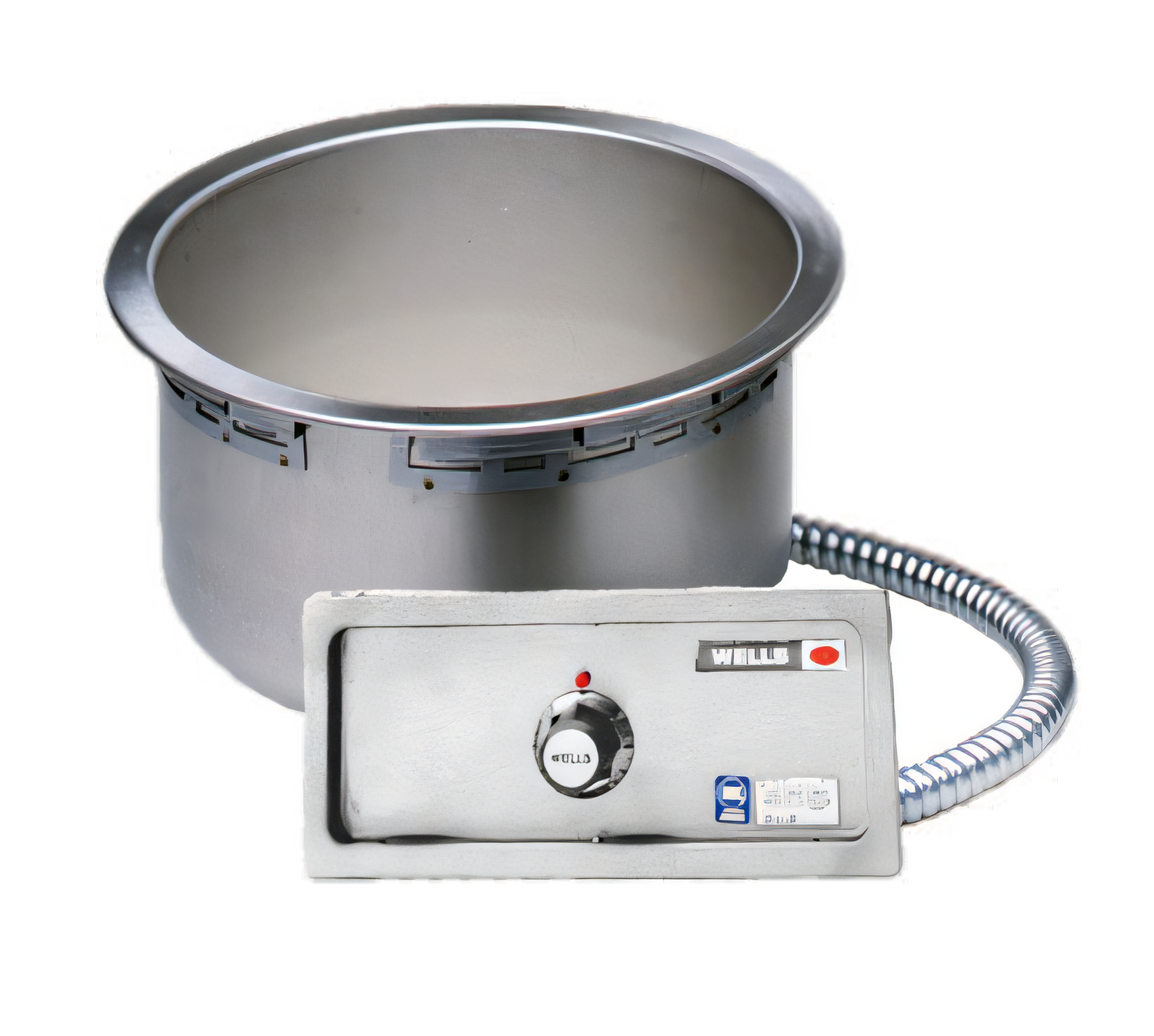

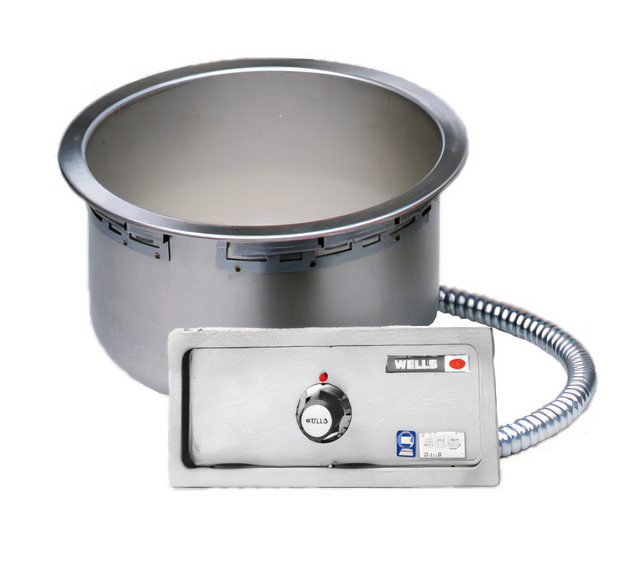

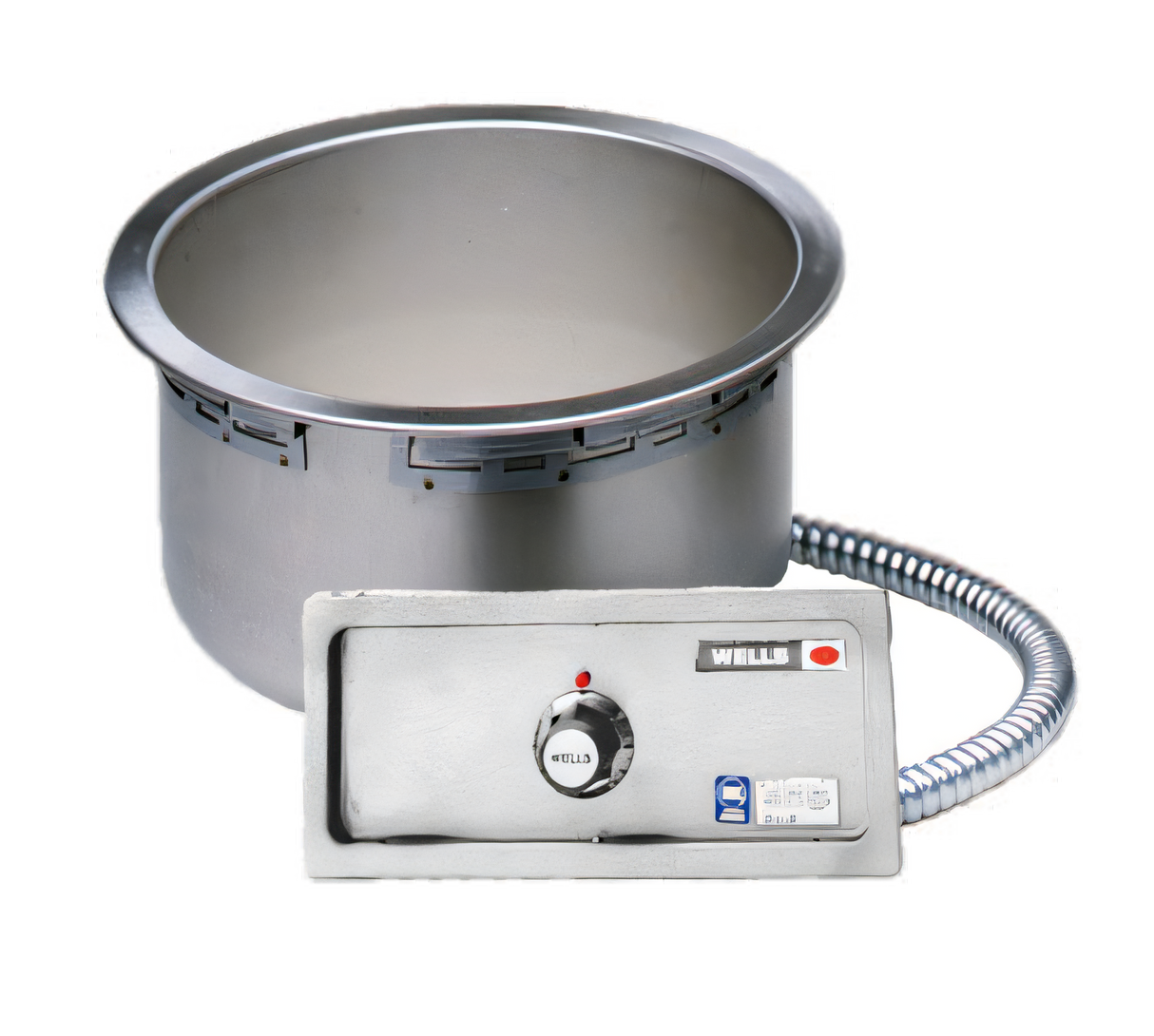

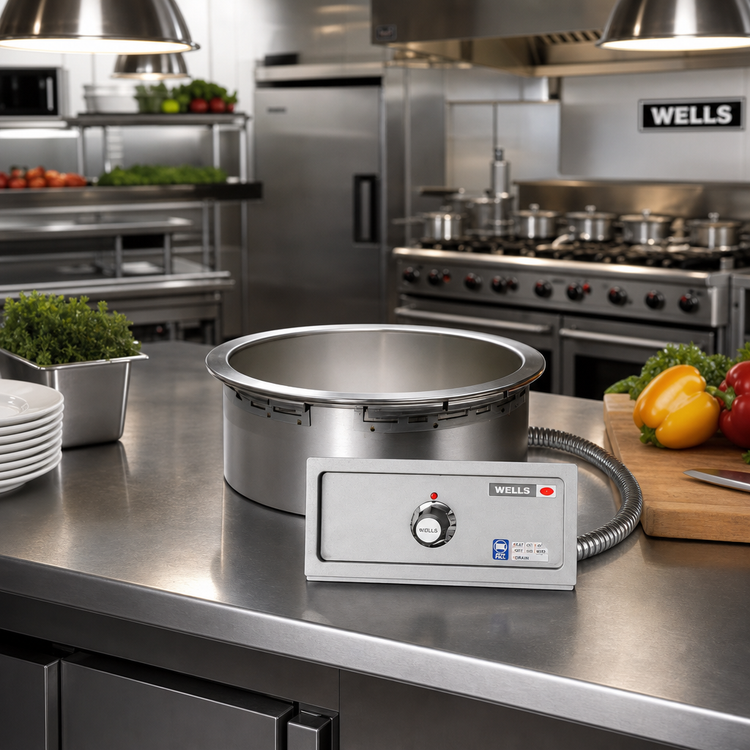

Wells SS10 Series 11-Qt Auto-Fill Drop-In Round Food Warmer
Top-mount • Fully-insulated • Thermostatic control • Built-in drainHold soups, sauces and gravies at perfect serving temperatures—without babysitting the water level. The Wells SS10 Auto-Fill warmer combines heavy-gauge stainless steel construction, energy-saving insulation and precise thermostatic control in a compact, easy-to-install package that’s ready for today’s busiest kitchens.
Key advantages
- 11-quart capacity accepts any standard round inset and lid (sold separately).

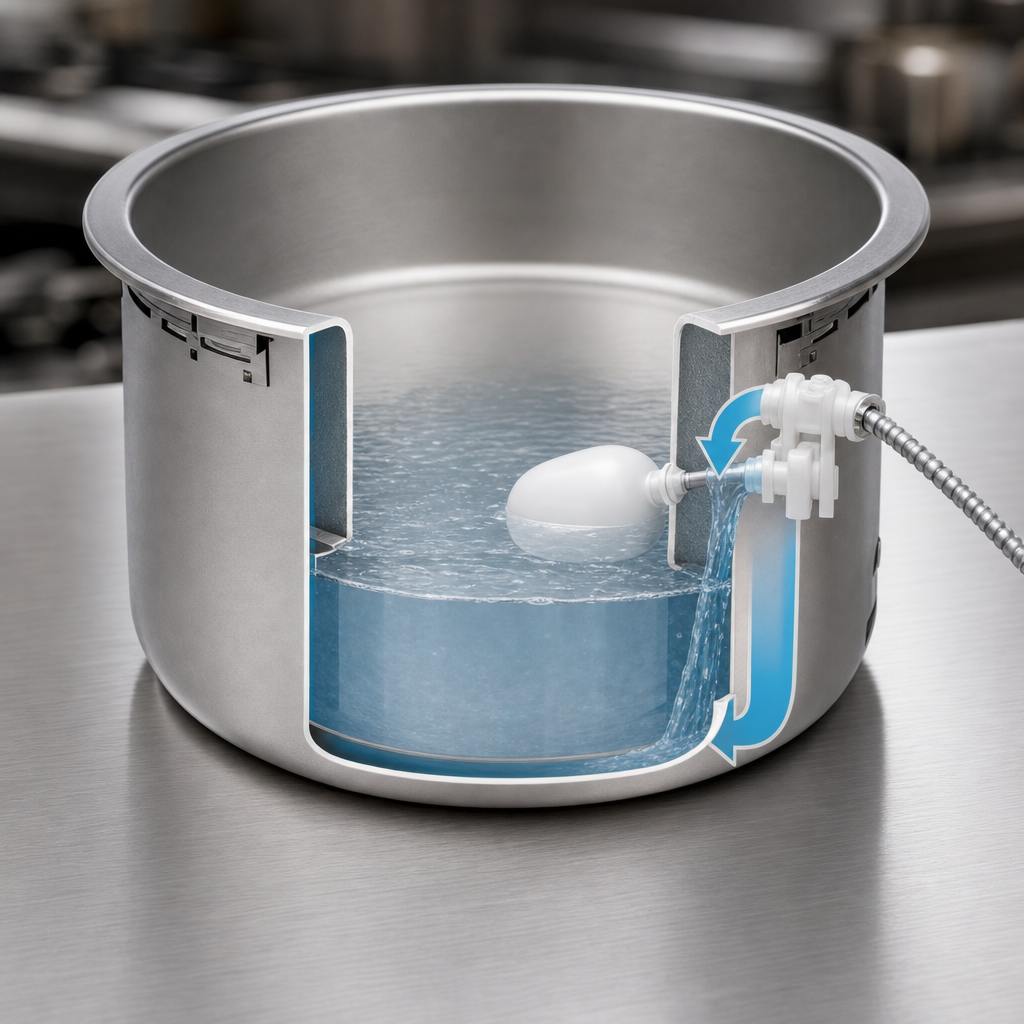

- Auto-Fill system keeps the water bath at the correct level and prevents dry-fire damage.
- High-efficiency tubular heating element regulated by an infinite thermostatic control.
- Fully insulated sidewalls & base speed up pre-heat, improve recovery and minimize heat loss under the counter.
- One-piece stainless steel top flange with Wellslok™ mounting ring for fast drop-in installation.
- ½" NPT drain simplifies daily cleanup and water changes.
- Wet operation only—ideal for delicate creams, cheeses and chowders.
- cULus & NSF listed for electrical and sanitation compliance.
- Backed by a 1-year limited parts & labor warranty.
At-a-glance specs
| Capacity | 11 qt (10.4 L) standard round inset |
|---|---|
| Operation | Wet only – auto-fill maintained |
| Controls | Thermostatic dial with temperature-ready indicator light |
| Voltage / Wattage |
120 V 825 W • 1Φ 208 V 620 W / 240 V 825 W • 1Φ |
| Electrical connection | Hard-wired or cord & plug models (NEMA 5-15P or 6-15P) — choose at checkout |
| Water connection | ¼" NPT external solenoid inlet (auto-fill) |
| Drain | ½" NPT bottom drain with check valve |
| Installed weight | ≈ 11.4 lb (5.2 kg) |
| Construction | Heavy-gauge, deep-drawn stainless steel pan & flange; fully insulated |
| Certifications | NSF • cULus |
| Warranty | 1-year limited parts & labor |
Auto-Fill models require a plumbed water supply. Always refer to the installation manual for exact cut-out dimensions, clearance requirements and plumbing/electrical specifications.
