Wells (Middleby)  |  SKU: SS-10TDUCI

Wells (Middleby) SS-10TDUCI Steam Tables & Food Wells

$1,193.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

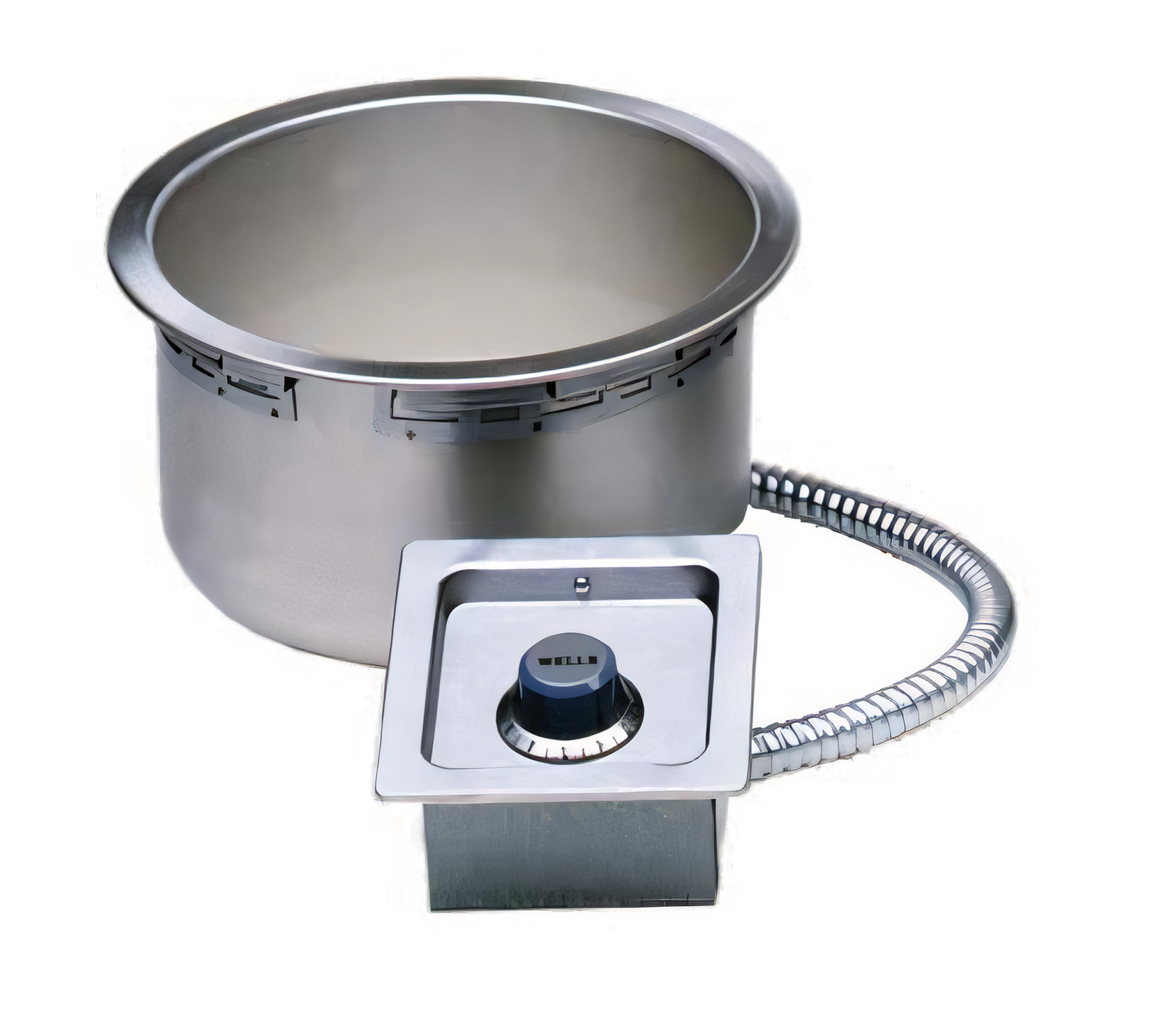

Wells SS10TDUI 11-Qt Fully-Insulated Drop-In Round Food Warmer

Thermostatic • Wet or Dry • With ½" Drain • NSF & cULus

Keep soups, sauces and sides at perfect serving temperature with the Wells SS10TDUI. This heavy-duty, top-mount warmer drops neatly into your counter and delivers fast, even heat for a full 11-quart inset—all while saving energy thanks to complete side-and-bottom insulation.

Key Features

  • Accepts any standard 11 qt round inset (adapter rings available for 4 qt & 7 qt—sold separately)
  • Fully insulated cabinet minimizes heat loss and allows installation in non-metal counters (with adapter kit)
  • True wet or dry operation—no element damage if water runs low
  • Recessed thermostatic dial with temperature-ready indicator light for precise control
  • ½" NPT integrated drain simplifies water removal & cleaning
  • One-piece stainless-steel top flange and deep-drawn pan resist corrosion and clean easily
  • Powerful tubular element mounted under the pan for even heat distribution
  • Built-in high-limit safeguards against overheating
  • Patented Wellslok mounting system speeds up installation—no hardware required
  • Tested & certified: NSF, cULus

Specifications

Model SS10TDUI-120 | SS10TDUI (208/240 V)

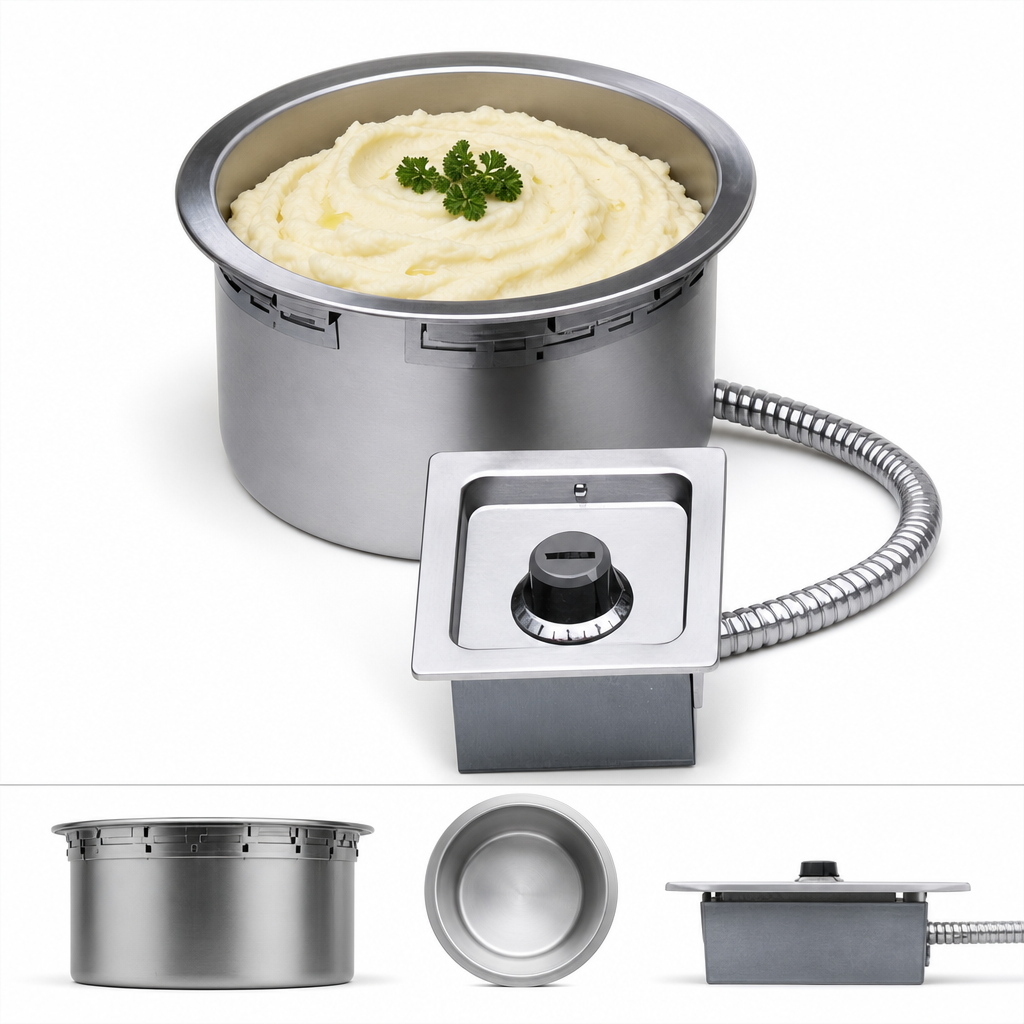

Capacity 11 qt (10.4 L) round inset
Operation Wet or dry
Control Type Thermostatic, recessed front panel
Insulation Fully insulated sides & bottom
Electrical 120 V / 825 W / 1 Φ
208 V / 620 W / 1 Φ
240 V / 825 W / 1 Φ
Heating Element Tubular, under-pan
Drain ½" NPT, bottom outlet
Unit Weight 11.4 lb (5.2 kg)
Cut-Out Diameter 12" (305 mm)
Well Depth 10 ¼" (260 mm)
Required Clearances 1" back & sides, 8" bottom, 4" front (2" if control box below warmer)
Certifications NSF, cULus
Warranty 1-year parts & labor

Compatible Accessories (Sold Separately)

  • 11 qt stainless steel inset & hinged lid
  • 8 oz soup ladle
  • Drain valve extension kit
  • Adapter tops for 4 qt or 7 qt insets
  • Non-metal counter adapter kit
  • Optional 72" remote control wiring harness
Installation Note: This unit is intended for built-in applications only and must be installed by qualified personnel in accordance with local electrical codes and the Wells installation manual.

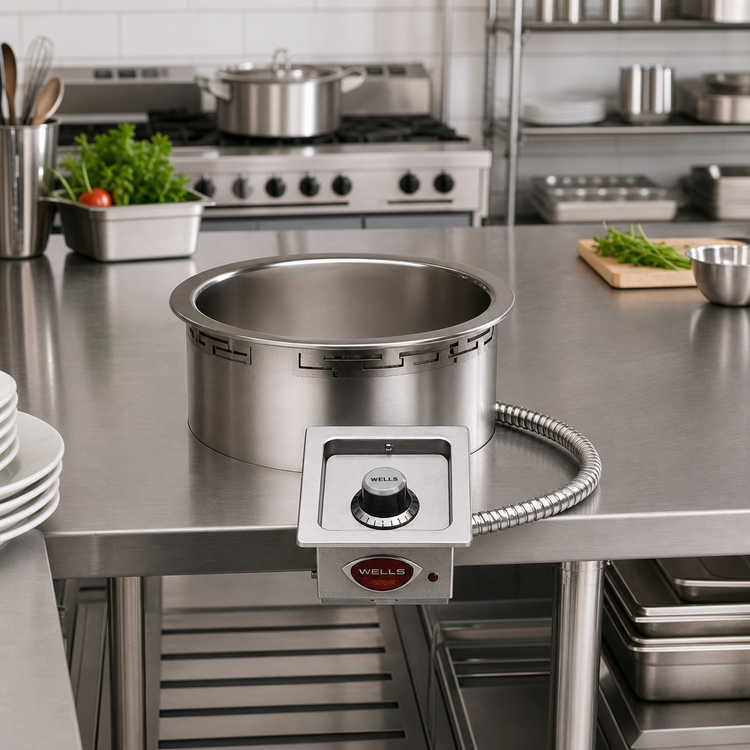

Inset, lid and ladle are shown for illustration only and are not included with the warmer.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

8.75in

Width

12.0in

Depth

12.0in

Shipping Weight

12.4lbs

Pan Capacity

(1) 11 qt round

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Drain

with drain

Construction

stainless steel construction

Specifications

Food Warmer, top-mount, built-in, electric, for 11 quart round insert, drain, wet/dry operation, thermostatic control, fully insulated, stainless steel construction, Wellslok, cULus, NSF
