Wells (Middleby)  |  SKU: RW-16HD

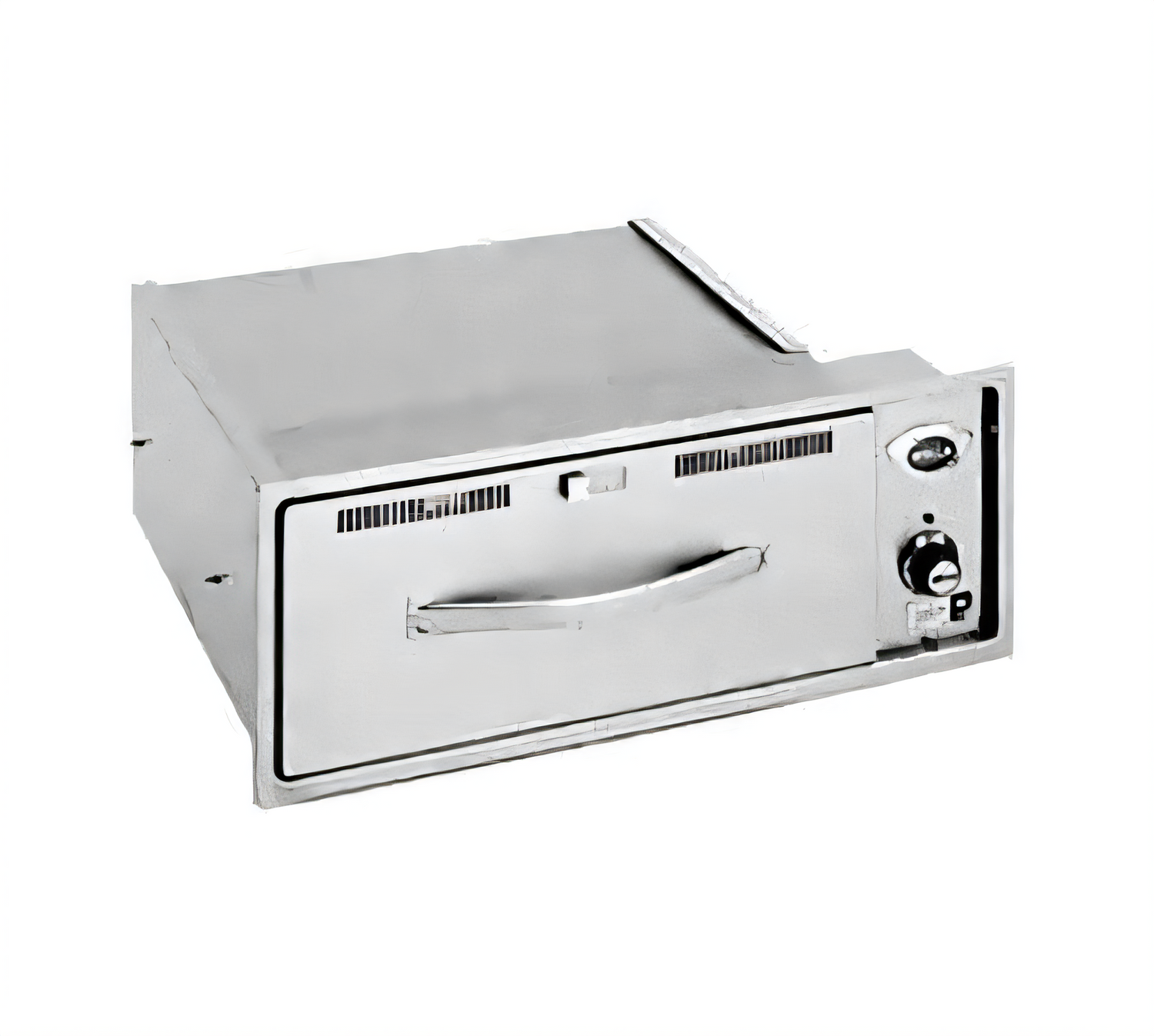

Wells (Middleby) RW-16HD Drawer Warmers

$3,023.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Installation manual Warranty sheet
Related Searches
Countertop Food Warming Drawer Warmers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

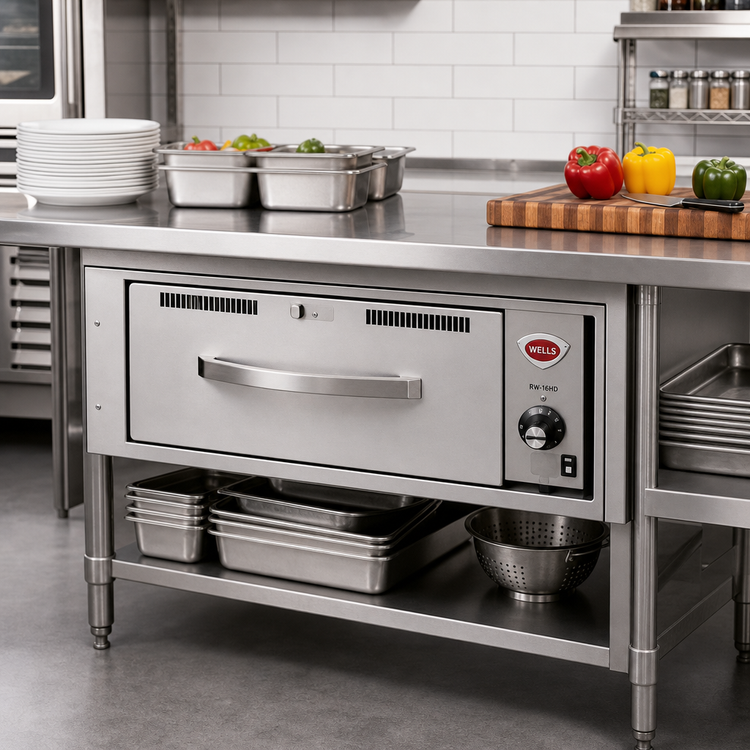

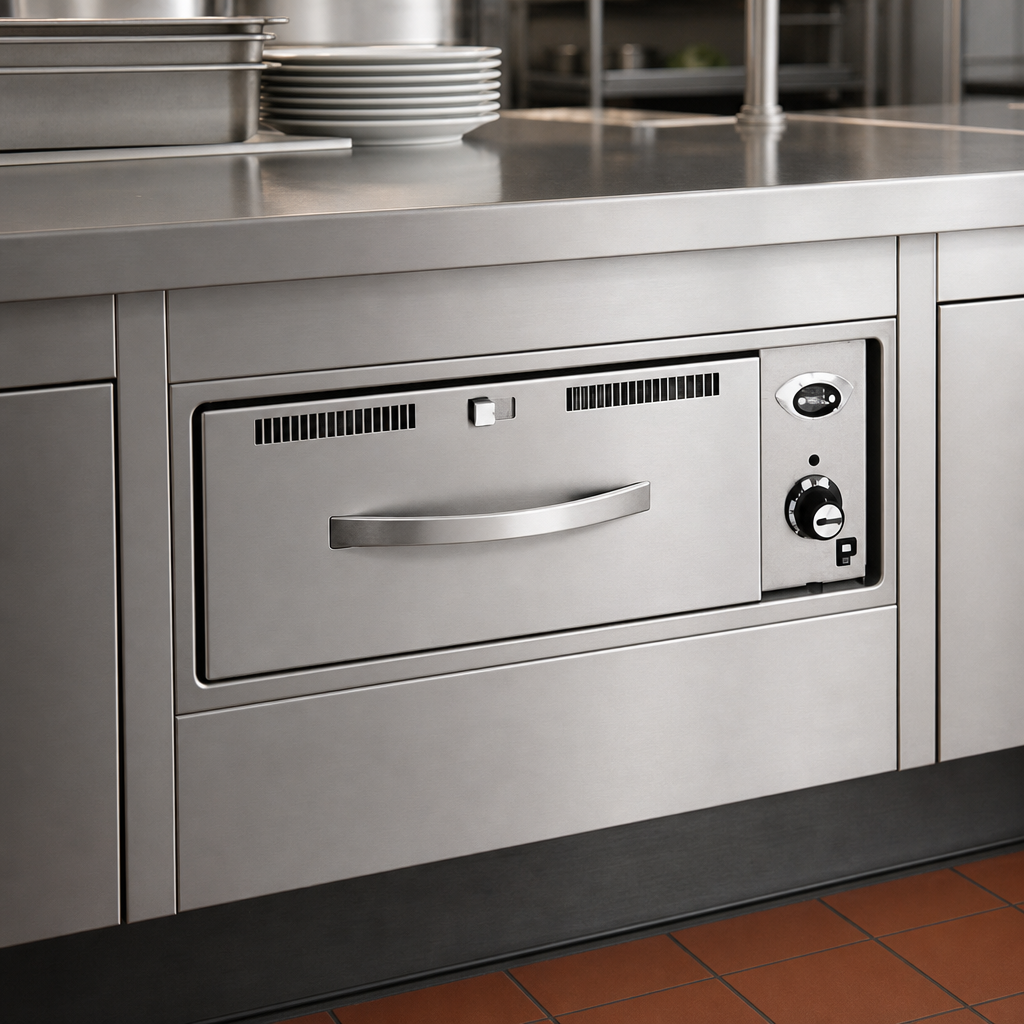

Wells Heavy-Duty Built-In Food Warming Drawer – Single Drawer

Model RW-16HD | cULus & CE Listed

Serve every order fresh-from-the-oven. The Wells RW-16HD heavy-duty drawer warmer keeps breads, rolls, tortillas, veggies and more at perfect serving temperature and ideal humidity—right from your built-in cabinet line.

Key Features

  • Wide temperature range: 90 °F – 210 °F (32 °C – 99 °C) with precise thermostat dial.
  • Front-mounted vent slider for fast, fingertip humidity control.

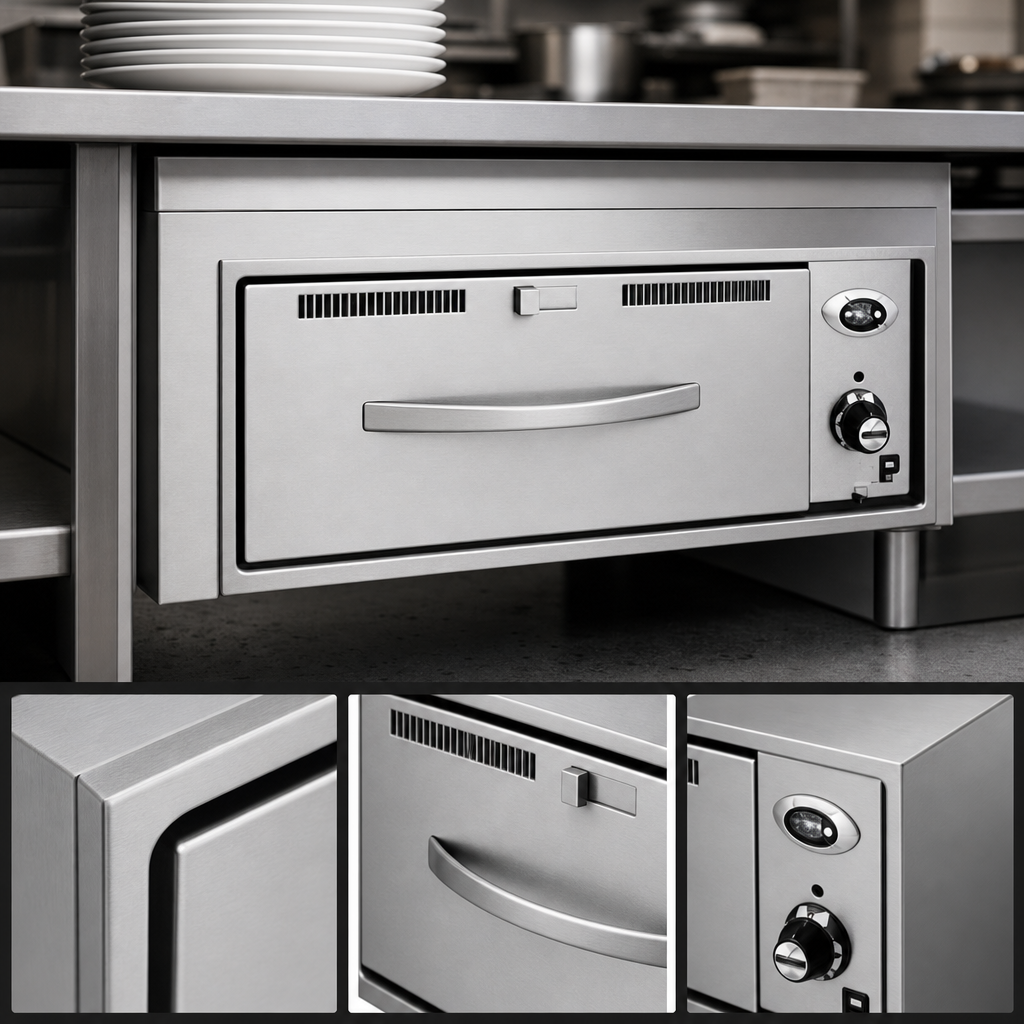

  • Heavy-duty stainless steel slides, bearings & faceplate built for high-volume abuse.
  • Accepts a full-size 12" × 20" pan up to 6" deep (pan included) – holds approx. 8 dozen rolls.
  • Fully insulated cabinet reduces energy use and keeps nearby surfaces cool.
  • Indicator light shows when elements are energized for quick visual confirmation.
  • Backed by Wells’ 1-year parts & labor warranty and nationwide service network.

Specifications

Drawer Capacity Approx. 8 dozen dinner rolls (1 × 12" × 20" × 6" pan)
Temperature Range 90 °F – 210 °F (32 °C – 99 °C)
Overall Dimensions 29 1/4" W × 21 1/2" D × 10 7/8" H
(743 mm × 546 mm × 276 mm)
Installed Weight 51 lb (23 kg)
Construction All stainless steel, fully insulated
Electrical Options 120 V / 450 W / 3.8 A, 1 Ø
208 V / 338 W / 1.6 A, 1 Ø
240 V / 450 W / 1.9 A, 1 Ø
Controls Manual thermostat • Humidity vent slider • Power indicator light
Certifications cULus, CE
Warranty 1-year parts & labor

What’s Included

  • Stainless steel 12" × 20" × 6" pan
  • Installation & operation manual

Popular Accessories

  • Humidity rack, stainless steel, non-splash (Item #20624)
  • Built-in thermometer kit for HACCP monitoring

Need more capacity? Two-drawer (RW-26) and three-drawer (RW-36) models are also available.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

CE, cULus

Height

10.88in

Width

29.25in

Depth

21.5in

Shipping Weight

68.0lbs

Style

standard drawer

Drawers

1 drawer

Controls

thermostatic controls

Specifications

Heavy Duty Food Warming Drawer Unit, built-in, one drawer, capacity approximately 8 dozen rolls/drawer, humidity and thermostat controls, stainless steel construction, cULus, CE
