Wells (Middleby)  |  SKU: RCP-7600

Wells (Middleby) RCP-7600 Steam Tables & Food Wells

$12,020.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

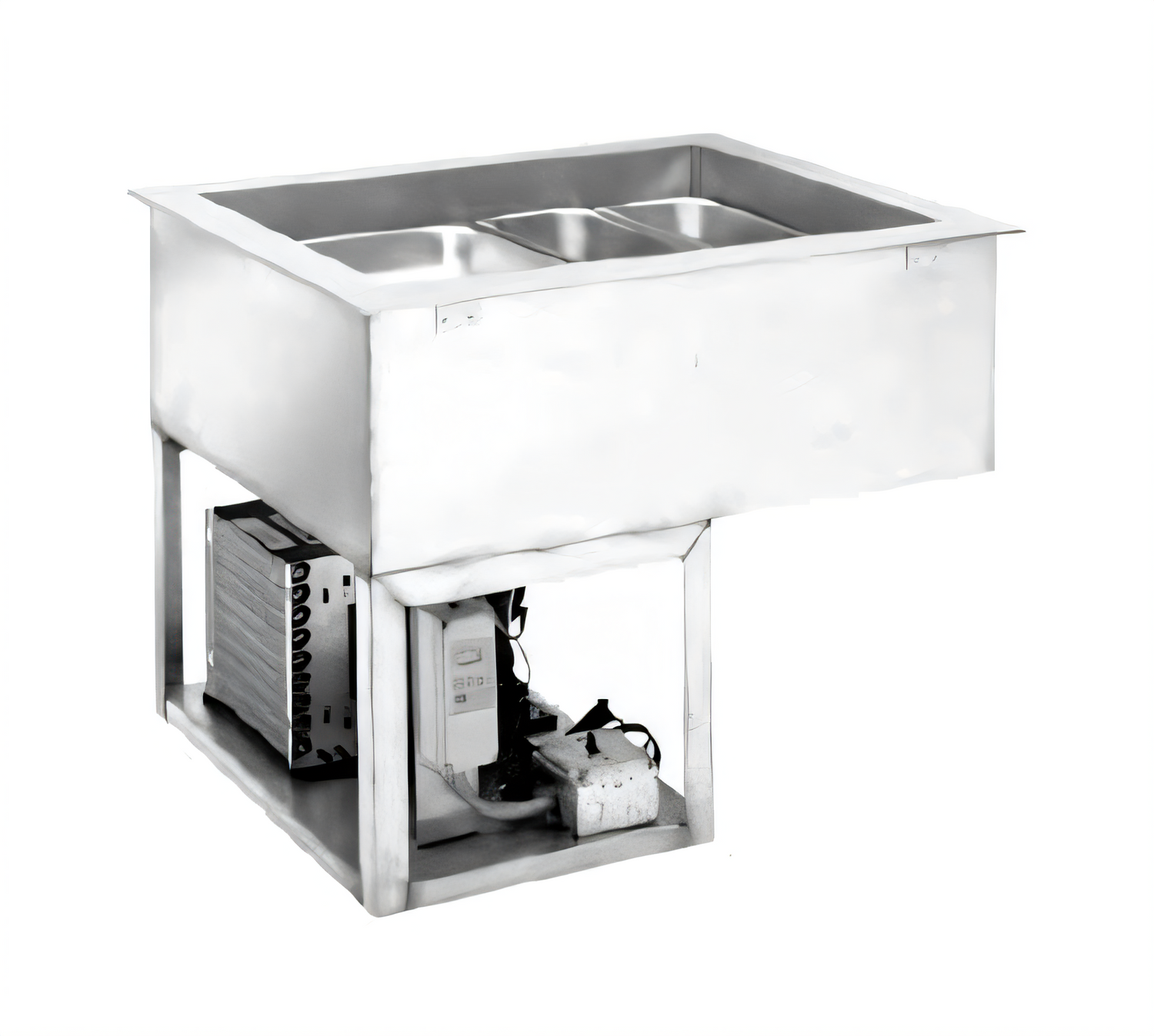

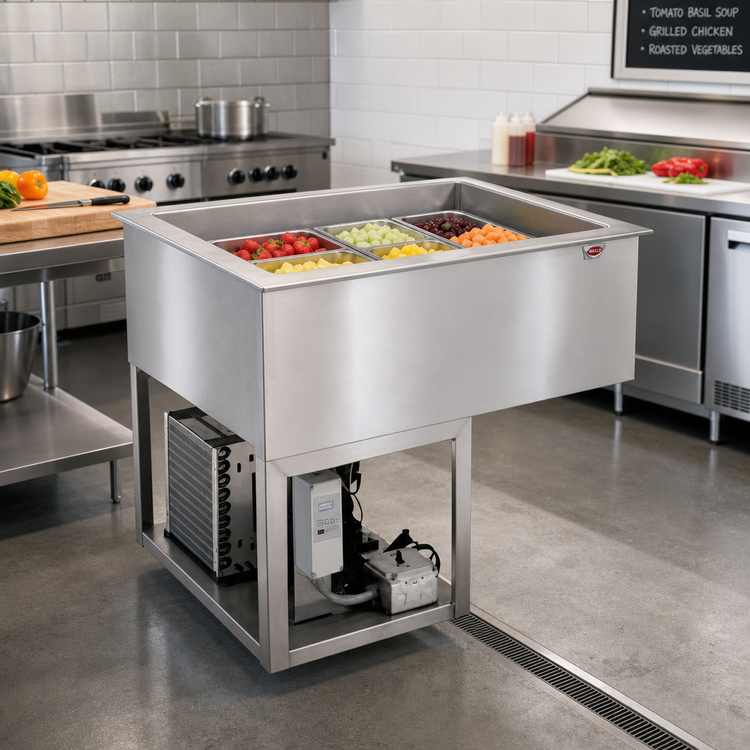

Wells RCP-7600 6-Pan Drop-In Refrigerated Cold Food Well

Self-contained • 3/4 HP • 115 V • NSF-7 Compliant

Keep salads, desserts, toppings, and grab-and-go favorites chilled and ready for service with the Wells RCP-7600. Designed to drop neatly into your counter, this heavy-duty cold well holds six full-size pans below 41 °F while saving valuable floor space and energy.

Key Benefits

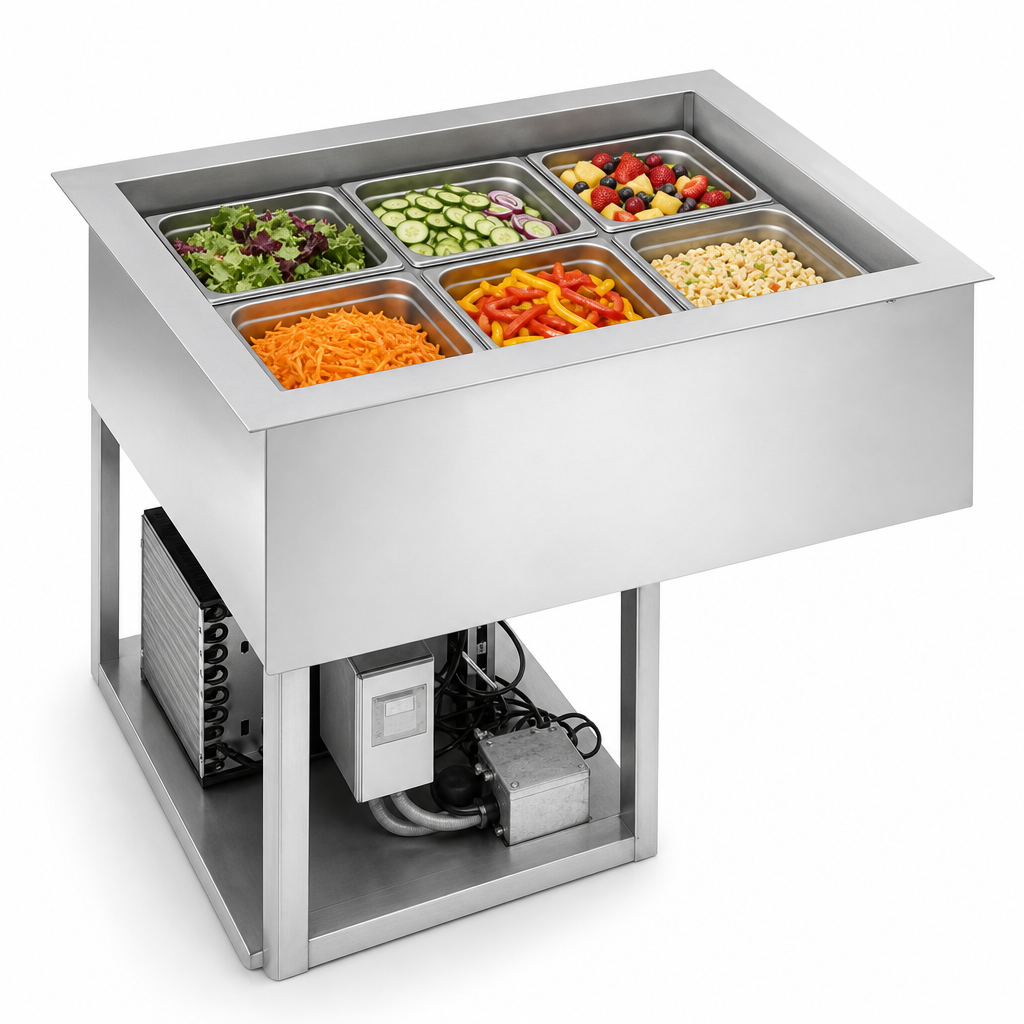

  • Holds (6) 12" × 20" full-size food pans—accepts fractional pans with optional adapter bars.
  • 3" recessed top edge forms a cold air blanket that meets NSF-7 performance standards.
  • Individual thermostatic controls for each pan plus a master illuminated On/Off switch.
  • CFC-free, foamed-in-place insulation reduces energy use and maintains constant temps.
  • 1" center drain with large opening speeds end-of-day cleanup.
  • Service-ready refrigeration package includes sight glass, service valves, filter/dryer, and receiver.
  • Ships with an 8 ft cord and NEMA 5-20P plug—no hard-wiring required.

Engineered for Durability

  • One-piece 18-gauge stainless steel top & coved-corner liner resist corrosion and simplify sanitation.
  • Heavy-gauge steel exterior body stands up to the demands of commercial kitchens.
  • Air-cooled 3/4 HP compressor uses eco-friendly R-404A refrigerant.
  • Condensing unit mounts on a removable, corrosion-resistant frame for fast, front-side access.

Technical Specifications

Pan Capacity (6) full-size 12" × 20" pans
Refrigeration Self-contained, air-cooled, R-404A
Compressor 3/4 HP
Controls Master power switch & individual thermostats
Electrical 115 V / 60 Hz / 1-ph • 15.2 A • NEMA 5-20P • 8 ft cord
Drain 1" IPS center drain
Overall Dimensions 87 3/4" W × 27 1/8" D × 26 1/8" H (2229 × 689 × 664 mm)
Counter Cut-Out 86 1/2" W × 25 7/8" D (2197 × 657 mm)
Installed Weight 213 lb (97 kg)
Certifications NSF-7, cULus
Standard Warranty 1 year parts & labor (optional 5-year compressor)

Optional Accessories

  • Perforated bottom strainer plate (keeps ice above the drain)
  • Adapter bars for fractional pans
  • Remote On/Off switch kit
  • Extended 5-year compressor warranty
Installation Note: Provide adequate ventilation below the counter and follow the cut-out dimensions above. Unit weighs over 200 lb—use proper lifting equipment.

Budget made easy: Middleby Equipment Financing offers quick approvals and fixed monthly payments. Apply online ›

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

26.13in

Width

87.75in

Depth

27.13in

Shipping Weight

285.0lbs

Pan Qty

6-pan

Layout

straight

Insulation

insulated

Finish

galvanized steel outer liner

Style

self-contained refrigeration

Pan Size

full-size (12" x 20")

Width (side - side)

85 - 90 inches

Specifications

Cold Food Well Unit, drop-in, self-contained refrigeration, (6) 12" x 20" pan capacity, on/off switch with individual thermostatic controls, insulated pan, 3" recessed top edge, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-404A refrigerant, 3/4 HP, 115v/60/1-ph, 15.2 amps, NEMA 5-20P, NSF, cULus
