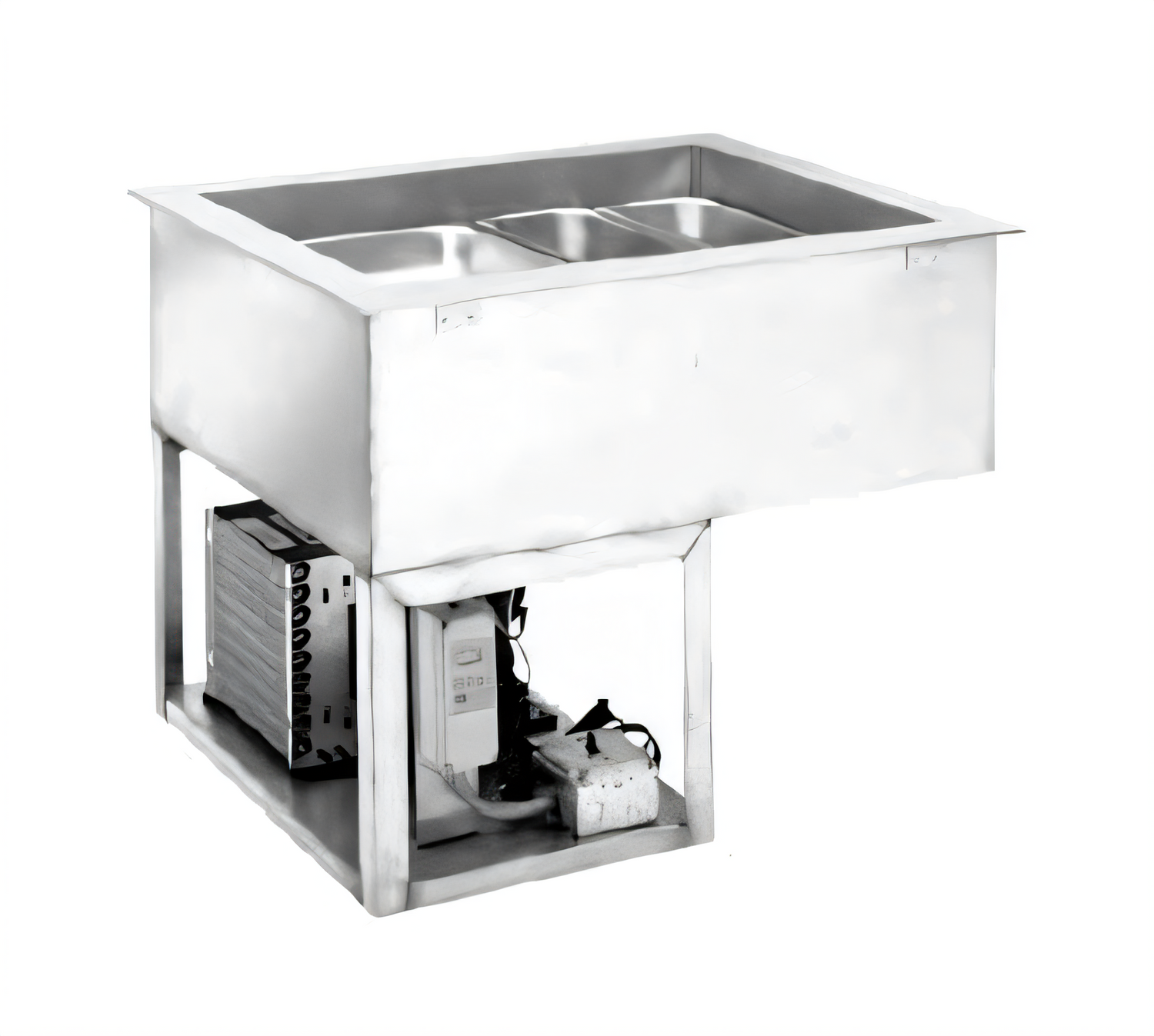

Wells RCP-7500 Drop-In Self-Contained Refrigerated Cold Food Well, 5 Full-Size Pan Capacity, 115V

Stainless Steel Top and Liner, Individual Thermostatic Controls, NEMA 5-20P

Keep pre-chilled foods at safe serving temperatures with a drop-in cold well that combines self-contained refrigeration, individual temperature control, and durable stainless steel food-contact surfaces.

  • Drop-in, self-contained refrigerated cold pan for buffet and serving line applications
  • Holds five full-size 12" x 20" pans and supports fractional pans with adaptor bars
  • Individual thermostatic controls help maintain consistent holding temperatures
  • 3" recessed top edge, insulated pan, and 1" drain support cleaner operation
  • Stainless steel top, liner, and flange with a corrosion-resistant steel body
  • 115V single-phase operation with 8 ft cord, NEMA 5-20P plug, and R-404A refrigerant

Overall Dimensions:

74.0"W x 27.13"D x 26.13"H

Product Weight:

245.0 lb

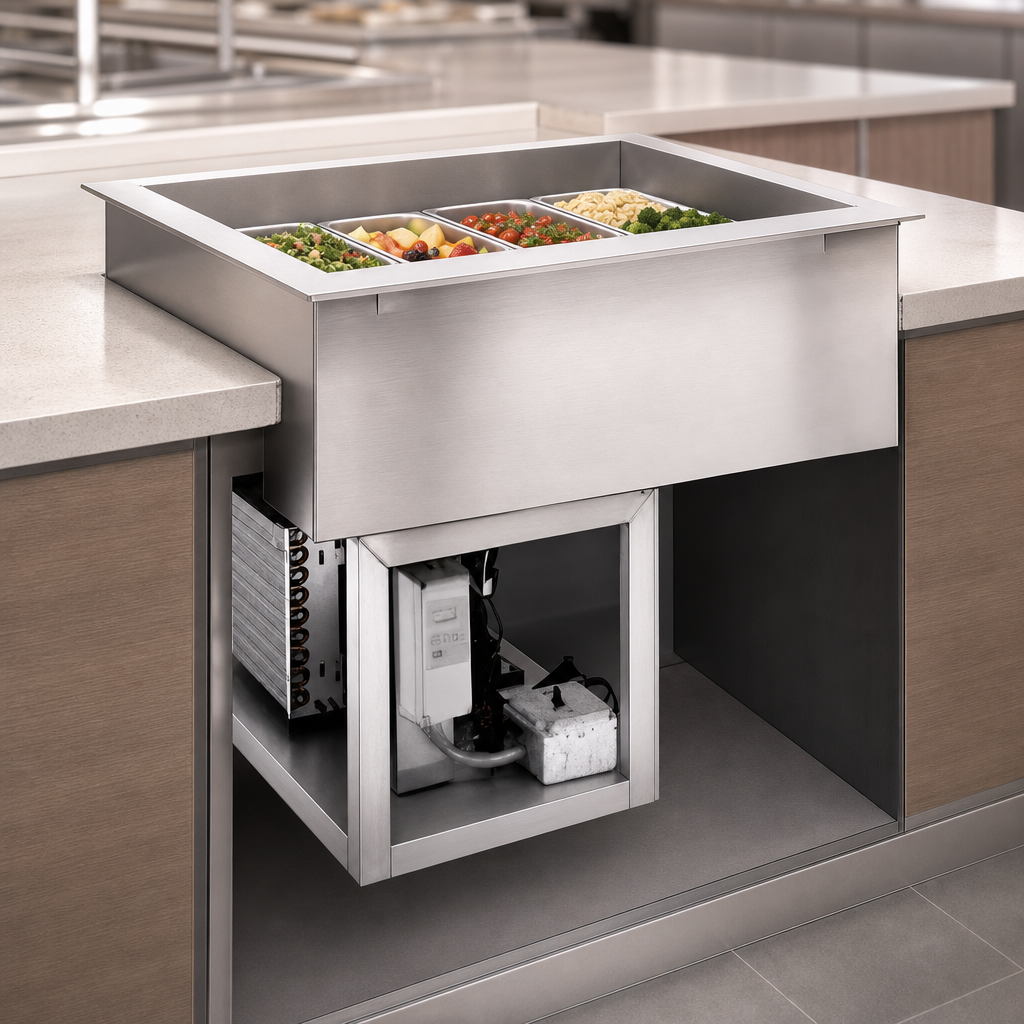

Self-Contained Drop-In Design

Built-in refrigeration simplifies installation into a counter or serving line.

Five-Pan Capacity

Holds five standard 12" x 20" food pans, with fractional pan support available using adaptor bars.

Individual Thermostatic Controls

Separate thermostatic control helps maintain proper holding temperatures.

3" Recessed Top Edge

Recessed pan ledge supports NSF-7 performance requirements and helps keep pans seated securely.

Stainless Steel Food Zone

Stainless steel top, flange, and inner liner provide durability and easier cleaning.

Insulated Construction

Foamed-in-place, CFC-free insulation helps keep food cold and improves energy efficiency.

1" Center Drain

Center drain simplifies drainage and cleanup.

Service-Friendly Refrigeration System

Air-cooled refrigeration includes sight glass, service valves, filter/dryer, and receiver for easier maintenance.

Type Cold Food Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Individual Thermostatic
Refrigeration Type Self-Contained
Refrigerant Type R-404A
Material Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Voltage 115 Volts
Amps 15.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 8 Feet
Horsepower 3/4 HP
Shipping Width 29 Inches
Shipping Depth 76 Inches
Shipping Height 32 Inches
Shipping Weight 245 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds five standard 12" x 20" food pans and can also accommodate fractional pans with adaptor bars.
Yes. This is a self-contained, drop-in refrigerated cold pan.
It operates on 115V, 60 Hz, single-phase power and uses a NEMA 5-20P plug.
This model uses R-404A refrigerant.
Yes. It includes a 1" center drain for easier cleanup.
The unit is NSF and cULus certified.
