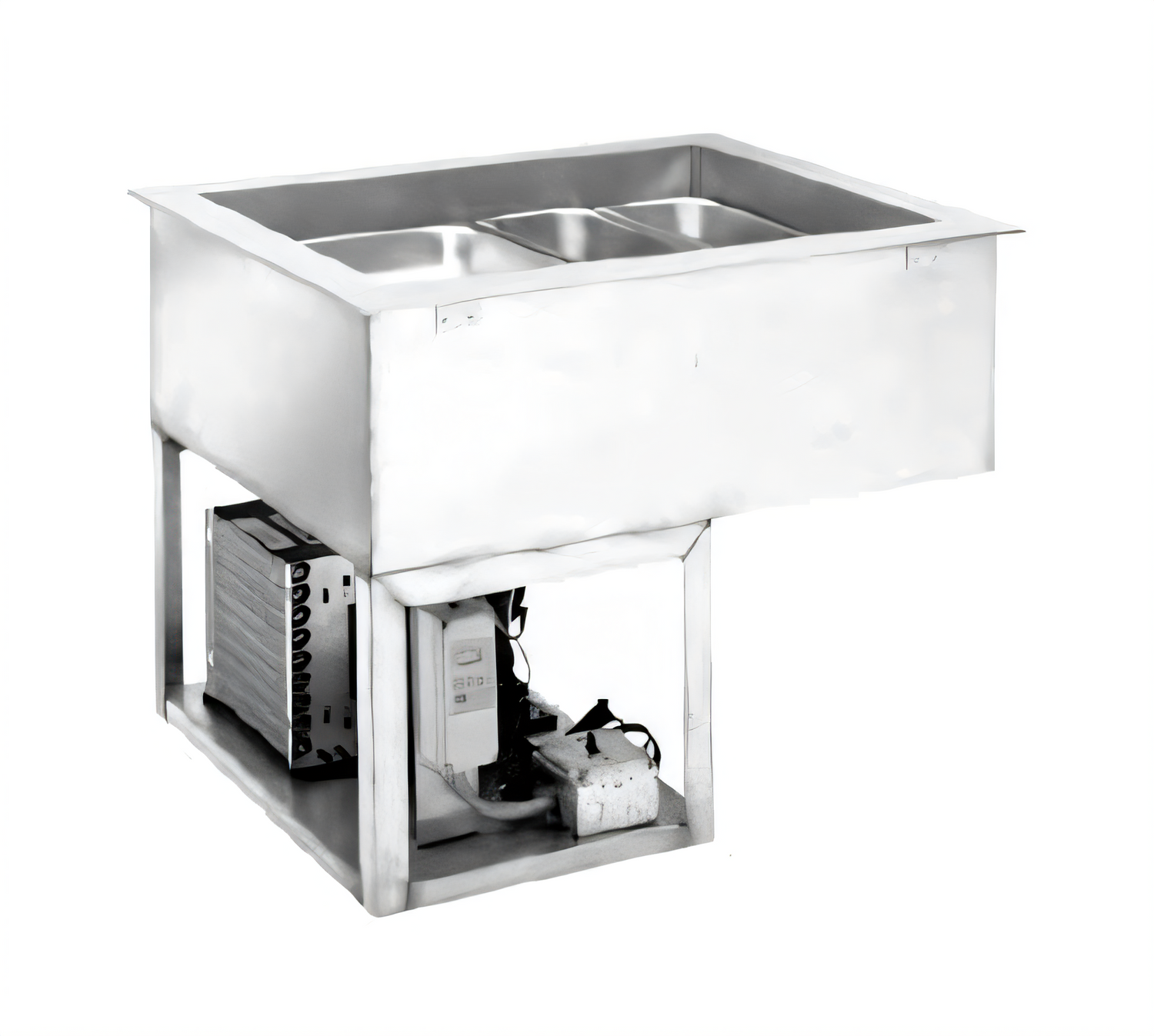

Wells RCP-7400 Drop-In Self-Contained Refrigerated Cold Well, 4 Full-Size Pans, 60-1/4 Inches Wide

SKU: RCP-7400
$11,765.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Wells (Middleby)

Wells RCP-7400 Drop-In Self-Contained Refrigerated Cold Well, 4 Full-Size Pans, 60-1/4 Inches Wide

115V, Individual Thermostatic Controls, Stainless Steel Top and Liner

Keep cold foods ready to serve with a four-pan drop-in well that combines self-contained refrigeration, stainless steel food-contact surfaces, and individual thermostatic control.

  • Self-contained drop-in refrigerated cold well for food bars, buffets, and serving lines.
  • Holds four standard 12 x 20-inch pans and can support fractional pans with adaptor bars.
  • Individual thermostatic controls help maintain consistent holding temperatures.
  • Stainless steel top, flange, and inner liner improve durability and cleanup.
  • Foamed-in-place insulation helps keep food cold and reduce energy use.
  • Includes a 1-inch drain, 8-foot cord, and NEMA 5-15P plug for easier installation.

Overall Dimensions:

60.25"W x 27.13"D x 26.13"H

Product Weight:

210.0 lb

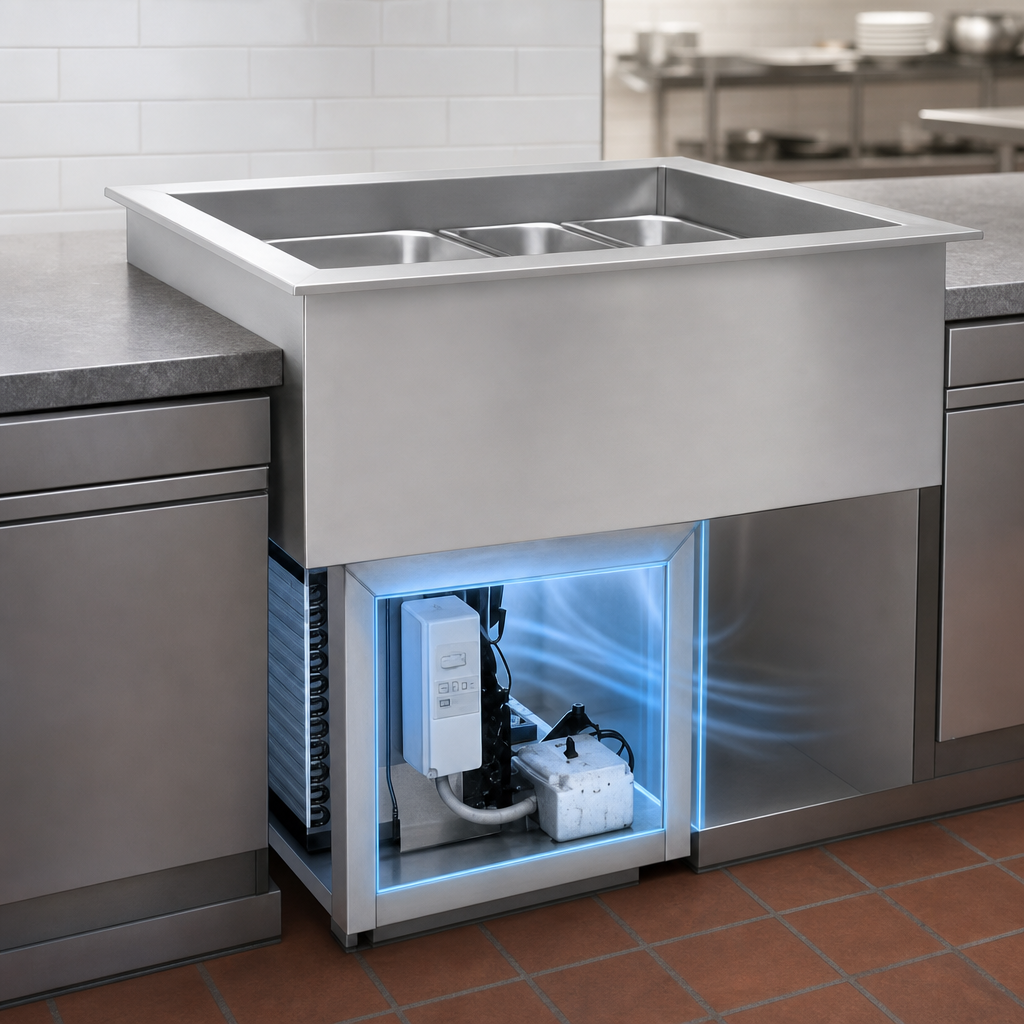

Self-Contained Refrigeration

Built-in R-404A refrigeration with a 1/2 HP compressor keeps the unit fully self-contained.

Four Full-Size Pan Capacity

Holds four standard 12 x 20-inch pans and can accept fractional pans with adaptor bars.

Individual Thermostatic Controls

Each section is controlled independently to help maintain consistent holding temperatures.

Stainless Steel Construction

Stainless steel top, flange, and inner liner provide durability and make cleaning easier.

Insulated Cabinet

Foamed-in-place insulation helps retain cold air and improve energy efficiency.

3-Inch Recessed Top Edge

The recessed top edge and ledge help support pans and keep products positioned securely.

1-Inch Center Drain

A center drain simplifies drainage and cleanup after service.

Ready-To-Connect Power

Includes an 8-foot cord with a NEMA 5-15P plug for easier installation.

Type Cold Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 4
Pan Size 12 x 20 Inches
Controls Individual Thermostatic Controls
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Voltage 115 Volts
Amps 6.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Refrigerant Type R-404A
Horsepower 1/2 HP
Drain Connection Size 1 Inch
Shipping Width 61 Inches
Shipping Depth 28 Inches
Shipping Height 27 Inches
Shipping Weight 210 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds four standard 12 x 20-inch pans and can support fractional pans with adaptor bars.
Yes. The unit uses a self-contained drop-in refrigeration system.
It operates on 115V, 60 Hz, single-phase power and draws 6.4 amps with a NEMA 5-15P plug.
The unit uses R-404A refrigerant.
It includes a limited 1-year parts and labor warranty.
Shipping dimensions are 61 inches wide by 28 inches deep by 27 inches high, with a shipping weight of 210 pounds.
