Wells (Middleby) RCP-7200 Steam Tables & Food Wells
Description

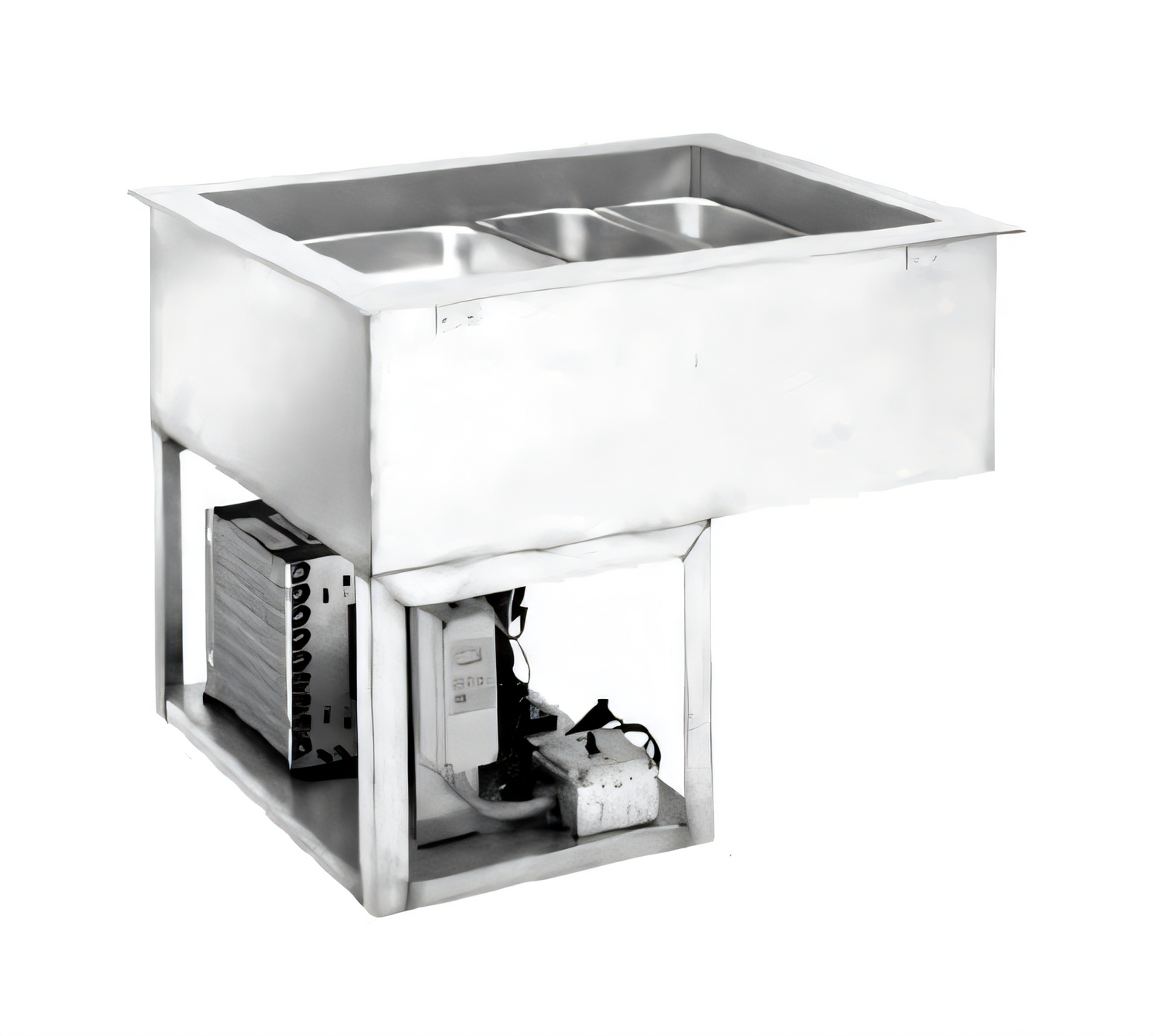

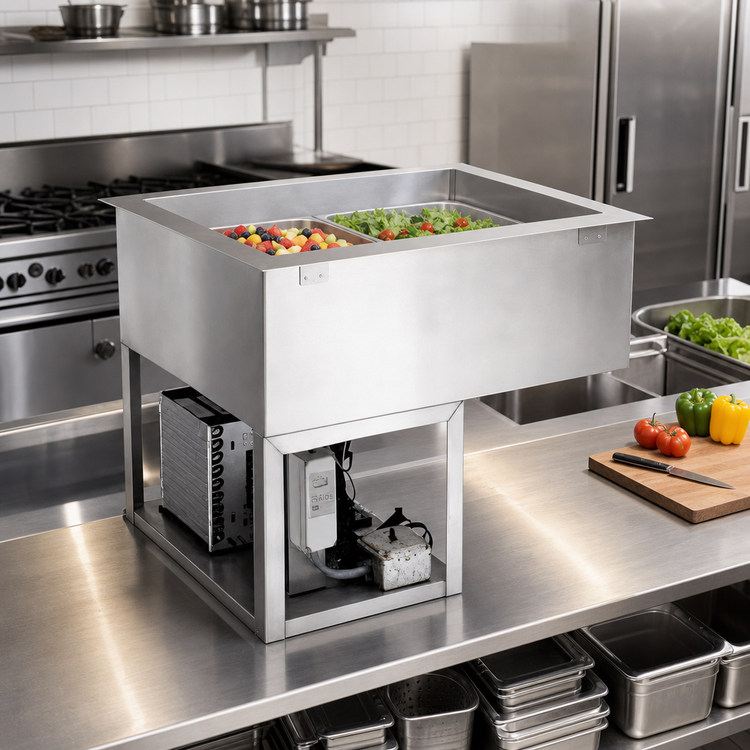

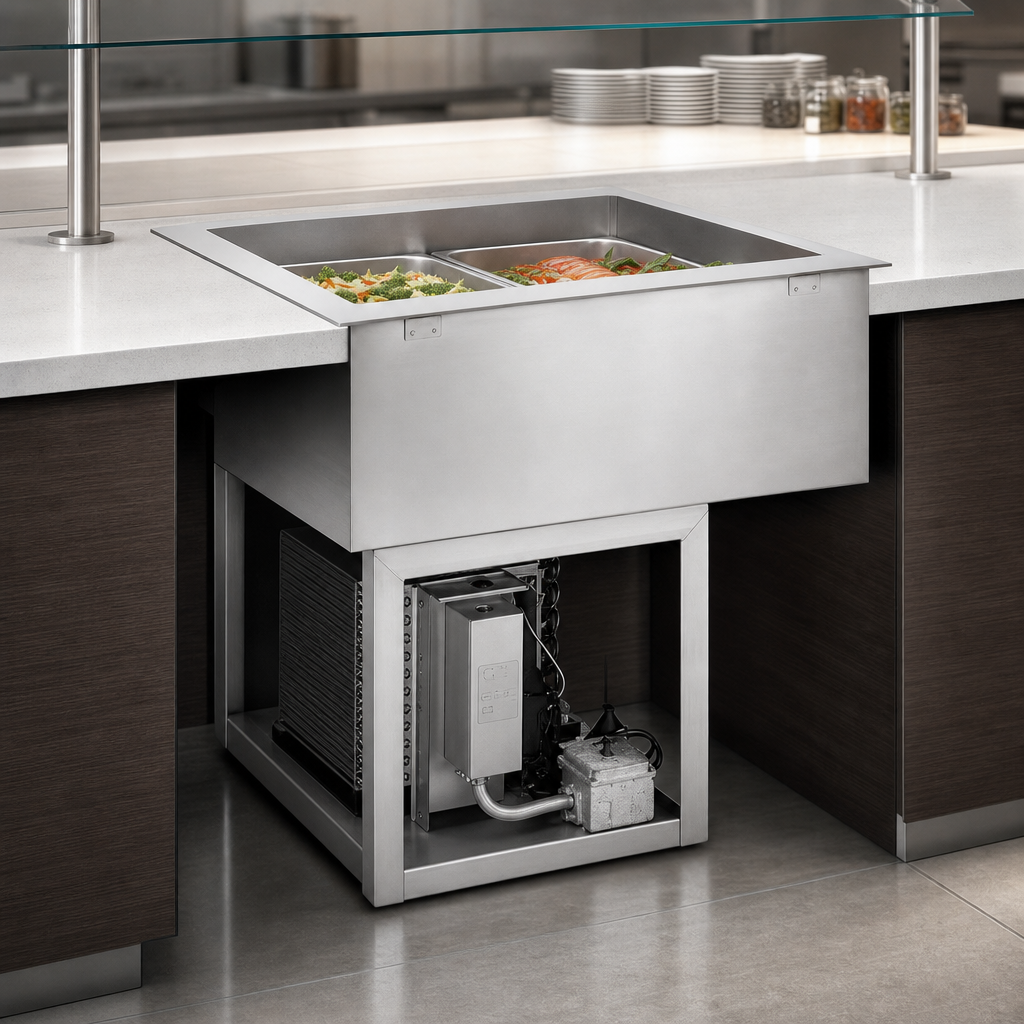

Wells RCP-7200 2-Pan Refrigerated Drop-In Cold Food Well
Self-contained • 115 V • NSF-7 compliantKeep salads crisp, desserts chilled and ingredients food-safe without the mess of ice. The Wells RCP-7200 drops neatly into your counter and provides powerful, individually controlled refrigeration for two standard 12" × 20" pans.
Key Advantages
- 3" recessed cold well ledge meets NSF-7 and creates an insulating air curtain for colder, fresher product.
- Independent thermostatic controls let you dial-in temperatures for each pan.
- Air-cooled, self-contained R-134A system with 1/4 HP compressor—no remote plumbing or costly installation.
- 18-gauge stainless steel top, flange and coved-corner liner stand up to daily commercial use.
- Foamed-in-place CFC-free insulation reduces energy consumption and maintains consistent temps.
- 1" center drain speeds cleanup; optional perforated strainer plate keeps ice or food above the drain line.
- Lighted on/off rocker switch and attached 8' cord with NEMA 5-15P plug for instant start-up.
Perfect For
- Salad & deli bars
- Buffet and cafeteria service lines
- Fast-casual assembly stations
- C-store grab-and-go counters
Model Specifications
| Manufacturer / Model | Wells RCP-7200 |
|---|---|
| Pan Capacity | (2) full-size 12" × 20" pans (6" deep) or fractional equivalents |
| Overall Dimensions (W × D × H) | 32-3/4" × 27-1/8" × 26-1/8" (832 × 689 × 664 mm) |
| Counter Cut-out (W × D) | 31-1/2" × 25-7/8" (800 × 657 mm) |
| Interior Well (W × D) | 27-1/2" × 21-7/8" (699 × 556 mm) |
| Refrigeration | R-134A, air-cooled, 1/4 HP compressor |
| Electrical | 115 V / 60 Hz / 1-ph, 4.9 A, NEMA 5-15P |
| Shipping / Installed Weight | 140 lb / 124 lb (64 kg / 56 kg) |
| Certifications | NSF-7, cULus |
| Standard Warranty | 1-year parts & labor (optional 5-year compressor) |
Need adapter bars, a perforated strainer plate or a remote on/off switch? Ask our team about factory options and accessories.
Quick Installation Checklist
- Provide cut-out size listed above and ensure counter supports at least 124 lb.
- Connect to a dedicated 115 V / 15 A circuit.
- Allow airflow beneath counter for condenser ventilation and service access.
Upgrade your cold service line with the rugged, energy-efficient Wells RCP-7200 and serve every dish as cool and fresh as it was meant to be.
