Wells (Middleby)

Wells RCP-7100 Drop-In Self-Contained Refrigerated Cold Food Well, 1 Full-Size Pan, 115V

SKU: RCP-7100
$8,228.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Wells (Middleby)

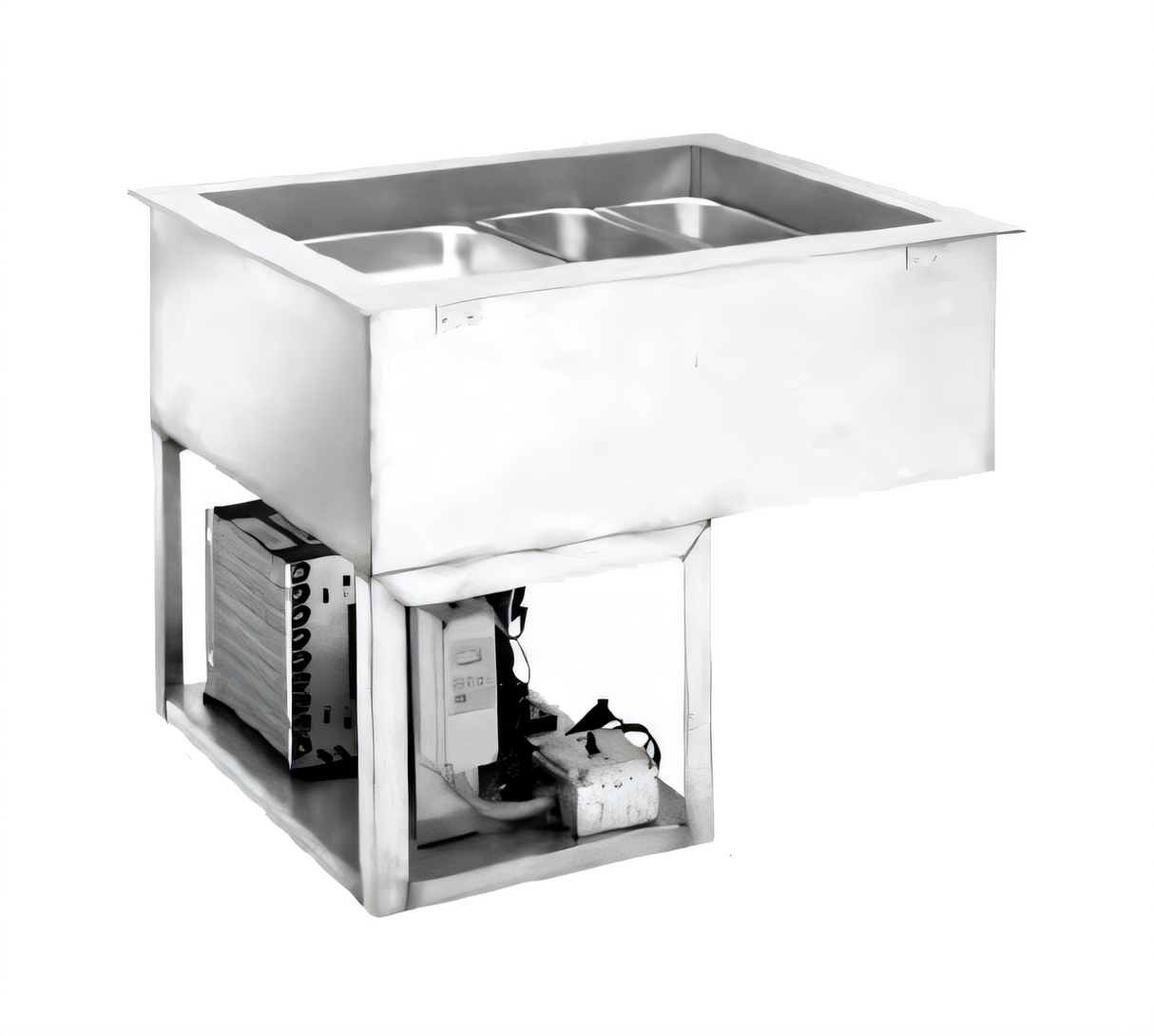

Wells RCP-7100 Drop-In Self-Contained Refrigerated Cold Food Well, 1 Full-Size Pan, 115V

Stainless Steel Top and Liner, Thermostatic Controls, R-134A, 1/4 HP

Keep pre-chilled ingredients cold, fresh, and ready to serve with a compact drop-in well built for one full-size pan.

  • Holds one standard 12" x 20" full-size pan in a compact drop-in footprint.
  • Self-contained, air-cooled refrigeration simplifies installation and service.
  • Thermostatic controls help maintain cold serving temperatures.
  • Stainless steel top and liner add durability and simplify cleanup.
  • 3" recessed top edge and 1" drain support efficient, sanitary operation.
  • 115V, 1/4 HP, 4.9-amp design with NEMA 5-15P plug.
  • Uses R-134A refrigerant and insulated construction to help retain cold.

Overall Dimensions:

19.13"W x 27.13"D x 26.13"H

Product Weight:

115.0 lb

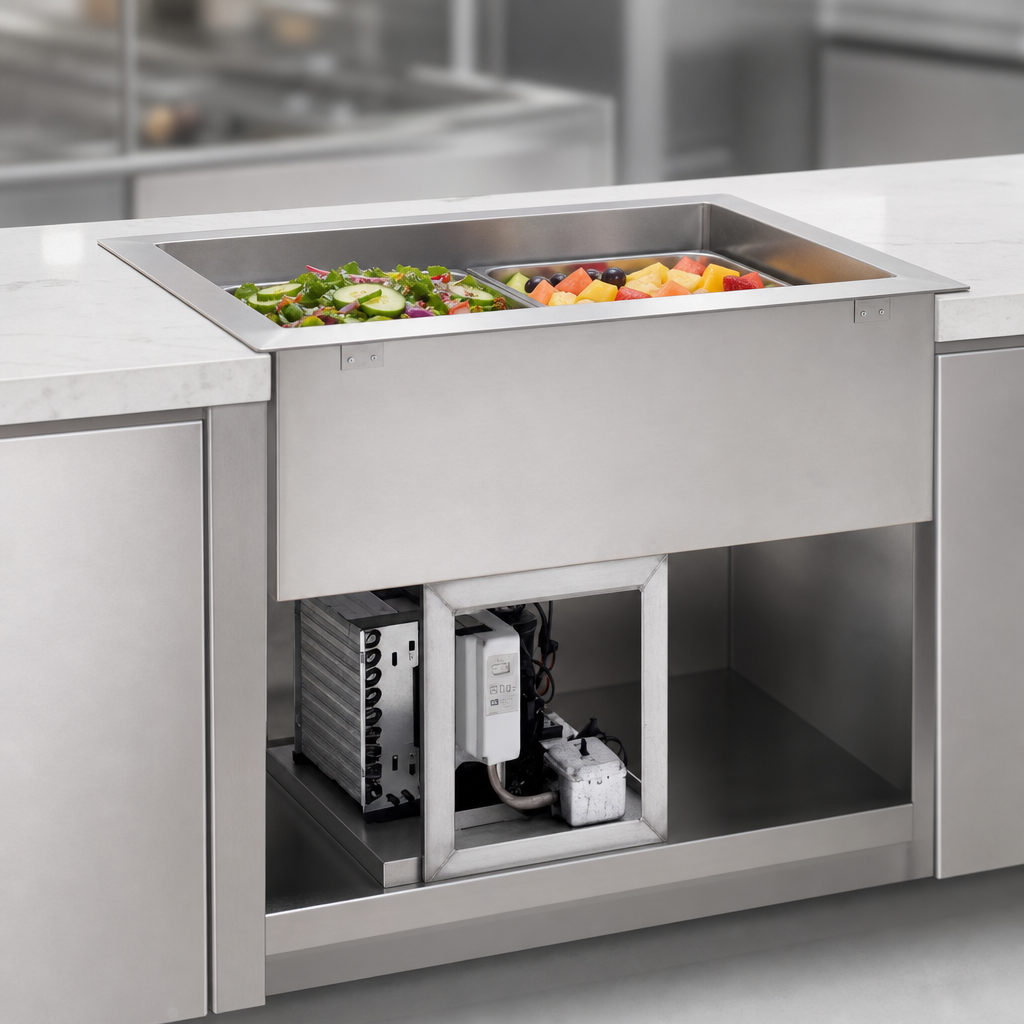

Drop-In Self-Contained Design

Built-in refrigeration components allow the unit to mount cleanly into a counter opening.

One Full-Size Pan Capacity

Sized to hold one standard 12" x 20" food pan; fractional pans can be used with optional adaptor bars.

3-Inch Recessed Top Edge

Recessed ledge helps support pans and keep ingredients accessible during service.

Stainless Steel Food Zone

Stainless steel top and liner provide a durable, easy-to-clean food-contact surface.

Foamed-In-Place Insulation

Insulated construction helps maintain cold temperatures and reduce energy loss.

Thermostatic Controls

On/off switch with thermostatic control makes operation straightforward.

1-Inch Center Drain

Center drain simplifies drainage and cleanup.

8-Foot Cord and Plug

Includes an 8-foot cord with a standard NEMA 5-15P plug for easier hookup.

Air-Cooled R-134A Refrigeration

Self-contained air-cooled refrigeration system uses R-134A refrigerant and service-friendly components.

Heavy-Gauge Steel Exterior

Corrosion-resistant steel exterior body is built for commercial use.

Type Cold Food Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Layout Straight
Pan Capacity 1
Pan Size Full-Size (12" x 20")
Controls Thermostatic
Insulation Foamed-In-Place
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R-134A
Horsepower 1/4 HP
Voltage 115 Volts
Amps 4.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Drain Connection Size 1 Inch
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds one standard 12" x 20" full-size pan, and fractional pans can be used with adaptor bars.
Yes. This is a self-contained, drop-in refrigeration unit with air-cooled operation.
The unit operates on 115V, 60 Hz, single-phase power, draws 4.9 amps, and includes a NEMA 5-15P plug.
Yes. It includes a 1-inch drain for easier cleaning and maintenance.
The unit uses R-134A refrigerant.
