Wells (Middleby)

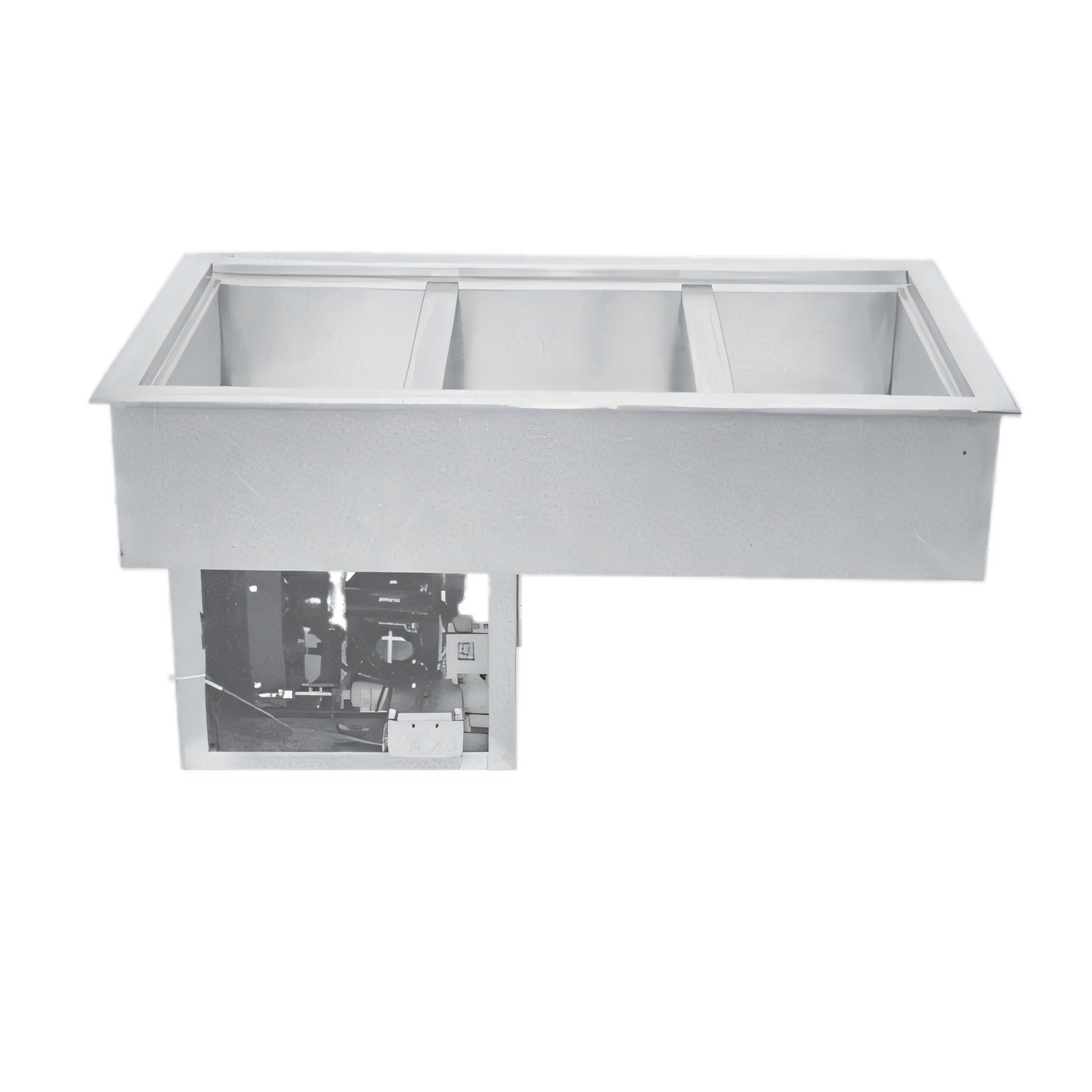

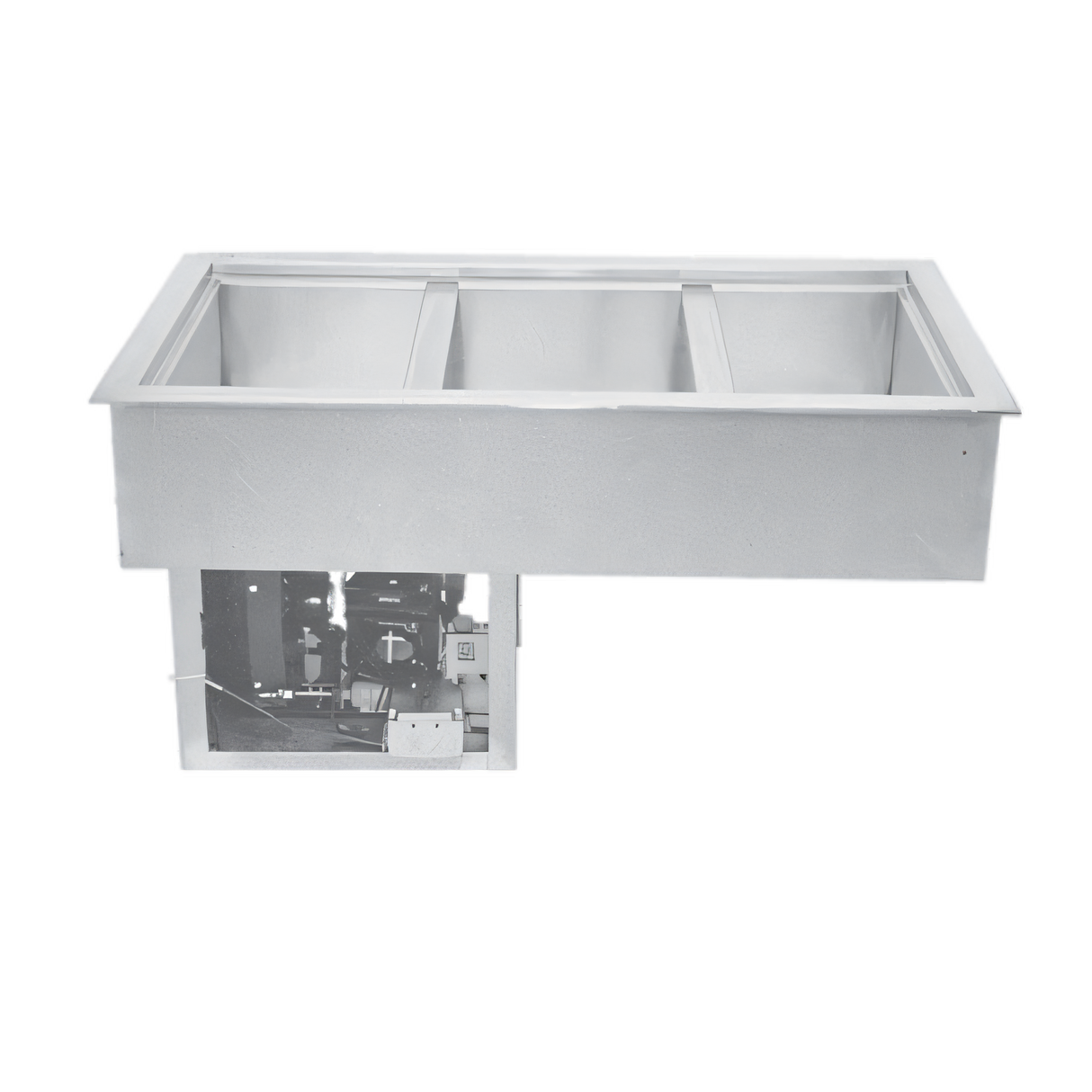

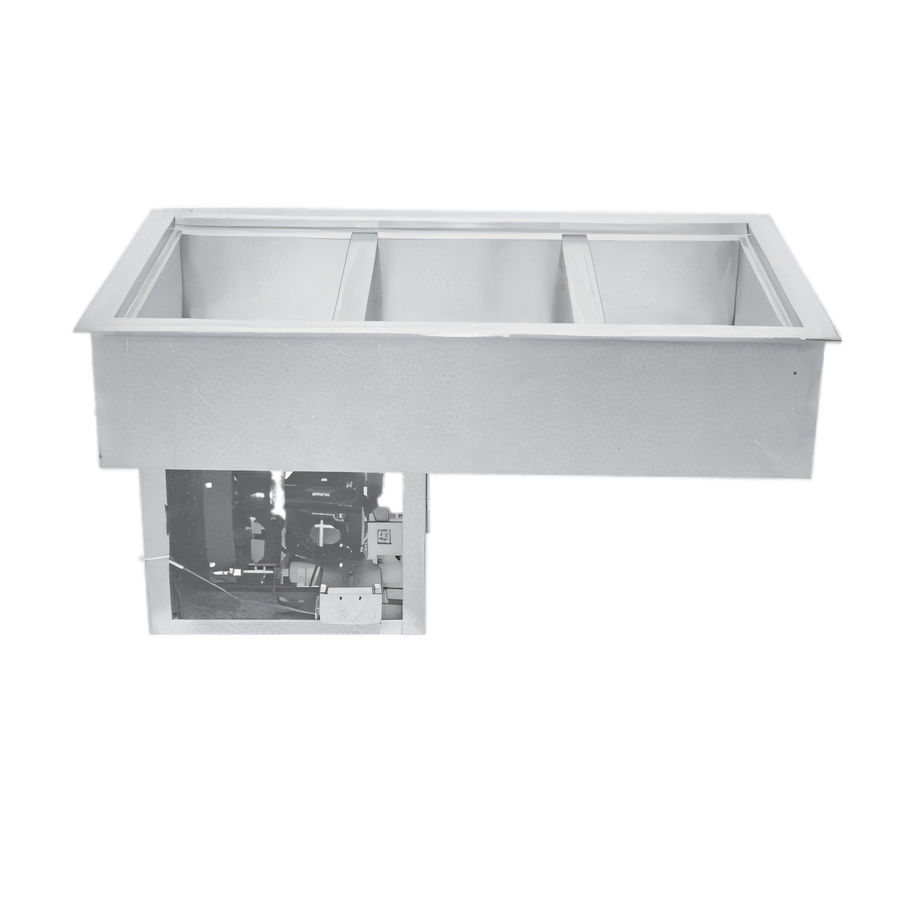

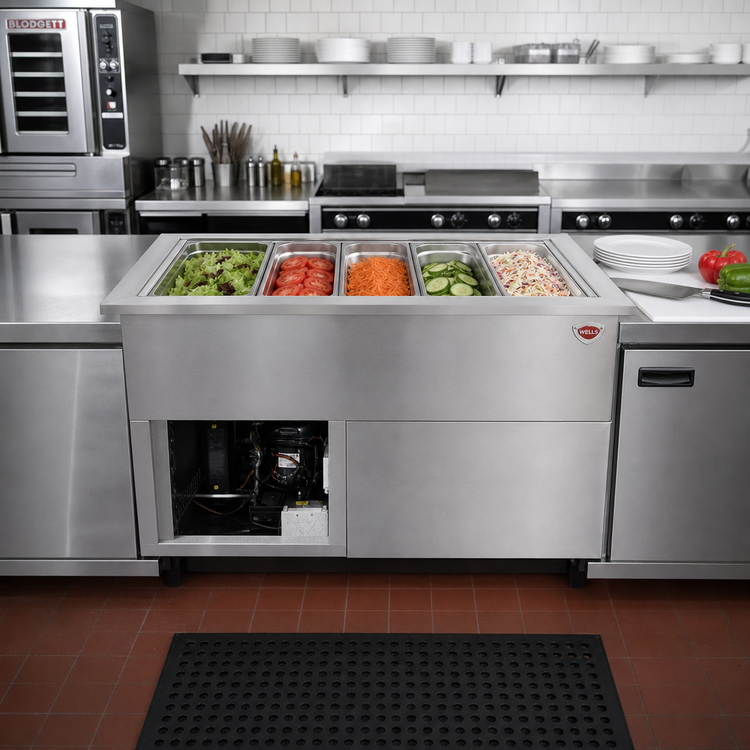

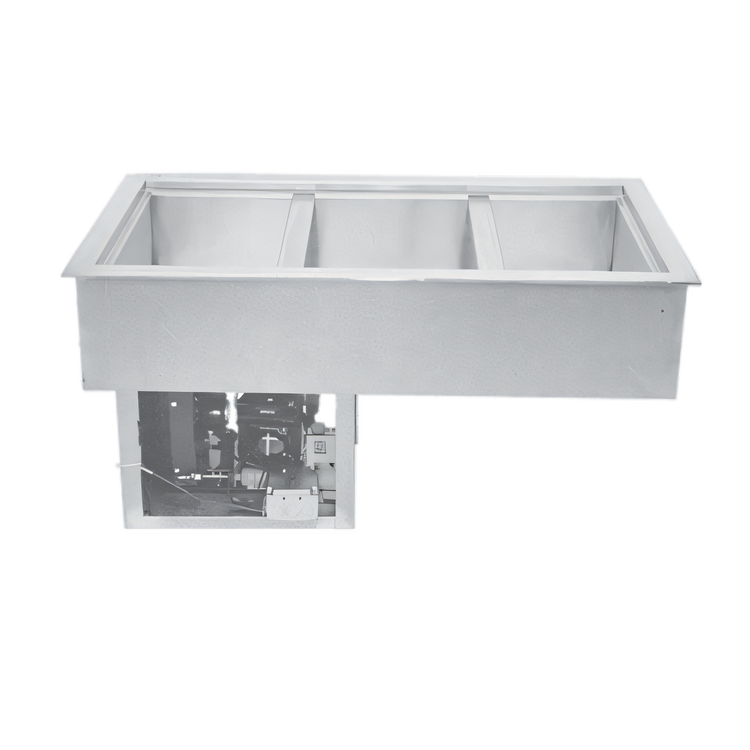

Wells RCP-500 Drop-In Self-Contained Refrigerated Cold Food Well, 5-Pan Capacity

SKU: RCP-500
$11,741.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Wells (Middleby)

Wells RCP-500 Drop-In Self-Contained Refrigerated Cold Food Well, 5-Pan Capacity

115V, R-513A Refrigerant, Individual Thermostatic Controls

Keep pre-chilled foods safely cold with a drop-in, self-contained well designed for fast installation and precise temperature control.

  • Drop-in, self-contained refrigeration simplifies installation in food bars and serving lines.
  • Holds five standard 12" x 20" pans for cold ingredient service.
  • Individual thermostatic controls help maintain consistent holding temperatures.
  • Stainless steel inner liner, top, and flange add durability and simplify cleaning.
  • Insulated construction and R-513A refrigerant help maintain cold temperatures efficiently.
  • 115V, 1-phase power with a NEMA 5-15P plug supports standard plug-in installation.

Overall Dimensions:

72.25"W x 25.38"D x 24.5"H

Product Weight:

278.0 lb

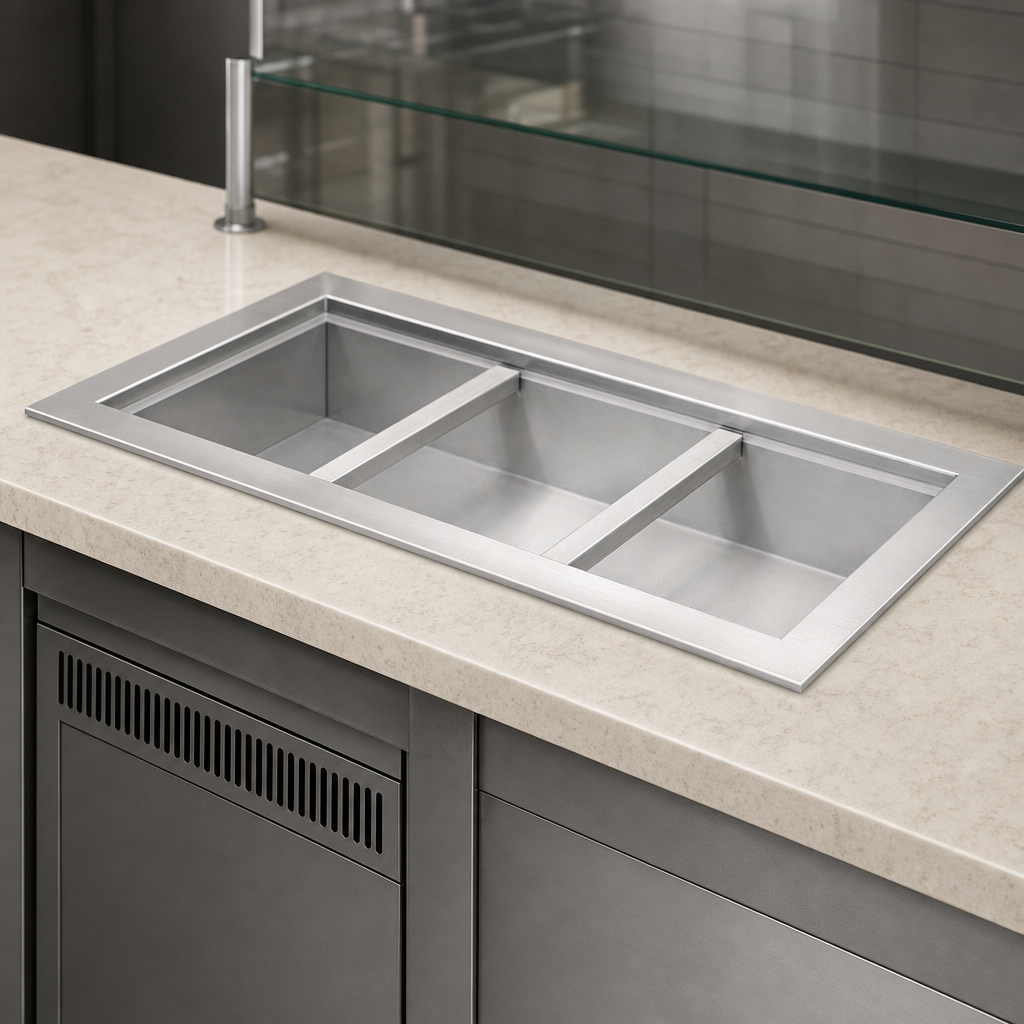

Drop-In Design

Installs into a countertop or serving line opening for a clean, built-in presentation.

Self-Contained Refrigeration

Integrated refrigeration system simplifies installation and eliminates the need for remote refrigeration components.

Five-Pan Capacity

Designed to hold five standard 12" x 20" food pans for chilled product holding and service.

Individual Thermostatic Controls

Allows section-by-section temperature adjustment for more precise cold holding.

Stainless Steel Food Zone

Stainless steel inner liner, top, and flange improve durability and make cleaning easier.

Insulated Construction

Insulated pan construction helps reduce heat transfer and maintain cold product temperatures.

1-Inch Drain

Built-in drain supports cleaning and maintenance.

R-513A Refrigerant

Uses R-513A refrigerant for the refrigeration system.

Standard Electrical Connection

Operates on 115V, 1-phase power and includes a NEMA 5-15P plug.

Type Cold Food Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Layout Straight
Pan Capacity 5 Pans
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R-513A
Controls Individual Thermostatic Controls
Horsepower 1/2 HP
Voltage 115 Volts
Amps 6.4 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Install sheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for five standard 12" x 20" food pans.
Yes. The unit uses a self-contained refrigeration design.
It operates on 115V, 60 Hz, single-phase power with a NEMA 5-15P plug.
Yes. It includes a 1" drain and requires a drain connection.
The unit uses individual thermostatic controls along with an on/off switch.
It uses R-513A refrigerant.
