Wells RCP-400 Self-Contained Drop-In Refrigerated Cold Well, 4 Full-Size Pans, 115V

Insulated Stainless Steel Food Zone, Individual Thermostatic Controls

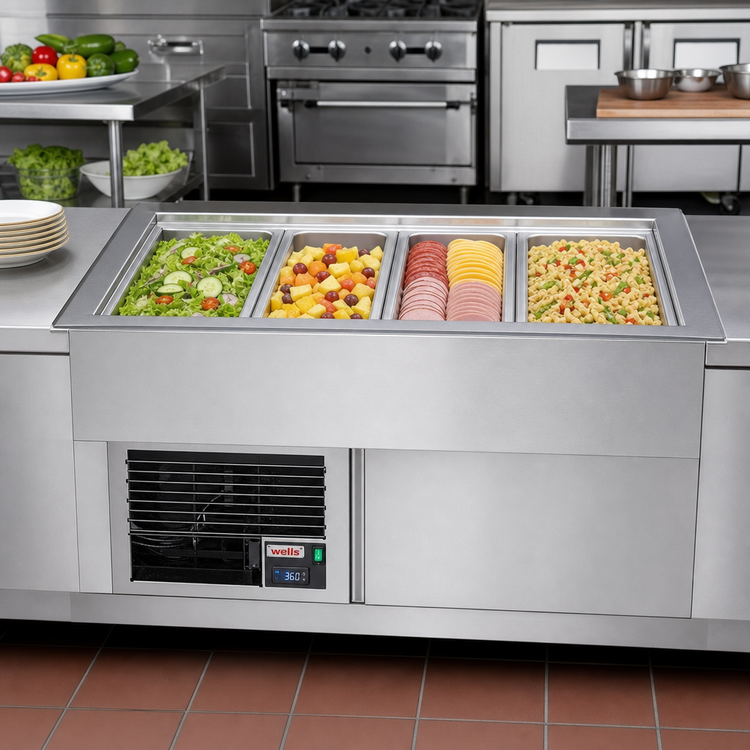

Keep pre-chilled foods cold, visible, and ready to serve with a self-contained drop-in cold well built for four full-size pans.

  • Holds four standard 12 x 20 food pans and supports fractional pans with adapter bars.
  • Self-contained, drop-in refrigeration simplifies installation and service.
  • Individual thermostatic controls help maintain consistent holding temperatures.
  • Stainless steel top and liner with insulated construction support durability and cold retention.
  • 1-inch drain and removable condensing unit make cleaning and maintenance easier.
  • Runs on 115V single-phase power with a NEMA 5-15P plug.

Overall Dimensions:

58.5"W x 25.38"D x 24.5"H

Product Weight:

258.0 lb

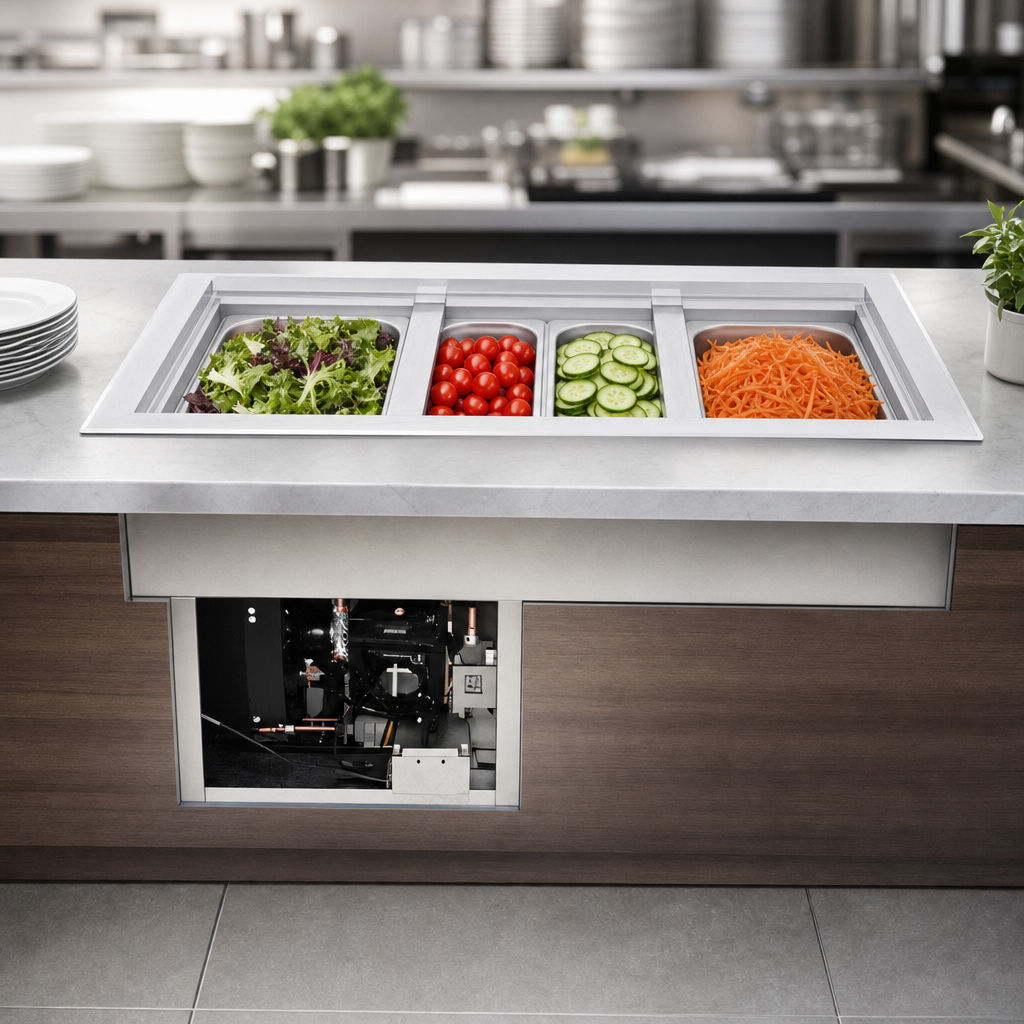

Self-Contained Drop-In Design

Installs directly into a compatible counter or table without a remote refrigeration system.

Four-Pan Capacity

Designed to hold four standard full-size 12 x 20 food pans.

Individual Thermostatic Controls

Provides zone-by-zone temperature adjustment with an on/off switch for simple operation.

Stainless Steel Food Zone

Stainless steel top and inner liner help improve durability and make cleaning easier.

Insulated Cabinet

Foamed-in-place insulation helps keep food colder while reducing energy loss.

1-Inch Drain

Built-in drain supports easier cleanup and routine maintenance.

R-513A Air-Cooled Refrigeration

Uses a CFC-free R-513A refrigerant system for cold food holding.

Removable Adapter Bars Included

Includes three removable adapter bars for fractional-size pan support.

115V Plug-In Power

Operates on 115V, 60 Hz, single-phase power with a NEMA 5-15P plug.

Type Cold Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Layout Straight
Pan Capacity 4
Pan Size 12 x 20 Inches
Controls Individual Thermostatic
Material Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Refrigeration Type Air Cooled
Refrigerant Type R-513A
Horsepower 1/3 HP
Voltage 115 Volts
Amps 6.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Drain Connection Required
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 59 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 258 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Install sheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds four standard 12 x 20 food pans and can support fractional pans with adapter bars.
It is a drop-in unit and requires a dedicated grounded outlet plus a drain connection.
The unit operates on 115V, 60 Hz, single-phase power and draws 6.5 amps with a NEMA 5-15P plug.
No water hookup is listed. The unit is self-contained refrigeration and only calls for electrical power and a drain connection.
The documentation lists a limited 1-year parts and labor warranty, with a 5-year compressor warranty available as an option.
Installation instructions say it may be installed in stainless steel, wood, Formica, or Corian tables and countertops.
