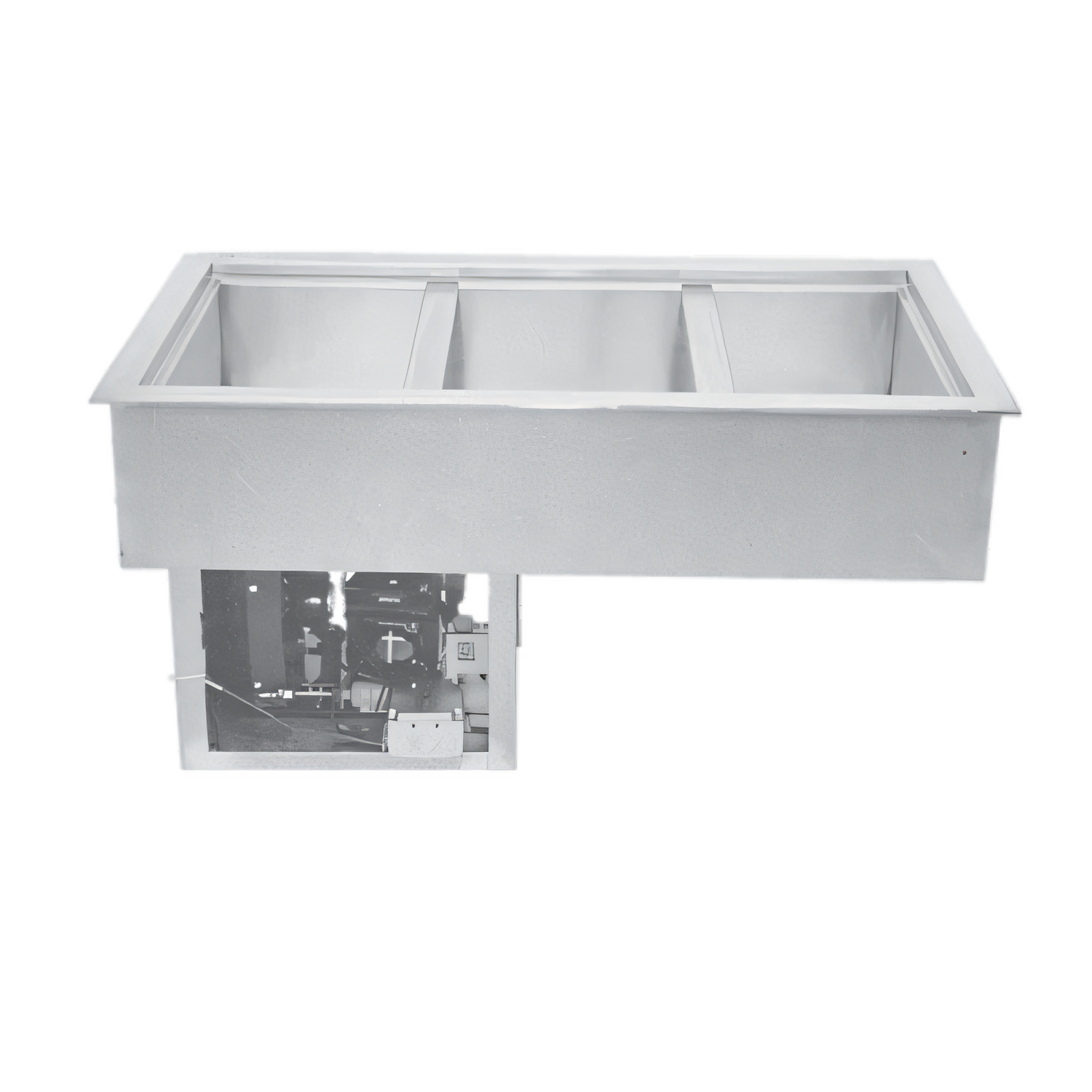

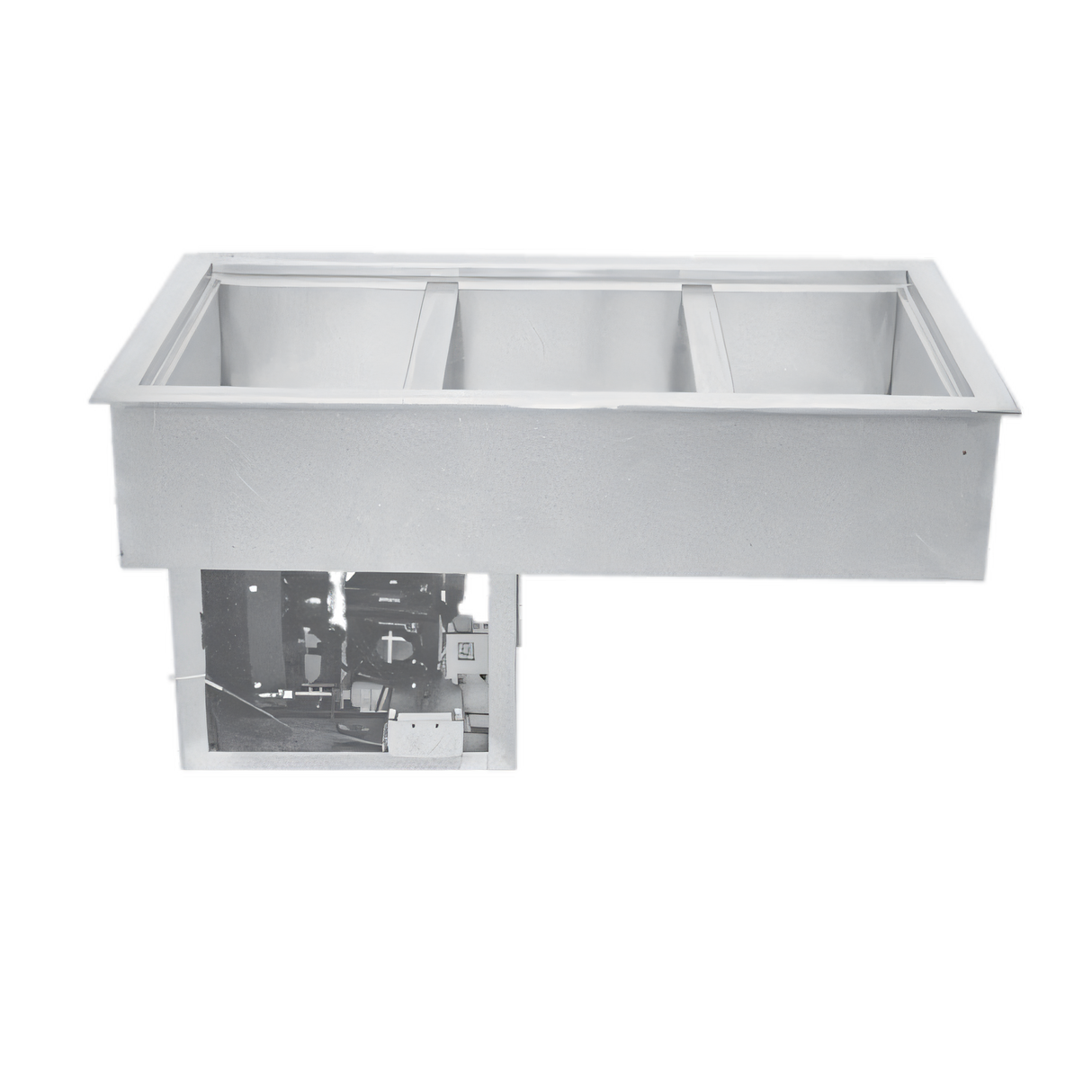

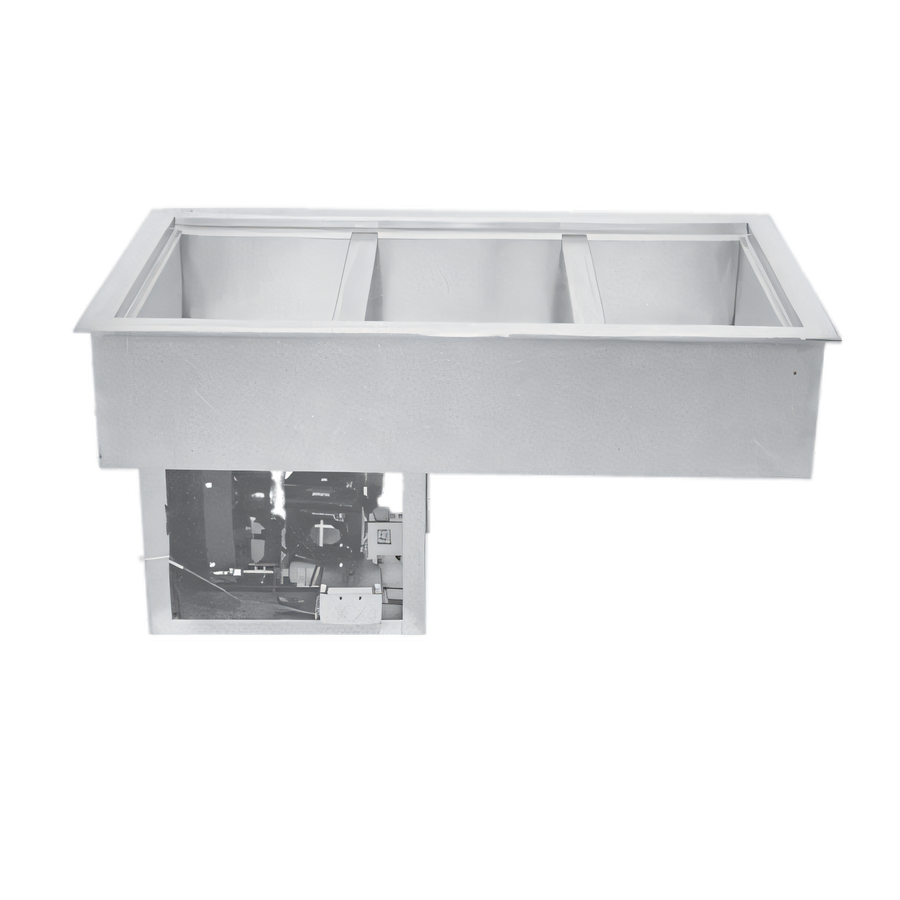

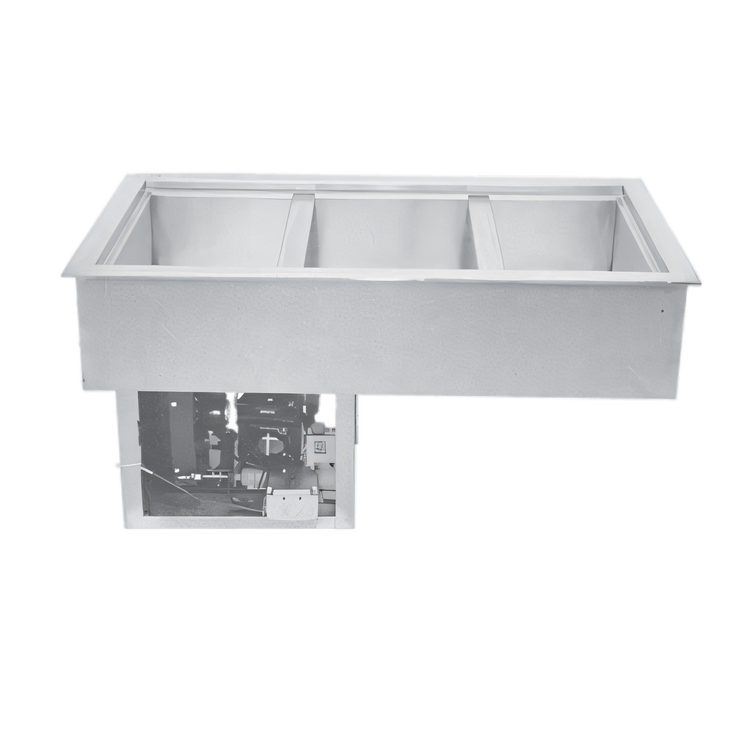

Wells RCP-300 Drop-In Self-Contained Refrigerated Cold Food Well, 3-Pan, 115V

Standard 12" x 20" Pan Capacity, Stainless Steel Liner, R-513A Refrigerant

Keep chilled foods safe and ready to serve with a compact, drop-in cold well built for standard full-size pans.

  • Drop-in, self-contained refrigeration simplifies countertop installation.
  • Holds three standard 12" x 20" food pans for buffet and serving lines.
  • Individual thermostatic controls help maintain consistent cold holding temperatures.
  • Stainless steel top, flange, and inner liner with insulated construction for durability.
  • 115V, 60Hz, single-phase operation with a NEMA 5-15P plug.
  • 1-inch drain connection supports easier cleaning and drainage.
  • Uses CFC-free R-513A refrigerant.

Overall Dimensions:

44.75"W x 25.38"D x 24.5"H

Product Weight:

194.0 lb

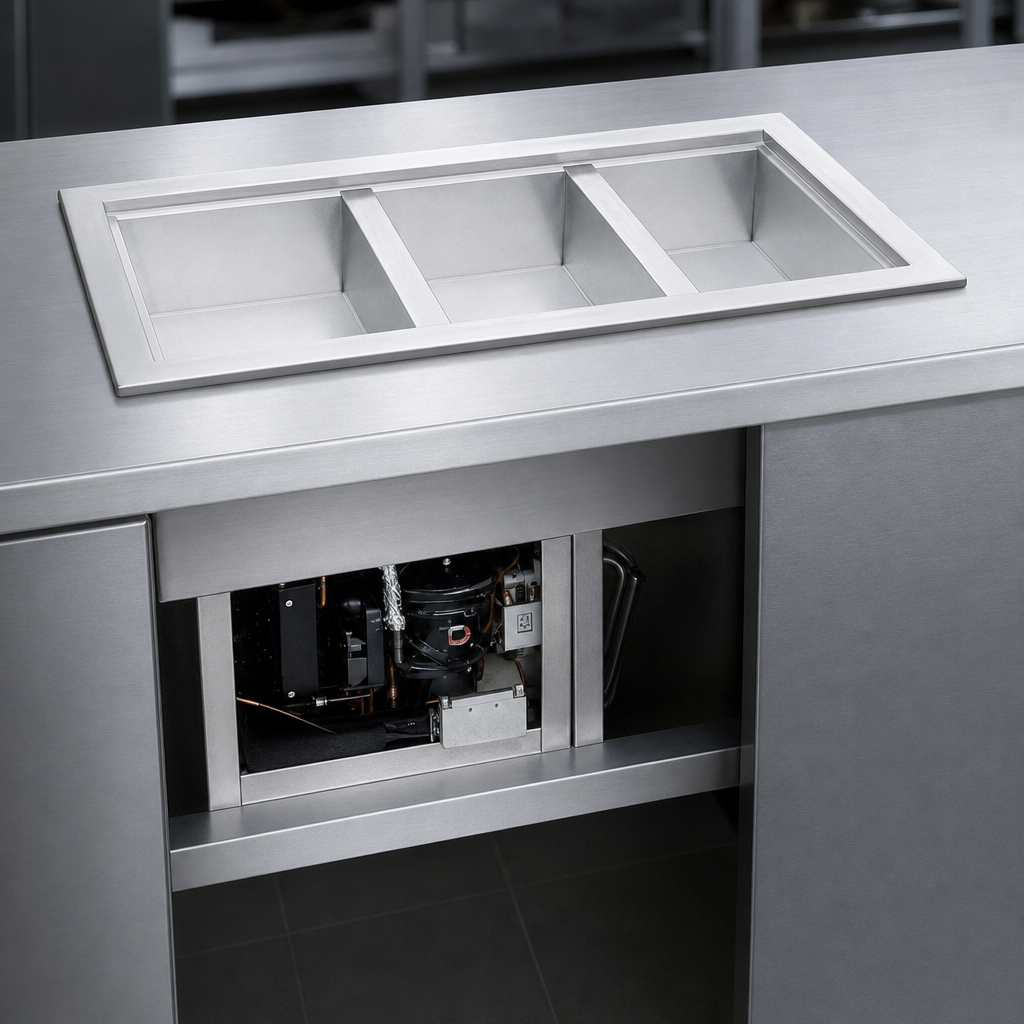

Self-Contained Drop-In Design

Built-in refrigeration keeps the unit compact and makes installation straightforward in a countertop or table cutout.

Three-Pan Capacity

Designed to hold three standard 12" x 20" food pans for cold food service.

Individual Thermostatic Controls

Provides independent temperature adjustment for reliable cold holding.

Stainless Steel Top, Flange, and Inner Liner

Durable food-zone construction that is easy to clean and built for daily service.

Insulated Pan Construction

Insulation helps maintain temperature and improve energy efficiency.

1-Inch Drain Connection

Supports convenient drainage and simplifies cleanup.

R-513A Refrigerant System

Uses CFC-free R-513A refrigerant with standard 115V, 60Hz, single-phase power and a NEMA 5-15P plug.

Steel Exterior Body

Steel exterior construction adds durability for commercial foodservice use.

Installation Type Drop-In
Style Self-Contained Refrigeration
Type Cold Well
Refrigeration Type Self-Contained
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Individual Thermostatic
Horsepower 1/4 HP
Voltage 115 Volts
Amps 5.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Refrigerant Type R-513A
Drain Connection Required
Drain Connection Size 1 Inch
Water Connection Not Required
Interior Finish Stainless Steel
Finish Galvanized Steel
Country of Origin USA
Shipping Width 45 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 194 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Install sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds three standard 12" x 20" food pans.
Yes. It uses a self-contained refrigeration system with R-513A refrigerant.
It operates on 115V, 60Hz, single-phase power and uses a NEMA 5-15P plug.
The unit uses individual thermostatic controls and an on/off switch.
Yes. A 1-inch drain connection is required.
