Wells (Middleby) RCP-243 Steam Tables & Food Wells
Description

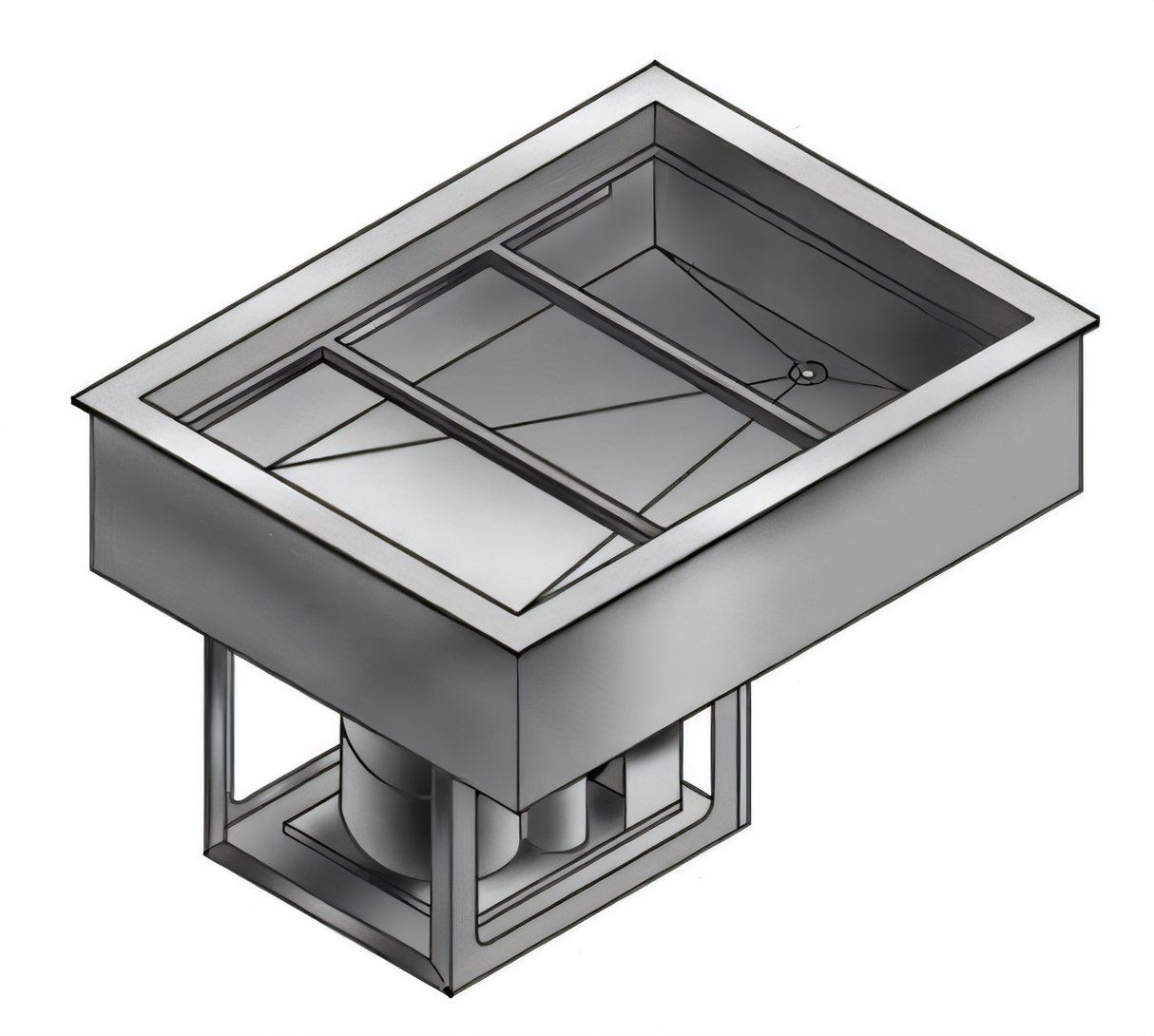

Wells RCP-243 Refrigerated Drop-In Cold Pan

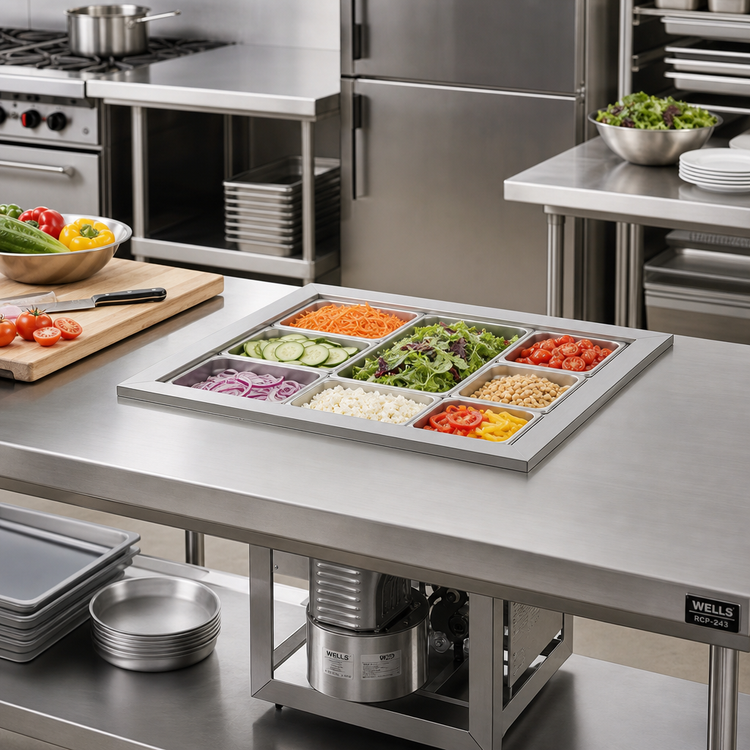

Extra-Capacity 4/3 Pan Model • (8) 1/3-Size Pans • Self-Contained 115 VKeep salad bar ingredients, deli toppings and grab-n-go favorites crisp and food-safe with the Wells RCP-243. This self-contained cold well drops cleanly into almost any counter and supplies powerful, thermostatically-controlled refrigeration for up to eight 1/3-size pans—all while meeting the latest NSF-2 standards.
Why You’ll Love It
- Extra-capacity design holds (8) 1/3-size pans or equivalent fractional pans.
- 18-gauge stainless steel top & coved-corner liner resist corrosion and make wipe-downs easy.
- Foamed-in-place CFC-free insulation locks in cold temperatures and lowers energy costs.
- Individual adjustable thermostats for each well plus lighted ON/OFF switch for simple operation.
- 1 inch centered drain speeds end-of-shift clean-up; add an optional perforated strainer plate to keep ice out of the line.

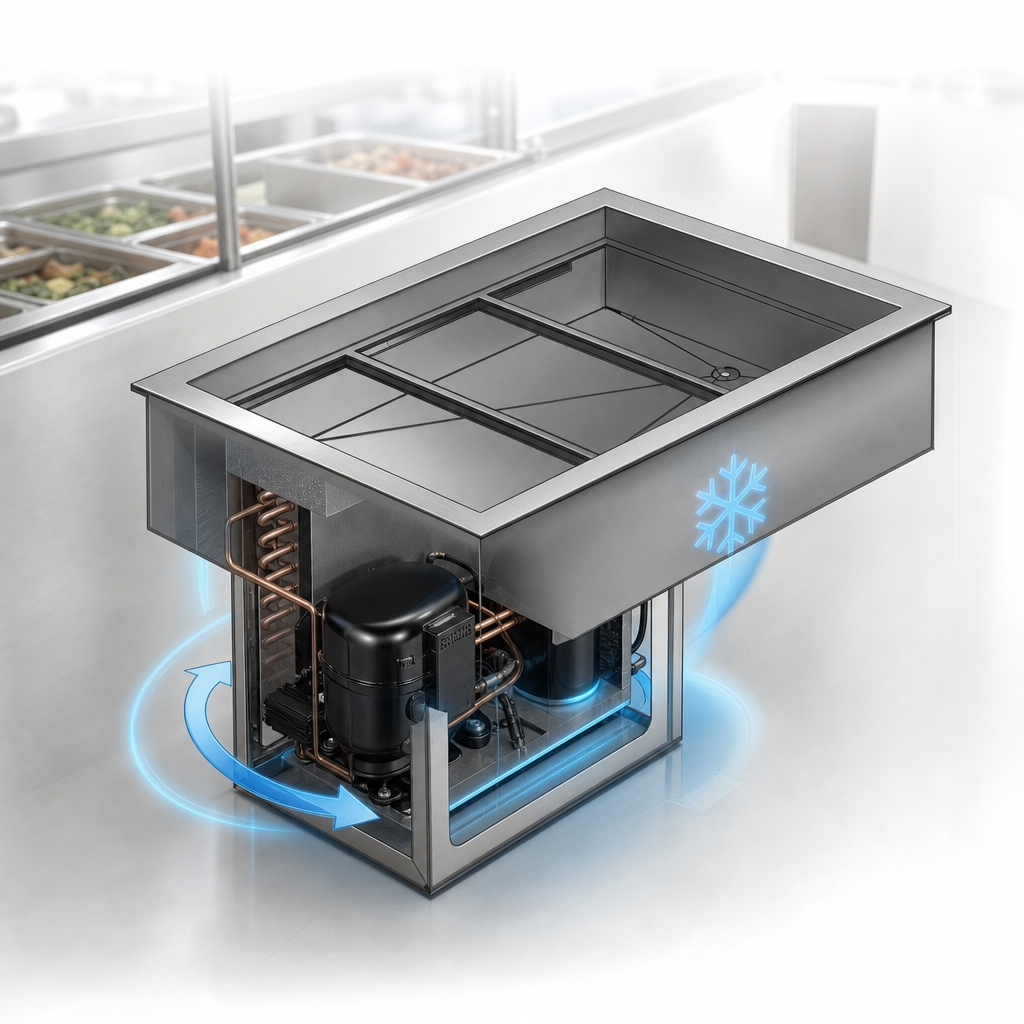

- Factory-charged with eco-friendly R-134A; fully self-contained—just drop in, plug in and you’re ready to serve.
- Quick-service refrigeration package includes sight glass, service valves, filter/dryer and receiver for fast maintenance.
- NSF & cULus certified and ships with an NEMA 5-15P cord & plug.
At-a-Glance Specifications
| Pan Capacity | (8) 1/3-size pans (two wells, 4 per well) |
|---|---|
| Overall Dimensions | 32 ½" D × 31" W × 24 ½" H (825 × 788 × 622 mm) |
| Counter Cut-Out | 29 ½" × 31" (750 × 788 mm) |
| Installed Weight | 216 lb (98 kg) |
| Electrical | 115 V / 60 Hz / 1-ph, 4.9 A, ¼ HP, NEMA 5-15P |
| Refrigerant | R-134A, self-contained |
| Construction | 18-ga stainless steel top & liner; heavy-gauge coated steel exterior |
| Drain | 1" NPT, centered |
| Certifications | NSF 2, cULus |
| Standard Warranty | 1-year parts & labor (optional 5-year compressor warranty) |
Popular Accessories (Sold Separately)
- Perforated bottom strainer plate – keeps ice chips from clogging the drain.
- Adapter bars – configure wells for fractional pan sizes.
