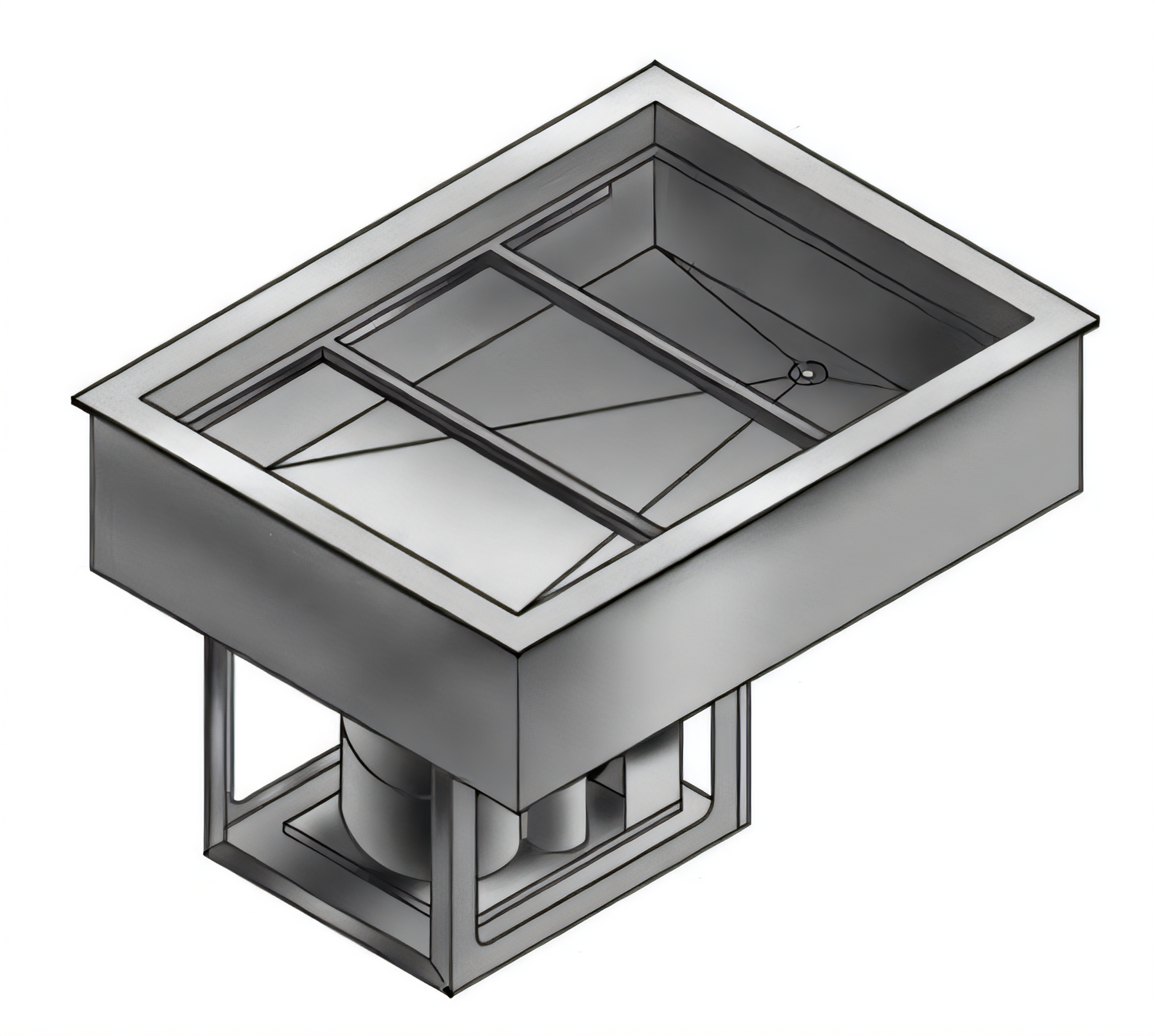

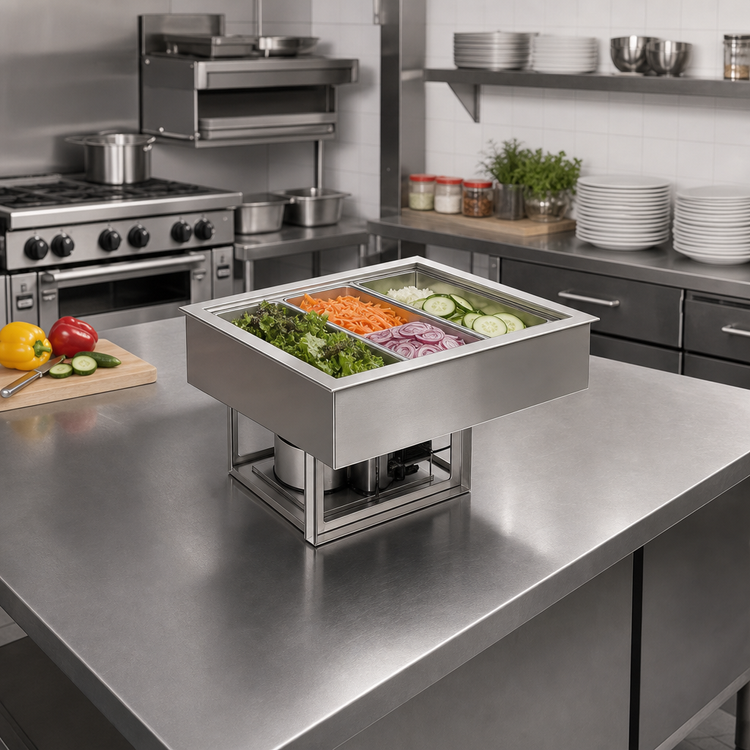

Wells RCP-143 Drop-In Self-Contained Refrigerated Cold Food Well, 4 x 1/3-Size Pan Capacity

Insulated Pan, Stainless Steel Food Zone, 115V Single-Phase

Keep chilled ingredients ready for service in a compact drop-in cold well that combines self-contained refrigeration, thermostatic control, and durable stainless steel food-zone construction.

  • Drop-in refrigerated cold food well for buffet and serving line applications
  • Holds four 1/3-size pans for flexible cold food presentation
  • Self-contained refrigeration with on/off switch and thermostatic temperature control
  • Insulated pan design with stainless steel inner liner, top, and flange
  • Steel exterior body with a 1-inch drain connection for installation
  • 115V, 60 Hz, single-phase power with a NEMA 5-15P plug

Overall Dimensions:

17.38"W x 32.5"D x 24.5"H

Product Weight:

114.0 lb

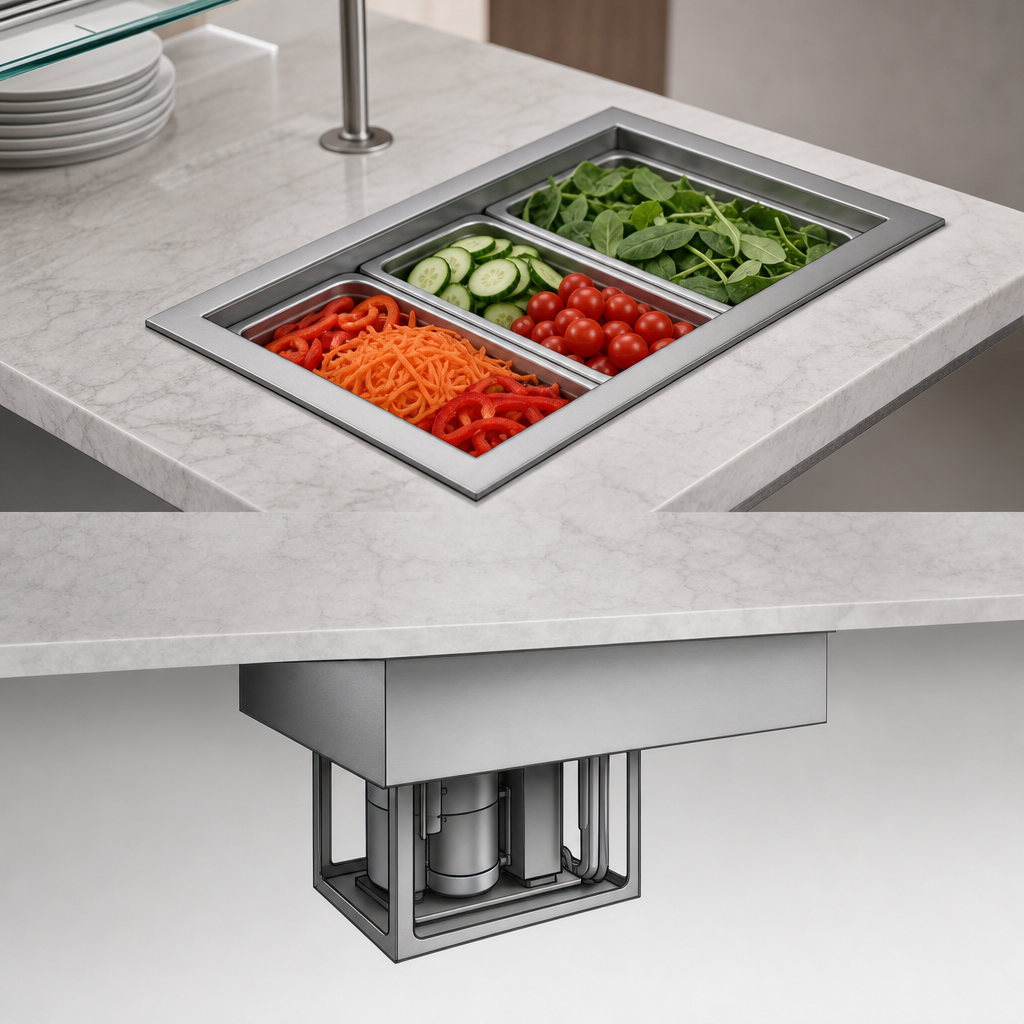

Drop-In Design

Installs into a countertop or table opening for an integrated food bar presentation.

Self-Contained Refrigeration

Built-in refrigeration system keeps cold foods chilled without requiring a remote condensing unit.

Four 1/3-Size Pan Capacity

Configured to hold four third-size pans for flexible ingredient and menu setup.

Thermostatic Controls

On/off switch with thermostatic control lets the operator adjust holding temperature.

Insulated Stainless Steel Food Zone

Insulated pan construction with a stainless steel inner liner, top, and flange for durability and cold retention.

Steel Exterior Body

Steel exterior construction supports demanding commercial buffet and serving line use.

1-Inch Drain Connection

Includes a 1-inch drain for proper condensate drainage during installation.

115V Power Connection

Requires 115V, 60 Hz, single-phase power and uses a NEMA 5-15P cord end.

Type Cold Food Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 4 Third-Size Pans
Pan Size 1/3 Size
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 18 Inches
Shipping Depth 33 Inches
Shipping Height 25 Inches
Shipping Weight 114 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Install sheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for four 1/3-size pans.
Yes. The unit uses self-contained refrigeration.
The install sheet calls for 115V, 60 Hz, single-phase power with a NEMA 5-15P plug and a dedicated grounded 15 amp outlet.
Yes. A 1-inch drain connection is required.
No clearance specifications are listed for this unit.
