Wells (Middleby)  |  SKU: RCP-100

Wells (Middleby) RCP-100 Steam Tables & Food Wells

$7,864.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Install sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Wells Drop-In Refrigerated Cold Food Well – 1 Full-Size Pan

Self-contained • 115 V • NSF-7 compliant

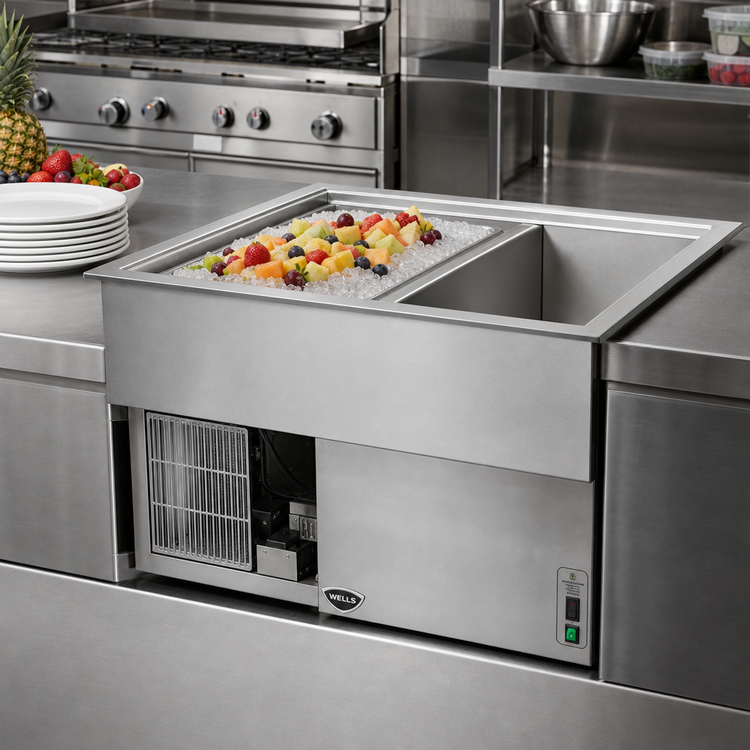

Keep salads, fruits, desserts and other chilled menu items at safe, appetizing temperatures—right in your serving line. This Wells cold well drops neatly into your counter and delivers reliable, energy-efficient refrigeration for a single 12" × 20" pan (or fractional equivalents with optional bars). Just set it, plug it and start serving.

Key features
  • 3" recessed ledge keeps food below 41 °F to meet NSF-7 cold-holding standards.
  • 18-gauge stainless steel top flange and coved-corner liner for superior durability and fast wipe-down cleaning.
  • Foamed-in-place, CFC-free insulation locks in cold and minimizes energy use.
  • Simple rocker on/off switch and adjustable thermostat for precise temperature control.
  • 1" NPT center drain speeds cleanup; add an optional strainer plate to prevent ice or food debris from clogging.
  • Eco-friendly R-513A refrigerant and air-cooled 1/4 HP compressor—no remote condensing unit required.
  • 8 ft power cord with NEMA 5-15P plug; installs in minutes with no hard-wiring.
  • NSF and cULus listed; proudly made in the USA.
Specifications
Pan capacity 1 × 12" × 20" full-size (accepts fractional pans with adapter bars)
Refrigeration system Self-contained, air-cooled, 1/4 HP compressor
Refrigerant R-513A (CFC-free)
Electrical 115 V / 60 Hz / 1-phase, 5.5 A, NEMA 5-15P
Drain 1" NPT, centered
Construction Stainless steel inner liner & top flange, corrosion-resistant steel exterior
Insulation Foamed-in-place polyurethane
Cut-out required Approx. 25 ⅞" W × 17 ⅞" D (see spec sheet before cutting)
Certifications NSF-7, cULus
Warranty 1-year parts & labor (optional 5-year compressor warranty)
Popular accessories (sold separately)
  • Perforated bottom strainer plate
  • Adapter bars for fractional pans
  • Pan rails

Need a multi-well lineup or custom counter configuration? Our design team can help—contact us for free planning assistance.

Installation tip: Provide adequate ventilation for condenser air flow and connect the 1" drain to an approved floor or pan drain. Always consult the official Wells installation manual before cutting the counter.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

24.5in

Width

17.38in

Depth

25.38in

Shipping Weight

89.0lbs

Pan Qty

1-pan

Layout

straight

Width (side - side)

13 - 18 inches

Finish

galvanized steel outer liner

Insulation

insulated

Style

self-contained refrigeration

Pan Size

full-size (12" x 20")

Specifications

Cold Food Well Unit, drop-in, self-contained refrigeration, (1) 12" x 20" pan capacity, on/off switch with thermostatic controls, insulated pan, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-513A refrigerant, 1/4 HP, 115v/60/1-ph, 5.5 amps, NEMA 5-15P, NSF, cULus
