Wells (Middleby) OC1 Convection Ovens
Wells (Middleby) OC1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Wells (Middleby) OC1 Convection Ovens
Description

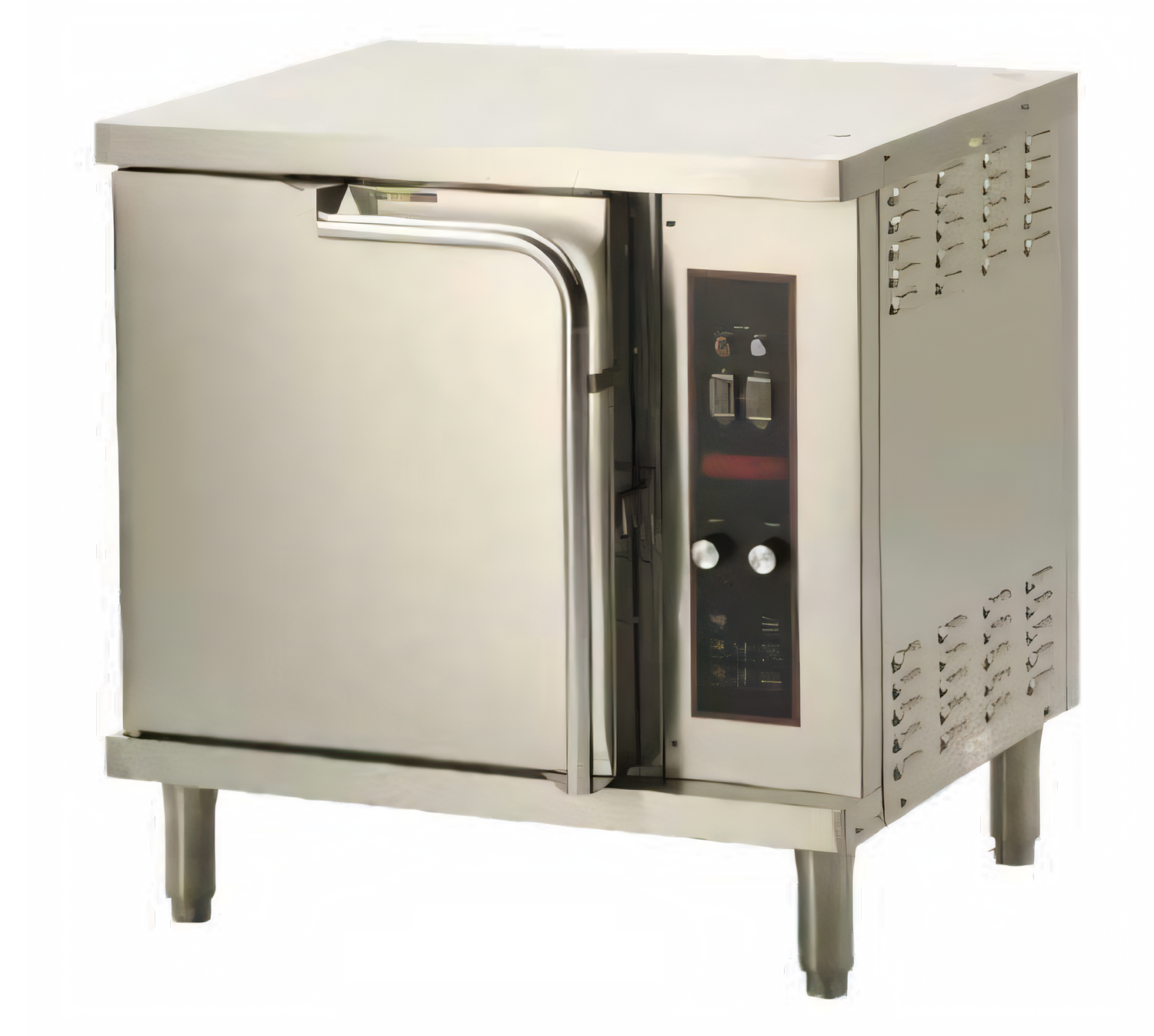

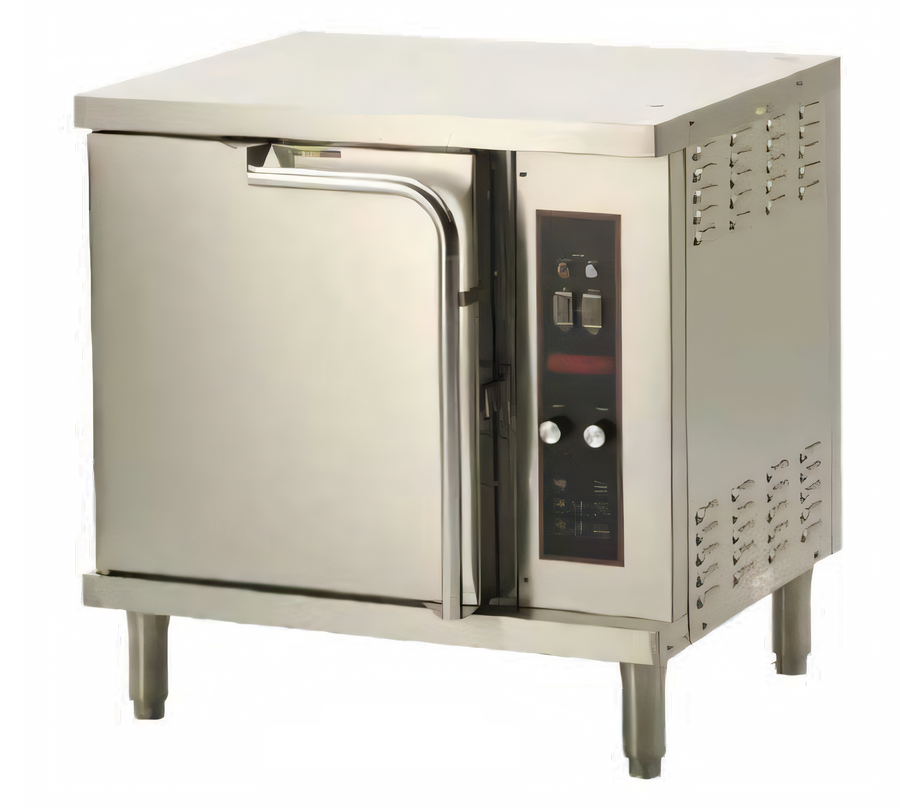

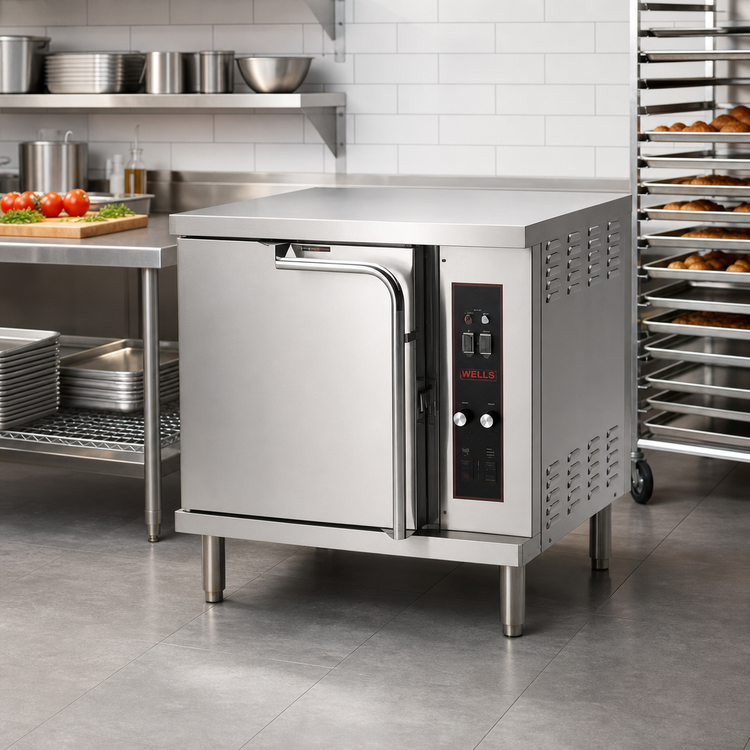

Wells OC1 Half-Size Convection Oven
Compact footprint. Commercial power.Engineered for demanding food-service operations, the Wells OC1 combines a fully-insulated cooking chamber, stainless-steel durability and a 2-speed fan system to deliver fast, even results on everything from delicate pastries to hearty roasts—all within a space-saving 30" width.
Key features
- Two-speed fan lets you switch between gentle and high-velocity airflow.

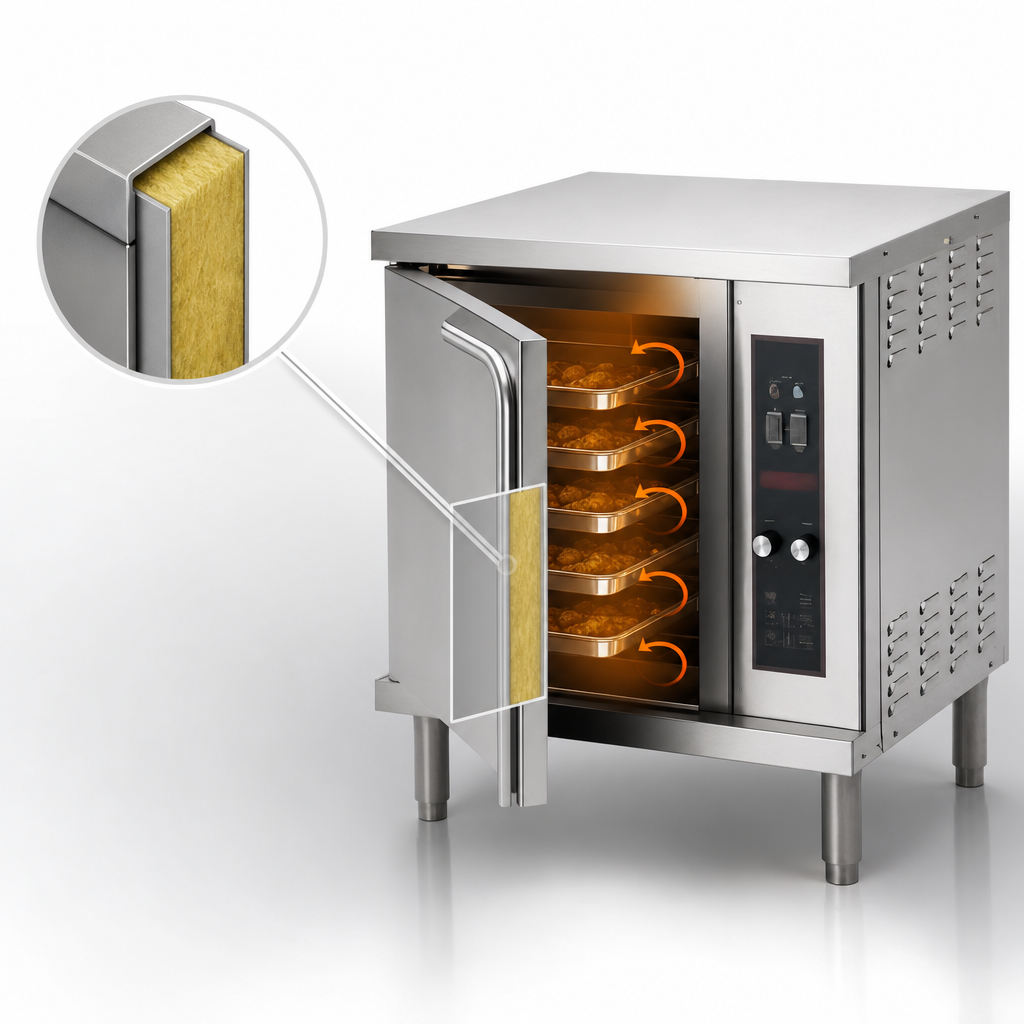

- Ergonomic, left-hand opening door is fully insulated for superior heat retention.

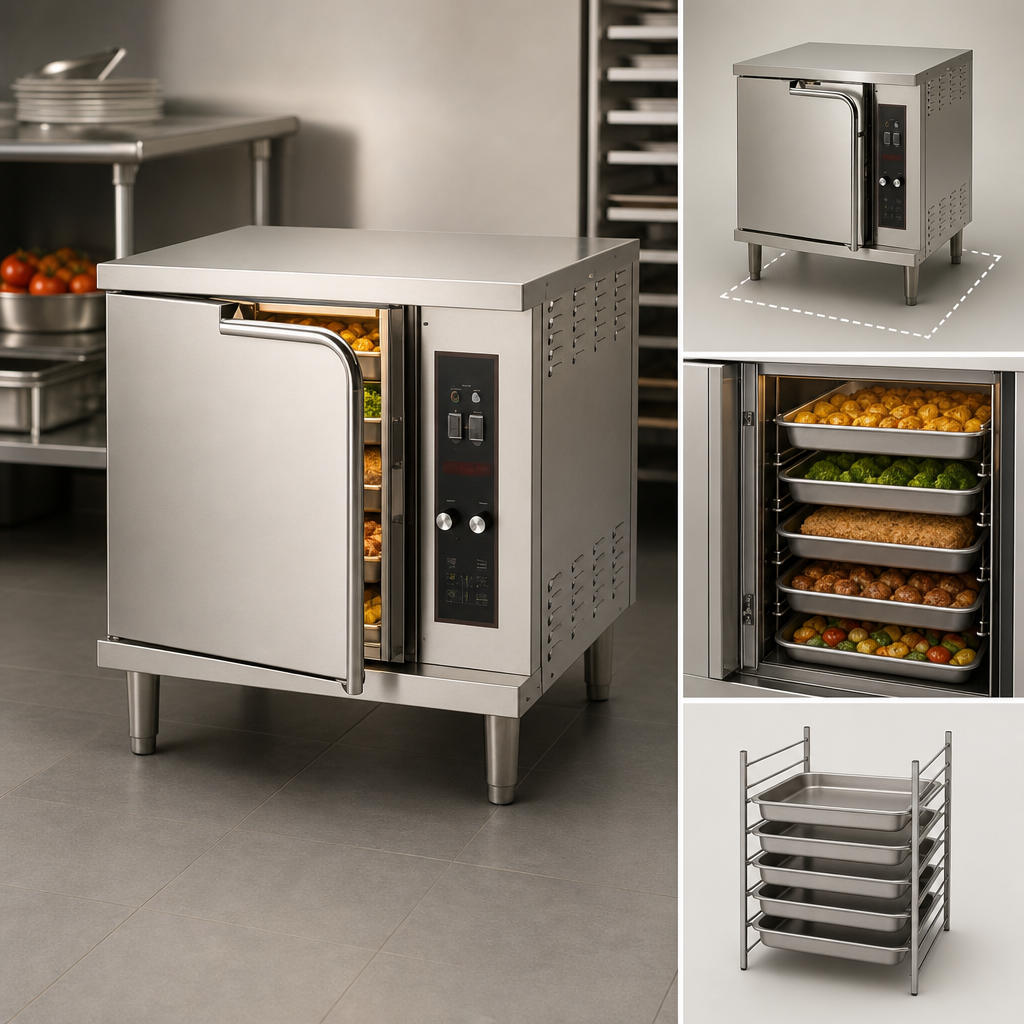

- (5) nickel-plated, adjustable racks fit standard 13" × 18" half-size pans.
- Solid-state temperature control: 100 °F – 450 °F (38 °C – 232 °C).
- 0–12 hr timer with five programmable menu keys for one-touch cooking.
- Heavy-duty 6" stainless-steel legs and factory-installed NEMA 6-30P cord.
- All stainless-steel interior & exterior for quick clean-up and long service life.
- NSF listed and cULus certified for safety and sanitation.
Why chefs choose the OC1
- Preheats to 375 °F in just 15 minutes—keep pace with peak service.
- Half-size footprint (30-1/8" W) frees valuable line space or allows stacking.
- No rear, side, bottom or front clearance required, easing installation.
- Backed by a 1-year parts & labor warranty and 90+ years of Wells reliability.
Typical cooking performance
| Product (5 racks) | Temp. | Cook time |
|---|---|---|
| Rolls (60 pcs) | 300 °F | 16 min |
| Sugar cookies | 300 °F | 15 min |
| Fish sticks | 350 °F | 15 min |
| Stuffed shrimp | 400 °F | 7 min |
| Chicken breasts | 350 °F | 30 min |
| Idaho potatoes (120 pcs) | 450 °F | 40 min |
| Mac & cheese | 350 °F | 30 min |
Technical specifications
| Model | OC1 |
|---|---|
| Capacity | (5) half-size sheet pans (13" × 18") |
| Exterior dimensions | 30-1/8" W × 25-1/4" D × 31" H (includes 6" legs) |
| Interior dimensions | 15-3/8" W × 20-1/2" D × 20" H |
| Temperature range | 100 °F – 450 °F (38 °C – 232 °C) |
| Preheat time | 15 min to 375 °F |
| Electrical | 208 V / 5.0 kW / 24 A or 240 V / 5.6 kW / 24 A, 1-phase, NEMA 6-30P |
| Installed weight | 243 lb (110 kg) |
| Shipping weight | 253 lb (115 kg) |
| Certifications | NSF, cULus |
Options & accessories
- Stacking kit – safely mount a second OC1 to double production.
- Caster set (4) – adds mobility; required on bottom unit when stacked.
- Replacement oven rack.
- Venting & stacking kit for hooded installations.
Specifications subject to change without notice. Refer to the installation manual for complete electrical and clearance requirements.
