Wells (Middleby) MOD-527TDM/AF Steam Tables & Food Wells
Description

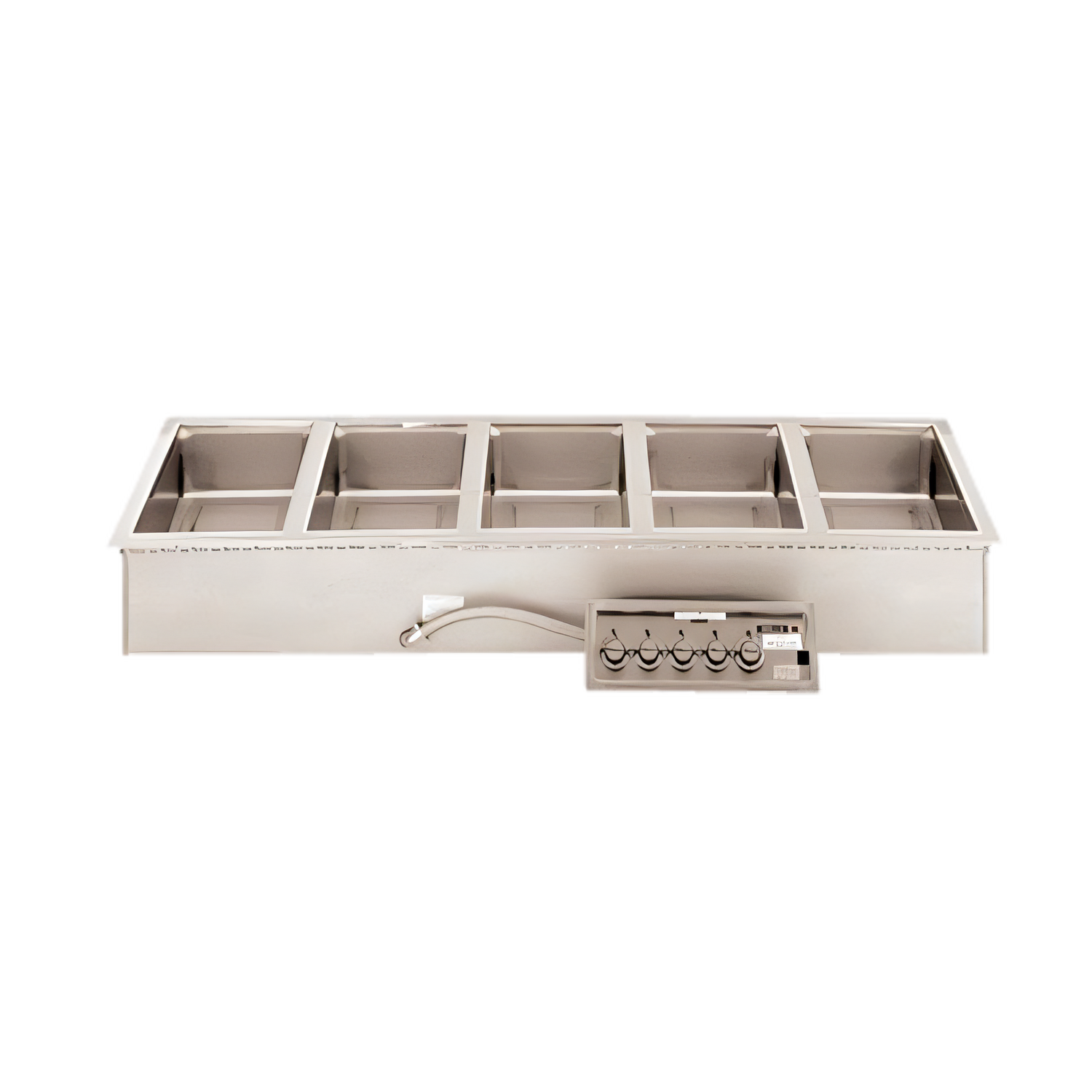

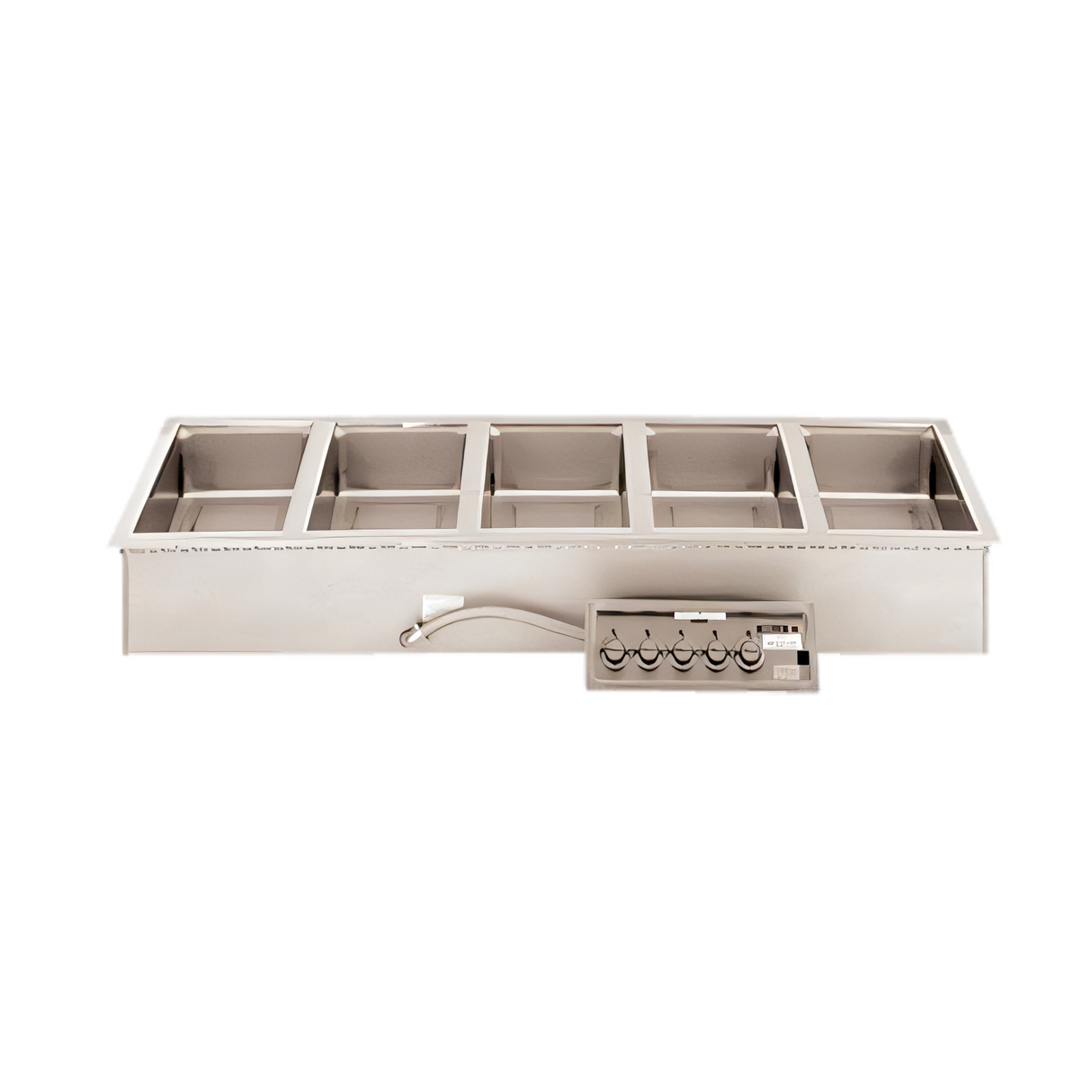

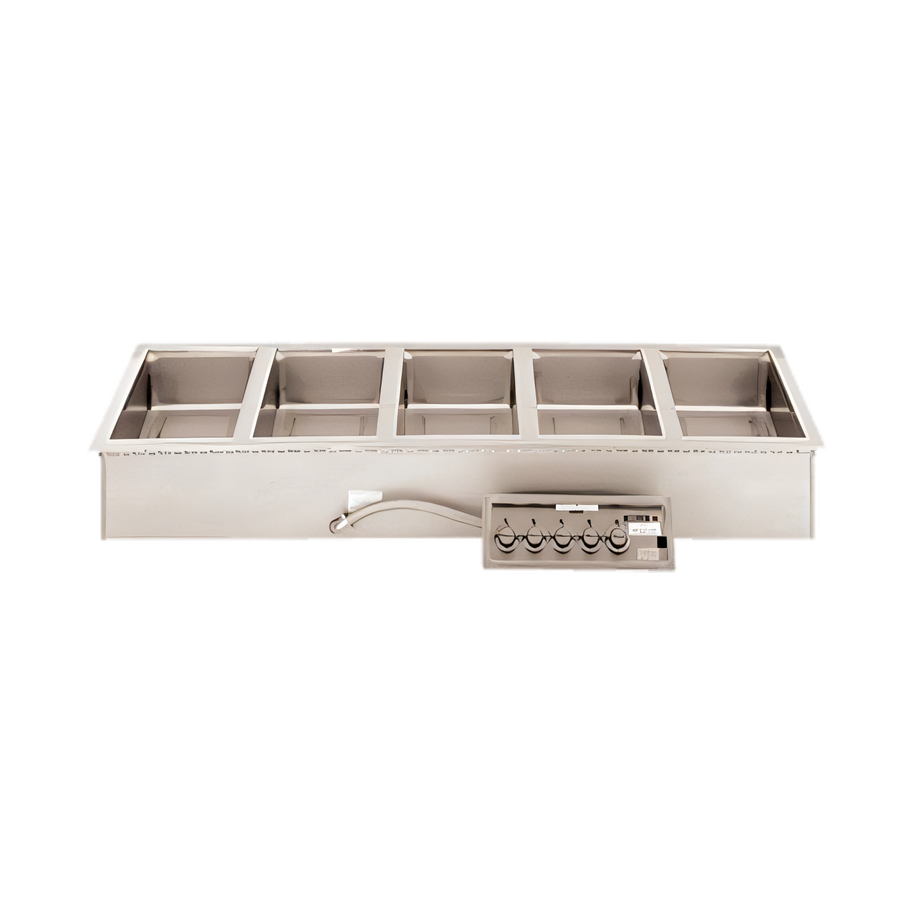

Wells MOD527TDMAF Extra-Deep 5-Well Drop-In Food Warmer
Auto-Fill • Dual Control Panel • Wet or Dry OperationPower through the busiest rush with five independently-controlled 12 × 27 inch wells that keep entrées, sides, and sauces at food-safe temperatures all day long. The MOD527TDMAF installs flush in your counter, fills itself automatically, and drains through a single valve—so your team spends less time on maintenance and more time serving guests.
Top Benefits
- Holds (4) 1/3-size pans per well—that’s up to 20 pans of product at once.

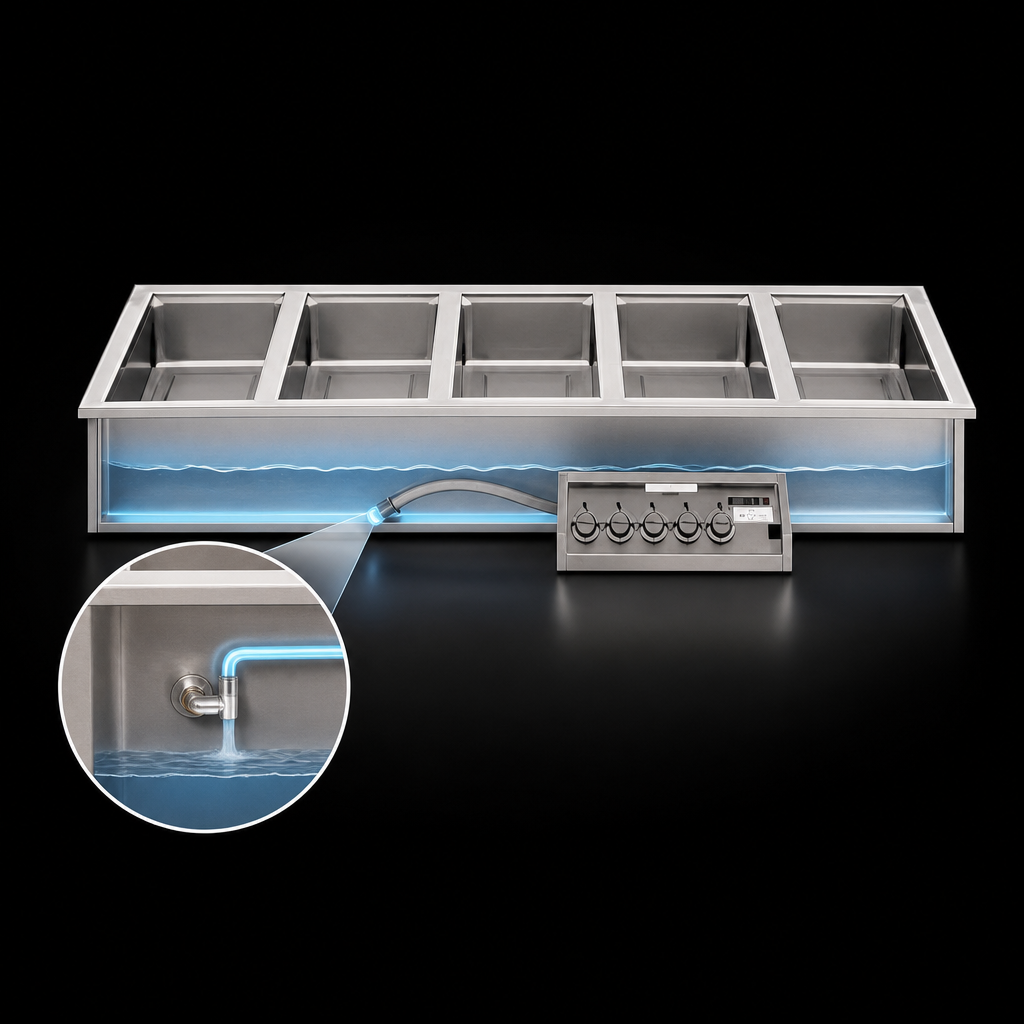

- Auto-Fill system keeps water at the proper level to prevent scorching and labor-intensive refills.
- Wet or dry operation for maximum menu flexibility.
- Dual front-mounted control panels give two lines of staff instant access to precise thermostatic settings.
- Manifold drain with single valve empties all wells quickly for end-of-day cleanup.
- Fully-insulated, energy-saving construction is ideal for non-metal counters.
- One-piece stainless steel top and wells with aluminized steel housing stand up to constant commercial use.
- High-limit protection and temperature-ready indicator lights safeguard food quality and equipment.
- NSF-listed and cULus certified for nationwide code compliance.
Specifications
| Model | MOD527TDMAF |
|---|---|
| Number of wells | 5 extra-deep (12 × 27 in) |
| Pan capacity (per well) | (4) 1/3-size pans or equivalent fractional pans |
| Operation | Wet / Dry |
| Auto-Fill | Integrated – ¼" NPT water connection required |
| Drainage | ½" manifold drains with single external valve |
| Controls | Thermostatic; dual panels with ready lights & high-limit protection |
| Voltage / Phase | 208 / 240 V, 3 Ø (field-convertible to 1 Ø) |
| Total wattage | Up to 8,250 W (1,650 W per well) |
| Overall dimensions | 71 ½" W × 30 9⁄16" D × 9 ¾" H |
| Control panel width | 14" & 18" (dual panels) |
| Shipping weight | 232 lb / 105 kg |
| Construction | Stainless steel top & wells; aluminized steel housing; fully insulated |
| Certifications | cULus, NSF |
| Warranty | 1-year limited parts & labor |
Optional Accessories
- Adaptor tops for round insets
- Inset pans with hinged lids
- 8 oz soup ladles
- Drain valve extension kit
- Wellslok® extension kits for wood counter installations
