Description

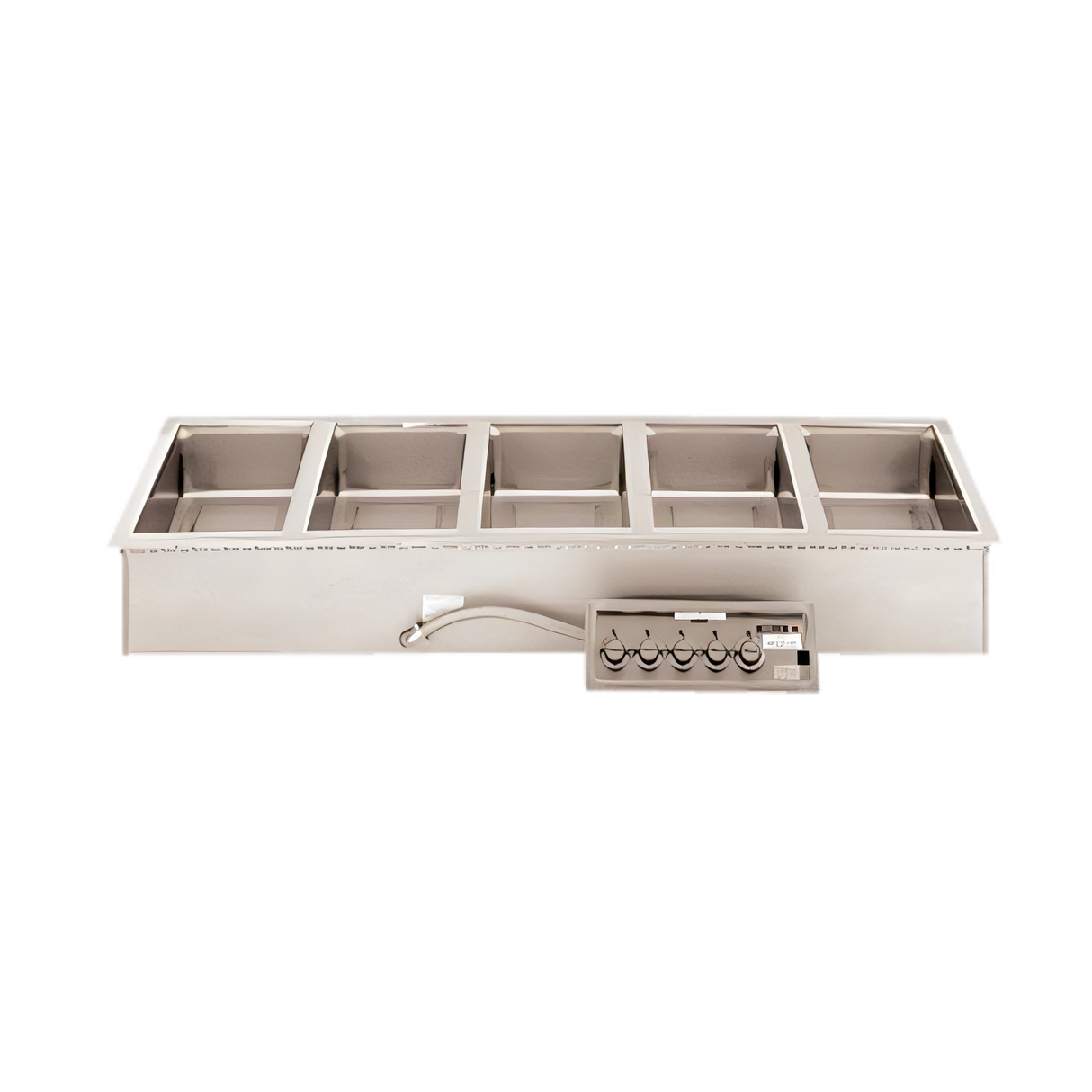

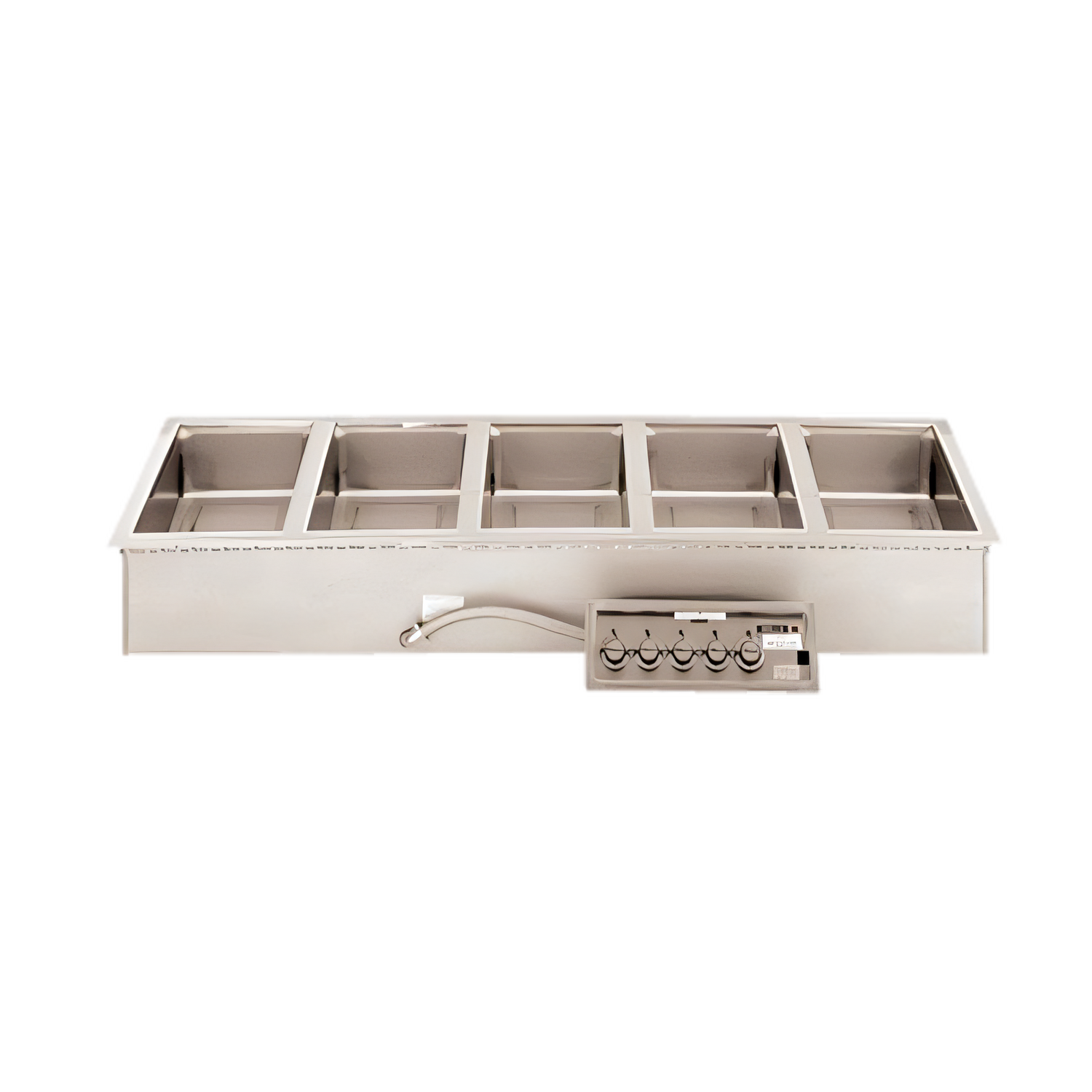

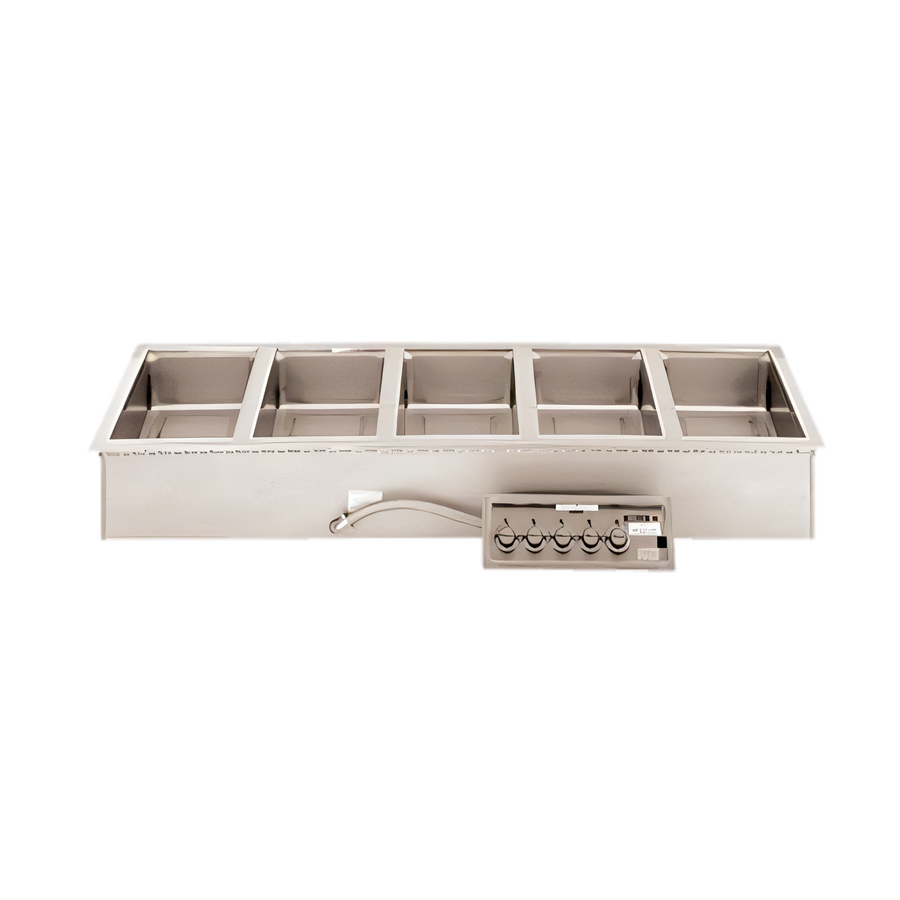

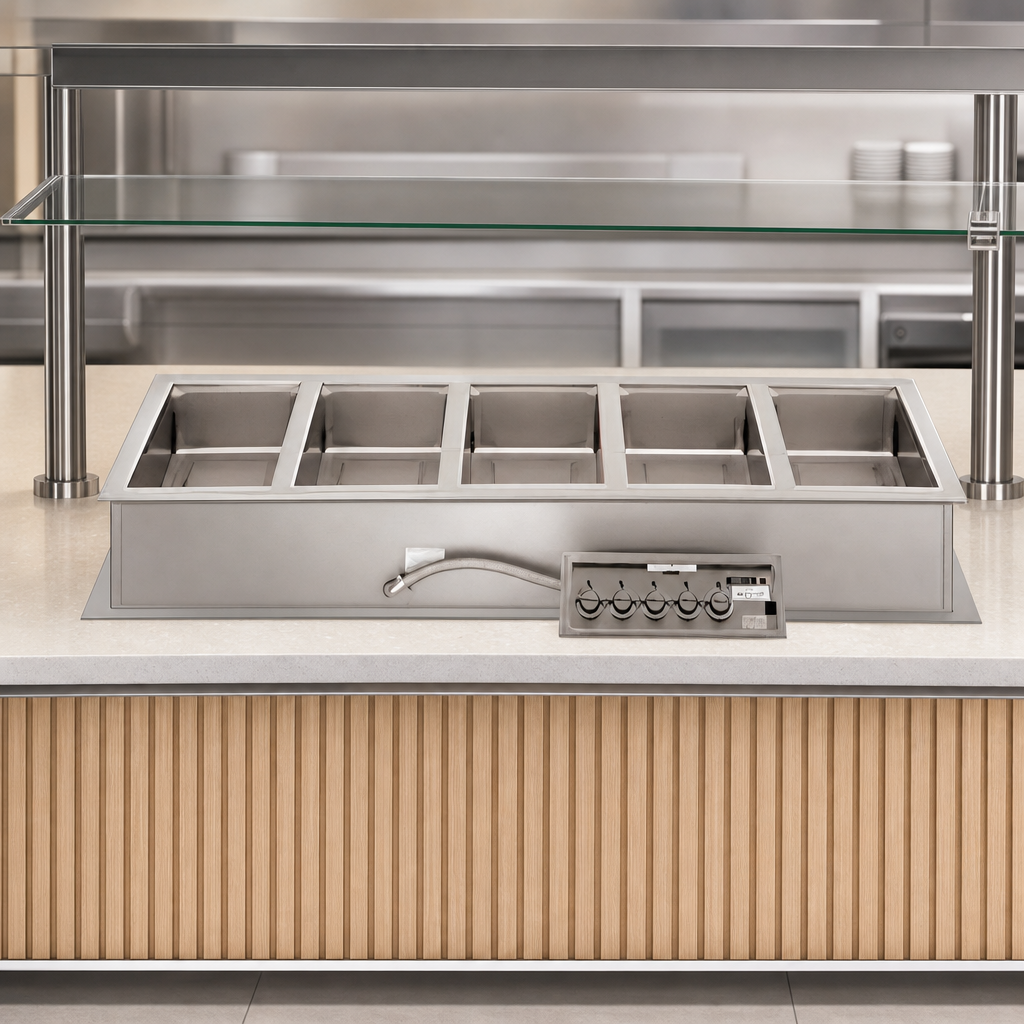

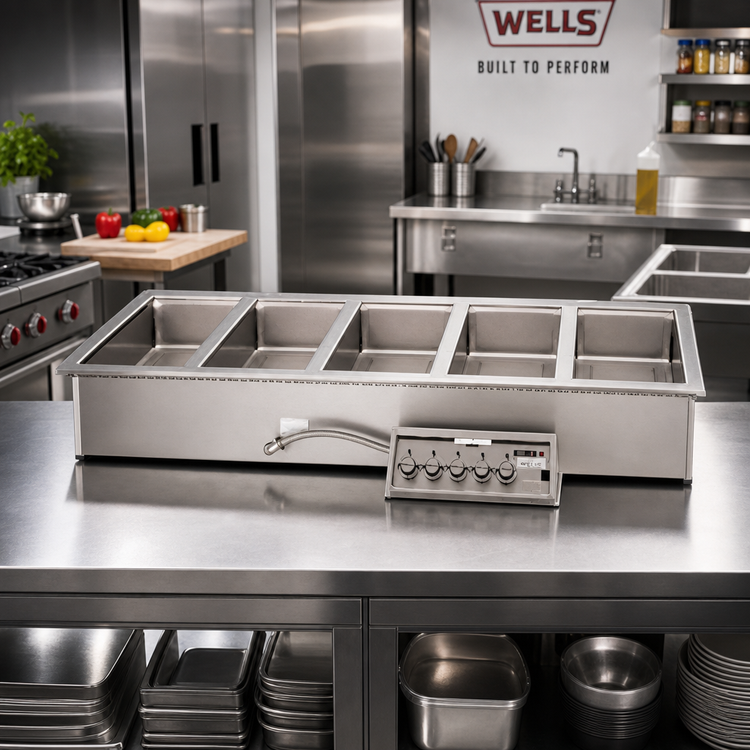

Wells MOD500TDMAFS Five-Well Auto-Fill Drop-In Food Warmer

Top-mount | Thermostatic | Wet/Dry | Manifold Drain

Engineered for demanding service lines, the Wells MOD500TDMAFS keeps five full-size hotel pans of entrées, soups or sides at food-safe temperatures while automating water management and clean-up. Simply drop it into your counter, connect power and water, and enjoy consistent, worry-free holding all day long.

Why You’ll Love It

  • Auto water-fill system maintains the correct water level—no more manual refills.
  • Accommodates (5) standard 12" × 20" pans or fractional equivalents.
  • Wet or dry operation; wet mode recommended for peak product quality.
  • Single front-mounted control panel with individual thermostatic knobs and “temperature-ready” lights.
  • One-piece 16-ga stainless steel top flange and deep-drawn wells for easy wipe-downs and superior durability.
  • Powerful tubular elements below each well deliver fast pre-heat and even heat distribution.
  • Fully insulated aluminum-steel housing minimizes heat loss and protects wood or solid-surface counters.
  • ½" manifold drain with a single valve empties all five wells in seconds.
  • Ships 3-phase and is field-convertible to 1-phase for flexible installation.
  • NSF & cULus listed; backed by a 1-year parts & labor warranty from Wells.

Technical Specs

Model MOD500TDMAFS
Capacity (5) 12" × 20" full-size wells
Operation Wet or dry (wet preferred)
Auto-Fill Yes – ¼" NPT water inlet required
Drain System ½" manifold with one valve
Control Type Thermostatic, single control panel
Electrical 208/240 V, 3-phase (field convertible to 1-phase)
Total Load 6.0 kW @ 208 V / 6.9 kW @ 240 V
Wattage per Well 1.24 kW @ 208 V / 1.65 kW @ 240 V
Overall Dimensions 71-1/2" W × 23-5/8" D × 9-3/4" H
Control Panel Size 35-1/16" W × 6-1/4" H
Shipping Weight 126 lb (57 kg)
Construction Stainless steel wells & flange; insulated aluminum-steel housing
Certifications NSF, cULus
Warranty 1-year parts & labor
Installation Notice: Auto-fill models require a plumbed cold-water connection and must be installed in accordance with Wells’ installation manual. Always verify counter cut-out dimensions, clearances and electrical specifications before ordering.

Need adaptor plates, inset pans or ladles?
Ask our team about Wells-approved accessories to complete your serving station.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

71.5in

Depth

23.63in

Shipping Weight

191.0lbs

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Food Warmer, top-mount, built-in, electric, auto-fill, (5) 12" x 20" openings with manifold drains with one valve, wet/dry operation, single point control panel, thermostatic control, stainless steel interior, insulated aluminum steel housing, cULus
