Wells (Middleby) MOD-500TDM/AF Steam Tables & Food Wells
Description

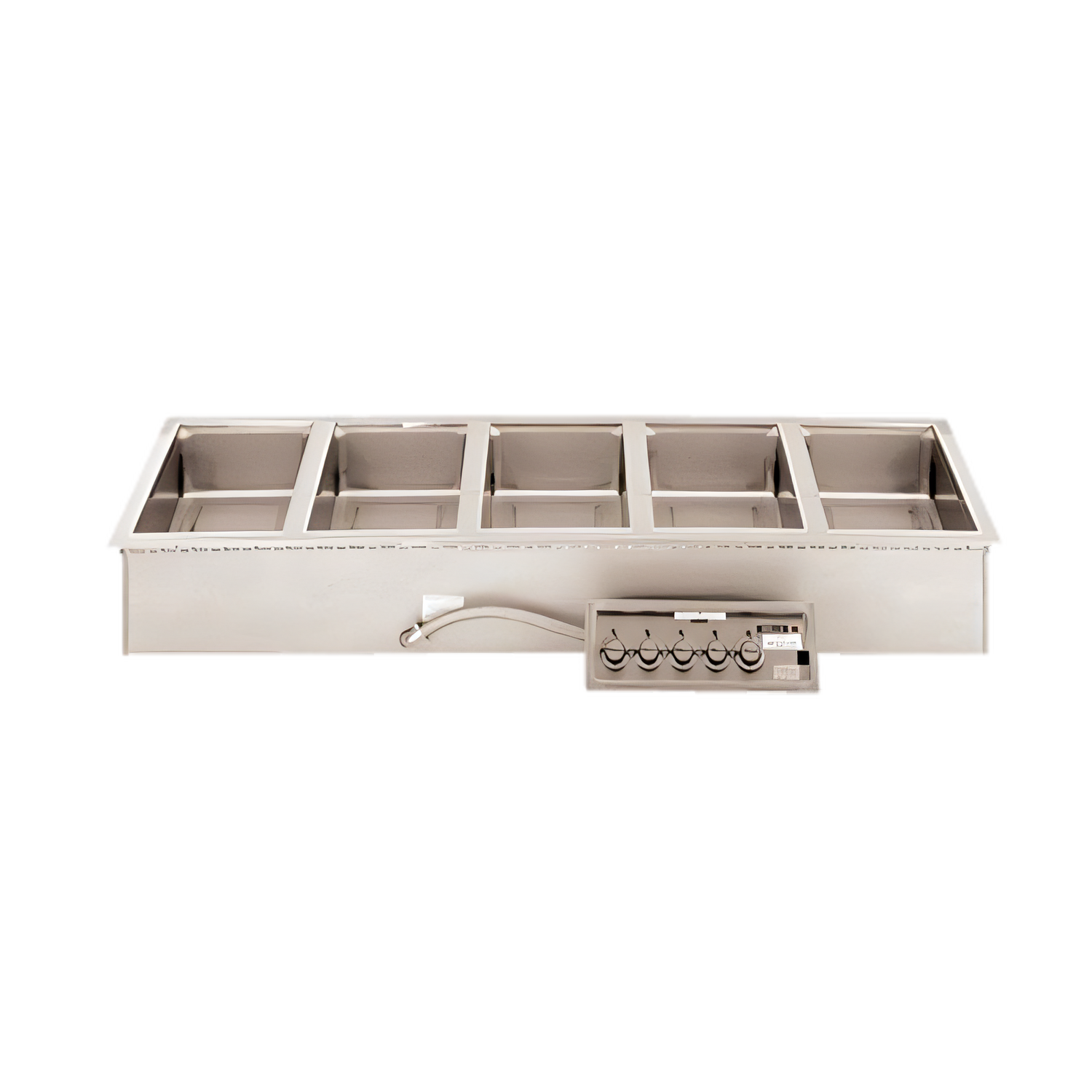

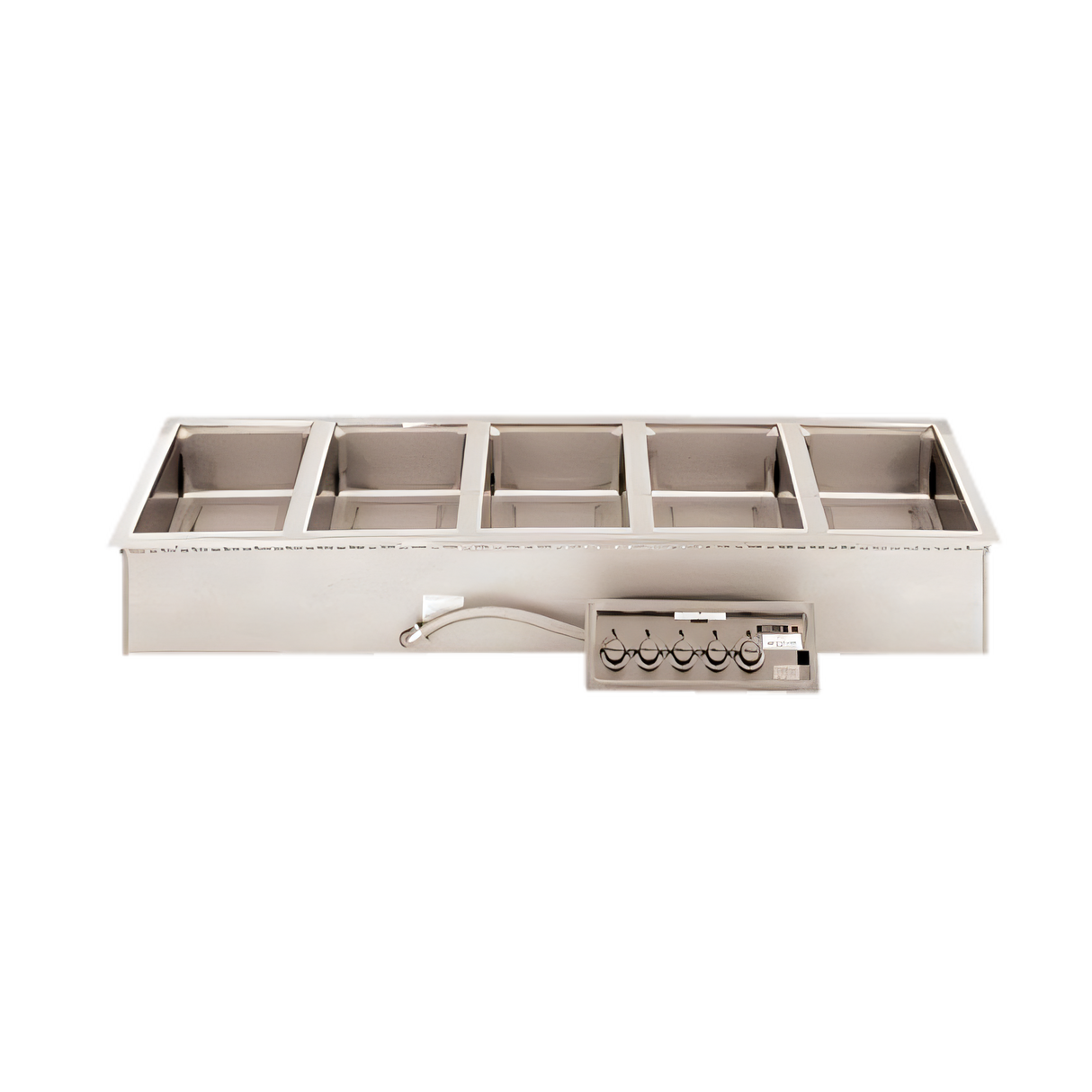

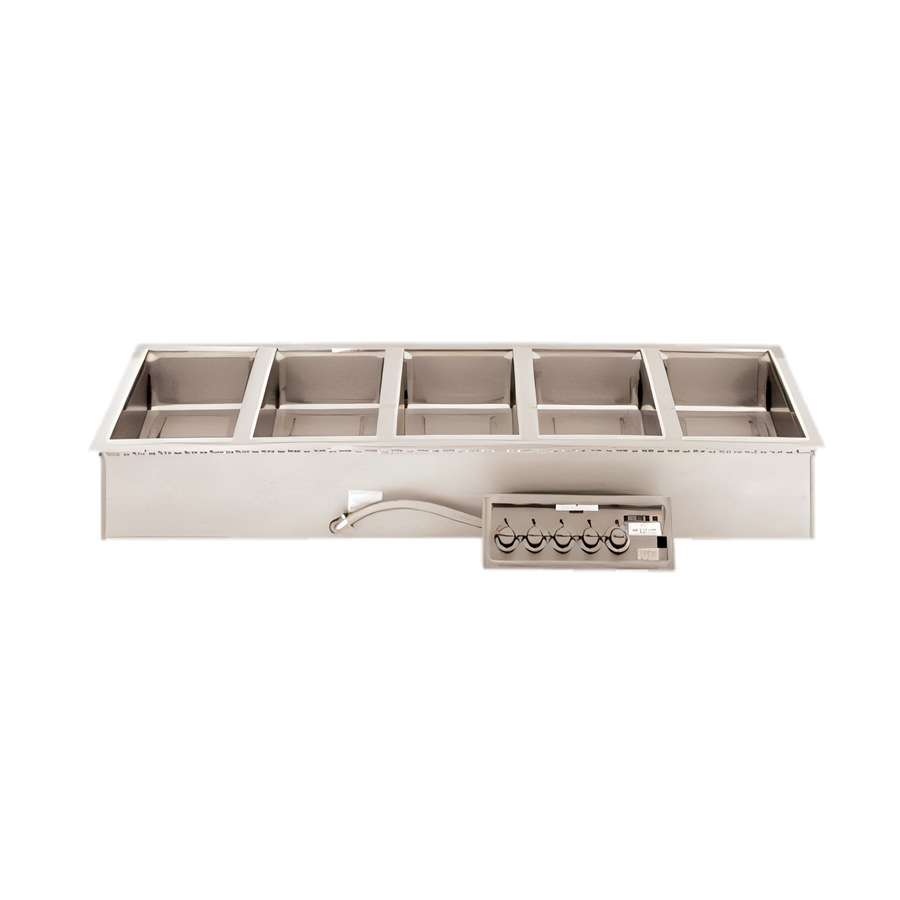

Wells MOD500TDMAF Five-Well Drop-In Food Warmer
Auto-Fill | Dual Thermostatic Control Panels | 208/240 V, 3 Ø/1 Ø ConvertibleDesigned for the busiest service lines, the Wells MOD500TDMAF holds five full-size (12 in × 20 in) pans of soups, sauces, proteins or sides at safe, appetizing temperatures—without sacrificing counter space or energy efficiency. Fully insulated, wet- or dry-operation wells, automatic water fill and manifold drains take the guess-work and hard work out of hot-food holding.
Why You’ll Love It

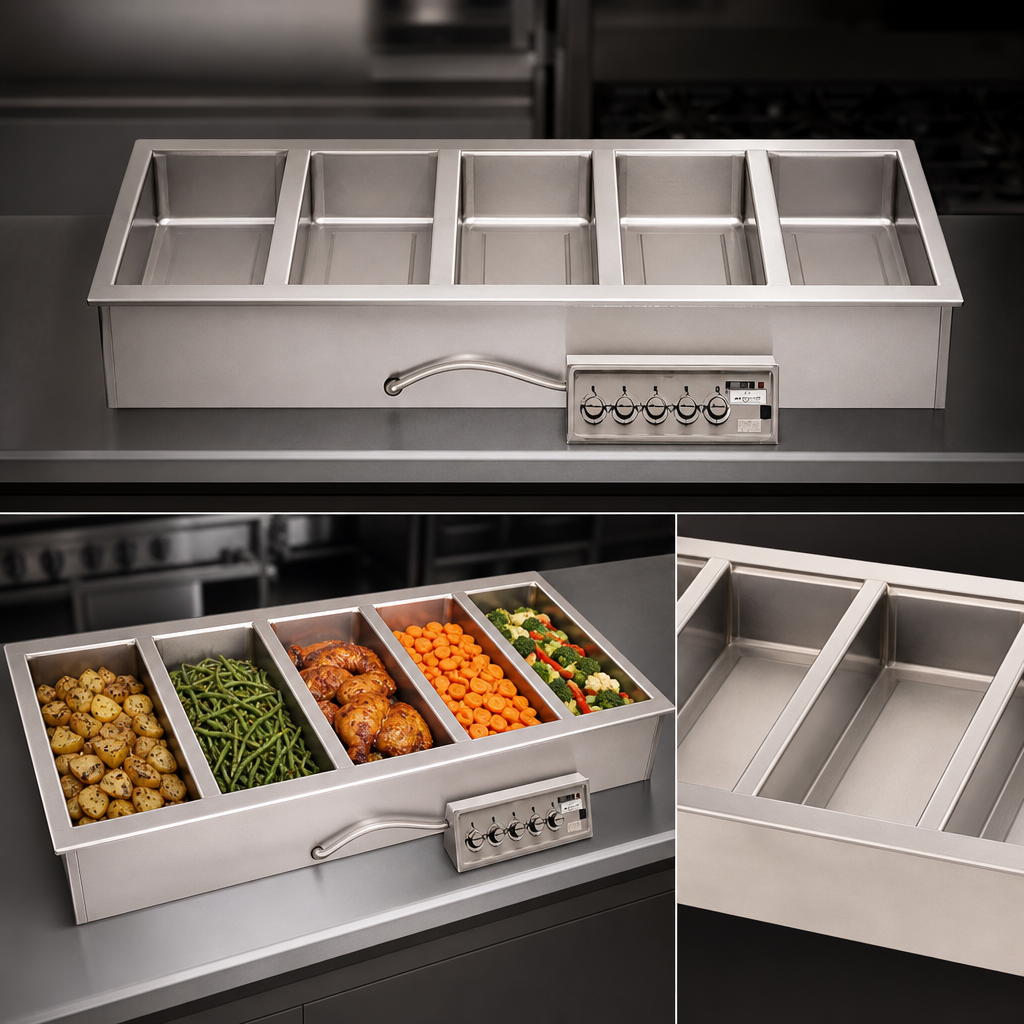

- Five deep-drawn stainless-steel wells accept standard 12 × 20 pans or fractional equivalents.
- Wet or dry operation—water bath recommended for peak product quality.
- Auto-Fill system maintains proper water level throughout service (¾ in NPT water connection required).
- Integrated ½ in manifold drain with a single valve simplifies end-of-day clean-up.
- Dual front-mounted control panels with independent thermostatic controls for each well.
- High-limit protection prevents overheating; “ready” indicator lights display holding status.
- One-piece stainless top flange with WellsLok ® mounting system for fast, rigid installation.
- Energy-saving, fully insulated aluminized-steel housing—ideal for metal or non-metal counters.
- Powerful tubular heating elements deliver rapid pre-heat and even heat distribution.
At-a-Glance Specifications
| Model | MOD500TDMAF |
|---|---|
| Wells / Capacity | 5 × 12 in × 20 in full-size pans |
| Operation | Wet or Dry | Auto-Fill water system |
| Controls | Dual panels, thermostatic; individual knobs & status lights per well |
| Overall Dimensions (W × D × H) | 71 ½ in × 23 5⁄8 in × 9 ¾ in (1816 × 600 × 248 mm) |
| Control Panel Width | 35 in & 14 in (889 mm & 356 mm) |
| Shipping Weight | 136 lb (61.8 kg) |
| Electrical | 208/240 V, 3 Ø (field convertible to 1 Ø) | 1240/1650 W per well |
| Drain Connection | ½ in NPT manifold with single valve |
| Water Connection | ¾ in NPT (Auto-Fill) |
| Construction | Stainless-steel interior & top flange; insulated aluminized-steel housing |
| Certifications | cULus, NSF |
| Warranty | 1-Year limited parts & labor |
Included
- WellsLok mounting hardware
- Manifold drain valve assembly
- Auto-Fill float system & hookup kit
- User/installation manual
Popular Accessories (Sold Separately)
- Adapter tops for round insets
- Inset pans & hinged lids
- Drain screens & extension kits
- 8 oz soup ladles
Wells Manufacturing reserves the right to modify specifications without notice. Always consult the latest installation guide prior to cut-out or utility rough-in.
