Wells (Middleby) MOD-500TD Steam Tables & Food Wells
Description

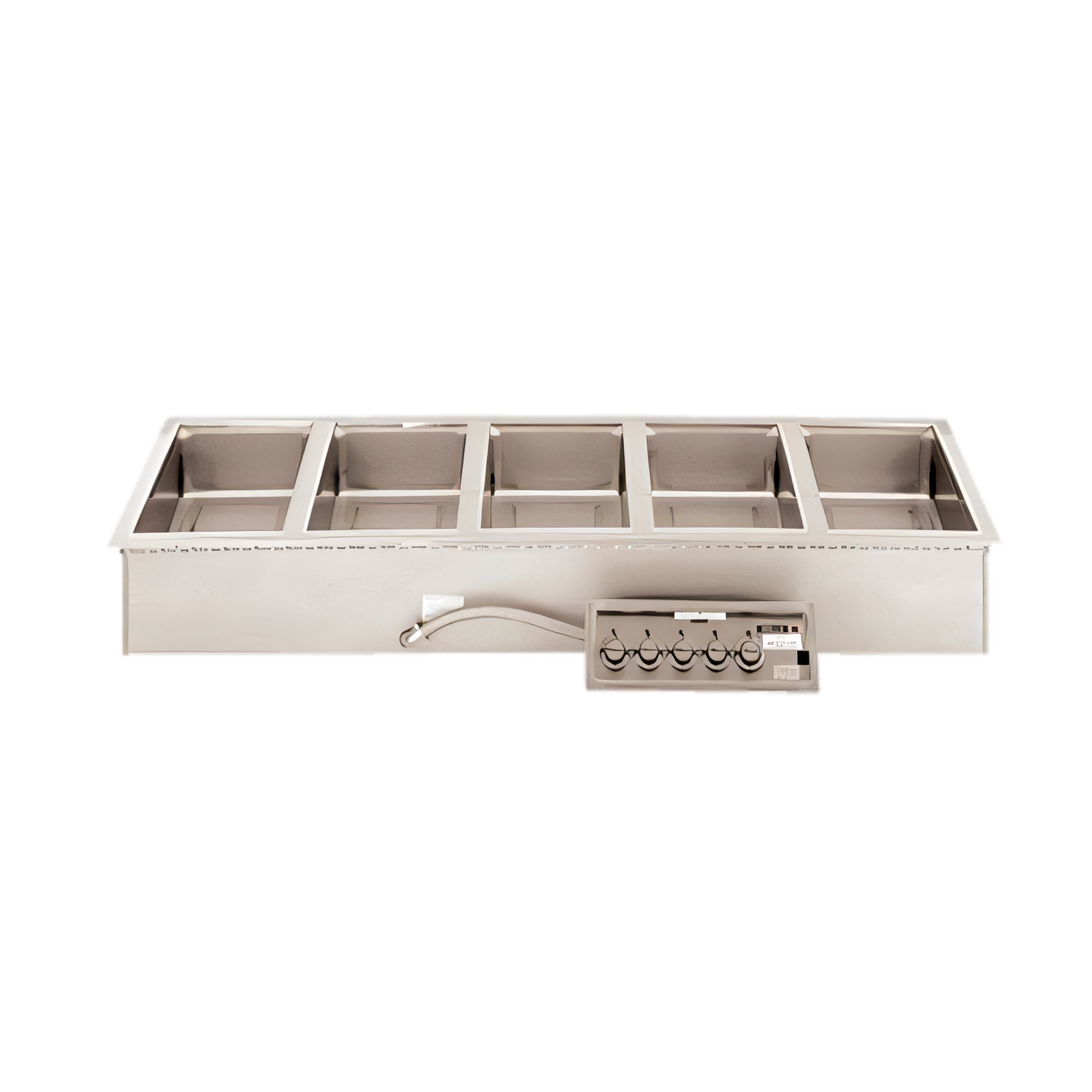

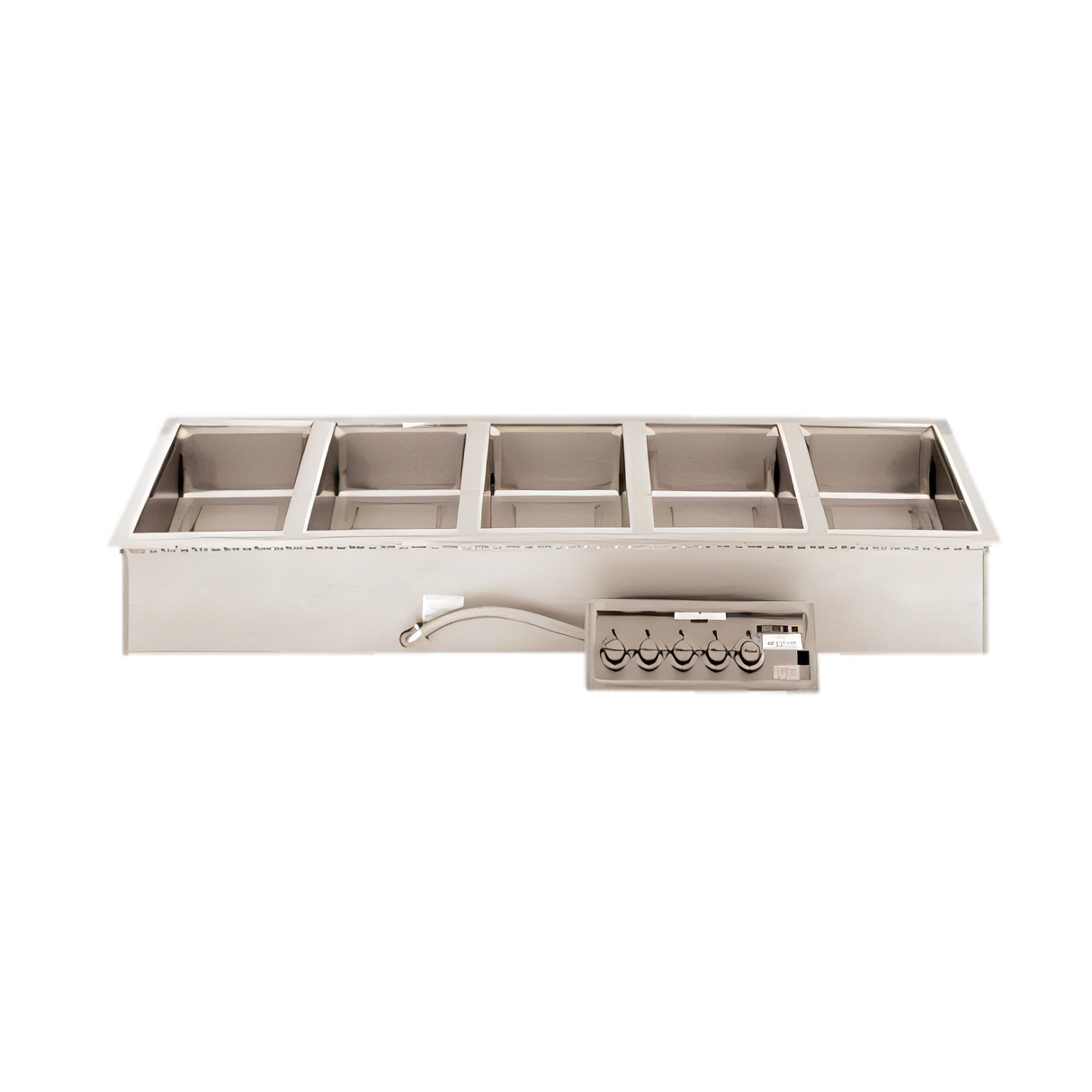

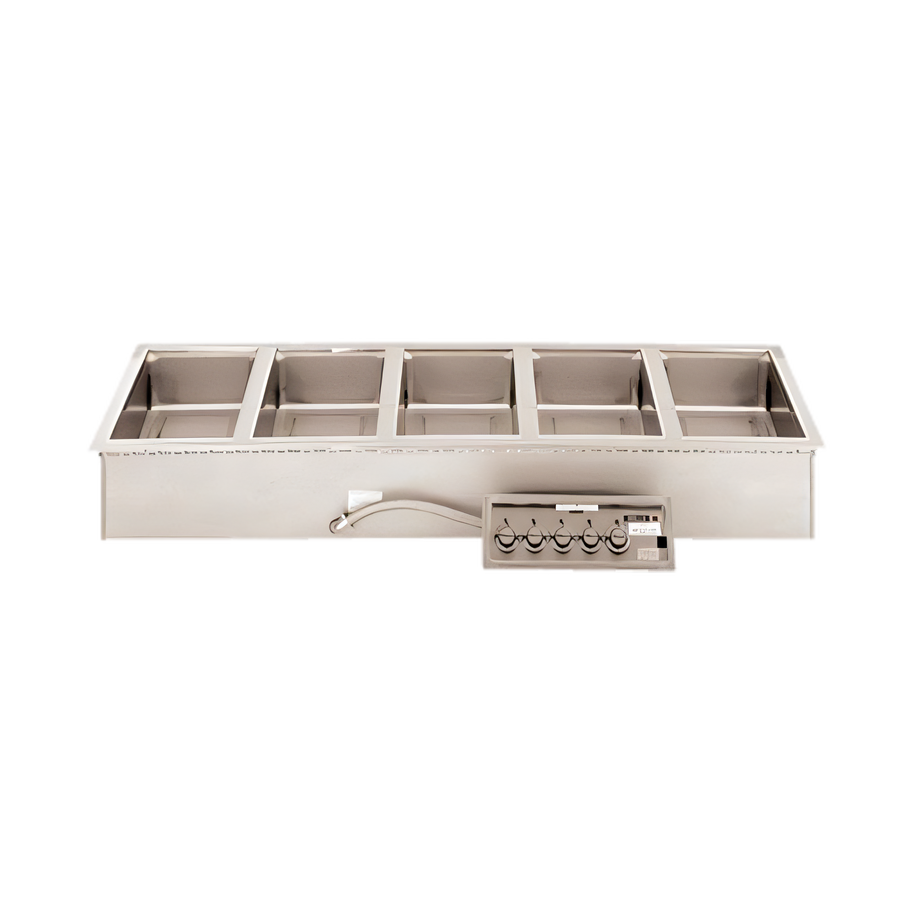

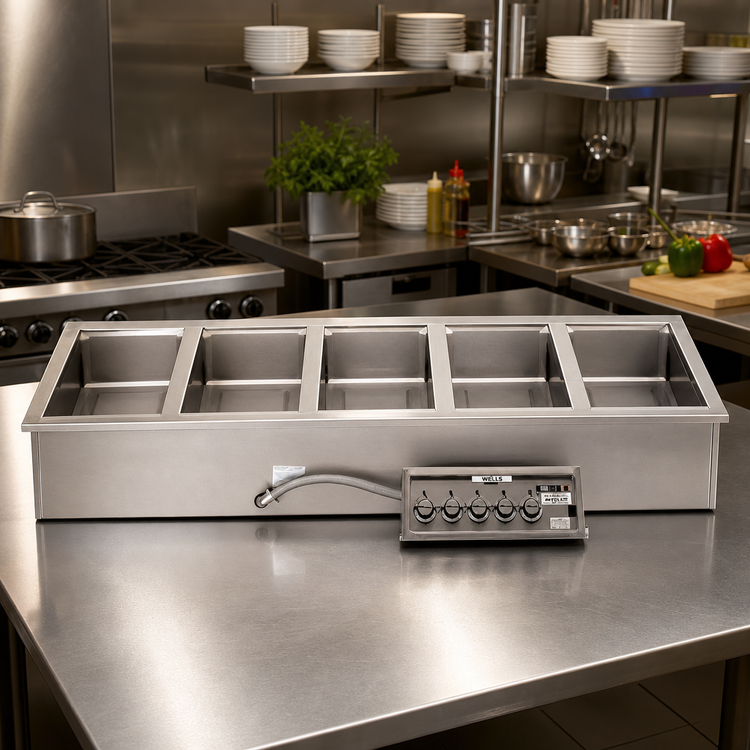

Wells MOD500TD Five-Well Drop-In Food Warmer
Top-mount • Electric • Thermostatic controls • Drains includedKeep entrées and sides hot, fresh and food-safe during even the busiest service periods. The Wells MOD500TD combines five deep-drawn 12" × 20" wells, independent thermostatic controls and fully-insulated construction to deliver consistent holding performance in a space-saving drop-in design.
Why you’ll love it

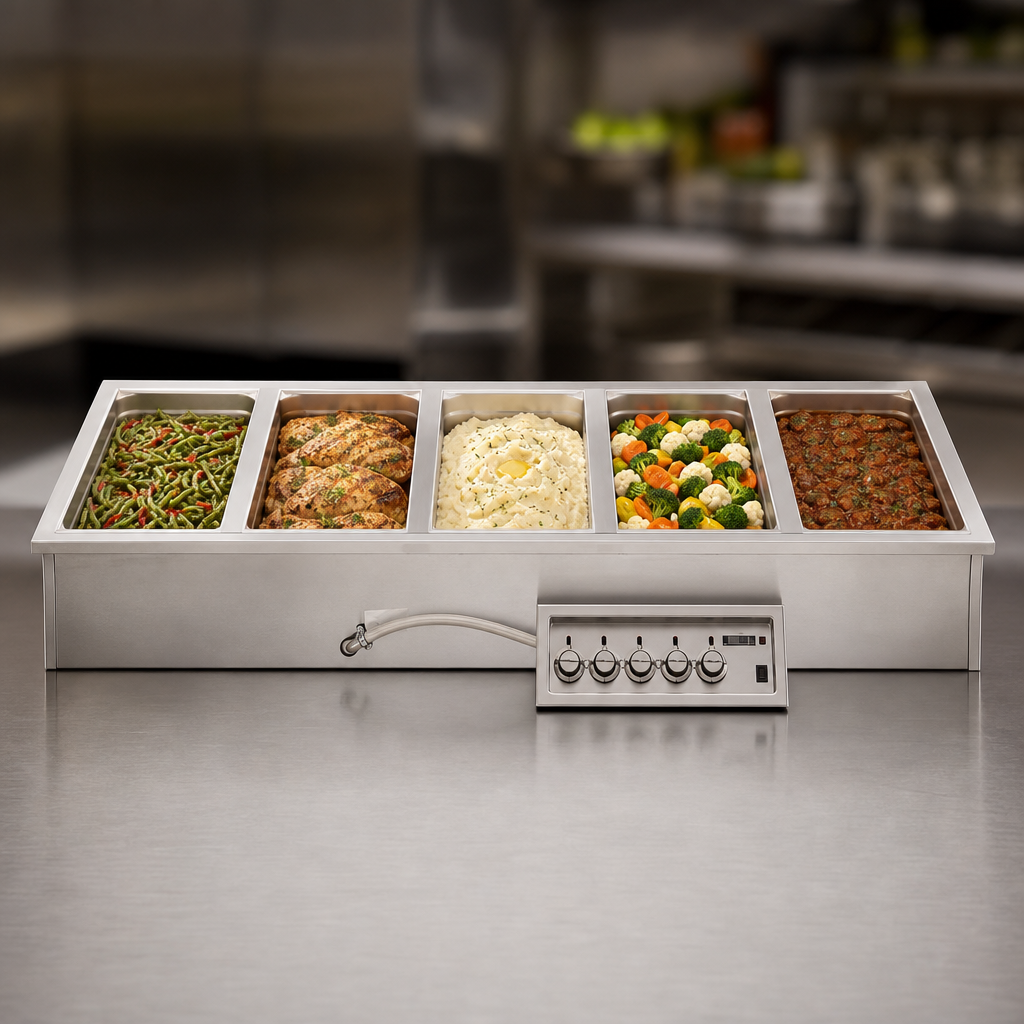

- Five full-size wells accept 12" × 20" pans or fractional equivalents.
- Wet or dry operation (water bath recommended for superior heat transfer).
- Individual thermostatic controls with ready lights for pinpoint holding temperatures.
- Built-in ½" NPT drains on every well speed clean-up and change-outs.
- One-piece stainless-steel top flange and deep-drawn wells wipe clean with ease.
- Energy-saving, fully insulated aluminized-steel housing—ideal for wood or composite counters.
- WellsLok mounting system simplifies drop-in installation.
- High-limit protection guards against dry-fire and overheating.
- Powerful tubular heating elements deliver fast pre-heat and even heat distribution.
- cULus & NSF certified for regulated foodservice environments.
Technical specifications
| Model | MOD500TD |
|---|---|
| Wells / Pan size | 5 × 12" × 20" (full size) | 7 in. deep |
| Operation | Wet or dry (wet recommended) |
| Controls | Five independent thermostats with indicator lights |
| Overall dimensions | 71 ½" W × 23 5/8" D × 9 ¾" H (1816 × 600 × 248 mm) |
| Control-panel size | 35" W × 6 ¼" H (889 × 159 mm) |
| Drain connection | ½" NPT (one per well) |
| Electrical | 208 V / 240 V, 3 Ø (field-convertible to 1 Ø) 6.2 kW @ 208 V | 8.25 kW @ 240 V (≈1.24 / 1.65 kW per well) |
| Shipping weight | Approx. 116 lb (52.7 kg) |
| Certifications | cULus, NSF |
| Warranty | 1-year limited parts & labor |
For optimal performance, maintain water in each well when holding above 180 °F. Always follow the installation and operation manual for electrical connections, clearances and daily maintenance.
