Description

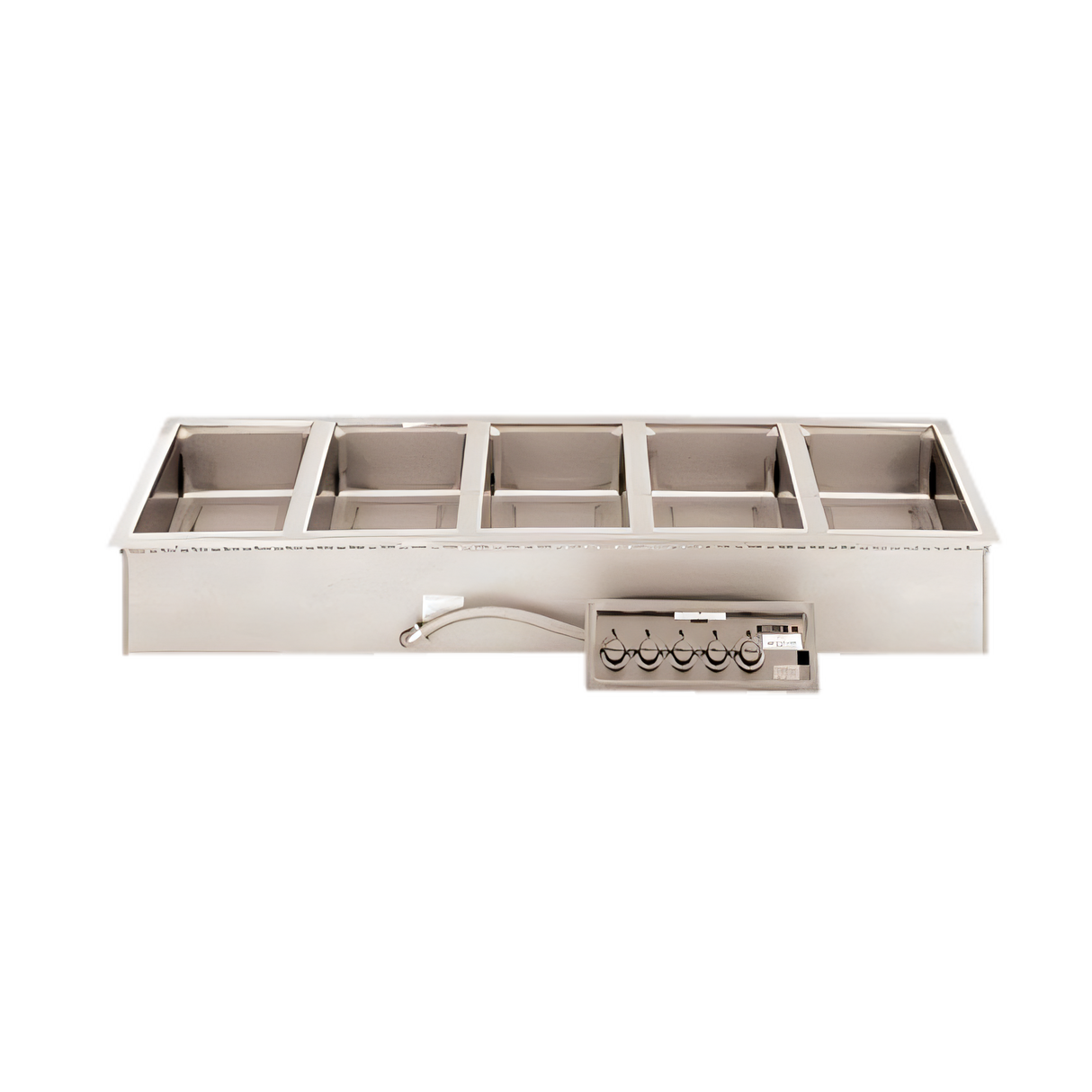

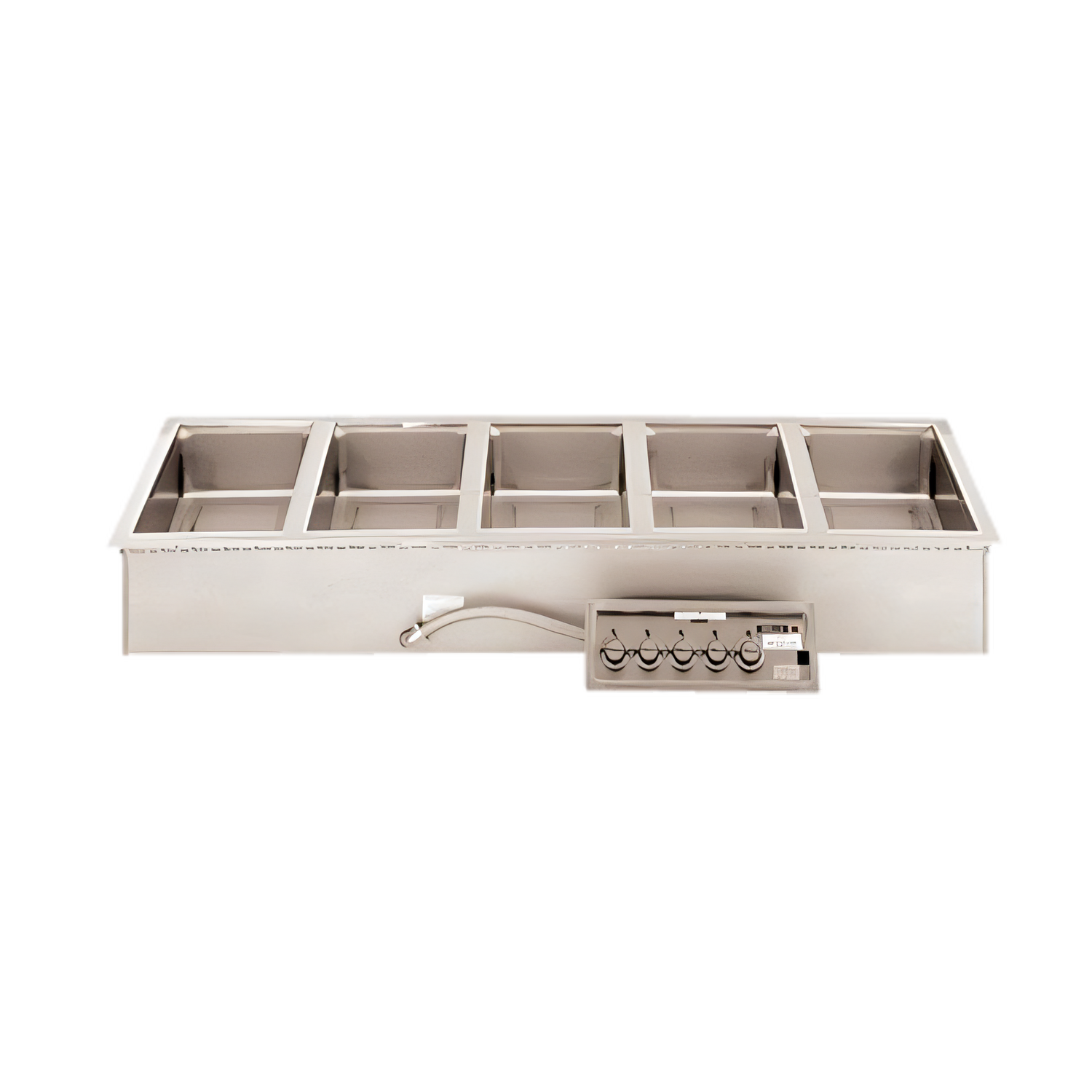

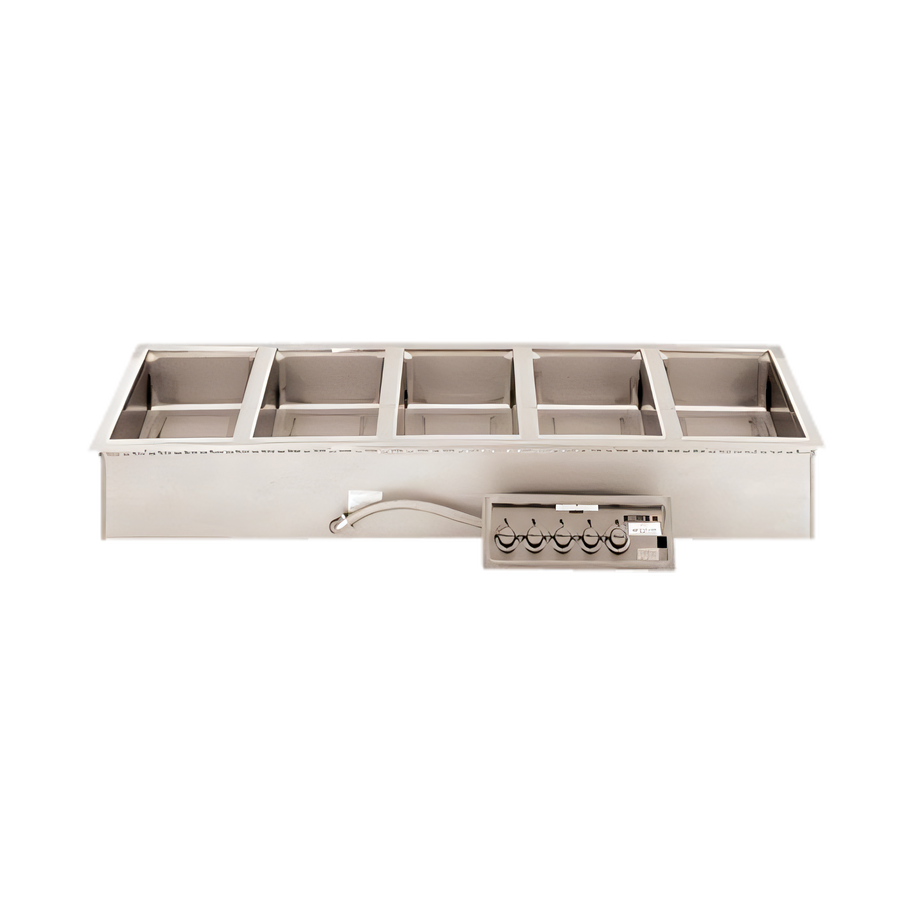

Wells MOD500DM Five-Well Drop-In Food Warmer

Top-Mount • Electric • Wet or Dry • Manifold Drain

Keep every entrée, side and sauce at perfect serving temperature with the Wells MOD500DM. This heavy-duty warmer drops seamlessly into your counter, offers individual control for five full-size 12 × 20 inch wells and cleans up fast thanks to an integrated manifold drain system.

Key Features

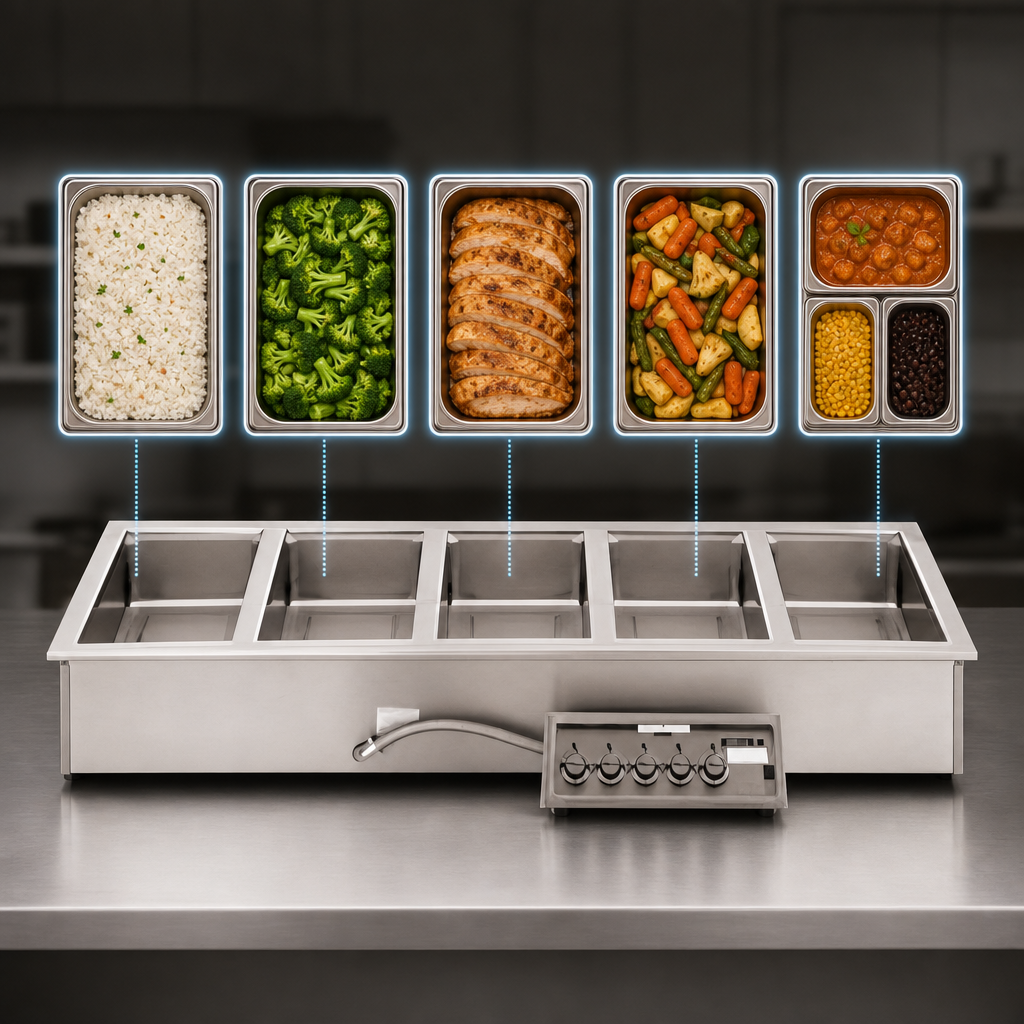

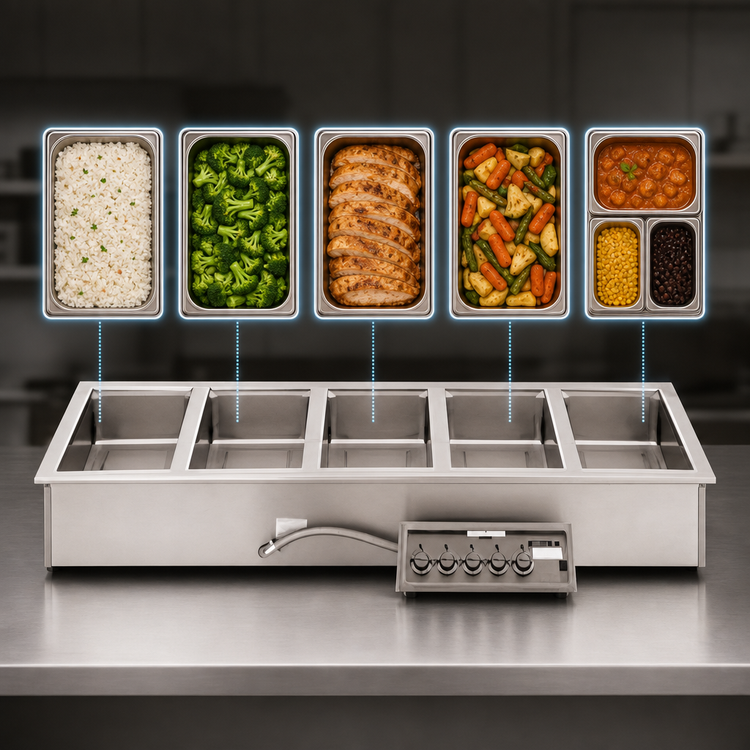

  • Holds five full-size (12" × 20") pans or fractional equivalents.
  • Wet or dry operation for maximum menu flexibility (water bath recommended for best results).
  • Five independent infinite controls let you fine-tune holding temps per well.
  • ½" manifold drain with a single external valve empties all wells in seconds.
  • Deep-drawn stainless steel wells and one-piece flange resist corrosion and wipe clean easily.
  • Fully insulated aluminized-steel housing saves energy and is safe for non-metal counters.
  • High-limit protection guards against overheating and prolongs element life.
  • NSF, UL and cULus listed for assured code compliance.
Specifications
Model MOD500DM
Capacity (5) full-size 12" × 20" wells
Controls 5 × infinite manual knobs with indicator lights
Drainage ½" NPT manifold drain, single valve
Electrical 208/240 V, 3-phase (field convertible to 1-phase)
900 W @ 208 V / 1200 W @ 240 V per well
Total Wattage 4,500 W @ 208 V / 6,000 W @ 240 V
Overall Dimensions 71-1/2" W × 23-5/8" D × 9-3/4" H (1816 × 600 × 248 mm)
Shipping Weight Approx. 118 lb (53.6 kg)
Construction Stainless steel wells & flange; insulated aluminized-steel housing
Certifications NSF, UL, cULus
Warranty 1-year limited parts & labor
Popular Accessories (sold separately)
  • Adaptor tops for round insets
  • Inset pans with lids & 8 oz ladles
  • Drain screens & valve extension kits
  • Auto-fill package for hands-free water level management

Ask about Middleby Equipment Financing for fast approvals and low fixed monthly payments.

Installation Note: Unit ships without a power cord and must be hard-wired by a qualified electrician. Follow all local electrical and plumbing codes.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

71.5in

Depth

23.63in

Shipping Weight

191.0lbs

Controls

infinite controls

Wet or Dry operation

wet or dry

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Specifications

Food Warmer, top-mount, built-in, electric, (5) 12" x 20" openings, manifold drains with one valve, wet/dry operation, infinite controls, stainless steel interior, insulated aluminum steel housing, cULus
