Wells (Middleby) MOD-500D Steam Tables & Food Wells
Description

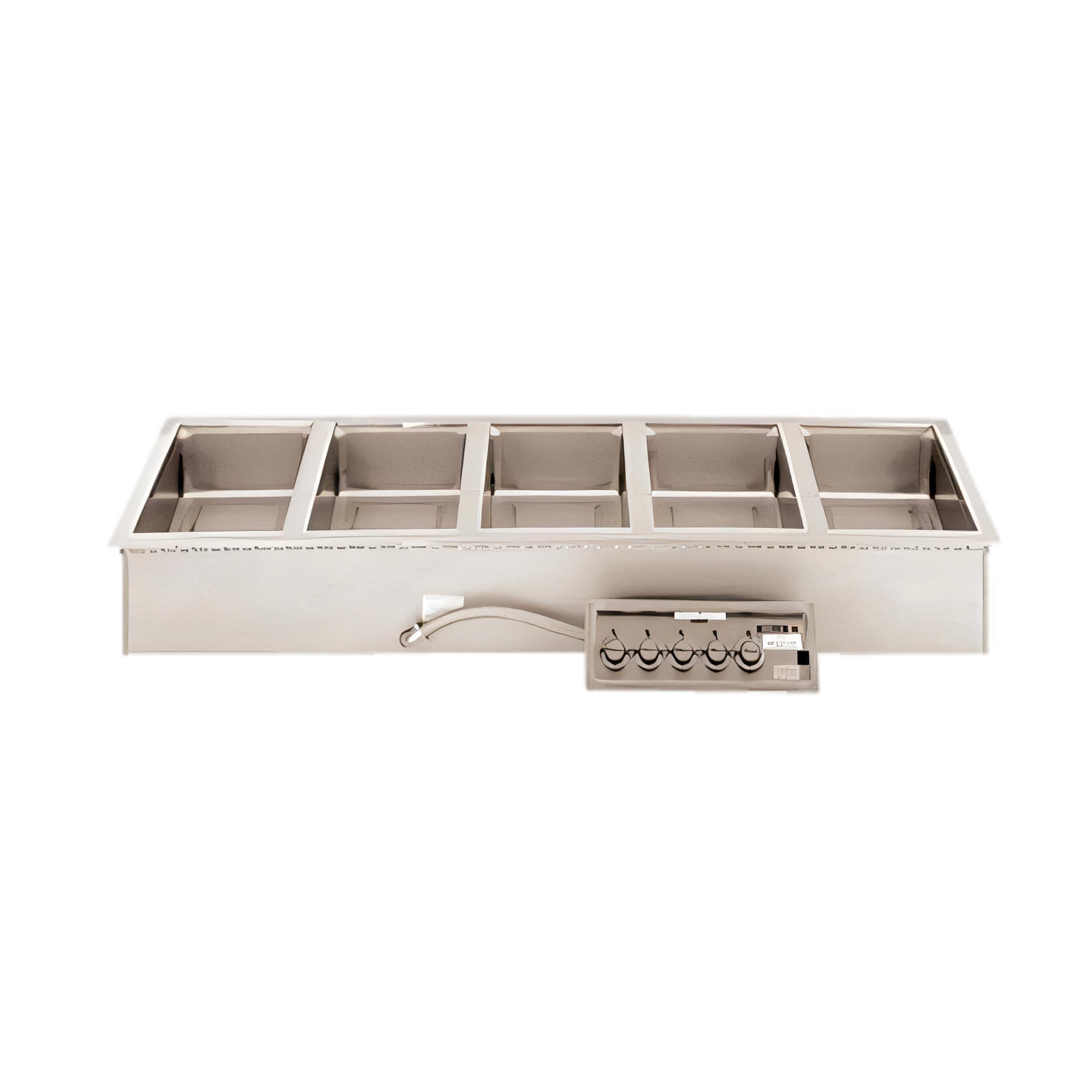

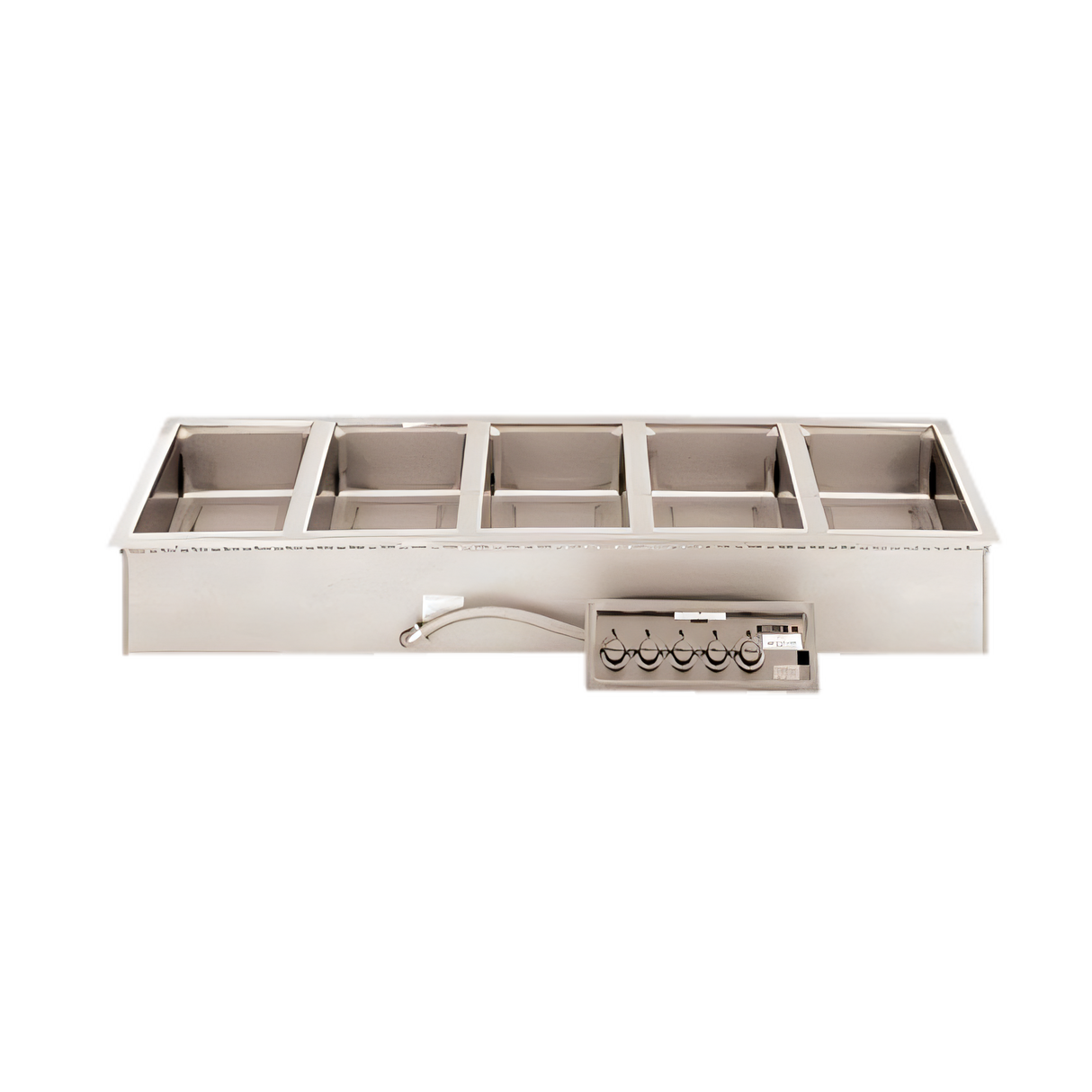

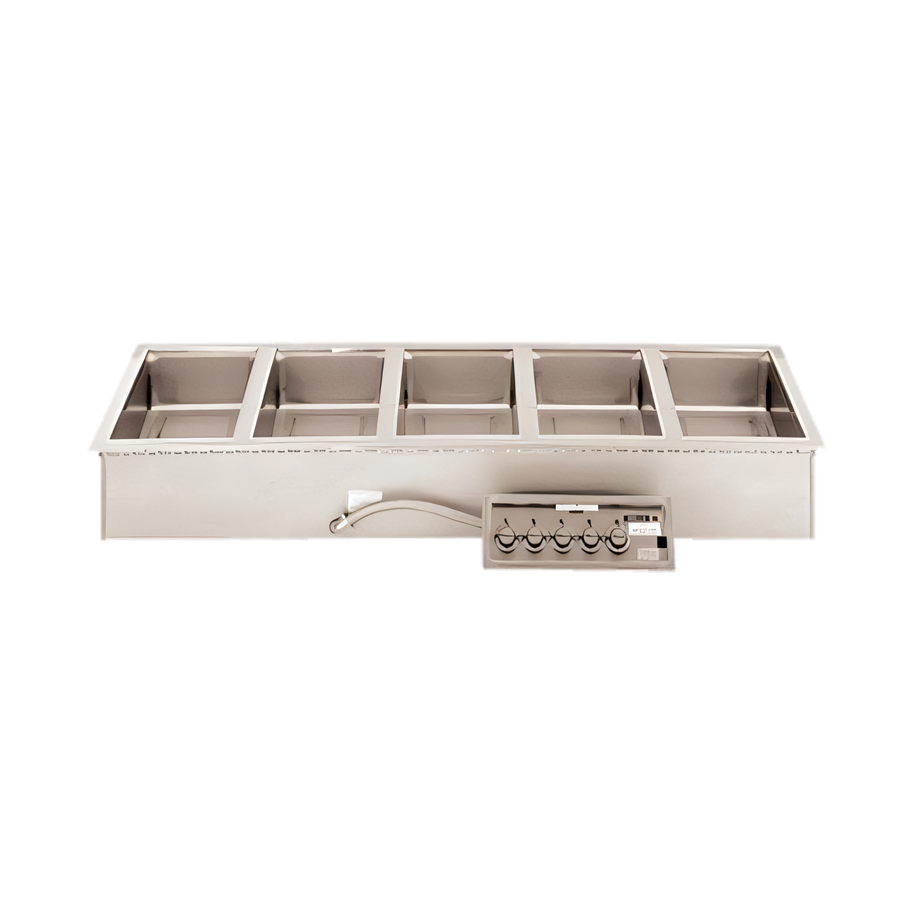

Wells MOD500D Five-Well Drop-In Food Warmer
Top-mount | Electric | Individual Infinite Controls | Drains IncludedDesigned for the busiest serving lines, the Wells MOD500D holds five full-size 12" × 20" pans of food at precise serving temperatures. Its heavy-duty, fully-insulated construction delivers rapid heat-up, consistent holding, and long-term energy savings—whether you run the wells wet or dry.
Why You’ll Love It

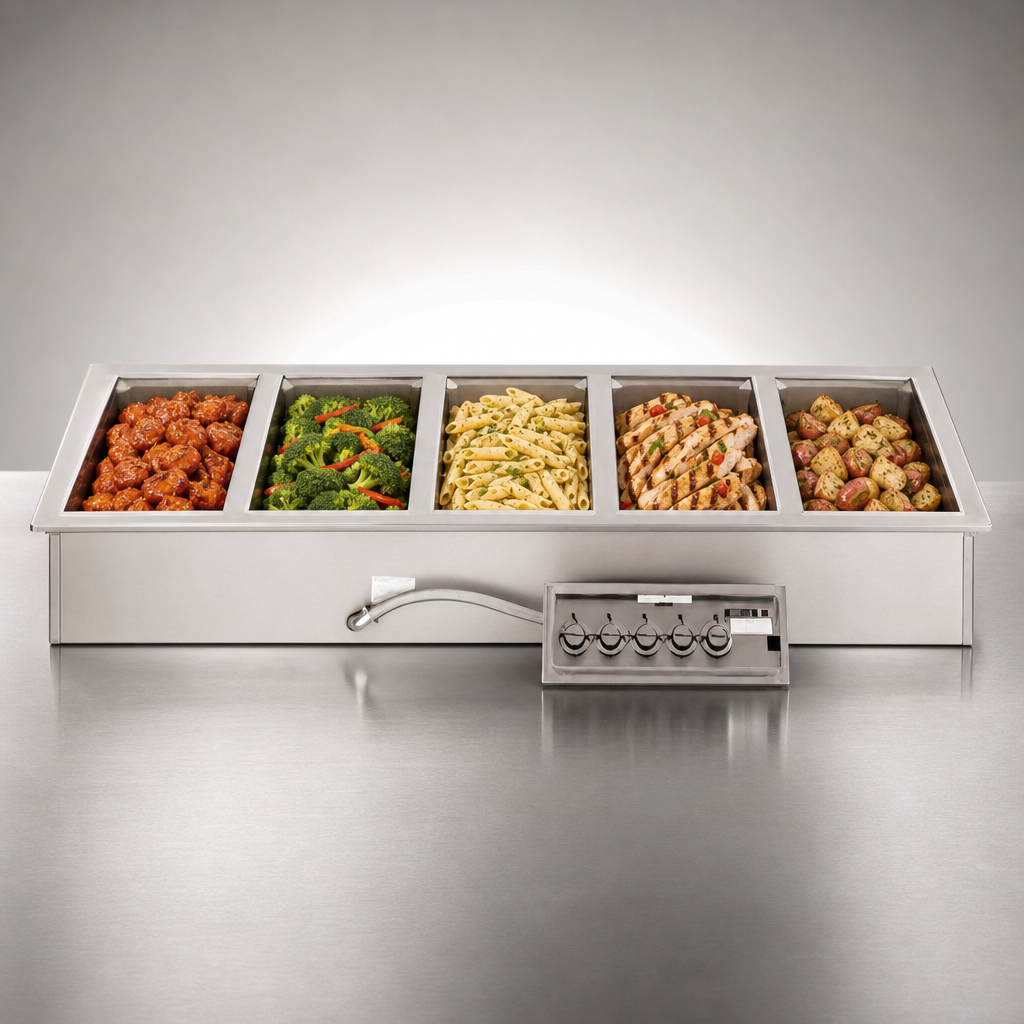

- Five deep-drawn stainless steel wells accept full-size or fractional pans.
- Wet or dry operation—wet operation recommended for peak quality.
- Individual infinite control knobs & temperature-ready indicator lights for each well.
- High-limit protection prevents overheating and prolongs element life.
- Integrated ½" drains on every well speed clean-up and change-outs.
- One-piece stainless steel top flange with WellsLok™ mounting system for fast, secure installation.
- Powerful tubular elements mounted beneath each pan ensure even heat distribution.
- Fully insulated (sides, front, back & bottom) to retain heat and protect non-metal counters.
- cULus, NSF & CSA certified for use in commercial kitchens.
At-a-Glance Specifications
| Model | MOD500D |
|---|---|
| Pan Capacity | (5) Full-size 12" × 20" pans (or fractional equivalents) |
| Operation | Wet or dry (wet recommended) |
| Controls | Individual infinite switches with indicator lights |
| Heating Elements | Tubular, under-pan |
| Drain | ½" NPT drain on each well (no manifold) |
| Exterior Dimensions | 71 ½" W × 23 ⅝" D × 9 ¾" H (1816 × 600 × 248 mm) |
| Electrical | 208 / 240 V, 3 Ø (field-convertible to 1 Ø) Watts per well: 900 / 1200 Total watts: 4.5 kW @ 208 V / 6 kW @ 240 V |
| Shipping Weight | ≈ 118 lb. (53.6 kg) |
| Certifications | cULus, NSF, CSA |
| Warranty | 1-year limited parts & labor |
Perfect For
- Buffet & self-service lines
- Catering & banquets
- School & hospital cafeterias
- Quick-service & casual dining restaurants
Popular Accessories (sold separately)
- Adaptor tops for round insets
- Inset pans & lids
- 8 oz soup ladle
- Drain screens or drain-valve extension kit
- WellsLok extension kits for wood counter installations
- Auto-fill upgrade (factory option)
Unit ships 3-phase and can be field-converted to single-phase. Always consult a qualified electrician for installation.
