Wells (Middleby) MOD-500 Steam Tables & Food Wells
Description

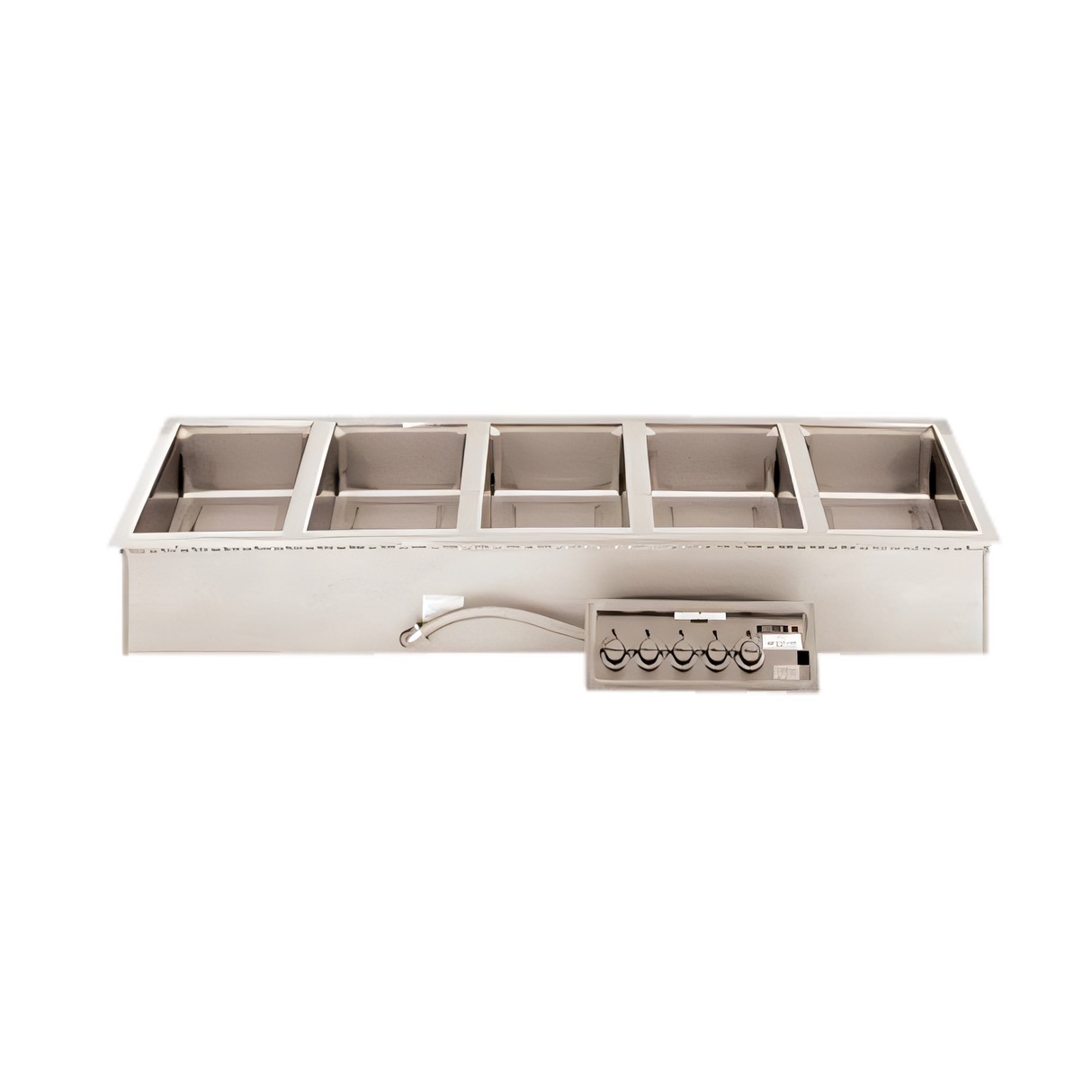

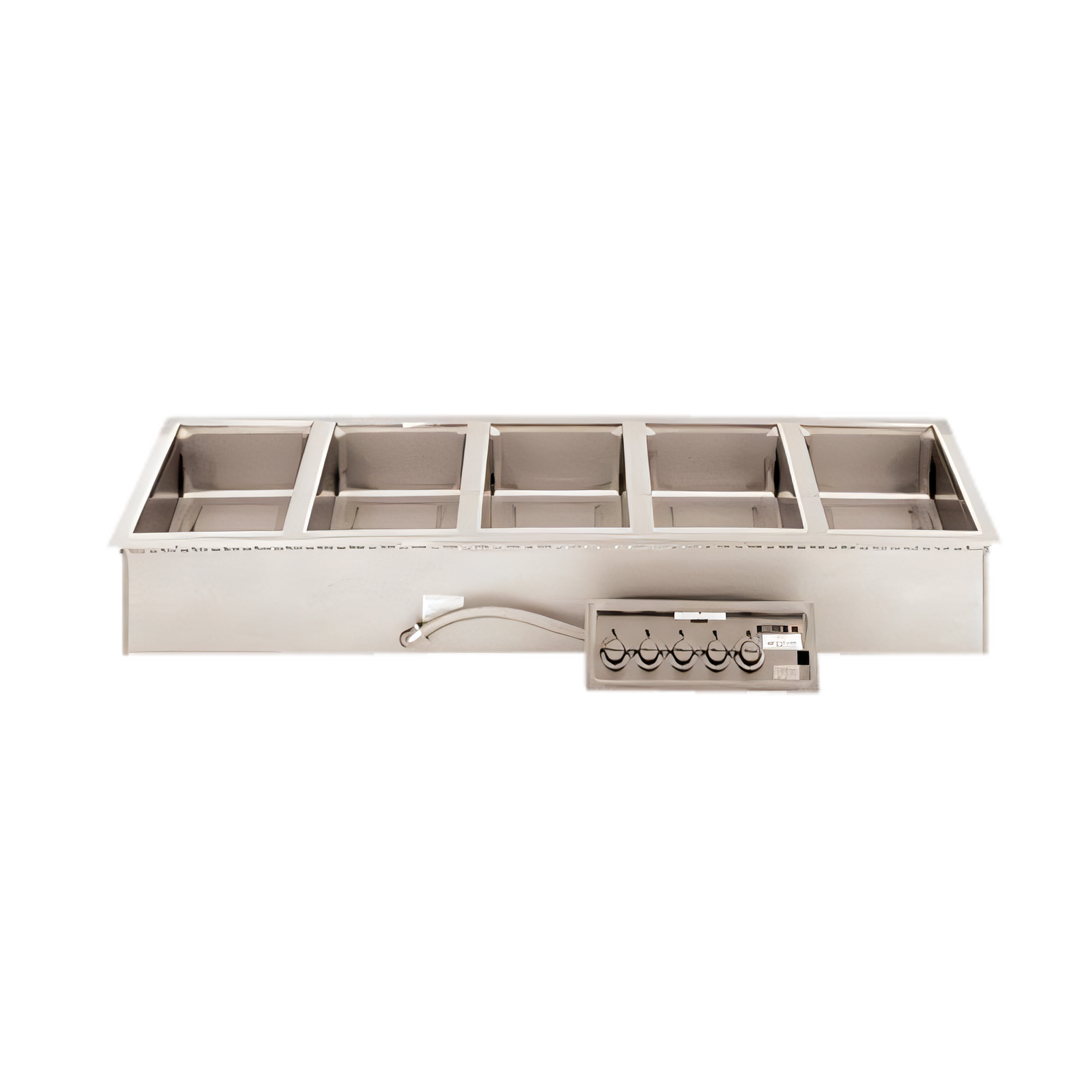

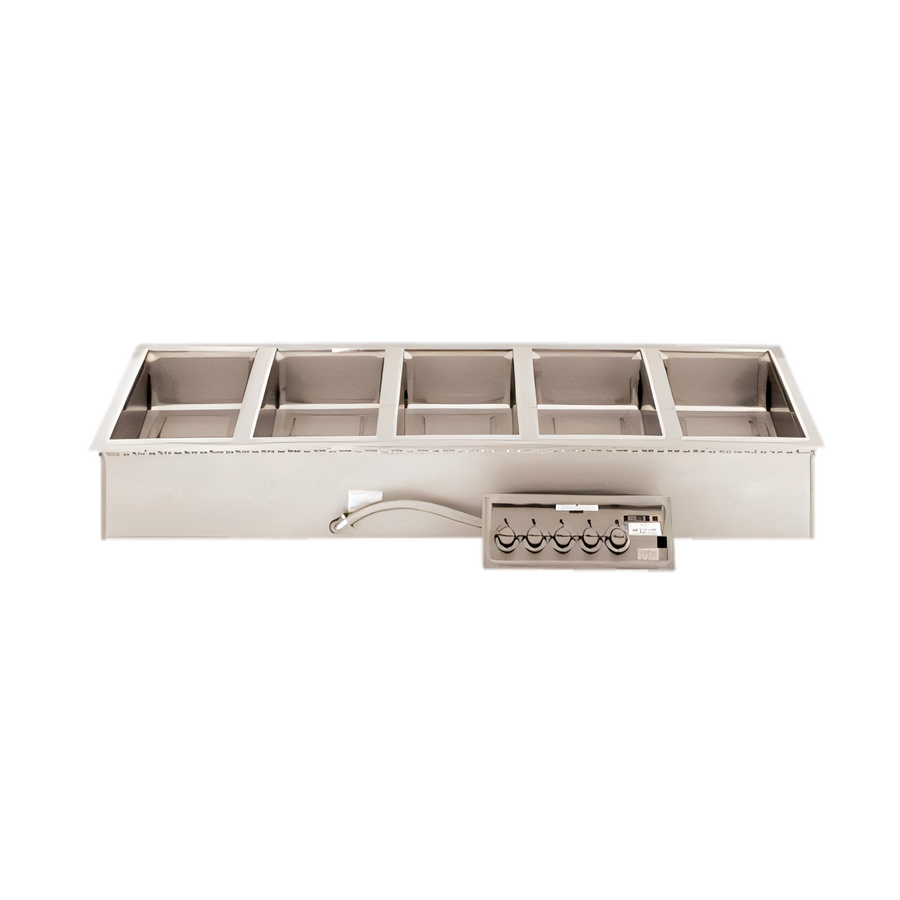

Wells MOD500 Five-Well Drop-In Food Warmer
Top-mount • electric • infinite controls • wet / dryKeep entrées, sides, and sauces hot, fresh, and ready for service. The heavy-duty Wells MOD500 drops neatly into your counter and delivers five independently-controlled wells—ideal for buffets, cafeterias, stadiums, and catering lines that won’t settle for lukewarm.
Why you’ll love it
- Accommodates (5) full-size 12" × 20" pans—or any combination of fractional pans.
- Wet or dry operation (water bath recommended for the most even holding).
- Independent infinite controls with power lights and built-in high-limit safety on each well.
- One-piece stainless top flange and deep-drawn stainless wells for superior durability and easy cleanup.
- Fully-insulated aluminized-steel housing saves energy and protects non-metal countertops.

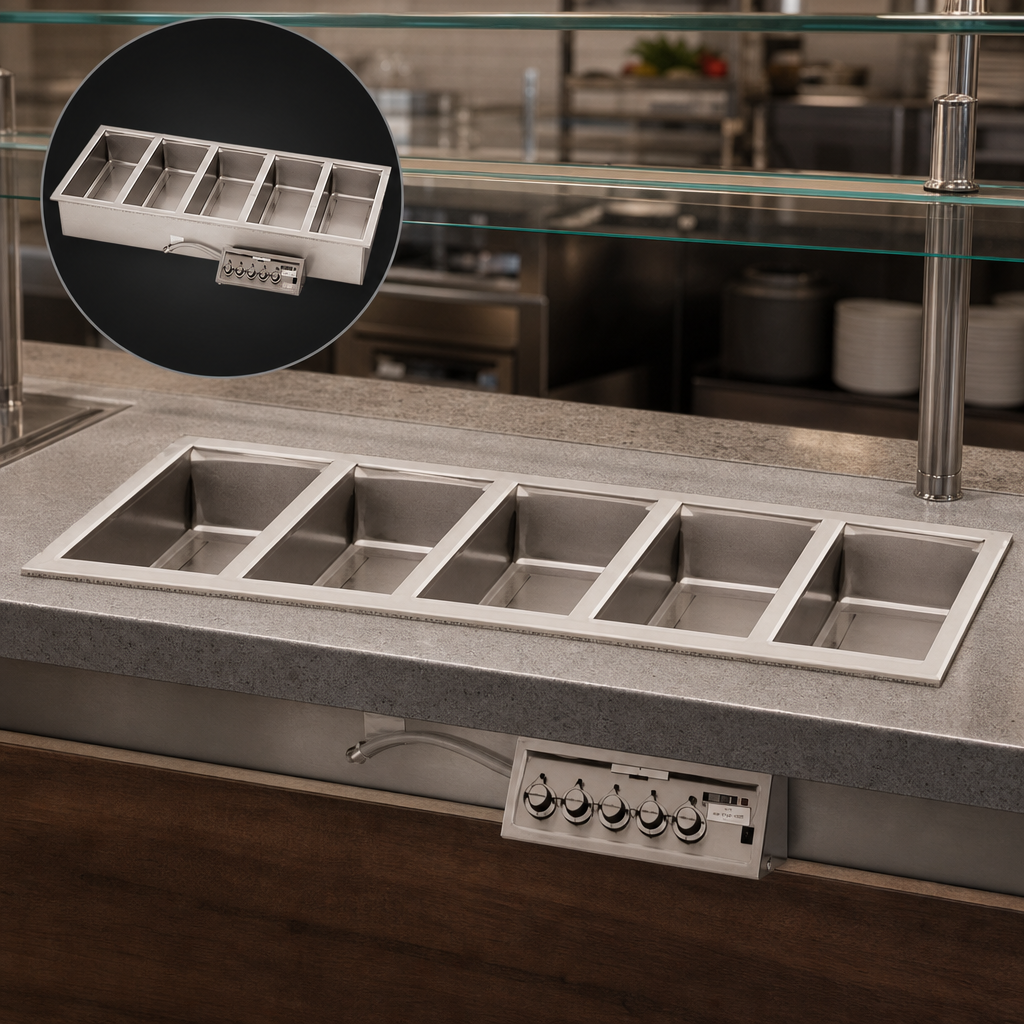

- Factory-installed WellsLok™ tabs make drop-in installation fast and secure.
- Powerful tubular heating elements ensure quick pre-heat and even heat distribution.
- NSF & cULus listed and backed by a 1-year limited parts and labor warranty.
Key specifications
| Model | MOD500 — Infinite controls, no drains |
|---|---|
| Pan capacity | (5) 12" × 20" × 6" pans (or fractional equivalents) |
| Operation | Wet or dry |
| Controls | (5) Infinite control knobs with indicator lights & high-limit protection |
| Electrical | 208/240 V, 3-phase (field-convertible to 1-phase) • 900 W @ 208 V or 1200 W @ 240 V per well |
| Total wattage | 4.5 kW @ 208 V • 6 kW @ 240 V |
| Overall dimensions | 71-1/2" W × 23-5/8" D × 9-3/4" H (1816 × 600 × 248 mm) |
| Control panel size | 18" W × 6-1/4" H (457 × 159 mm) |
| Shipping weight | ≈ 105 lb (47.7 kg) |
| Certifications | NSF, cULus |
| Warranty | 1-year limited parts & labor |
Popular options & accessories
- Adaptor tops for round insets
- Inset pans with lids & 8 oz ladles
- Drain valve kits & screens
- Auto-fill package (single or dual control panels)
- WellsLok™ extension kit for wood countertop installations
Looking for drains, auto-fill, or other configurations? Our equipment specialists can custom-configure a MOD500 to match your exact workflow.
