Wells (Middleby)  |  SKU: MOD-427TDM/AF1

Wells (Middleby) MOD-427TDM/AF1 Steam Tables & Food Wells

$8,379.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

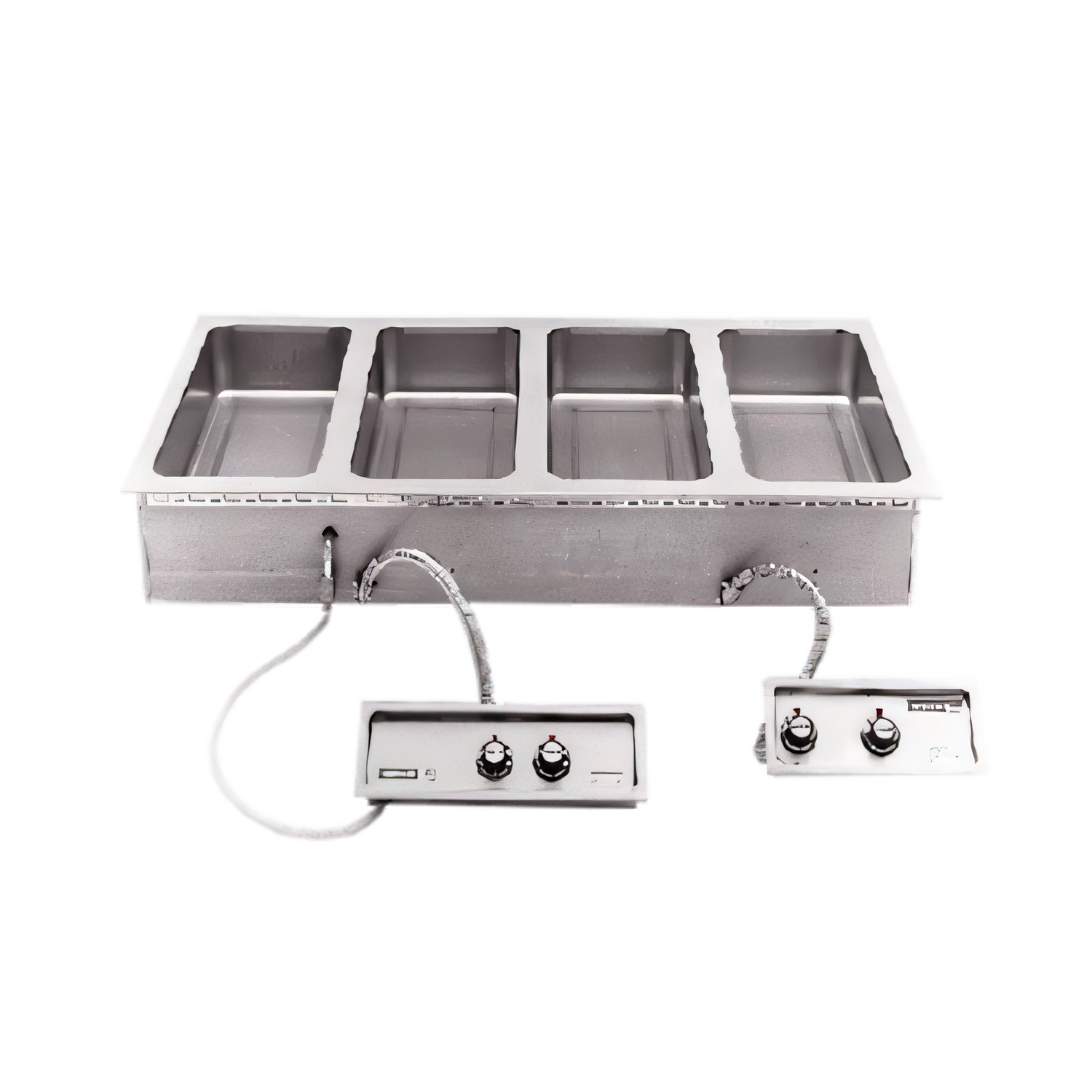

Wells MOD427TDMAF1 Extra-Deep 4-Well Drop-In Food Warmer with Auto-Fill

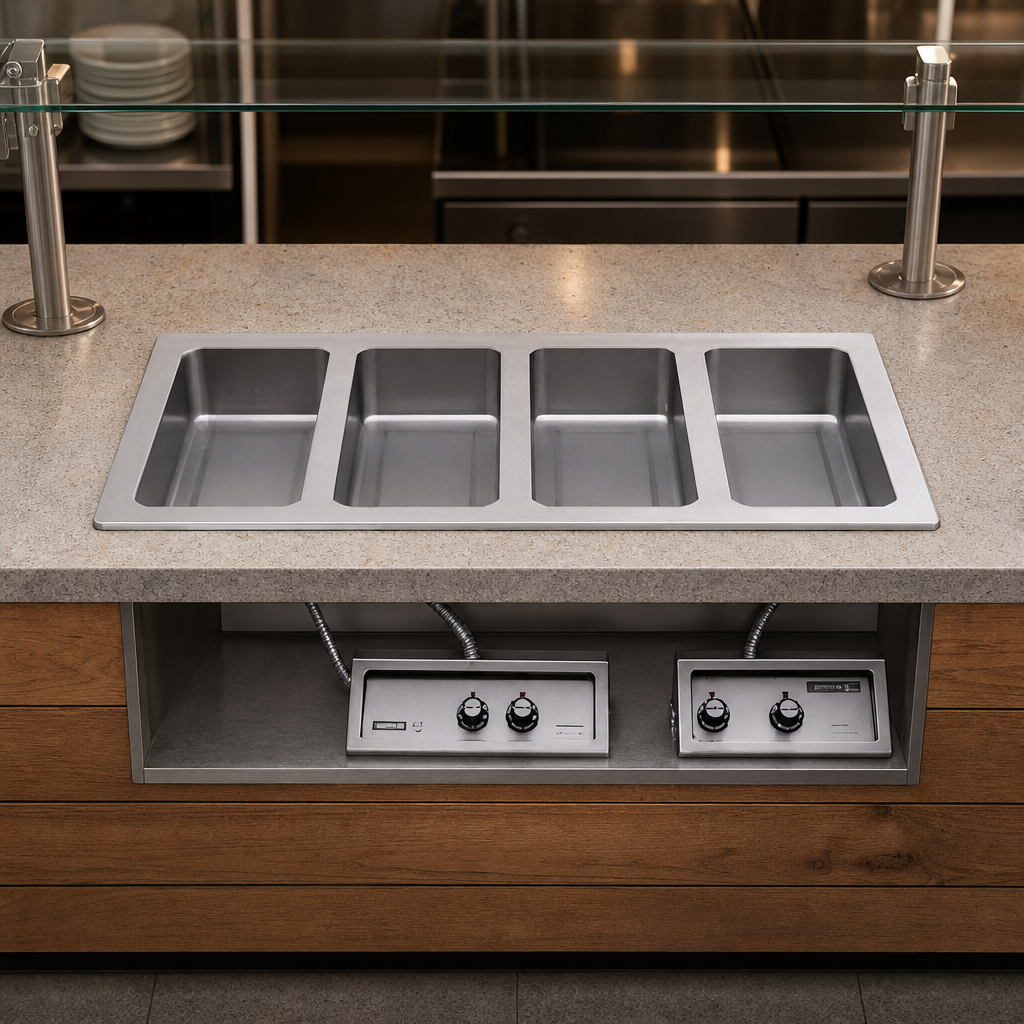

Top-mount • Single control panel • Wet/Dry • 4/3-pan capacity • 208/240 V

Built for demanding food-service operations, the MOD427TDMAF1 keeps entrées, sides and sauces at ideal serving temperatures while reducing labor and energy costs. Four extra-deep wells accept up to sixteen 1/3-size pans, and the integrated Auto-Fill system eliminates manual refilling by maintaining the correct water level automatically.

Key Features

  • Four extra-deep 12" × 27" wells—each holds (4) 1/3-size pans (16 total)
  • Auto-Fill system keeps water at the proper level to protect elements and food quality
  • Wet or dry operation for maximum menu versatility (wet recommended for best results)
  • Single front-mounted control panel with individual recessed thermostatic knobs and “ready” lights
  • ½" manifold drain with one lever valve quickly empties all wells at once
  • Heavy-gauge stainless steel wells & top flange; fully insulated aluminized-steel housing for energy efficiency
  • Powerful tubular heating elements deliver rapid pre-heat and even heat distribution
  • High-limit safety shuts off heat to prevent overheating
  • WellsLok™ mounting hardware included for fast, secure installation
  • NSF & cULus listed; meets stringent sanitation and electrical standards
  • 1-year limited parts & labor warranty

Specifications

Model MOD427TDMAF1
Well count / size 4 wells, 12" × 27" (305 × 686 mm) each
Pan capacity (4) 1/3-size pans per well (16 total) or equivalent fractional pans
Overall dimensions 57.5" W × 30.56" D × 9.75" H (1461 × 776 × 248 mm)
Control panel width / height ≈ 35" W × 6.25" H (889 × 159 mm)
Electrical 208/240 V, 3-phase (field convertible to 1-phase); 1,240 W @ 208 V / 1,650 W @ 240 V per well
Drain ½" manifold with single valve
Water connection Required for Auto-Fill (potable cold water, see manual)
Shipping weight 124 lb (56 kg)
Certifications NSF, cULus
Warranty 1-year limited parts & labor
Important: Auto-Fill units must be plumbed to a potable water supply and installed according to local codes. Review the installation manual before cutting countertop openings or making utility connections.

Looking for a different configuration? The Wells MOD series is available in 1- to 5-well models—contact us for details.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

57.5in

Depth

30.57in

Shipping Weight

124.0lbs

Pan Capacity

(4) 4/3 size (12" x 27")

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Food Warmer, top-mount, built-in, electric, auto-fill, (4) openings to hold (4) 1/3 size pans, manifold drains with one valve, wet/dry operation, single control panel, thermostatic control, stainless steel interior, aluminum steel housing, cULus
