Wells (Middleby) MOD-427TDM/AF Steam Tables & Food Wells
Description

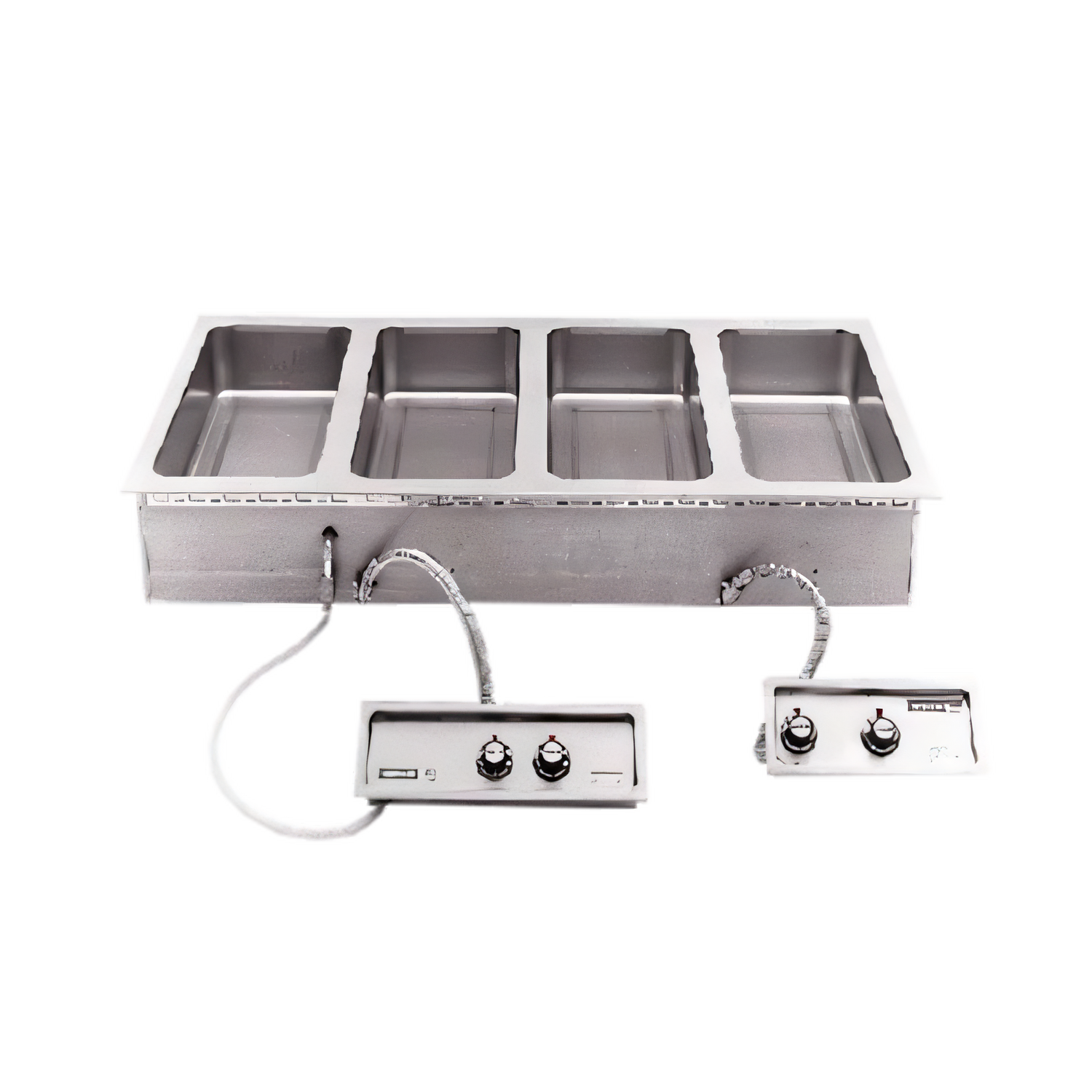

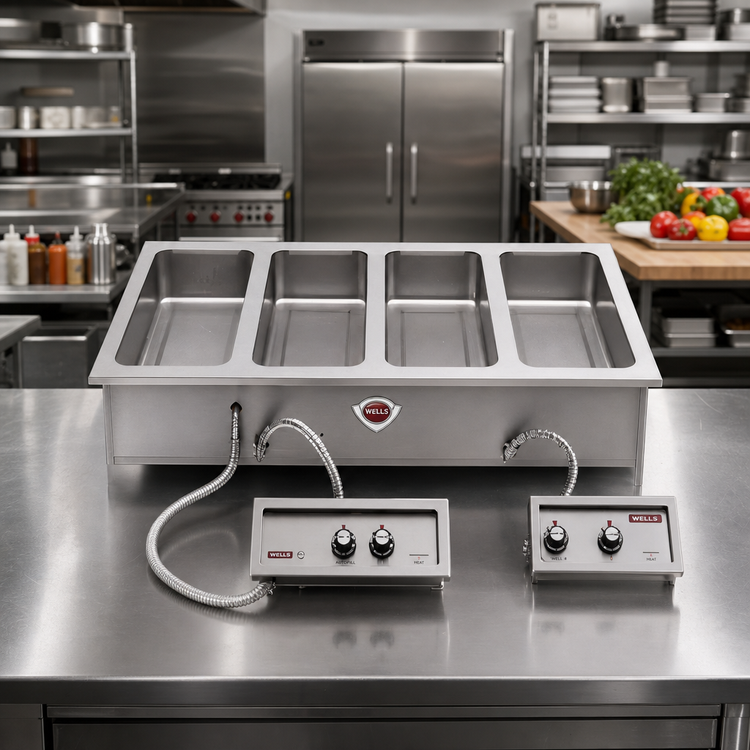

Wells MOD427TDMAF Extra-Deep Drop-In Food Warmer, Auto-Fill, 4-Well

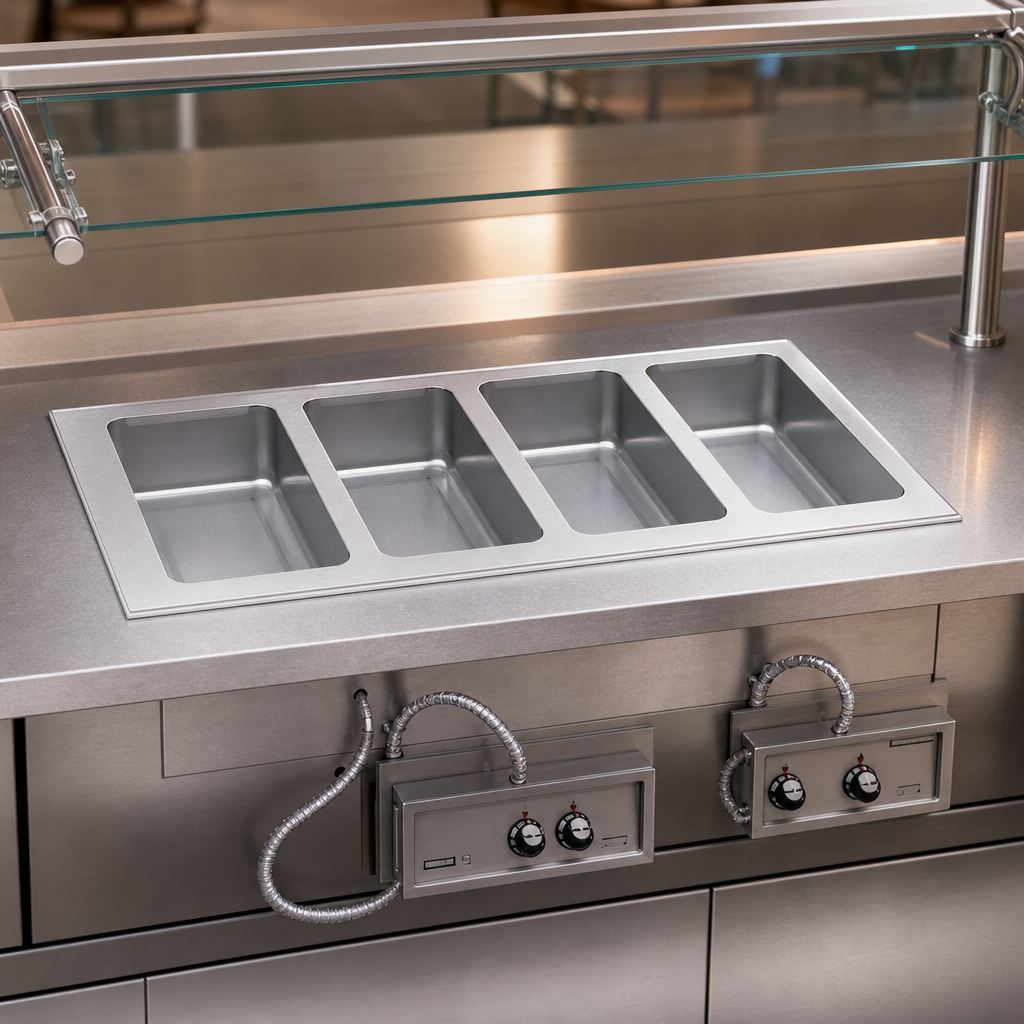

Top-mount | Electric | Dual control panels | Holds up to 16 third-size pansKeep high-volume menu items hot, fresh and within arm’s reach. The Wells MOD427TDMAF is a heavy-duty, extra-deep drop-in warmer that installs flush in virtually any counter and maintains precise, NSF-approved holding temperatures for wet or dry applications—all shift long.
Key Features
- Four 12" × 27" wells – each fits 4 × 1/3-size pans or equivalent fractional pans
- Wet or dry operation (wet recommended for optimum food quality)
- Auto-Fill system maintains water level automatically (½" NPT water connection required)
- Dual thermostatic control panels with individual temperature dials & “ready” lights for every well
- Fully insulated stainless wells for faster pre-heat and superior heat retention
- ½" manifold drain with single front valve for quick, mess-free cleanup
- High-limit safety prevents overheating and element burnout
- One-piece stainless steel top flange & wells; rugged aluminized steel exterior housing
- WellsLok mounting hardware included for easy drop-in installation
- NSF listed & cULus certified
- Backed by a 1-year limited parts & labor warranty
Specifications
| Model | MOD427TDMAF (Dual Control Panel) |
|---|---|
| Capacity | 4 wells / up to 16 × 1/3-size pans (pans sold separately) |
| Heat Control | Thermostatic, independent per well |
| Electrical | 208/240 V, 3-Phase (field convertible to 1-Phase), 1,240/1,650 W per well – hardwired |
| Water Connection | ½" NPT for Auto-Fill |
| Drain | ½" manifold with single lever valve |
| Overall Dimensions | 57.5" W × 30.56" D × 9.75" H |
| Control Panel Sizes | 14" W & 18" W × 6.25" H |
| Shipping Weight | ≈ 112 lb / 51 kg |
| Construction | Stainless steel wells & flange, aluminized steel housing |
| Certifications | NSF, cULus |
Optional Accessories
- Stainless adapter tops for round insets
- 1/3-size inset pans & lids
- 8 oz soup ladle
- Drain screen or extension kit
- 72" wiring harness
