Wells (Middleby) MOD-400TDM Steam Tables & Food Wells
Description

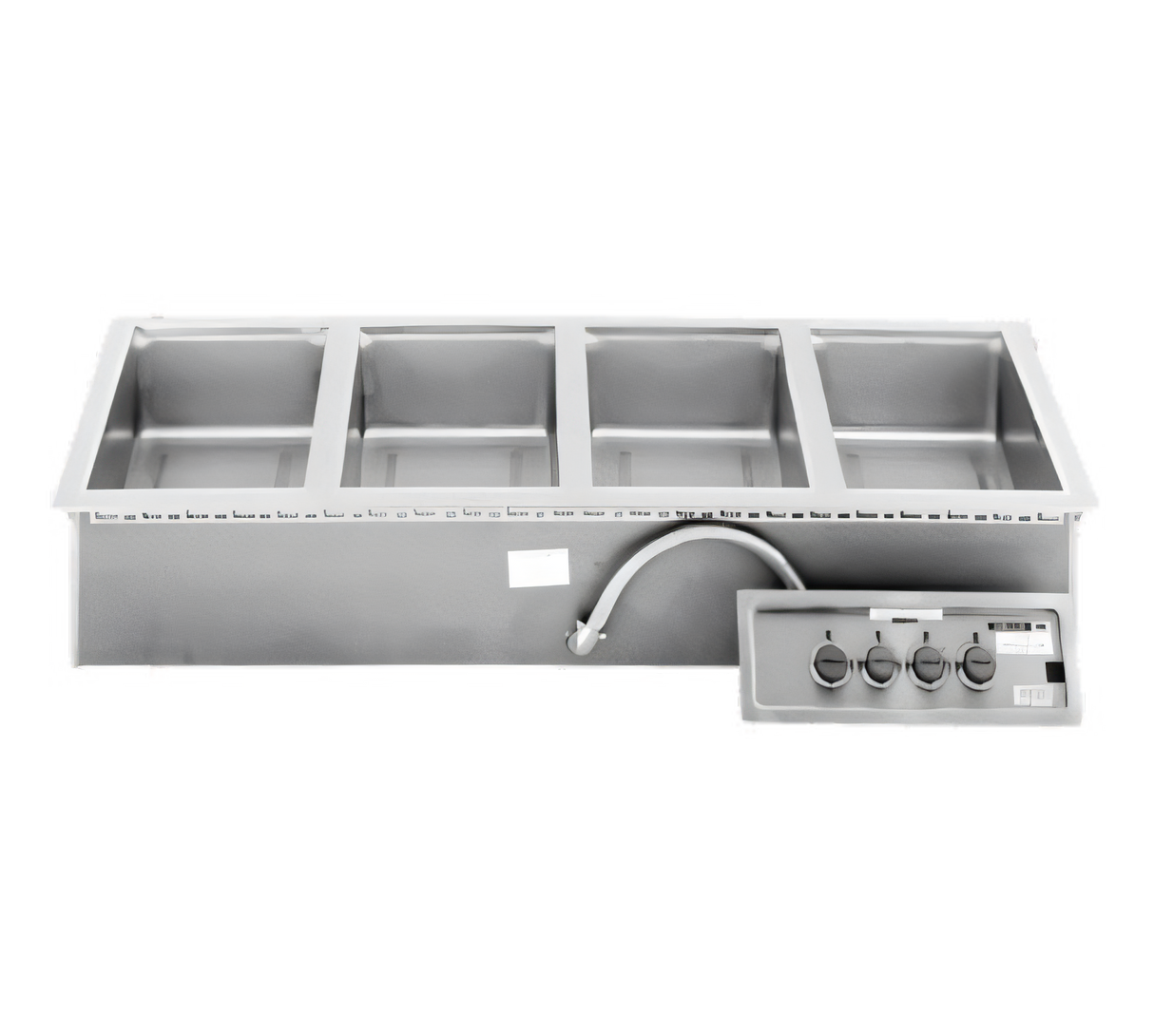

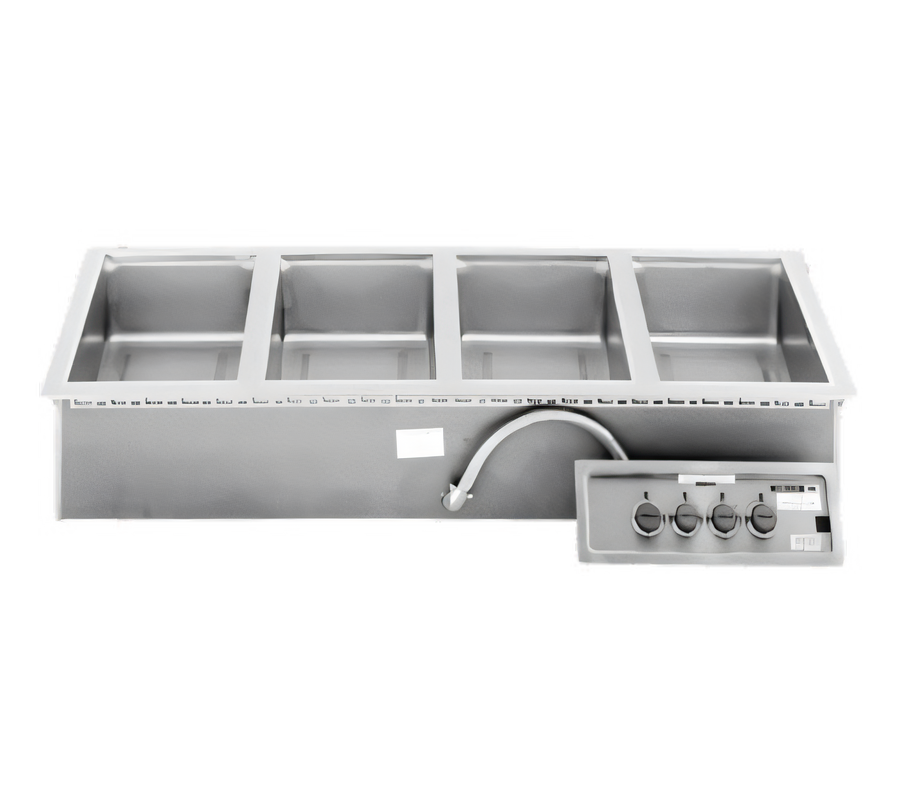

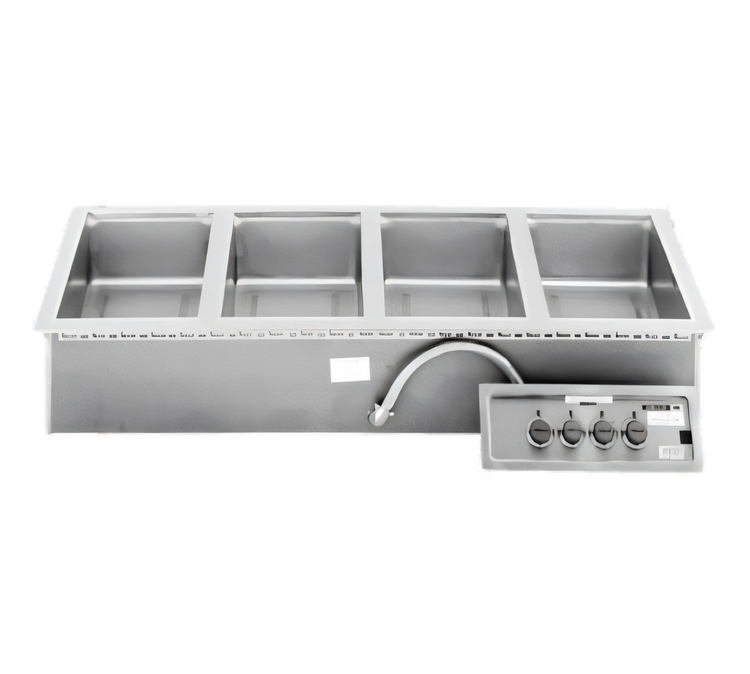

Wells MOD400TDM Four-Well Drop-In Food Warmer
Middleby Essentials • cULus Listed • NSF CertifiedEngineered for demanding commercial kitchens, the Wells MOD400TDM is a heavy-duty, top-mount food warmer that keeps entrées, sides and sauces at safe serving temperatures—without sacrificing flavor or texture. Four deep-drawn 12" × 20" wells, individual thermostatic controls and a single-valve manifold drain system deliver the speed, precision and simplicity busy operators need.
Why You’ll Love It
- Holds four full-size (12" × 20") pans—or any fractional combination.
- Wet or dry operation (wet recommended) for maximum menu versatility.
- Individual thermostatic controls with temperature-ready indicator lights for each well.
- Manifold drain system with one easy-access ½" NPT valve—no more lifting hot pans to empty water.
- One-piece stainless steel top flange & heavy-gauge stainless wells for exceptional durability.
- Fully insulated aluminized-steel housing conserves energy and protects non-metal counter surfaces.
- Powerful tubular heating elements provide rapid pre-heat and even heat distribution.

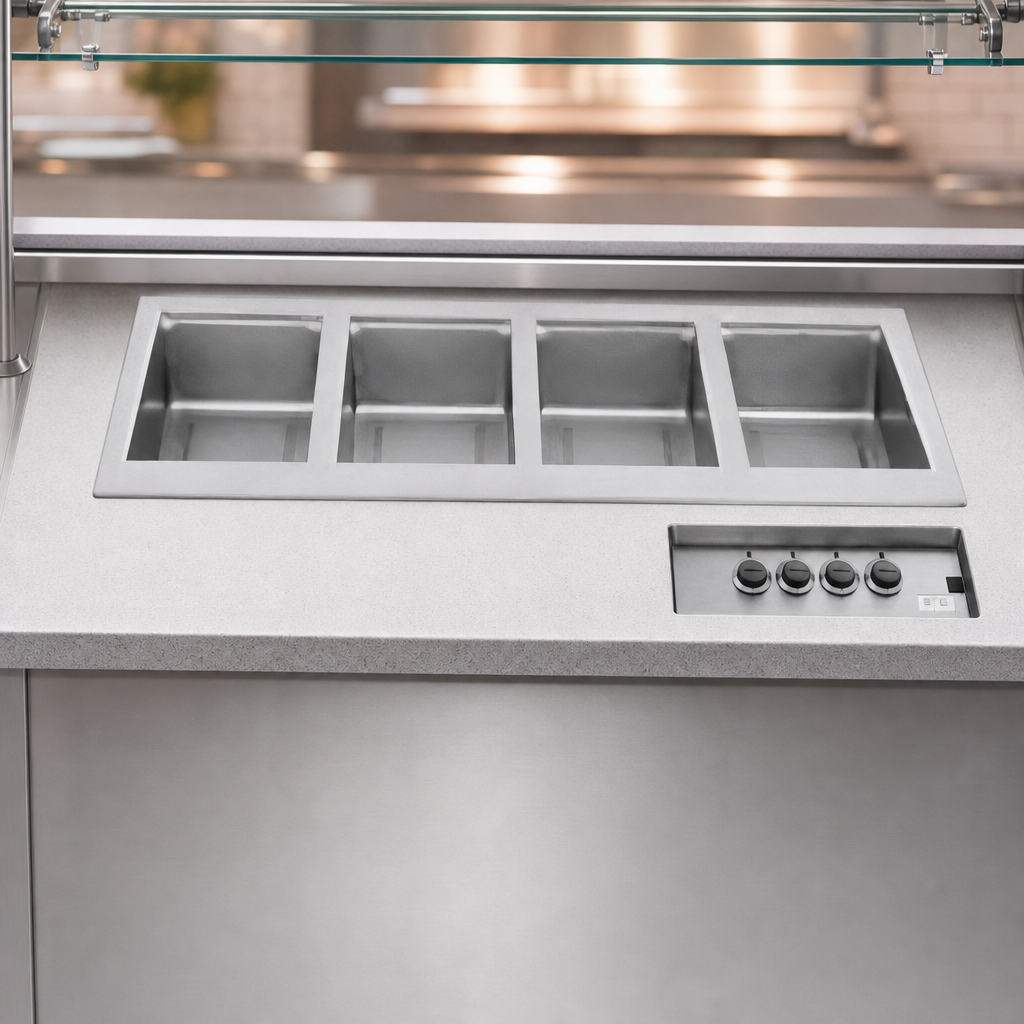

- WellsLok™ mounting hardware speeds up drop-in installation; no field fabrication required.
- High-limit safety protection prevents overheating and extends component life.
- Ships 3-phase and is field-convertible to single-phase to fit almost any operation.
At-a-Glance Specs
| Model | MOD400TDM |
|---|---|
| Capacity | 4 × 12" × 20" full-size pans (or fractional equivalents) |
| Operation | Wet or Dry (wet recommended for best results) |
| Control Type | Individual thermostatic knobs with ready lights & high-limit safety |
| Drainage | Integrated ½" manifold drain with single external valve |
| Electrical | 208 V, 4.96 kW (1,240 W per well) or 240 V, 6.60 kW (1,650 W per well) | Ships 3 Ø, convertible to 1 Ø |
| Overall Dimensions | 57 ½" W × 23 ⅝" D × 9 ¾" H (1,461 × 600 × 248 mm) |
| Control Panel Width | 6 ¼" (159 mm) |
| Shipping Weight | 112 lb (50.9 kg) |
| Certifications | cULus, NSF |
| Warranty | 1-Year Limited Parts & Labor |
Popular Accessories (Sold Separately)
- Adaptor tops for round insets
- Pan insets with lids & 8 oz soup ladles
- Drain valve extension kit & drain screens
- WellsLok™ extension kits for wood counter installations
Note: Always consult the installation manual for cut-out dimensions, electrical requirements and water-line guidelines. Specifications subject to change without notice.
