Wells (Middleby)  |  SKU: MOD-400TDM/AFS

Wells (Middleby) MOD-400TDM/AFS Steam Tables & Food Wells

$7,000.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

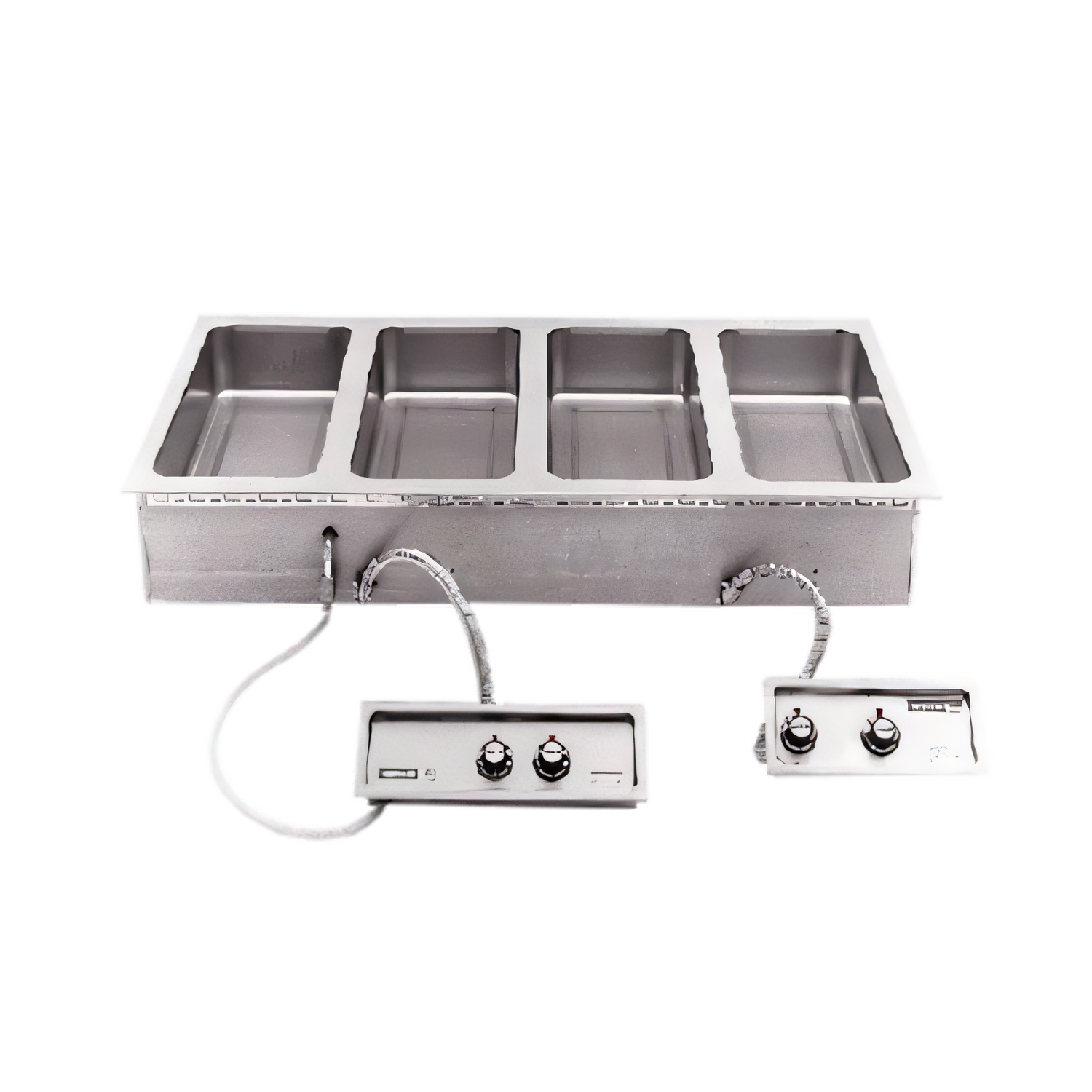

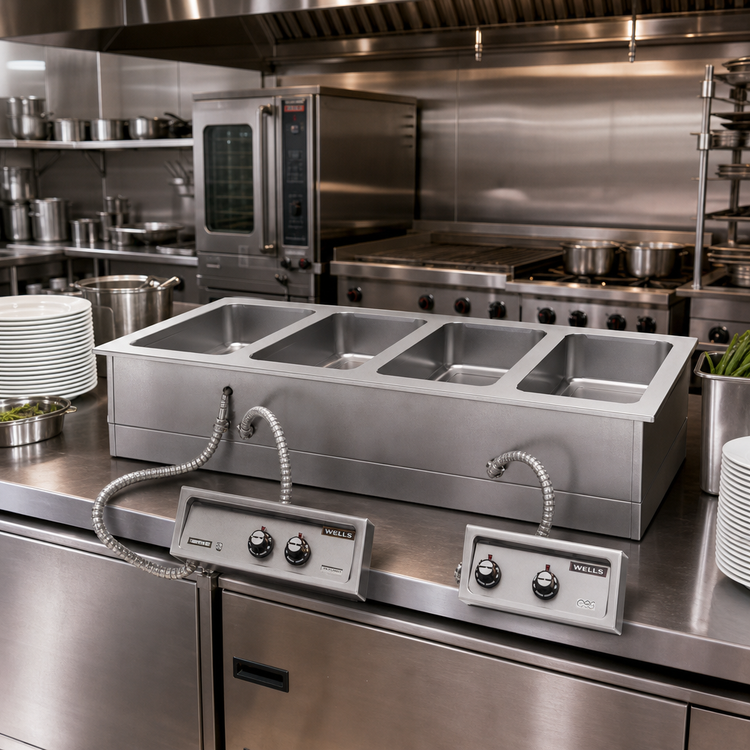

Wells MOD400TDMAFS 4-Well Auto-Fill Drop-In Food Warmer

Top-mount • Single control panel • Wet/Dry operation

Designed for high-volume serving lines, the Wells MOD400TDMAFS keeps four full-size pans of food at perfect holding temperature— automatically maintaining water level, preventing scorching and trimming labor time between rushes.

Why you’ll love it

  • Holds four 12 ″ × 20 ″ full-size pans (or fractional equivalents).

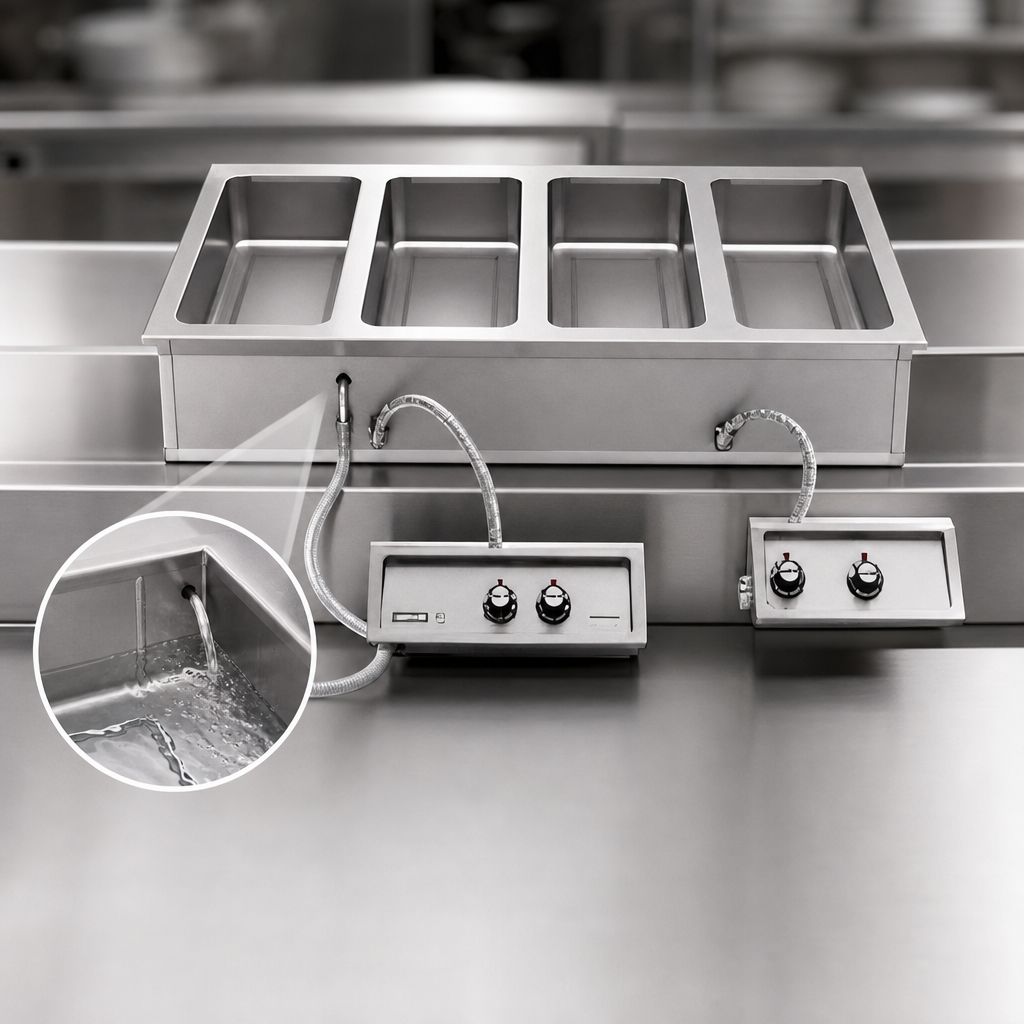

  • Automatic water-fill sensor keeps wells topped up without staff intervention.
  • 1/2 ″ NPT manifold drain with a single front valve makes end-of-day cleanup fast and safe.
  • Thermostatic control delivers precise, even heat whether you run the wells wet or dry.
  • Tubular heating elements under each well speed pre-heat and recovery.
  • Fully insulated stainless/aluminized-steel housing cuts heat loss—perfect for wood or solid-surface counters.
  • One-piece stainless steel flange & deep-drawn wells stand up to daily commercial use.
  • Ships 3-phase but field converts to 1-phase for flexible installation.
  • NSF & cULus listed; backed by a 1-year limited parts & labor warranty.

Specifications

Model MOD400TDMAFS
Pan capacity (4) 12 ″ × 20 ″ wells
Control type Thermostatic, single recessed panel
Operation Wet or Dry
Water system Auto-fill · ¼ ″ NPT external connection
Drain ½ ″ NPT manifold with 1 front valve
Total wattage 4,960 W @ 208 V | 6,600 W @ 240 V
Electrical 208 V/240 V, 3-Ø (field convertible to 1-Ø)
Overall width 57 ½ ″ (1,461 mm)
Overall depth 23 ⅝ ″ (600 mm)
Overall height 9 ¾ ″ (248 mm)
Control panel 14 ″ W × 7 ¾ ″ H (356 × 197 mm)
Shipping weight ≈ 112 lb (50.9 kg)
Certifications NSF, cULus
Warranty 1-Year limited parts & labor
Important: Auto-fill models require a potable cold-water supply (minimum 30 PSI). Review the installation manual for complete plumbing and electrical guidelines before cutting your counter.

Looking for adaptor tops, lids or extended wiring? Let us know and we’ll configure the MOD400TDMAFS to match your serving line perfectly.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

57.5in

Depth

23.63in

Shipping Weight

112.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Food Warmer, top-mount, built-in, electric, auto-fill, (4) 12" x 20" openings with manifold drains with one valve, wet/dry operation, single control panel, thermostatic control, stainless steel interior, insulated aluminum steel housing, cULus
